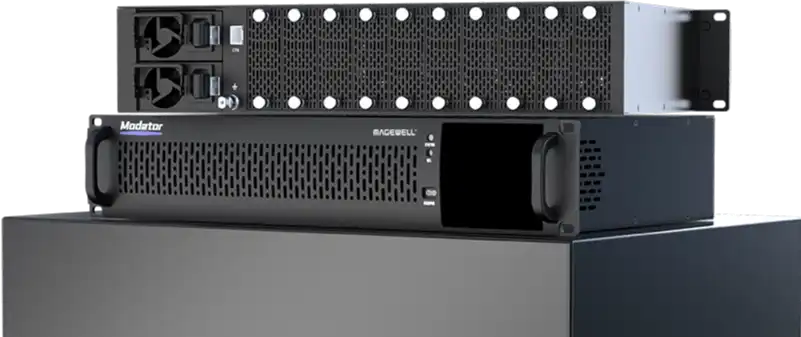

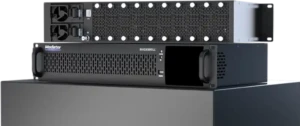

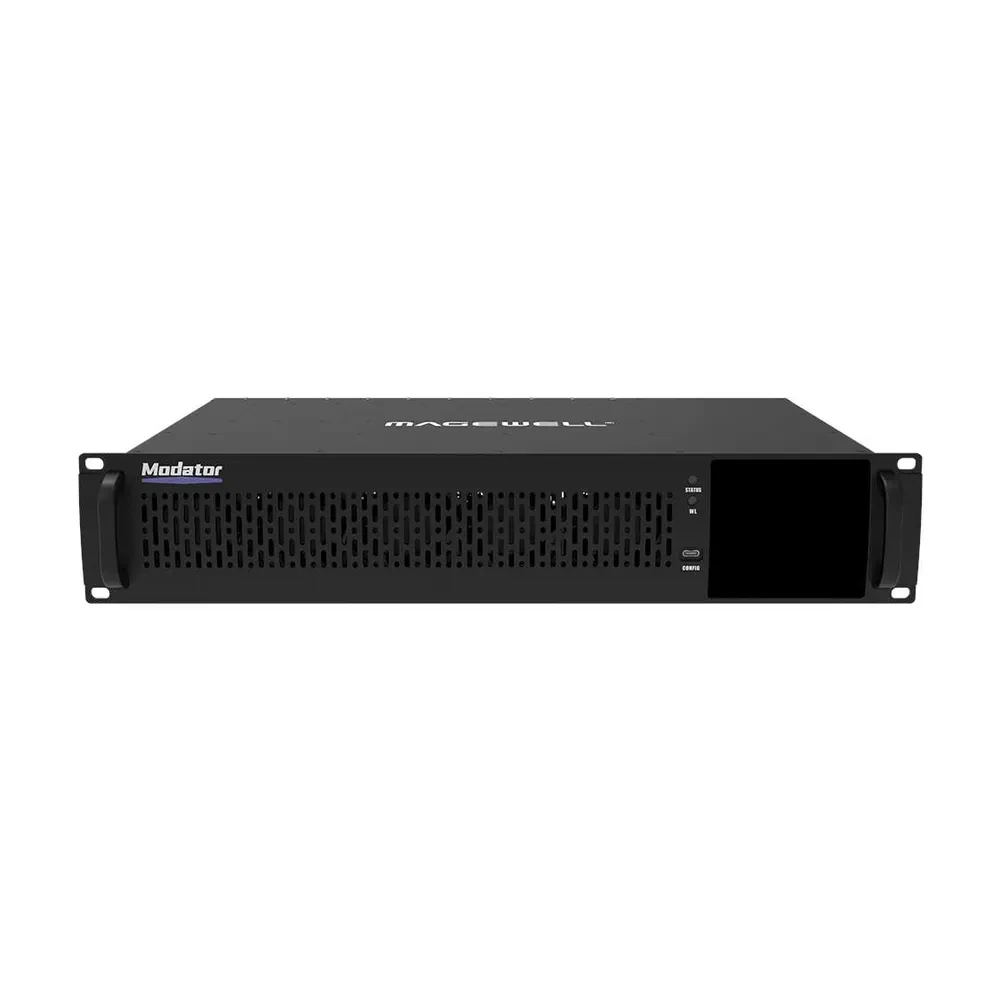

MAGEWELL Modator Chassis 2U

Name: MAGEWELL Modator Chassis 2U
SKU: MW-B52200000T
Availability: BackOrder

MW-B52200000T

€ 2 160.00

€ 2 678.40 (incl. VAT)

Delivers the robust capabilities of Magewell’s IP encoders and decoders in a scalable, high-density form factor.

Modular Architecture
Supports up to 10 independent Magewell encoder or decoder modules
(e.g., NDI® to HDMI, HDMI to IP, SDI to IP, etc.)
24/7 Reliability
Dual hot-swappable power supplies and optimized cooling for continuous operation
Front-Panel Touchscreen
Configure network settings, power modules, and monitor real-time system status via the built-in LED touchscreen (91mm x 81mm)
Network & Integration
1x Gigabit Ethernet (RJ45)
USB-C for setup
Browser-based UI and HTTP API for remote management and automation

Saatavuus: Saatavuus: OTA YHTEYTTÄ While delivery is generally within 1-2 weeks, please contact us for an estimated delivery time.

Asiantuntijoidemme hyväksymä

Huippulaatuinen tuote

Toimitus tai nouto

Kuvaus
Löysitkö paremman hinnan?

Features:

Each installed encoding or decoding module independently provides high-quality conversion
Dual power supplies and optimized heat dissipation for 24/7 operation
LED touch screen provides status monitoring of the chassis and modules

Interface:

10* Modator slots supporting hot swap of Magewell modules
1* RJ45 1000Mbps Ethernet port
1* USB Type-C port for configuration

Power and Power Consumption:

Hot-swappable dual power supply
AC: 100-240V, 7-3.5A, 60/50Hz
Maximum power consumption of the chassis: 200W
Maximum power consumption of each slot: 20W

Other:

Touchscreen dimension: 91mm x 81mm
Browser-based web user interface for the chassis and modules information
HTTP-based APIs for custom integration
1-year warranty
Form factor: 482mm (L) x 275mm (W) x 88mm (H)
