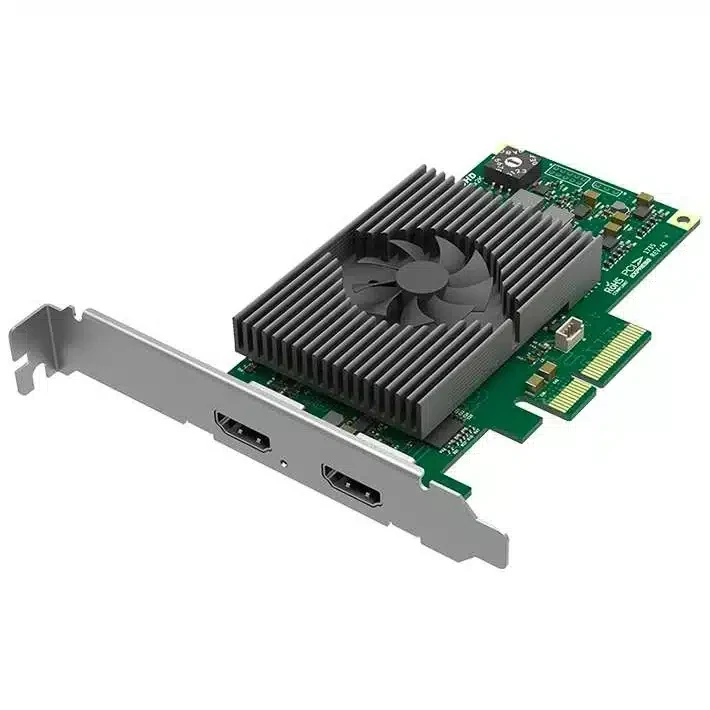

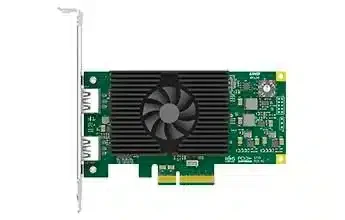

MAGEWELL Pro Capture HDMI 4K Plus LT – 11152

The Magewell Pro Capture HDMI 4K LT, is a High-performance, low-latency PCIe capture card with extra bandwidth features. This Single-channel 4K PCI card captures HDMI signals with embedded audio and supports input resolution up to 4096×2160 pixels. This card also allows you to Loop-through a HDMI + embedded audio signal to an external screen.

These models automatically detect the input signal format, delivering reliable, high-quality video and audio capture for video professionals, systems integrators and OEM developers. Moreover, All Pro Capture models feature Magewell’s FPGA-based, zero-CPU-usage video processing, providing high-quality up/down conversion and image adjustments without consuming valuable host system processing power.

Pro Capture devices support Windows, Linux and macOS operating systems – including x86, x64 & ARM architectures – and offer extensive compatibility with popular streaming, live production, web conferencing, lecture capture, collaboration, and medical imaging software. The Magewell MWCapture SDK provides both generic interfaces and custom APIs across OS platforms, helping developers leverage the full capabilities of Magewell capture hardware and achieve lower-latency, multi-stream capture and AV synchronization across multi-channel or even multiple capture cards.

• Capture HDMI + embedded audio
• Loop-through HDMI + embedded audio
• Extra bandwidth

Full specification sheet
