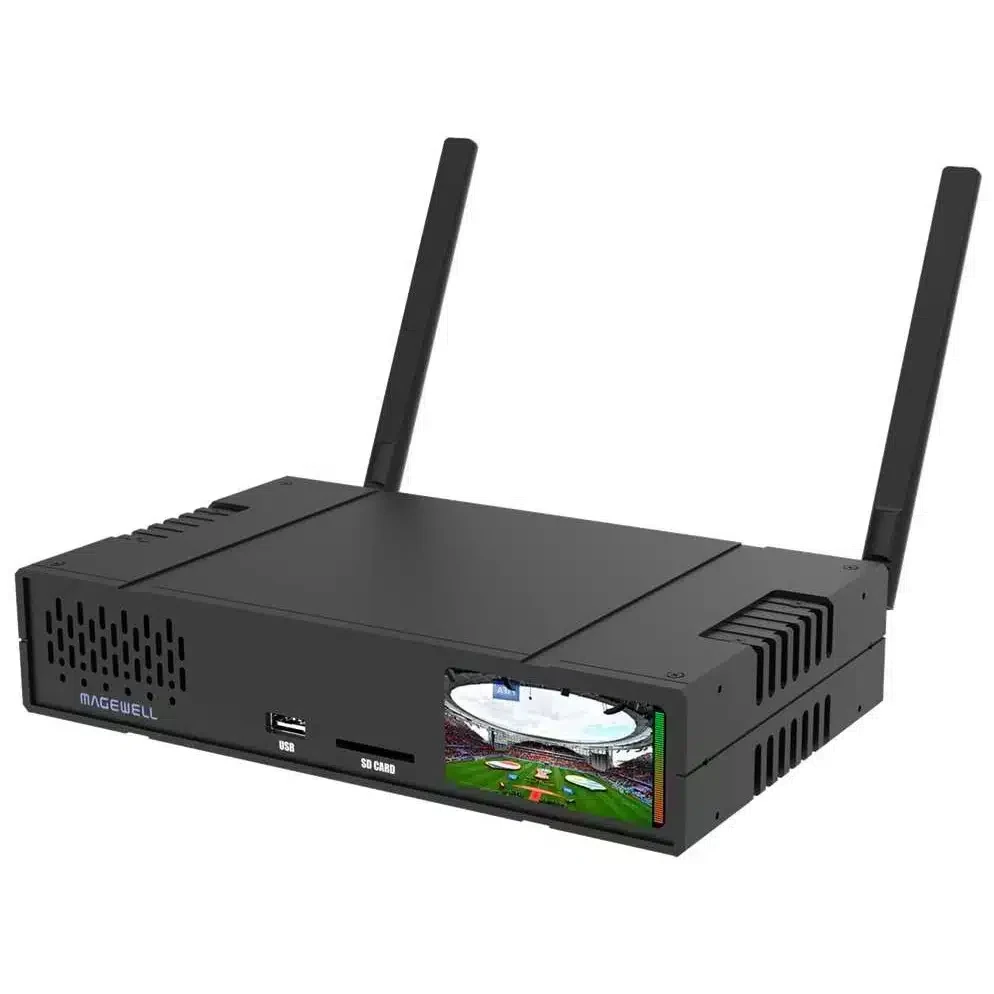

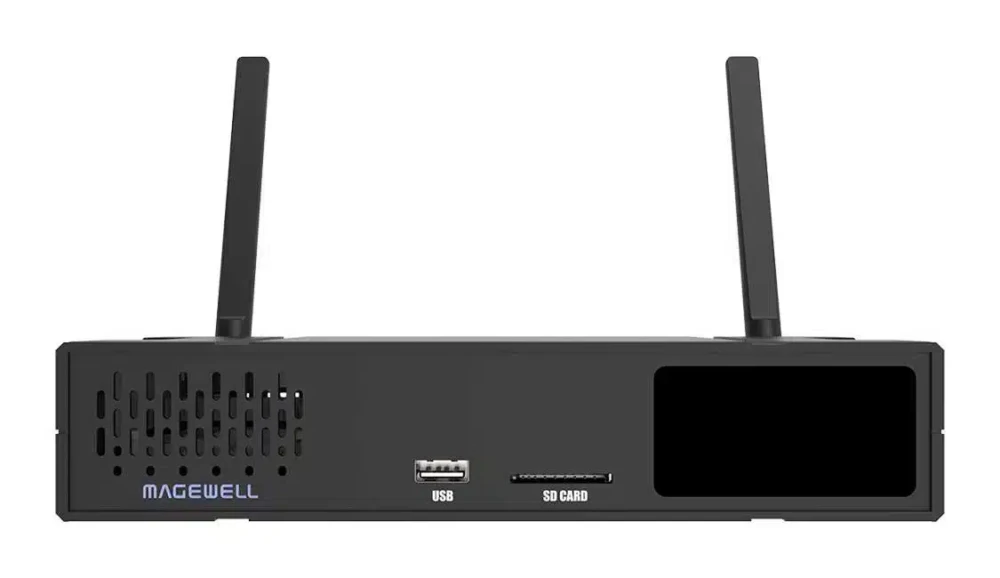

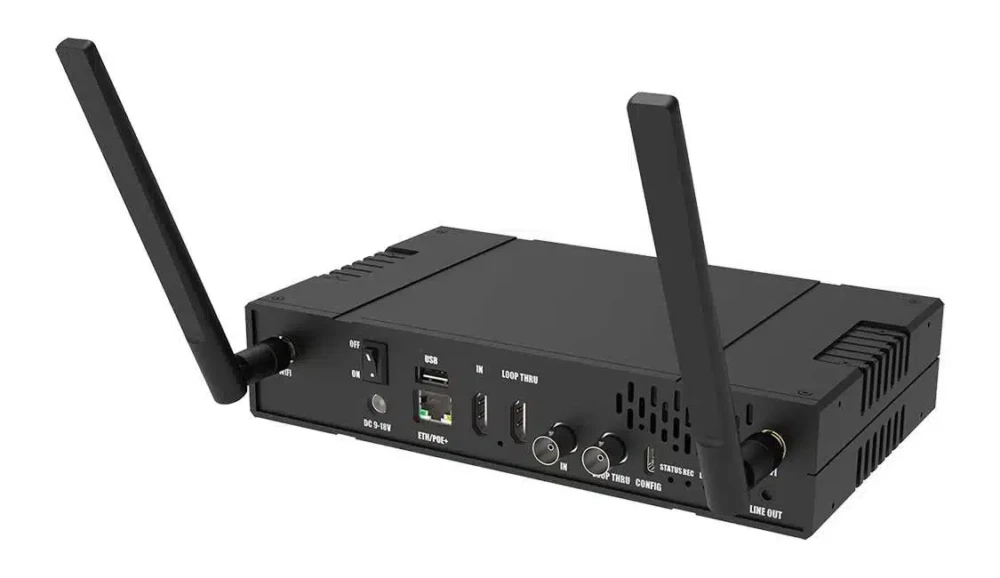

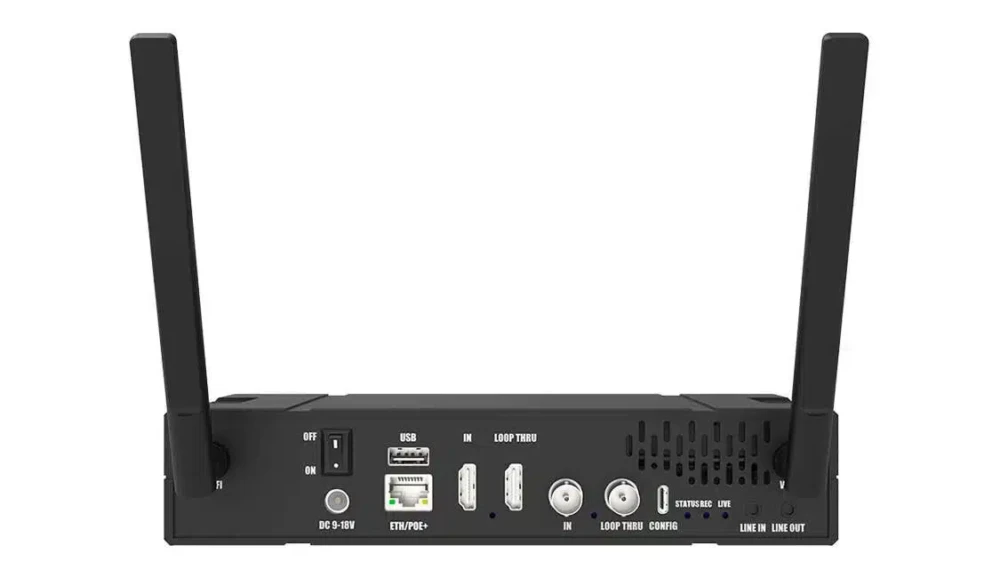

MAGEWELL Ultra Encode AIO – 53130

The Magewell Ultra Encode AIO is an Advanced single-channel encoder for Streaming and Recording. This encoder is able to encode and stream one live HDMI 4K 30fps input or Full HD 3G-SDI 60fps input. The picture-in-picture and other overlay options allow users to merge both HDMI and SDI inputs for a combined output.

This powerful encoder offers simultaneous multi-protocol streaming up to eight channels at a bitrate of 32Mbps per stream. Users can choose from a wide variety of formats such as, H.264, H.265 (HEVC), NDI®|HX 2, and NDI®|HX 3. Delivery protocols include RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU’s ISSP technology.

• Mixes video from the HDMI and SDI inputs (picture-in-picture or side-by-side) into a combined output.
• Allow simultaneous 6 sessions over multiple streaming protocols at 32Mbps per session.
• Variable bitrate control (VBR) – set different bit rates to different streams
• High-efficiency, low-bandwidth NDI®|HX 3 supported.
• Supports streaming and recording schedule.

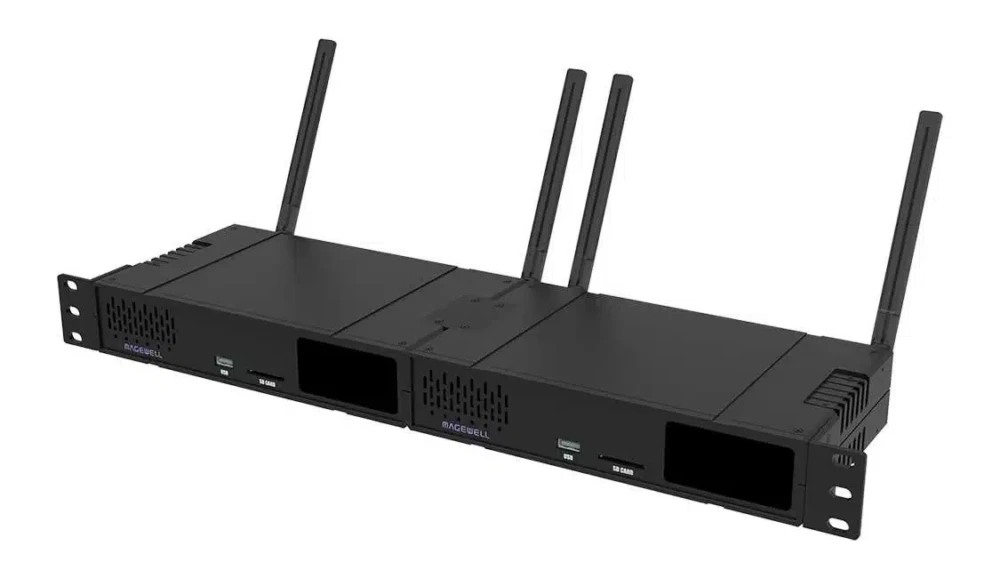

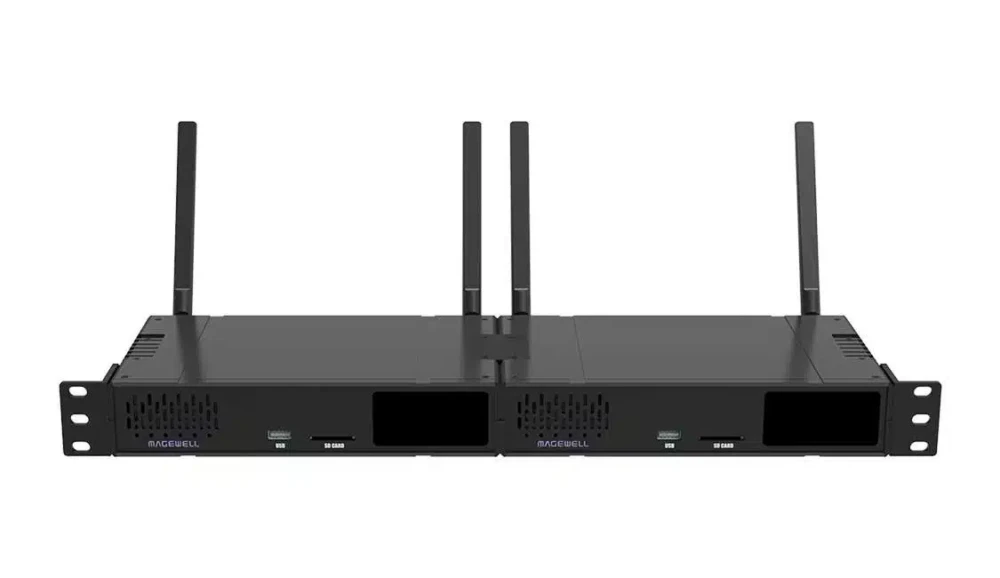

• Rack-mountable form factor.

Full specification sheet
