MAGEWELL Ultra Stream SDI – 53020

Standalone box for recording and streaming, 1-channel SDI with loop-through out, plus extra audio mic in/out.

• Record and stream 1 channel of 3G SDI + embedded audio + microphone
• Loop-through SDI + embedded audio

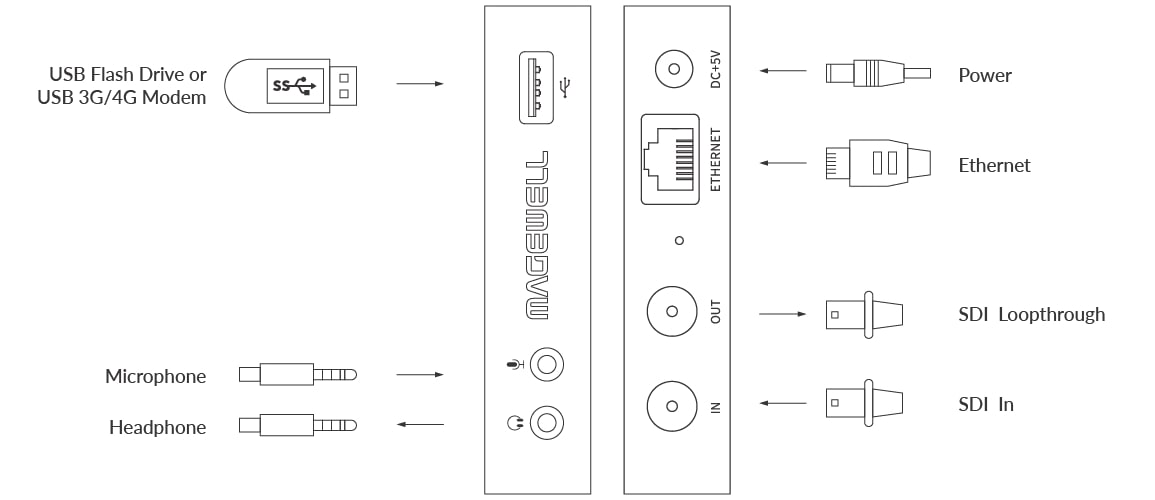

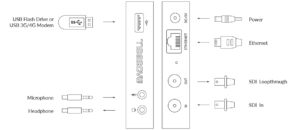

Specifications and Features

Interface

Video input interface

• SDI x1
• Support up to 2048x1080p60

Loop-through Interface

• SDI x1
• Support up to 2048x1080p60

USB Interface

• USB 2.0 for USB Flash Drive or USB 3G/4G Modem

Audio Interface

• Headphone Output
• Microphone Input

Network Interface

• Ethernet Interface

Power Interface

• DC+5V

H.264 Encoding

Main Stream

• Up to 1080p60

Sub Stream

• Up to 720p30

HEVC Encoding

Record to MP4

Streaming Server

Preset

• Youtube Live, Twitch, Facebook Live

Custom

• RTMP

Software Environment

Mobile OS

• Android, iOS

Firmware

• Upgradable firmware

Others

LED Indicators

2-year warranty

Internal SD card
