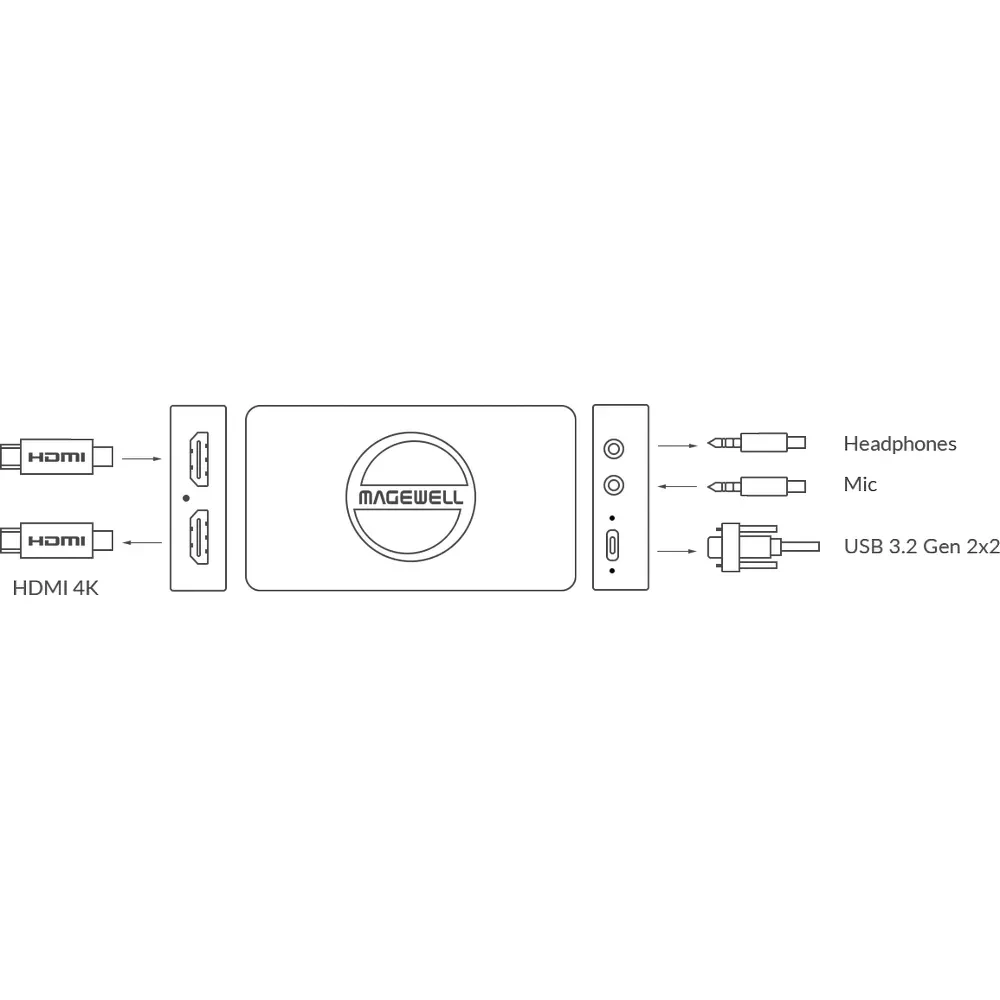

Interface:

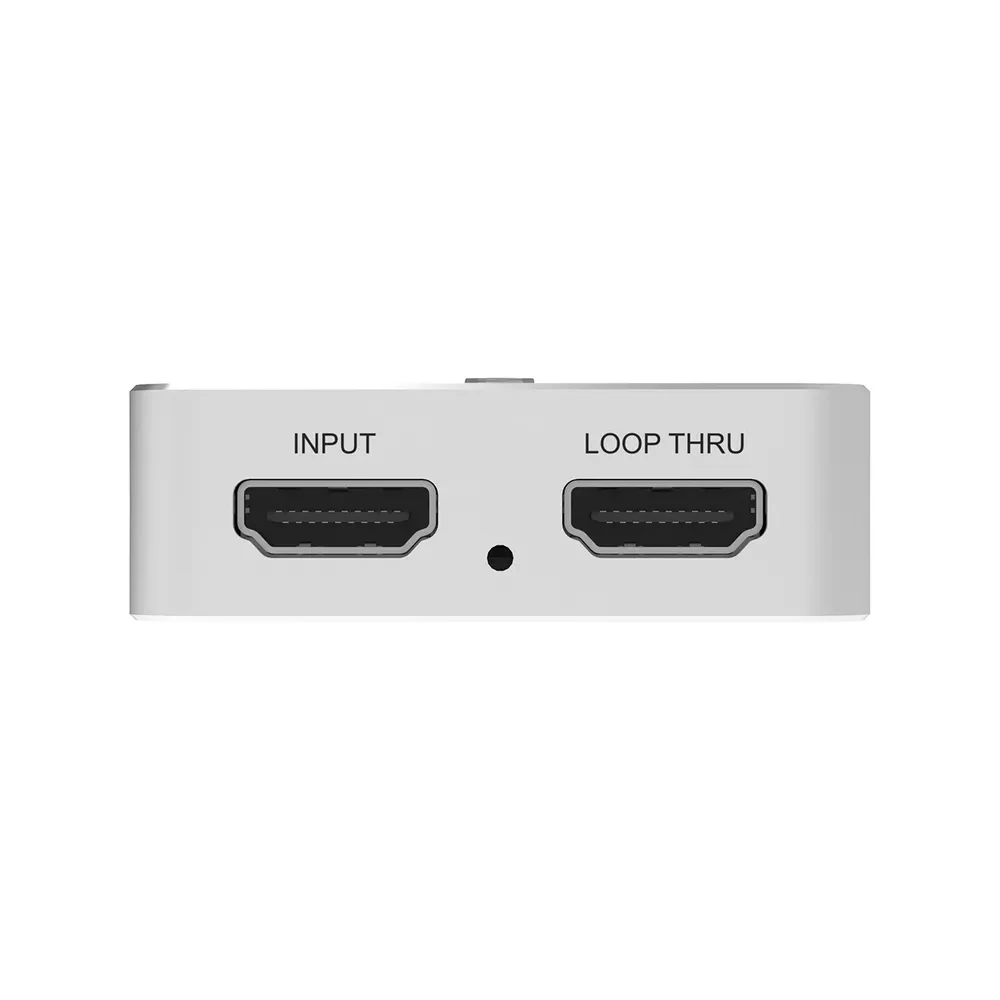

- One HDMI input + embedded audio
- One HDMI loop-through
- Support input & loop-through resolution up to 4096×2160 60fps 4:4:4

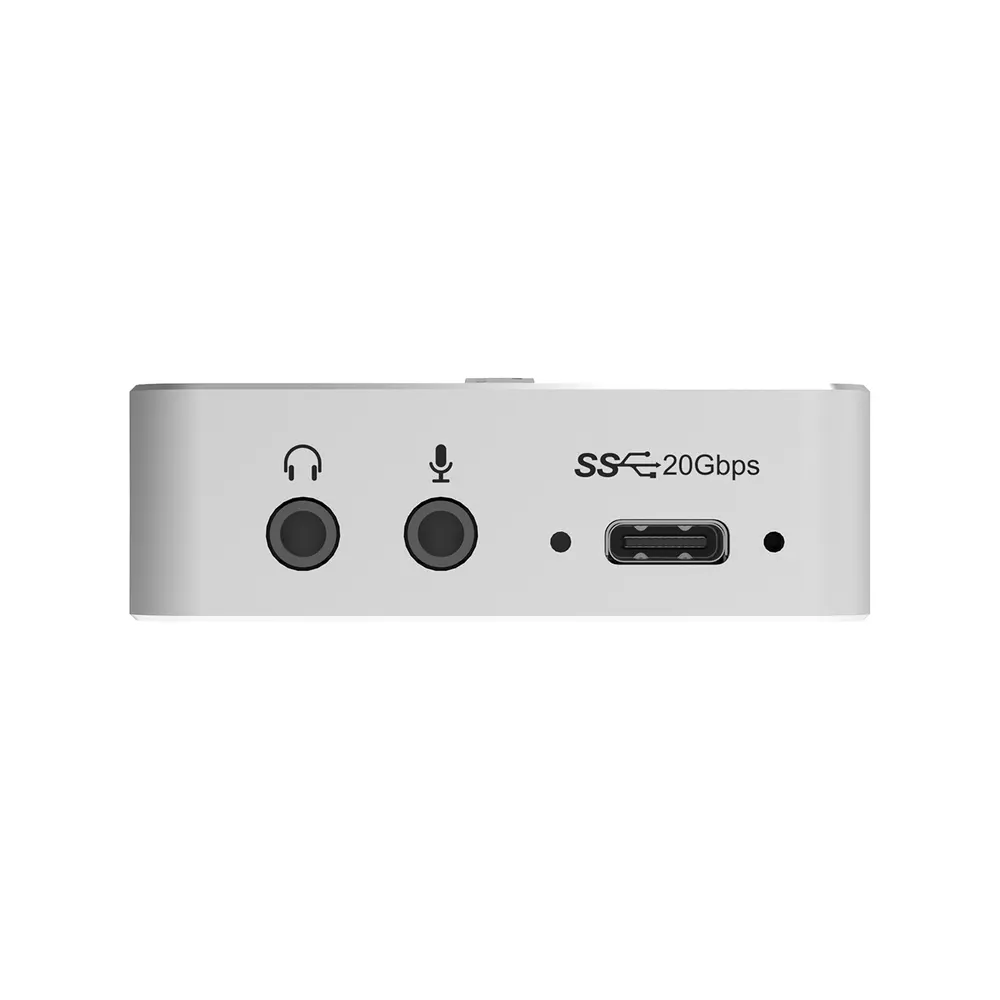

- Audio Input/Output Interface: 3.5mm audio jack for microphone/ headphones
- Host Interface: USB 3.2 Gen 2×2 up to 20G throughput
OS:
- Windows, Linux, Mac, Chrome
Capture format:
- Support capture resolutions up to 4096×2160
- Support capture frame rates up to 240fps
- Capture 2-channel embedded audio or analog audio via 3.5mm microphone interface
Included Software:
- USB Capture Utility, Capture Express, etc.
Others:
- Auto detection of input signal format
- Integrate the functions of a USB audio card. Playback audio via 3.5mm headphones interface
- Windows, Linux and Mac SDK
- Continuously work for 24hx7
- LED status indicator
- 3-year warranty
- Form factor: (98.1 mm x 56.8 mm x 18 mm)
