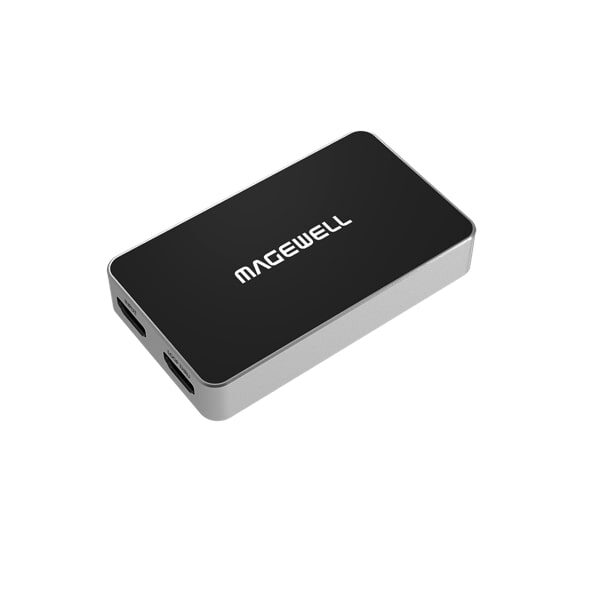

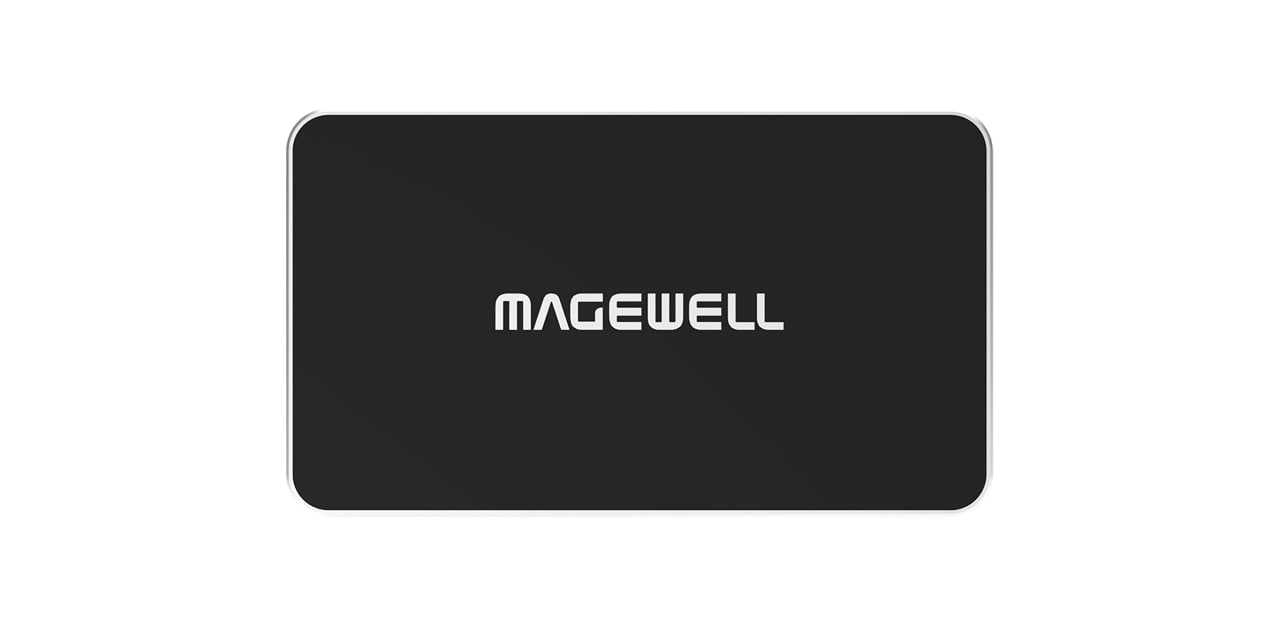

MAGEWELL USB Capture HDMI Plus – 32040

USB 3.0 DONGLE, 1-channel HDMI with loop-through out, plus extra audio mic in / out. Plug and Play. Windows/Linux/Mac. 3-year warranty.

• Capture HDMI + embedded audio
• Loop-through HDMI signal
• Audio input via mic
• Extract HDMI embedded audio output via headphones
• Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S. Automatically down scale to 2K for recording or streaming

Specifications and Features

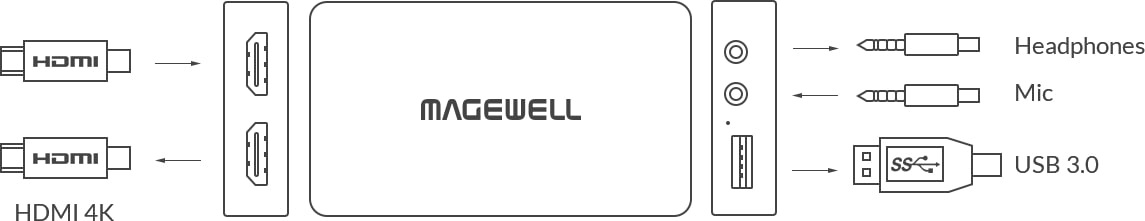

Interface

Input Interface

• HDMI x1
• Support input resolution up to 4096×2160 pixels

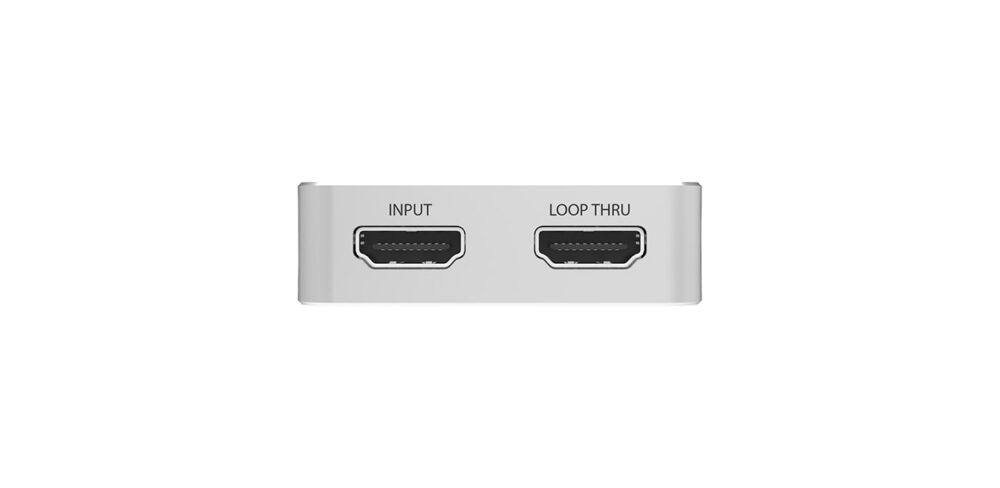

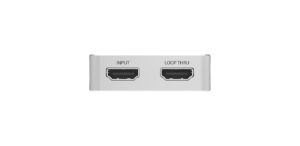

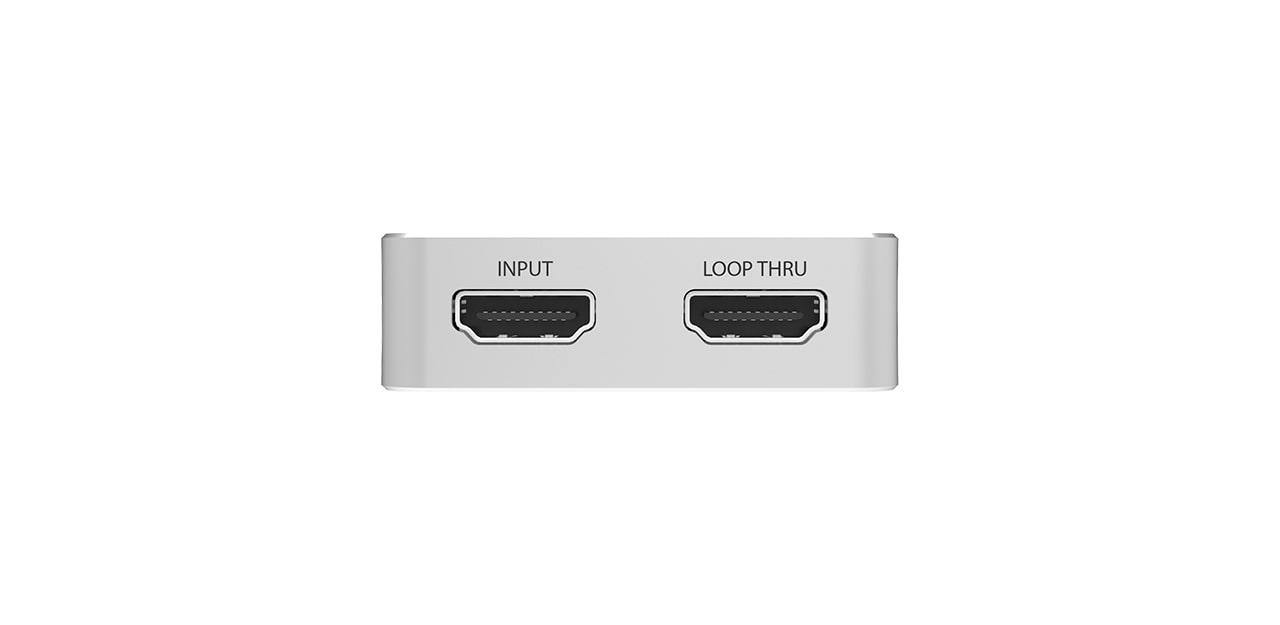

Loop-through Interface

• HDMI x1
• Support loop-through resolution up to 4096×2160 pixels

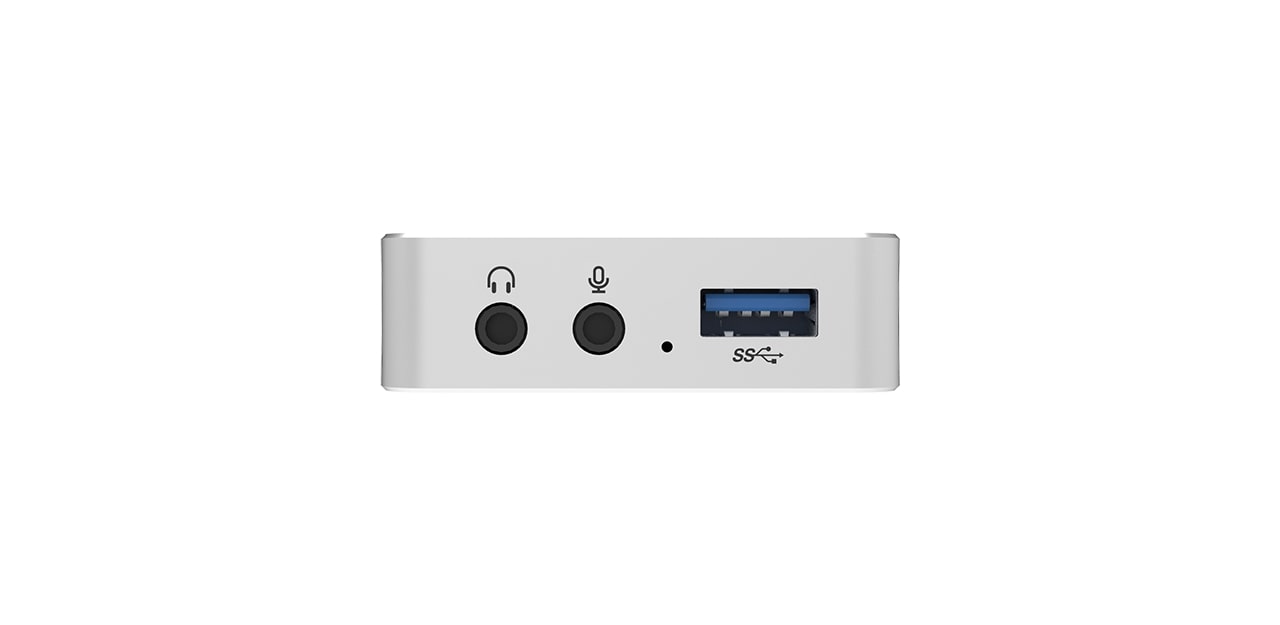

Audio Input Interface

• 3.5 mm audio jack for microphone

Audio Output Interface

• 3.5 mm audio jack for headphones

Host Interface

• USB 3.0



Video Engine

8-bit video processing

Deinterlace

Cropping

Color Adjustment

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

Mirror and Flip



Signal Detection & Support

Auto Detection of Input Signal Format

3D HDMI



Software Environment

OS

• Windows, Linux, Mac, Chrome OS

Driver and Firmware

• Driver Free, Updatable Firmware

Included Software

• USB Capture Utility, Capture Express

Compatible Software

• 50+

Others

Multiple Devices on One Host

Continuously Work for 24hx7

High-speed Memory

LED Status Indicator

Windows&Linux SDK

3-year Warranty
