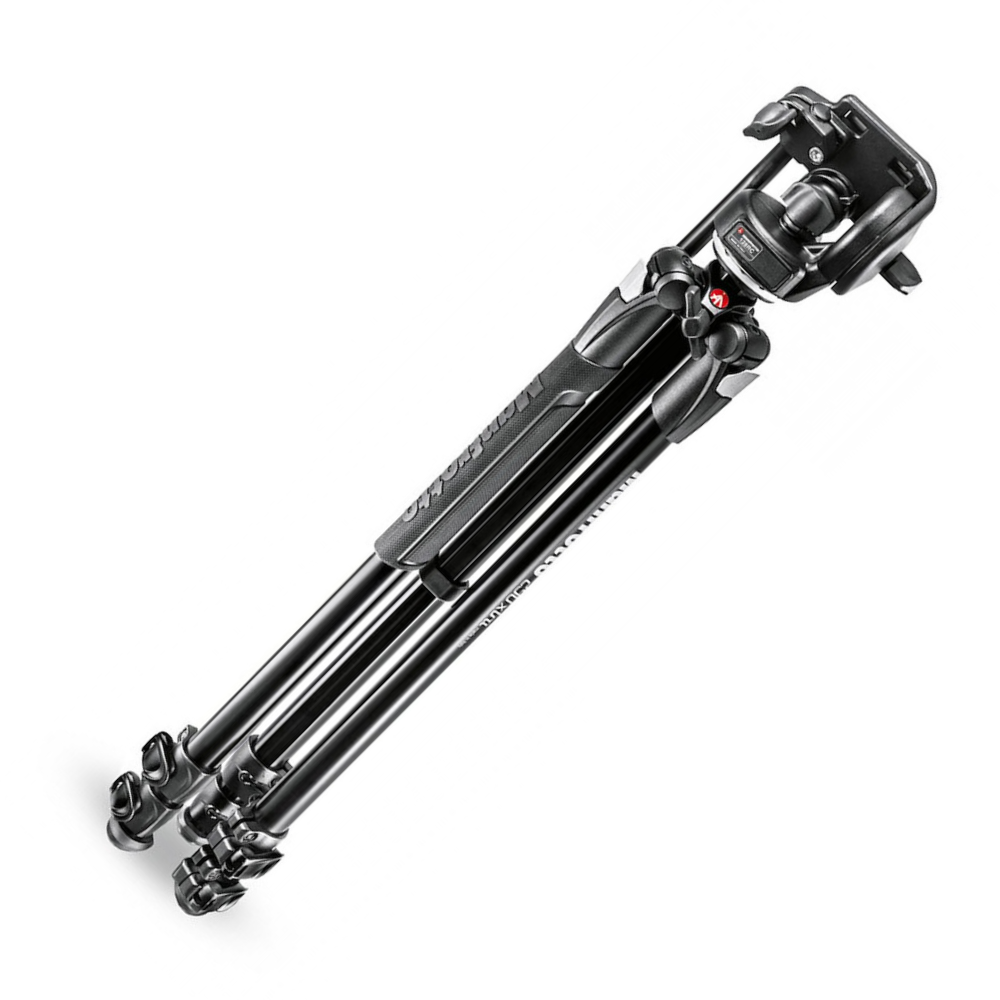

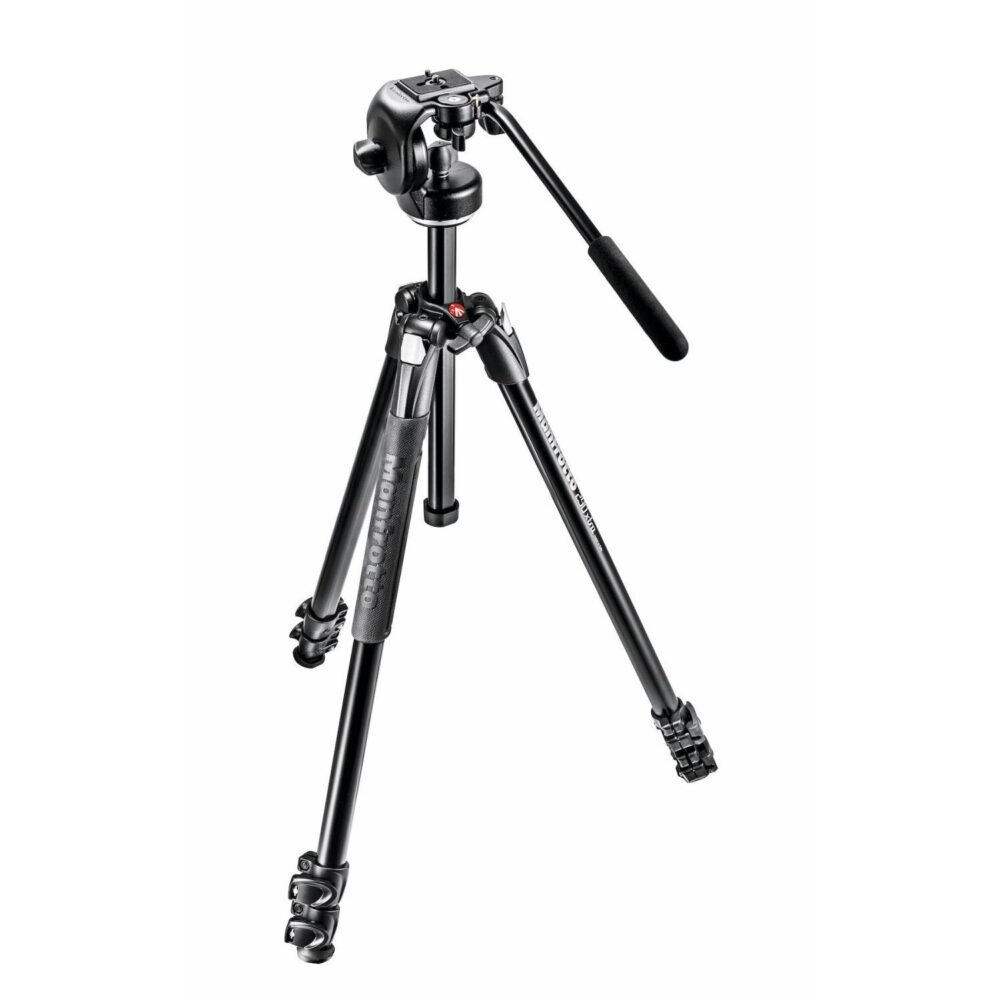

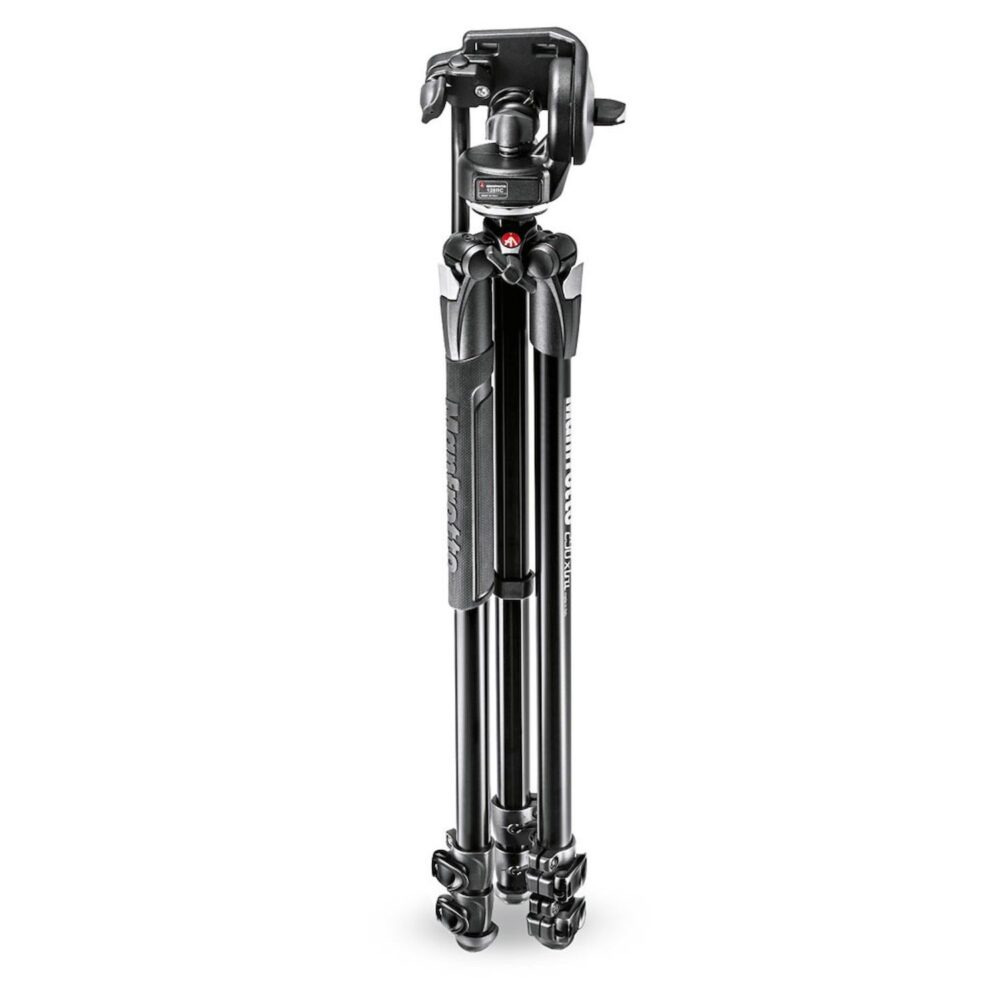

290 XTRA WITH 128RC FLUID HEAD
The MK290XTA3-2W configuration combines the 290 Xtra aluminum legs, the 128RC two-way fluid head, a panoramic lever, the 200PL-14 plate, and a carrying case. This is not the version with a ball head or a three-way head.
128RC FLUID HEAD
SMOOTH PAN AND TILT
The two-way fluid head offers independent pan and tilt locking, a tilt range of −60° to +90°, and 360° panoramic rotation. The 200PL-14 quick-release plate features a secondary lock.
FOUR LEG ANGLES
Each leg can be independently adjusted to 25°, 46°, 66°, or 88°. Three-section aluminum tubes and a tension-adjustable lever lock provide a stable base both in the studio and on location.
QUICK-RELEASE CENTER COLUMN
The center column extends the working height to 169.5 cm; with the column retracted, the tripod reaches 146 cm. A rubber sleeve on the leg improves grip when carrying.
TECHNICAL SPECIFICATIONS
| Model | MK290XTA3-2W |
| Tripod | 290 Xtra, aluminum, 3 sections |
| Head | 128RC, 2-way fluid |
| Plate | 200PL-14, quick-release |
| Safe load capacity | 6 kg according to UNI/PdR 105:2021 |
| Weight | 2.56 kg |
| Maximum / minimum height | 169.5 / 40.5 cm |
| Height with the column retracted | 146 cm |
| Folded length | 69.5 cm |
| Leg angles | 25° / 46° / 66° / 88° |
| Tube diameters | 26 / 22.5 / 19 mm |
| Panorama / Tilt | 360° / −60° to +90° |
| Operating temperature | −30 to +60 °C |
| Manufactured in | Italy |
