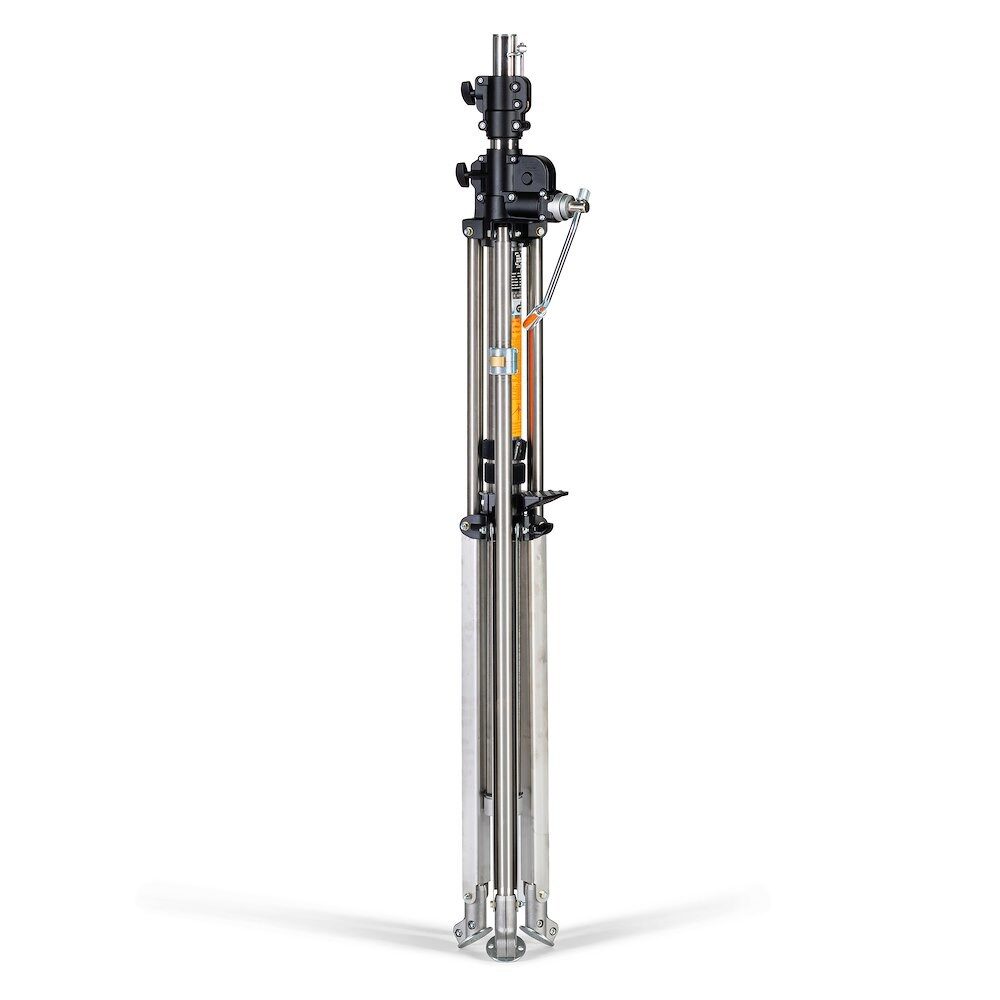

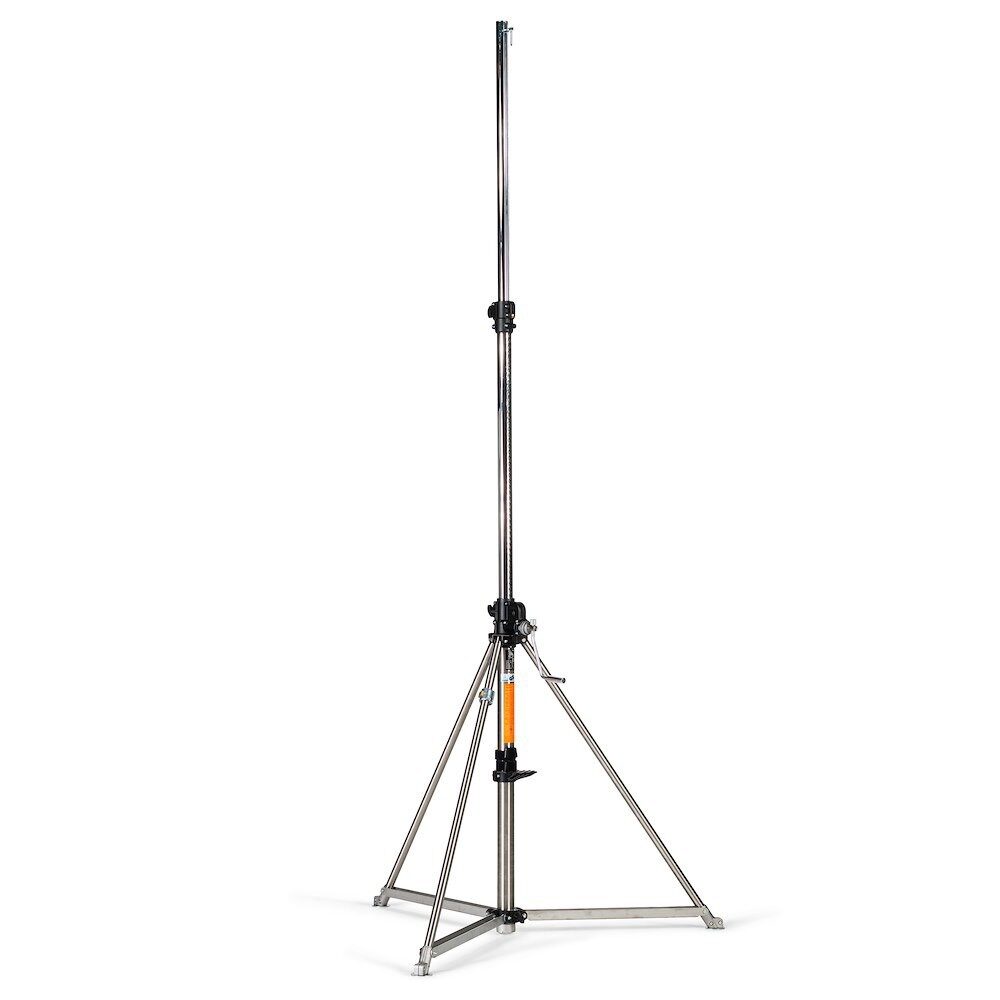

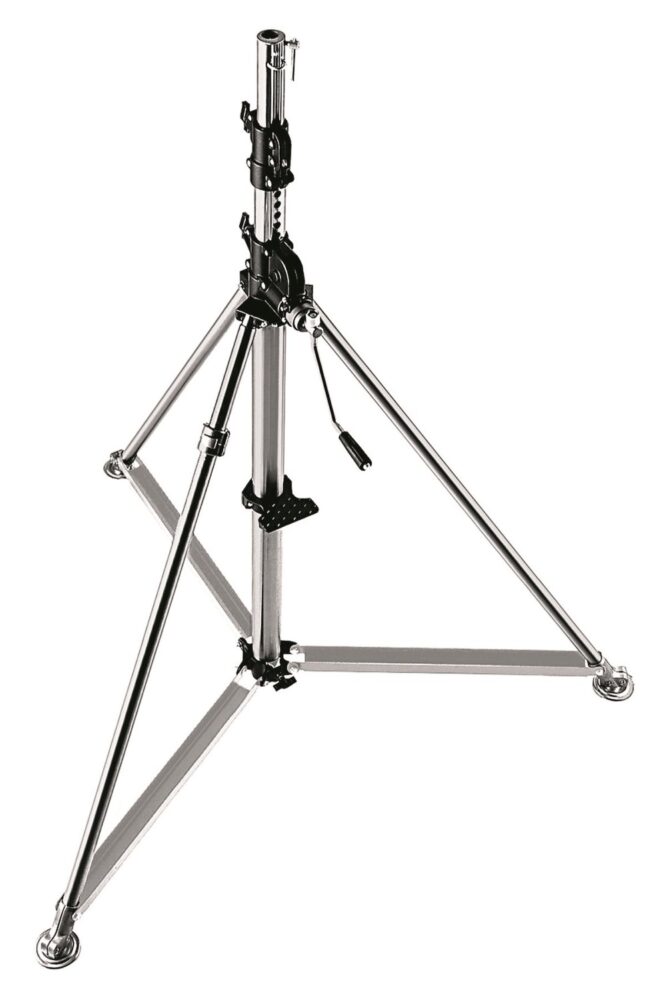

The Manfrotto 387XU Stainless Steel Super Wind Up is the ultimate heavy-lift studio stand: a TÜV-certified, 80 kg-capacity, 3.66 m chrome-plated beast with triple geared wind-up columns (70/60/50 mm), two risers, a leveling leg, and an 180 cm footprint.
The Manfrotto 387XU three nested chrome-steel columns are raised smoothly and safely via a single hand-crank (1:18 gear ratio) that keeps 80 kg perfectly balanced even at full 3.66 m height. One telescopic leveling leg compensates for uneven floors, a built-in footstep helps when cranking heavy loads, and the massive 180 cm footprint with 30 mm legs delivers rock-solid stability. Topped with a standard 28 mm Junior receiver, it accepts 374 wheels for full studio mobility. TÜV safety certified and weighing 32.5 kg, it’s the stand you see on every major film, TV, and photography stage worldwide.
Key Features
- Full stainless-steel construction with chrome finish
- 80 kg payload at any height up to 3.66 m
- Triple geared wind-up columns (70/60/50 mm) – one crank does it all
- TÜV safety certified
- Leveling leg + footstep for easy high-load operation
- 180 cm footprint for maximum stability
- Accepts 374 heavy-duty braked wheels (optional)
- Manfrotto 387XU Super Wind-Up Steel Stand – 12′
- 5/8″ Baby Stud
- Model: Manfrotto 387XU (stainless Super Wind Up)
- Max Height: 366 cm
- Min Height: 156 cm
- Closed Length: 179 cm
- Payload: 80 kg (at any height)
- Top Attachment: 28 mm (1-1/8″) Junior receiver
- Column Diameters: 70 / 60 / 50 mm
- Leg Diameter: Ø30 mm
- Weight: 32.5 kg
- Certification: TÜV
