MARSHALL CV346 Compact Broadcast Camera CS-mount, SDI & HDMI

The Marshall CV346 Full-HD Miniature Camera offers performance, flexibility, and value in a compact form factor. Built around a next generation 2.5-Megapixel, 1/2.8-inch sensor, the CV346 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 59.94/50fps.

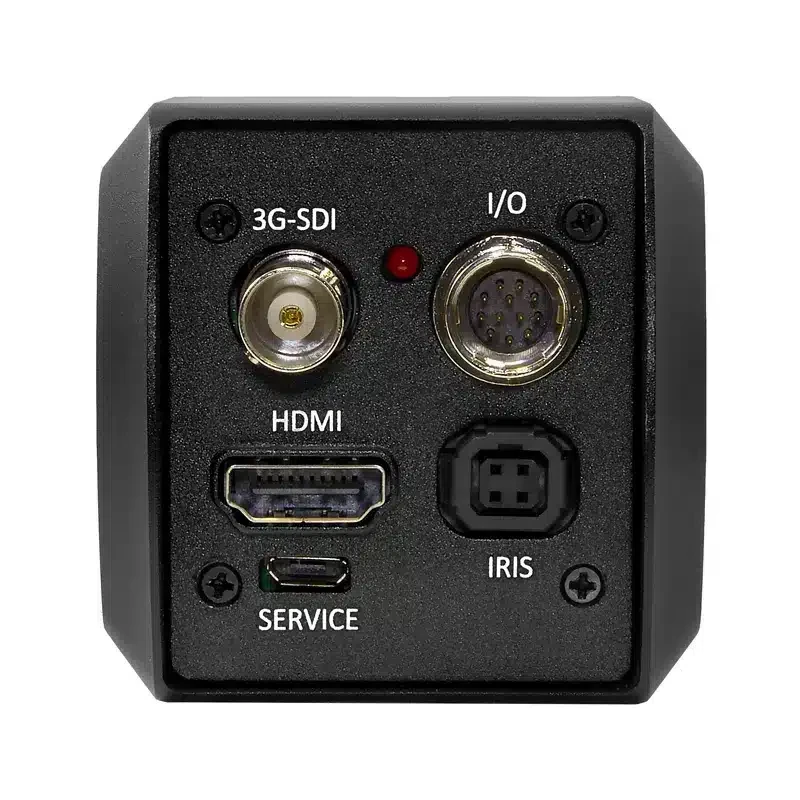

The CV346 utilises a full-sized HDMI and BNC (3G-SDI) output on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on HDMI & 3G-SDI outputs). The CV346’s CS lens mount offers a wide range of prime and varifocal lens options from ultra-wide to telephoto.

The CV346 can capture detailed shots while maintaining an ultra-discreet compact point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma and more.

Features:

• Compact camera measuring just 58.6mm x 56mm x 56mm
• Interchangeable lens mount for CS lenses
• Auto-iris function with compatible lenses
• 3G-SDI & HDMI video output connectors
• 1/2.8″ 2.5 megapixel sensor
• 1920×1080 up-to 60P
• I/O breakout cable with control joystick
• 3.5mm audio input
• Remote control using RS-485 protocol

Included in the box:

• 1x Marshall CV346 Camera Body

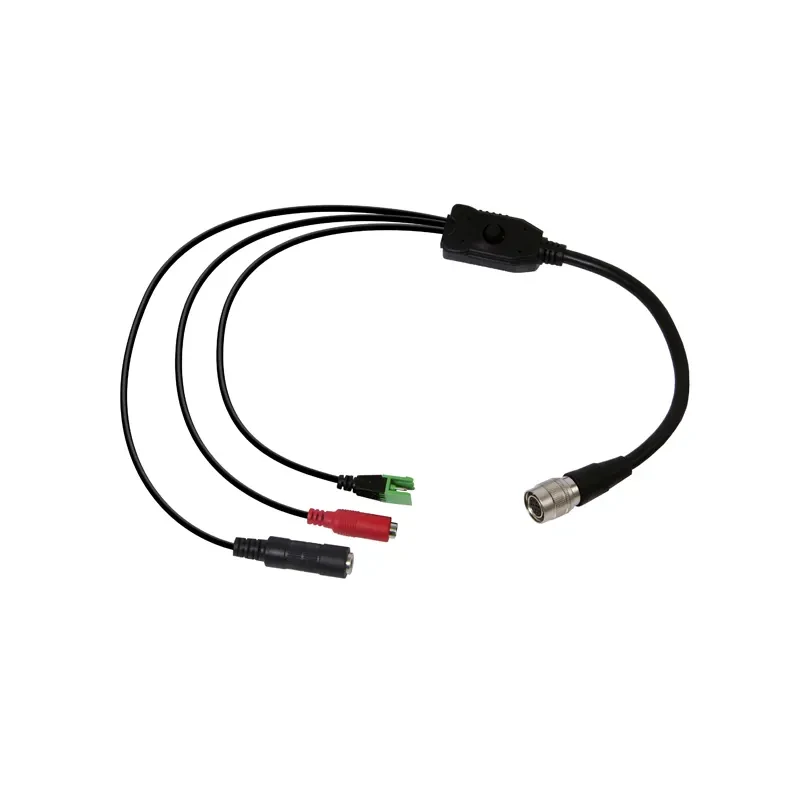

• 1x Camera Breakout Cable

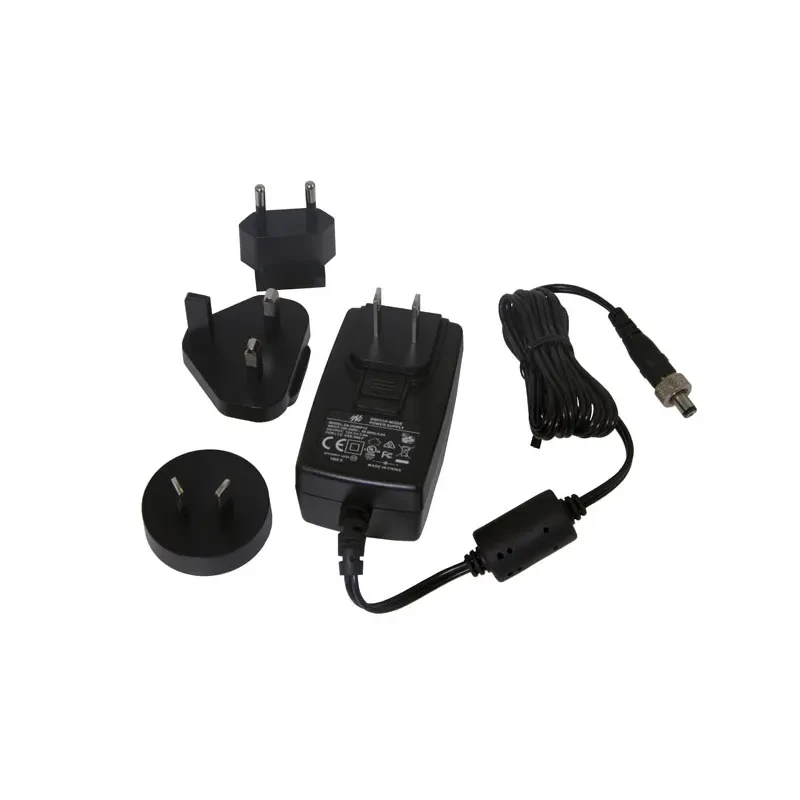

• 1x Power Supply Unit (PSU)
