NANLUX EVOKE 5C 8-LIGHT KIT
Complete full-color lighting system – ready for professional production
The Nanlux Evoke 5C 8-Light Kit is a fully integrated, production-ready lighting system combining eight ultra-compact full-color fixtures with a complete ecosystem of modifiers, power solutions, and wireless control.
Designed for professional workflows, it delivers accurate color, fast setup, and maximum flexibility in a rugged, transportable format.
Small lights. Professional output.

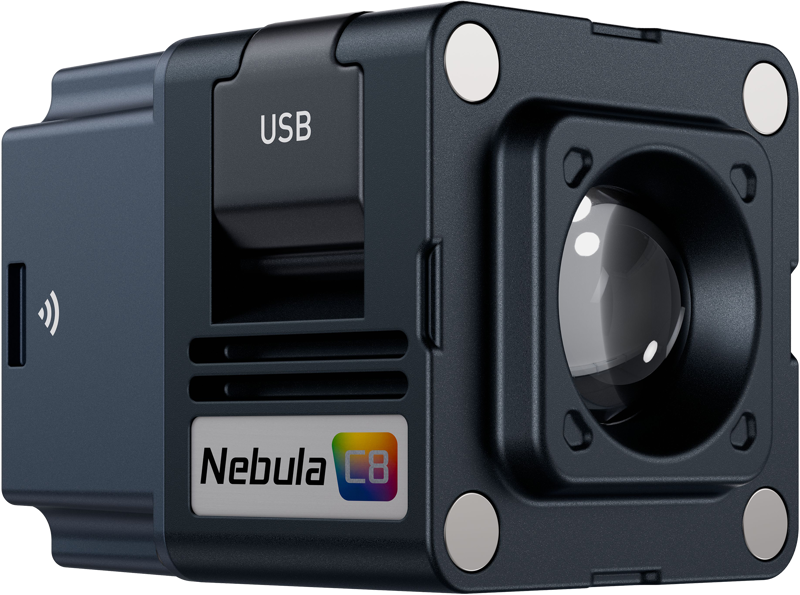

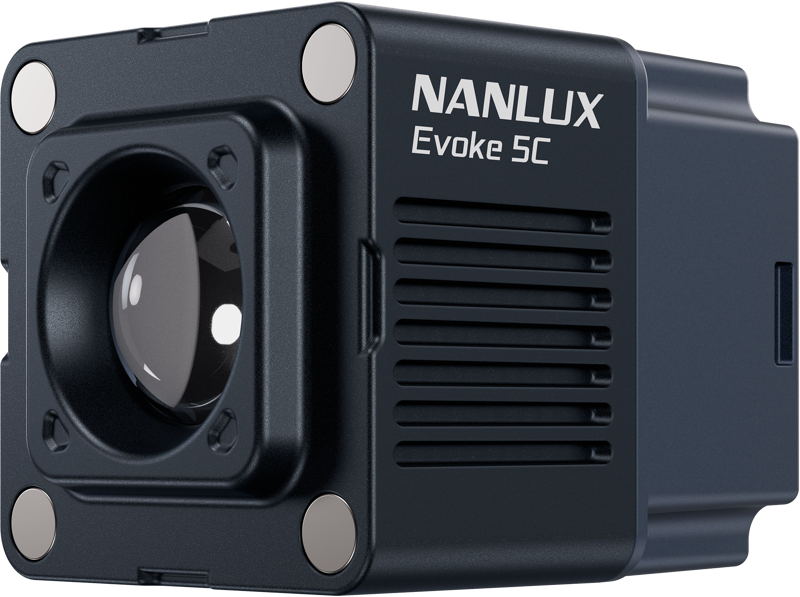

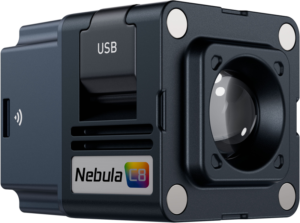

Each Evoke 5C fixture features Nanlux’s Nebula C8 light engine, combining multiple color emitters (deep red, red, amber, lime, green, cyan, blue, indigo) to achieve a wide and precise color spectrum.
CCT range: 1,000K – 20,000K
Green/Magenta adjustment: ±200
CRI: 98 (average)
TLCI: 98 (average)
TM-30: Rf 96 / Rg 100
High output – when you need it
Despite its compact size, the Evoke 5C can deliver impressive output when paired with optical modifiers:
Up to 13,800 lux at 0.3m (5600K with Fresnel lens)
Tight beam control down to approx. 8° (Spot Beam Lens)
This allows the system to move from subtle accent lighting to more focused, high-intensity applications.
Flexible control for any setup
The system supports both simple and advanced control workflows:
On-board control
NANLINK App (Bluetooth)
CRMX wireless DMX (modules included)
DMX/RDM (wired)
NFC
Magnetic system – fast and intuitive
All modifiers attach via a magnetic mount system, allowing instant setup.
The fixture also supports electronic contact recognition, automatically adapting performance based on the attached modifier.
Power & charging system
The 8KIT is designed for efficient multi-unit operation:
Charging via electronic contacts inside the case
Simultaneous charging of:
8 fixtures
4 battery grips
The system supports multiple power workflows:
AC power
D-Tap power
USB-C power input (5V/2A per fixture)

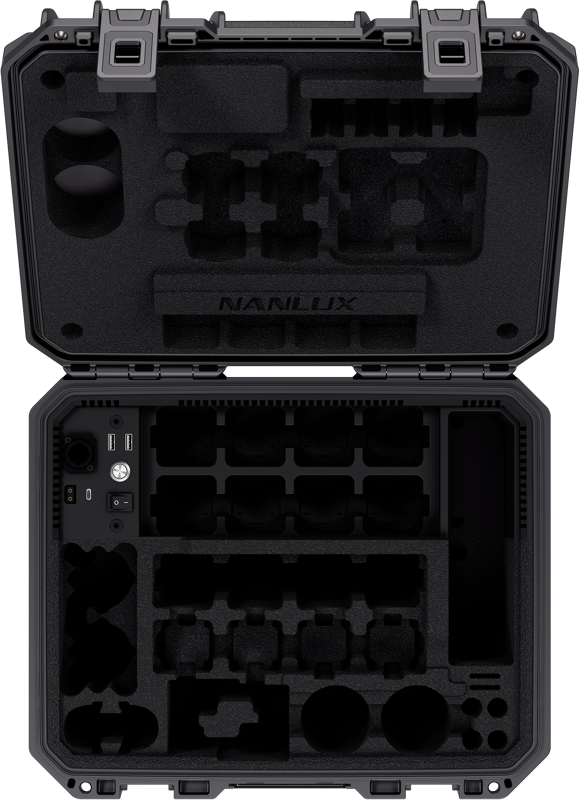

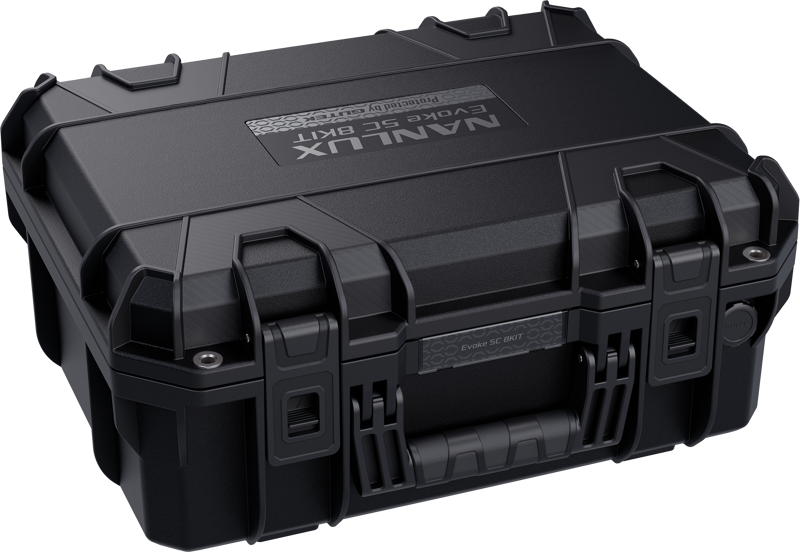

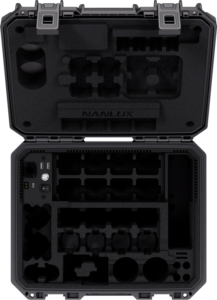

Rugged transport & charging case
The system is housed in a GUTEK T-230 protective case:
IP67 rated (dustproof & waterproof)
Shock and pressure resistant
Flame-retardant construction
Custom foam for secure storage and fast access

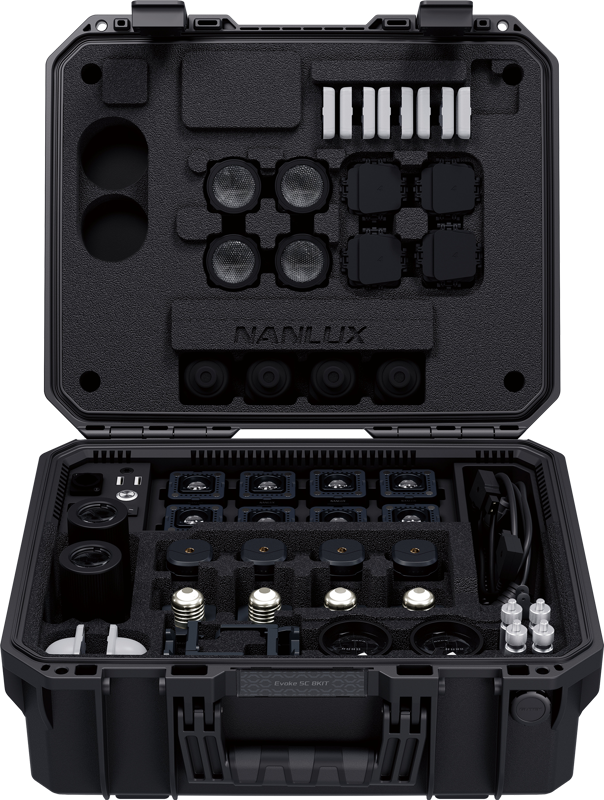

What’s in the Box
Evoke 5C ×8
Magnetic Diffuser ×8
Magnetic Soft Dome ×4
Magnetic Barndoor ×4
Magnetic Snoot ×4
Magnetic Fresnel Lens ×4
Magnetic Spot Beam Lens ×2
Projection Attachment (15°–35°) ×2
Gobo Set ×8
Magnetic Battery Grip ×4
Magnetic CRMX Module ×8
Magnetic E27 Socket Adapter ×4
Magnetic Yoke ×4
5/8″ Baby Pin with 1/4”-20 Thread ×4
Magnetic Thermal Shield ×8
AC Power Cable (1.5 m) ×1
D-Tap Cable ×1
GUTEK T-230 Protective Charging Case ×1 (Black)
User Manual ×1
