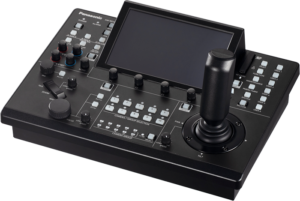

PANASONIC AW-RP150GJ5 PTZ Control Panel

AW-RP150GJ5
€ 4 207.92
€ 5 217.82 (sis. alv.)

AW-RP150GJ5 is a touchscreen remote camera controller for Panasonic PTZ systems. It combines a 7-inch GUI monitor with a single-hand joystick for precise pan/tilt control and a seesaw rocker for zoom or focus, enabling fast operation in live production, broadcast, education, and corporate environments.

Saatavuus: Saatavuus: OTA YHTEYTTÄ Vaikka toimitusaika on yleensä 1–2 viikkoa, ota meihin yhteyttä saadaksesi arvion toimitusajasta.

icon

Asiantuntijoidemme hyväksymä

icon

Huippulaatuinen tuote

icon

Toimitus tai nouto

Panasonic AW-RP150GJ5 PTZ Control Panel Connectivity and control

The controller connects to PTZ cameras over IP (100BASE-TX with PoE+) or via RS-422 for serial control. Up to 200 cameras can be addressed on an IP network, and up to five cameras over RS-422. Ten direct camera-select buttons and up to twenty camera groups streamline multi-room or multi-studio setups. An SD card slot allows backup and cloning of presets and system settings across controllers or camera fleets.

Monitoring and workflow

A 3G-SDI input feeds the built-in 7-inch WVGA display for return video monitoring, while an ACTIVE THRU 3G-SDI output can pass the same signal downstream. Tally and GPIO terminals support integration with switchers and automation. Power can be supplied via 12 V DC (XLR 4-pin) or PoE+, and the unit’s menu provides seven levels of pan/tilt speed adjustment to match different show styles.

Key features

  • Integrated 7-inch touchscreen GUI monitor (WVGA 800×480)

  • One-hand joystick with seesaw rocker for zoom/focus

  • Control up to 200 cameras over IP; up to 5 cameras over RS-422

  • Ten camera-select buttons; up to 20 camera groups (10 cameras per group)

  • Preset memory: 100 presets; tracing memory per camera up to 5 minutes, 10 traces per camera

  • Network/Power: 100BASE-TX with PoE+; 12 V DC input (XLR 4-pin)

  • Serial control: RS-422 (RJ-45), up to 1000 m cable length (Cat5e or better, shielded)

  • Video I/O: 3G-SDI IN (BNC); ACTIVE THRU 3G-SDI OUT (BNC)

  • Tally/GPIO: D-sub 25-pin (Tally In x10, GPI x6, GPIO configurable I/O), plus separate TALLY OUT (open collector)

  • SD card slot (SDHC/SDXC) for scene files and system backups

  • Pan/tilt speed adjustment: 7 levels; tally LED colors: green/red

  • Approx. dimensions: 342 × 178 × 245 mm (W×H×D, excluding protrusions)

  • Approx. mass: 3.2 kg
