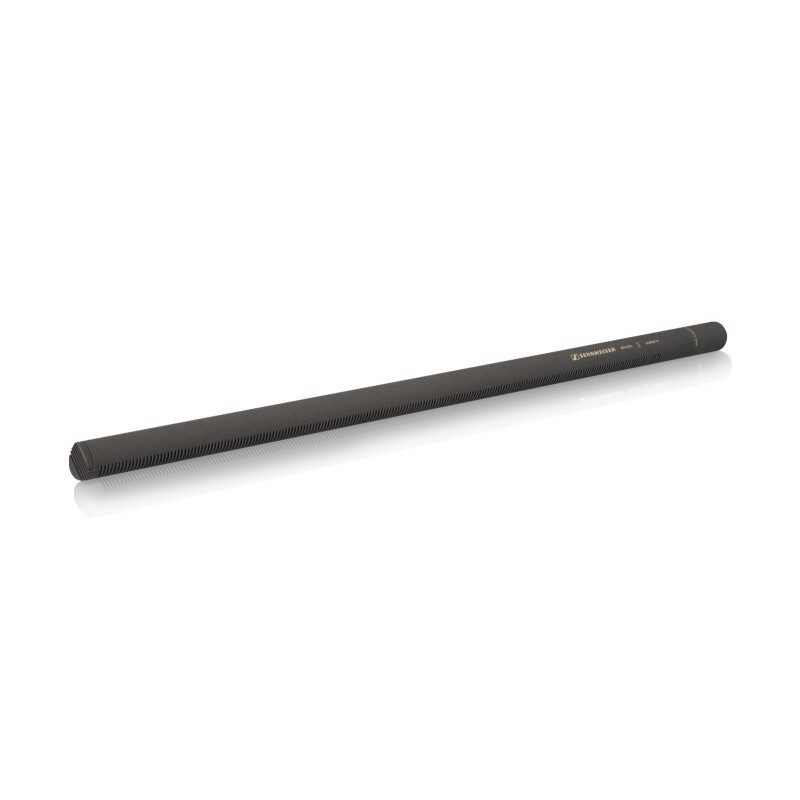

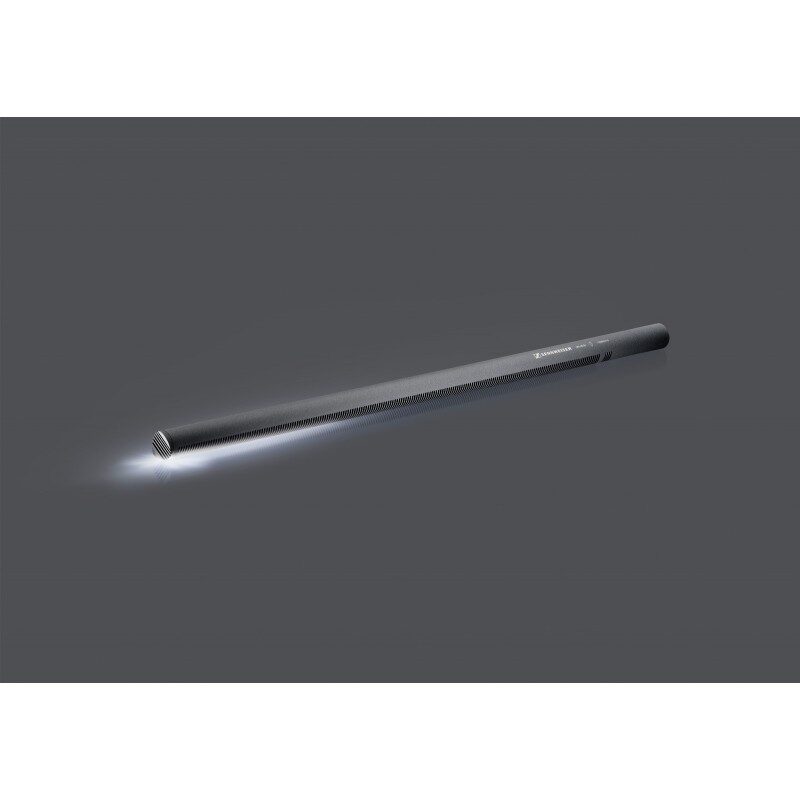

The MKH 8070 directional microphone is exactly what you need for most television, film, and sports events. With its excellent directionality and side noise suppression, it will become your ideal partner. This outstanding ”narrow” microphone captures the desired sound even from a great distance while maintaining its true color.
The MKH 8070 directional microphone is exactly what you need for most television, film, and sporting events. With its excellent directionality and side noise suppression, it will become your ideal partner. This outstanding ”narrow” microphone captures the desired sound even from a great distance while maintaining its true color. Its construction allows it to withstand even the harshest climatic and acoustic conditions. The technical design of the MKH 8070 guarantees effective suppression of side sounds without coloration. The microphone uses all MKH 8000 system accessories, including the MZD 8000 digital module.
It is manufactured in a matte gray ”Nextel” finish.
- Narrow directional pickup pattern
- Modular system
- Symmetrical converter with very low distortion
- Natural sound
- Exceptionally low inherent noise
- Very low distortion
- High output signal level
- High resistance to weather conditions
- Top quality thanks to RF technology and symmetrical microphone capsule
- Durable metal construction
- Nextel surface to prevent glare
- 1 MKHC 8070 microphone head
- 1 MZX 8000 XLR module
- 1 MZQ 8070 clip
- 1 MZW 8070 double-layer windscreen
- Instructions for use
- Sensitivity 112 mV/Pa
- Frequency range 45 … 20,000 Hz
- Weight 300 g (332 g with MZX 8000)
- Nominal impedance 25 Ohm
- Connectors XLR-3-M
- Directional characteristic Narrow directional
- Phantom power 48 V ± 4 V
- Supply current 3.3 mA
- Signal-to-noise ratio 21 dB
- Transducer (microphone) type Condenser
- Dimensions Ø 19 mm, length 465 mm (432 mm without XLR module)
- Max. sound pressure level 124 dB SPL
- Min. load impedance 2000 Ohm
- Noise level 8 dB
- Microphones by type MKH
- Microphones by application Studio
- Microphones by application Spoken word
- Microphones by application Live
- Microphones by application TV/film/radio
- Microphones by application Camera
- Microphones by technology Condenser
