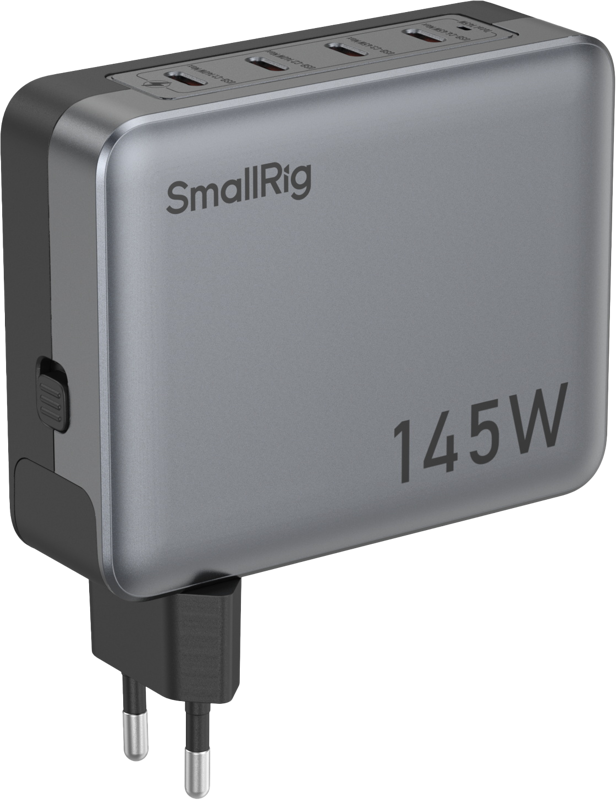

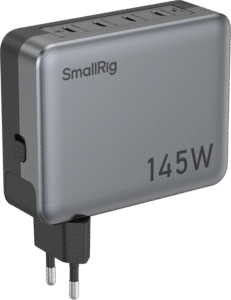

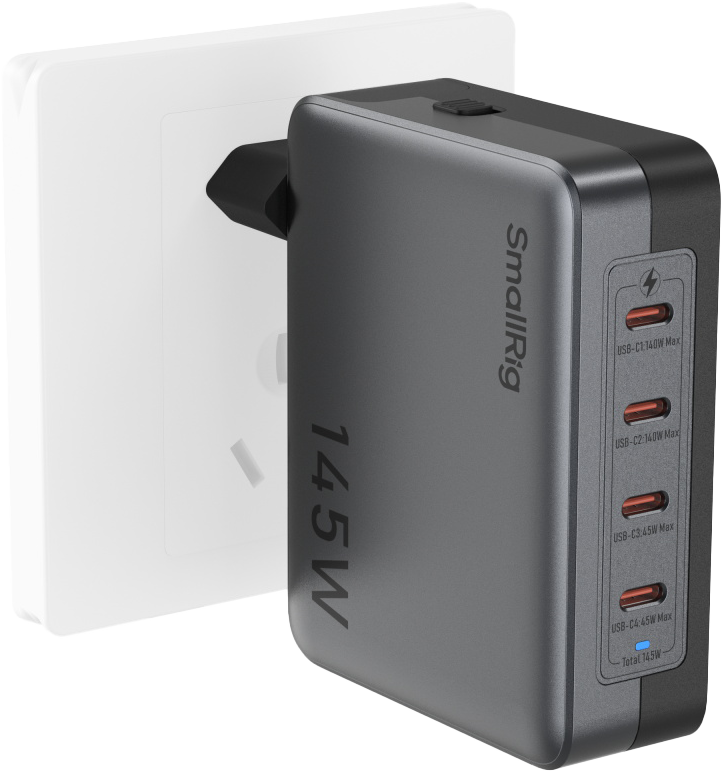

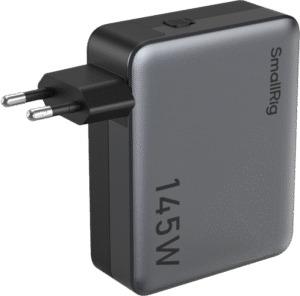

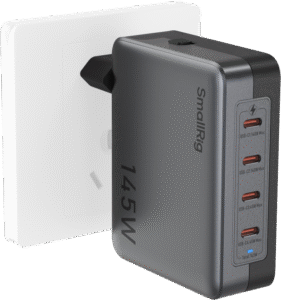

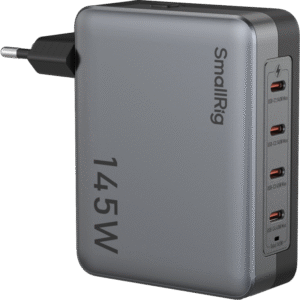

SmallRig 4748 145W 4-Port PD Power Adapter
All ports support fast charging, with USB-C 1 & 2 supporting a maximum single-port output of 140W through PD3.1, and USB-C 3 & 4 supporting a maximum output of 45W, providing strong support for high-power devices and significantly enhancing charging efficiency.
Each output port is equipped with short-circuit and overcurrent protection to ensure safe usage.
Additionally, the compact size of the charger makes it convenient for travel and daily use.
The power status indicator light design illuminates when connected to power and turns off when disconnected, providing a clear overview of the charging status.
Certification:
- CE & RoHS
Power Indicator:
- Power connected – Light on.
- Power disconnected – Light off.
Compability:

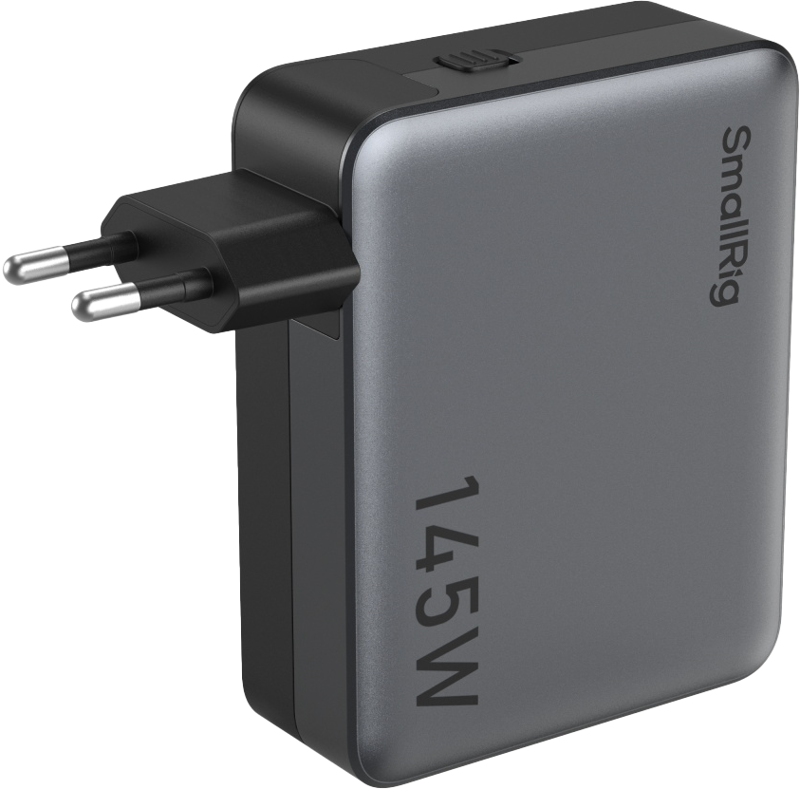

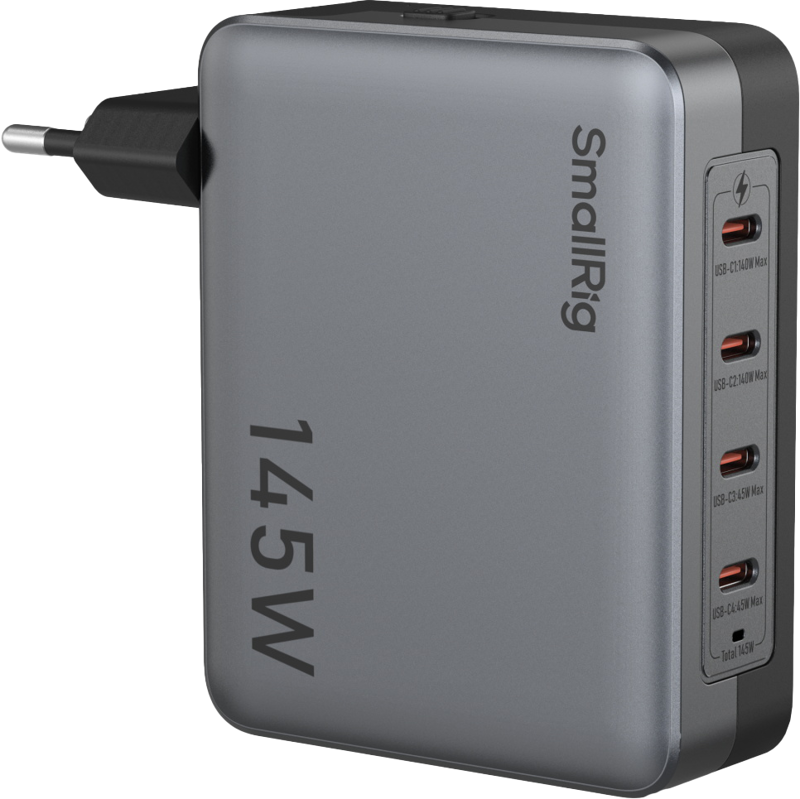

V mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, tablets, and laptops.
Packaging includes:
- 1x 145W 4-Port PD Power Adapter
- 1x User Manual
Technical info:
- Total Output Power: 145W
- Power Input: 100-240VAC 50 / 60Hz 2.2A

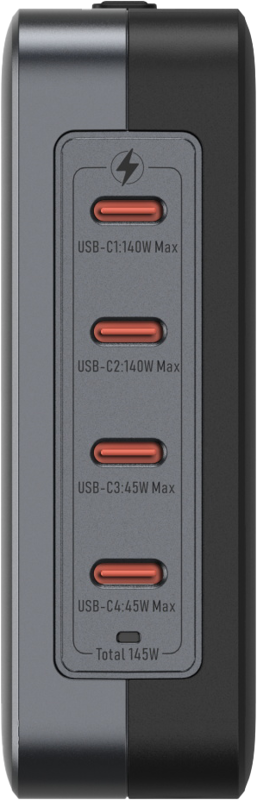

Power Output:
Single-Port Mode:
- USB-C1 / C2: 28V5A (140W) Max
- USB-C3 / C4: 20V2.25A (45W) Max
- Total: 140W Max
Dual-Port Mode:
- C1 + C2 / C3 + C4:
- USB-C1 / C2: 20V5A Max
- USB-C3 / C4: 20V2.25A Max
- C1 + C2:
- USB-C1 / C2: 20V3.25A Max
- C3 + C4:
- USB-C3 / C4: 9V2.22A Max
- Total: 145W Max
Triple-Port Mode:
- C1 + C2 + C3 / 4:
- USB-C1: 20V3.25A Max
- USB-C2: 20V1.5A Max
- USB-C3 / C4: 20V2.25A Max
- C1 / C2 + C3 + C4:
- USB-C1 / C2: 20V5A Max
- USB-C3 / USB-C4: 9V2.22A Max
- Total: 145W Max
Quad-Port Mode:
- USB-C1: 20V3.25A Max
- USB-C2: 20V1.5A Max
- USB-C3: 9V2.22A Max
- USB-C4: 9V2.22A Max
- Total: 145W Max
