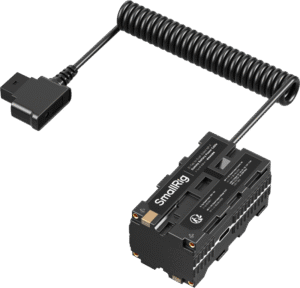

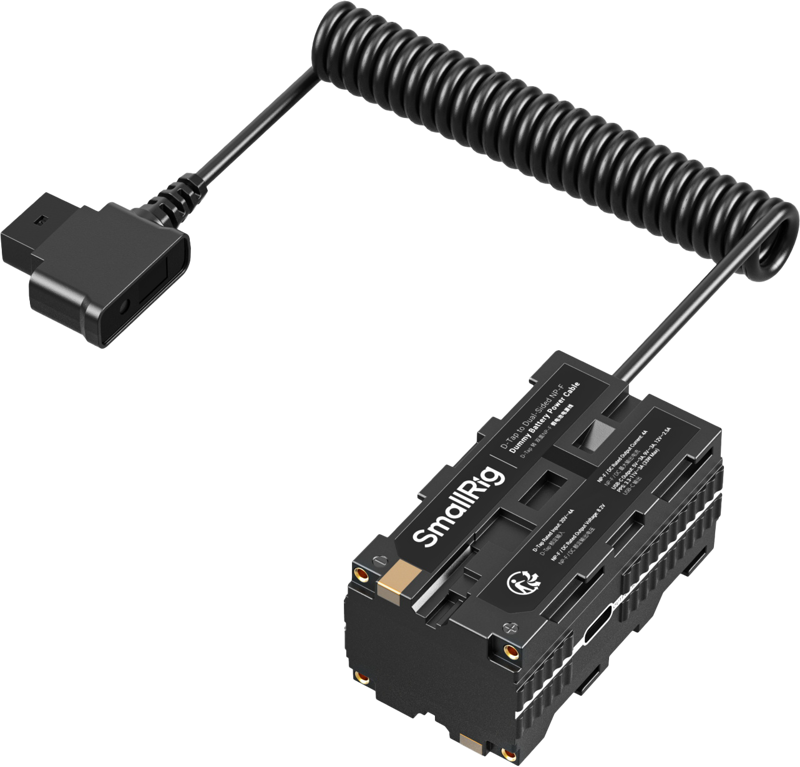

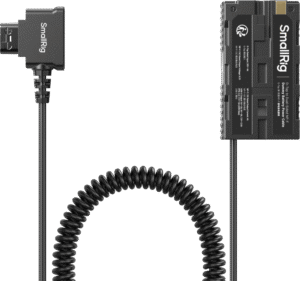

SmallRig 4884 D-Tap to Dual-Sided NP-F Dummy Battery Power Cable

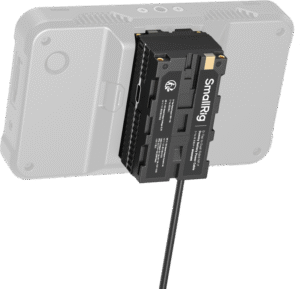

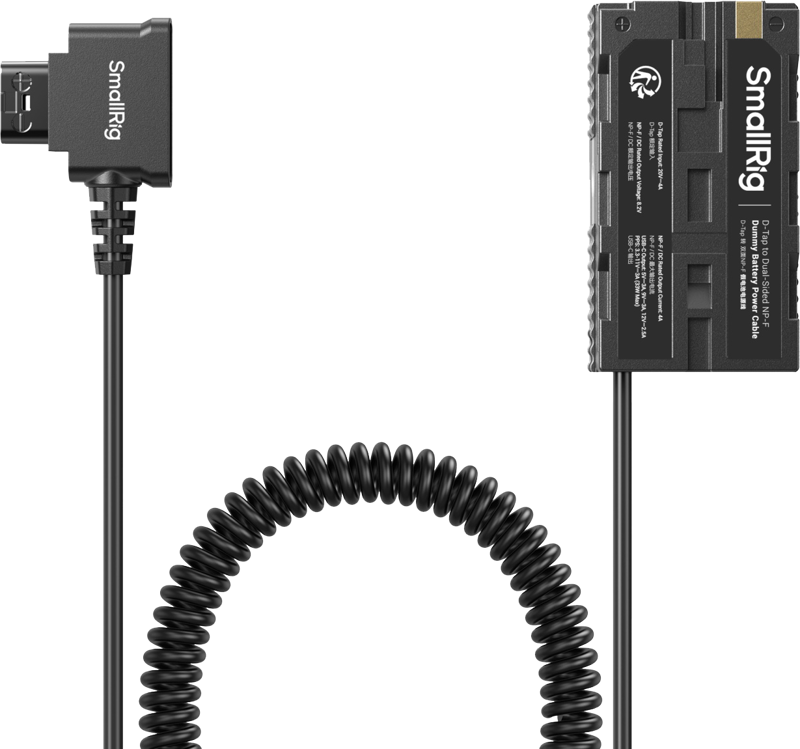

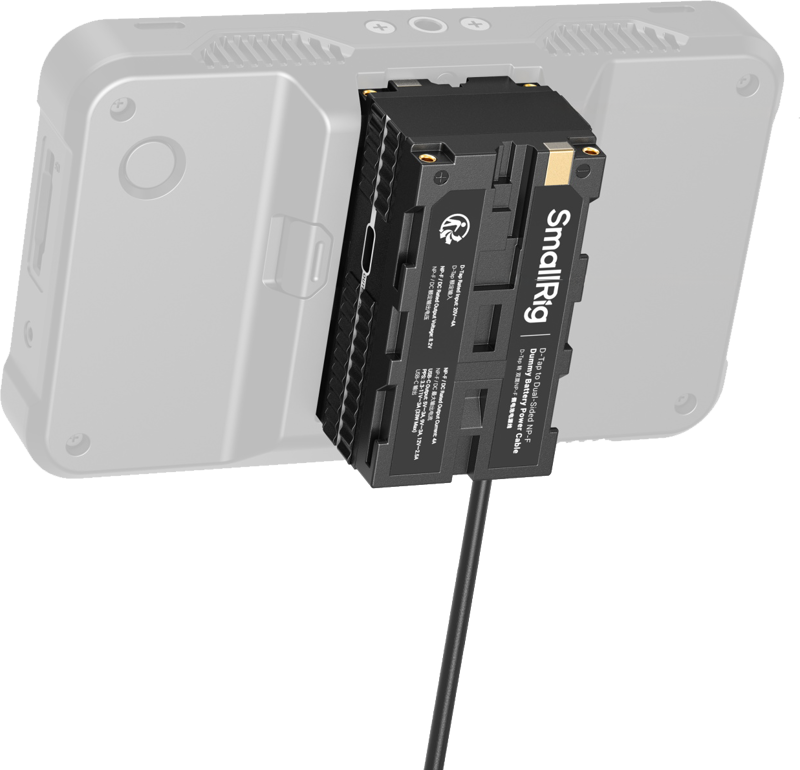

The NP-F outputs power monitors and video transmitters, the DC output powers cameras via dummy batteries, and the USB-C output powers devices like follow focus motors and mobile phones.
Designed for portability and efficient cable management, this power cable is equipped with two displays and one indicator.
The D-Tap port features a display for input voltage and an indicator for reverse plugging warning and input voltage range, while the dummy battery display shows NP-F and DC input voltage.
Constructed from fire-resistant PC, PU, and metal for optimal heat dissipation, this cable enhances efficiency and safety.
It incorporates multiple circuit protections—overheating, short-circuit, low-voltage, and overvoltage—to ensure safe charging and reliable performance during shooting.
Certifications: FCC, CE, PSE, RoHS
Techn. info:
- D-Tap Rated Input: 20V / 4A
- NP-F / DC Rated Output Voltage: 8.2V
- NP-F / DC Output Current (Max): 4A
- USB-C Output:
- 33W (Max）
- PD: 5V / 3A，9V / 3A，12V / 2.5A
- PPS: 3.3-11V / 3A (30W Max)
- Indicator / Display Functions:
- Green Light: Forward plugging
- Red Light: Reverse plugging, automatically cut off the power
- Flashing Red Light: Input voltage 10V-12V
- Red Light: Input voltage 12V-13V
- Green Light: Input voltage ＞13V
- D-Tap Input Voltage Display
- NP-F / DC Output Voltage Display
- Overheating Warning (07P)
- Short-Circuit Warning
- Low-Voltage Warning (OC)
- Overvoltage Warning (OC)
- Circuit Protections:
- NP-F Port Overcurrent Protection: Activates at 5.5A and resets when current drops to 5A or below
- Short-Circuit Protection: Engages during a short circuit and resumes once resolved
Compatibility:
- Monitors, video transmitters, follow focus motors, V-mount batteries, NP-F batteries, direct-charge camera batteries, smartphones, tablets, laptops, etc.
Packaging includes:
- D-Tap to Dual-Sided NP-F Dummy Battery Power Cable
- User Manual
