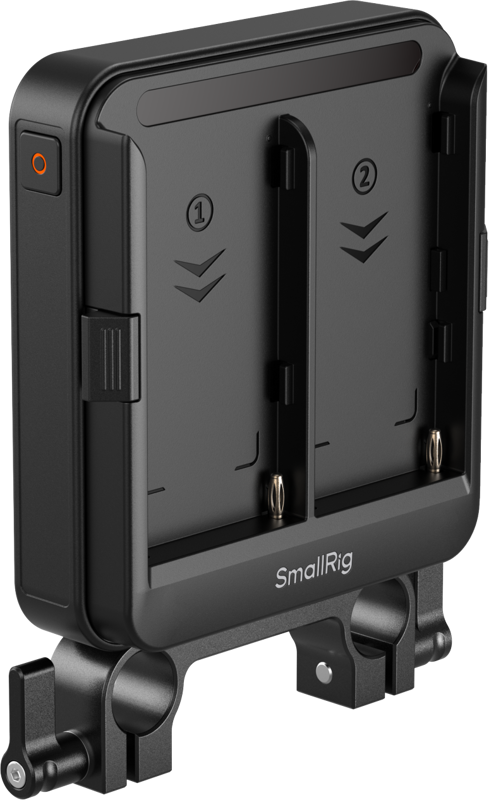

SmallRig 5537 Adapter Plate Kit for NP-F Type Batteries for 15mm LWS Rods (Supports UPS)
This plate can be mounted using a V-mount plate, 15mm dual rod clamp, or the bottom 1/4″-20 threaded hole and accommodates one or two NP-F batteries to power your gear.
When two batteries are installed, the hot-swap feature allows you to replace one battery without shutting down connected devices, ensuring an uninterrupted power supply (UPS).
Equipped with multiple output ports -D-Tap, DC and USB-C – this adapter plate allows you to power several devices simultaneously.
The ports are strategically placed to avoid interference with camera operation and the use of top handles.
The USB-C port supports up to 36W of input, enabling the plate to function as a charging dock.
An integrated intelligent management chip optimizes both discharging and charging:
- During discharging, it drains the battery with the lower charge first, switching to parallel output when the voltage is low to enable hot-swaps and power high-demand devices.
- For charging, it prioritizes the higher-charge battery and then switches to simultaneous charging to enhance efficiency.
An independent power switch allows you to check the power status and activate with a single press, while a long press (2s) disables output for all connected devices.
This simplifies operation and conserves power by eliminating the need to unplug cables after a shoot.
Independent LED indicators for each channel provide clear, at-a-glance battery status updates.
Compatibility:
- NP-F550 / 570 / 750 / 770 / 950 / 970
- Accessories with a V-mount interface or 1/4″-20 screw, or 15mm dual rods with 60mm on-center spacing
Packaging includes:
- Adapter Plate
- 15mm Dual Rod Clamp
- Allen Wrench
- User Manual
