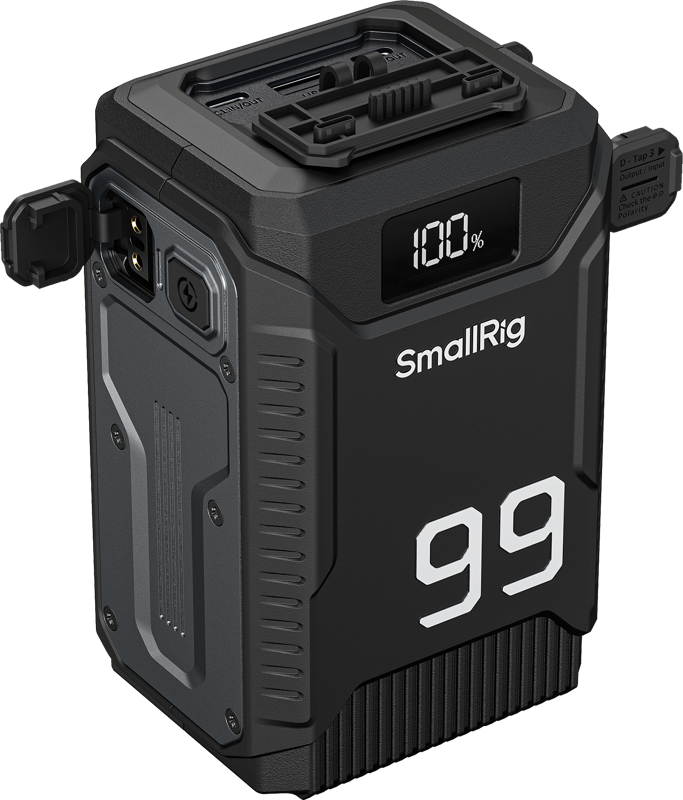

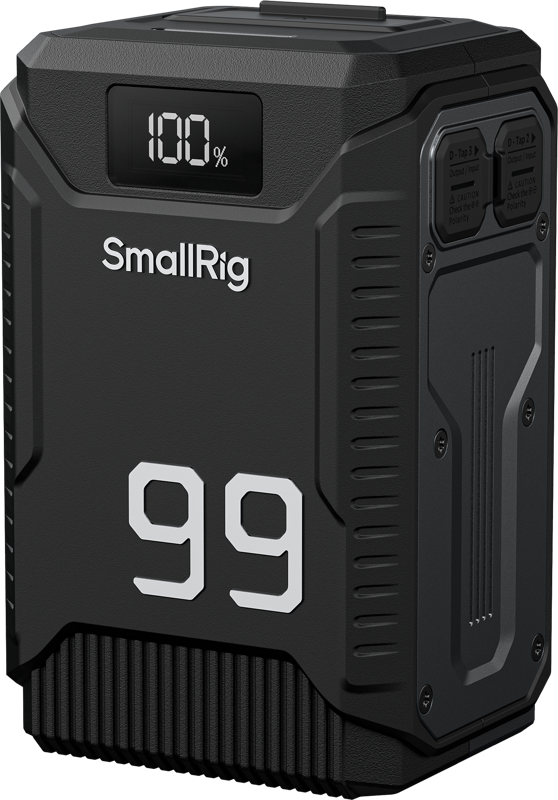

SmallRig 5864 T99 V-Mount Battery / Power Bank
The triple-proof body features a full-wrap TPU and metal construction, while an internal support structure secures the battery cells and circuit board, enhancing durability and safety.
It is drop-resistant from up to 1.8m and rated IP54 for water and dust resistance, ensuring reliable operation in harsh outdoor environments.
Power delivery is versatile and efficient.
The battery features one BP port, three D-Tap ports, two USB-C ports, and one USB-A port, meeting the power demands of professional crews while simplifying on-set power setups and improving workflow efficiency.
Both USB-C ports support 100W PD bidirectional fast charging.
A composite cooling system using graphene and thermal grease supports a full recharge in 2 hours while maintaining efficient power delivery.
For safe and reliable operation, the battery uses high-quality LG battery cells, a BMS smart control chip, and precision circuitry to protect against overtemperature, overcurrent, overvoltage, short circuit, overcharge, and overdischarge.

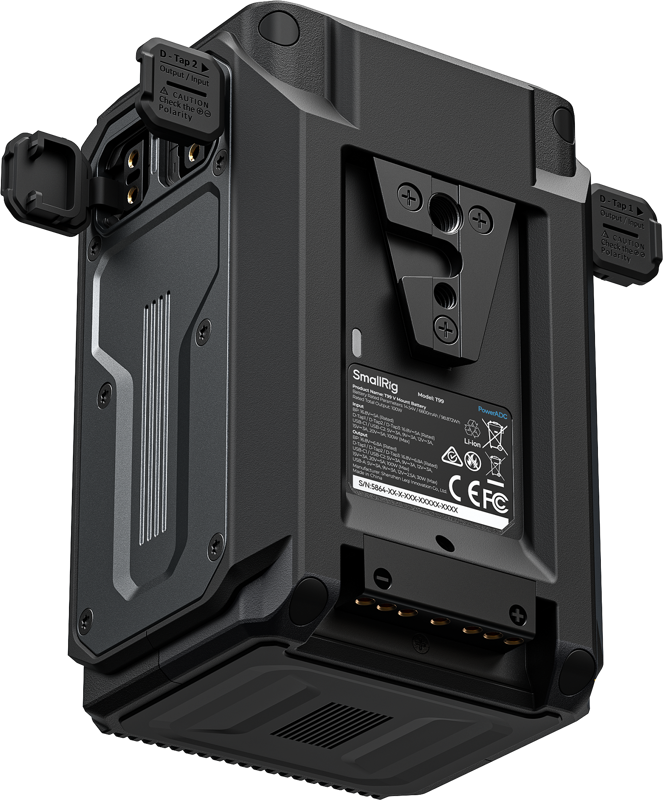

Additional details include a rear light for easier installation and operation in low-light conditions, as well as 1/4″-20 and 3/8″-16 threaded holes for flexible mounting options.
Certifications: FCC, CE, ISED, RCM, KC, PSE
Compatibility:

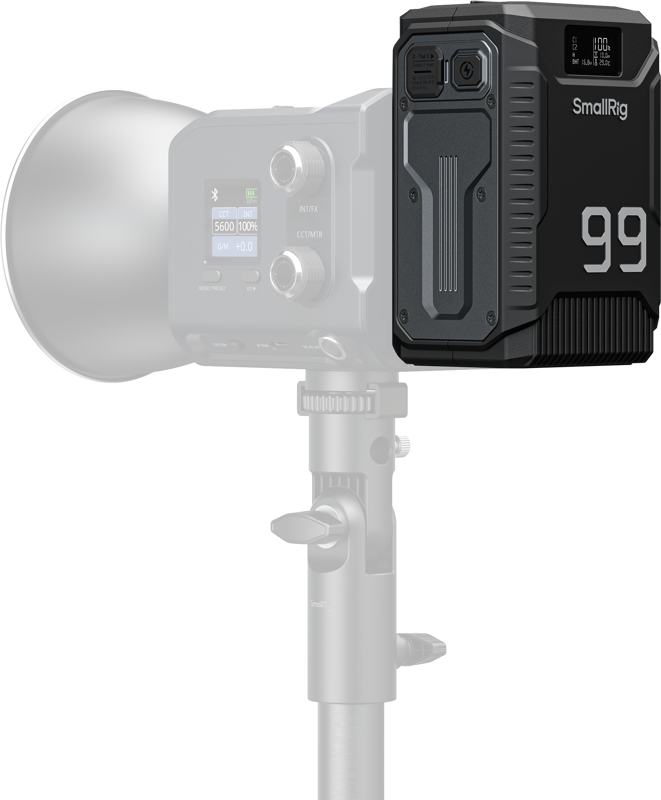

- Mirrorless cameras, camcorders, cinema cameras, monitors, follow focuses, video transmitters, LED lights, smartphones, tablets, laptops, etc.
Technical Data
- Product Dimensions: 128.0 × 81.0 × 71.0mm
- Product Weight: 862 g
- Material(s): Aluminum Alloy, TPU, Silicone, PC
- Battery Type: Lithium-ion Battery
- Rated Battery Parameters: 14.54V / 6800mAh / 98.872Wh
- Rated Total Output: 100W
- Cell Capacity: 27200mAh (Cell: 3400mAh x 8)
- Input:
- USB-C1 / USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A; 100W (Max)
- BP / D-Tap1 / D-Tap2 / D-Tap3: 16.8V⎓5A (Rated)
- Output:
- USB-C1 / USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A; 100W (Max)
- USB-A: 5V⎓3A, 9V⎓3A, 12V⎓2.5A; 30W (Max)
- BP / D-Tap1 / D-Tap2 / D-Tap3: 16.8V⎓6.8A (Rated)
- Charging Protocols:
- USB-C1 / USB-C2: PD3.0, QC2.0, QC3.0, AFC, DCP-1.5A, PPS, Apple 2.4A
- USB-A: QC2.0, QC3.0, AFC, FCP, DCP-1.5A, Apple 2.4A
- Cut-off Voltage: 11.2V
- Charging Temperature: 0°C to 45°C
- Discharging Temperature: -15°C to 60°C
- Charging Ports: BP, D-Tap, USB-C
- Drop Resistance Rating: 1.8m
- Ingress Protection Rating: IP54

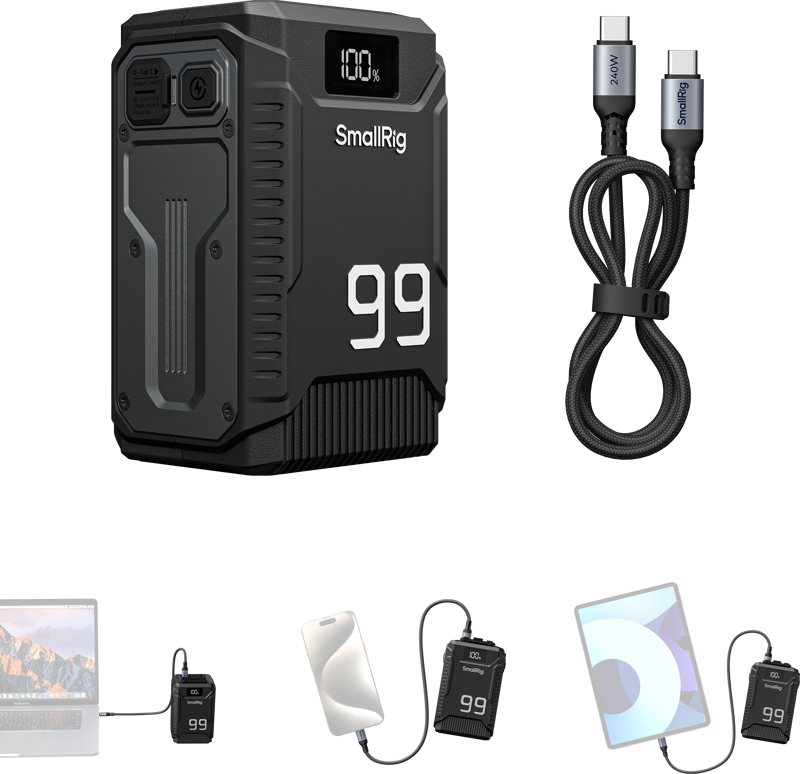

Packaging includes:
- T99 V Mount Battery
- 240W USB-C Charging Cable
- Quick Start Guide
- User Manual
