The SWIT S-3602D is a dual charger for SWIT S-8D98, S-8D58, and S-8D62 batteries, also compatible with Panasonic VW-VBD58, AG-VBR59, and CGA series (D54, D28) DV batteries.

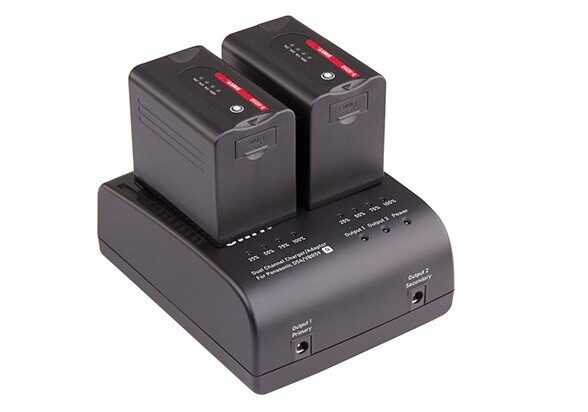

Dual-channel simultaneous charging

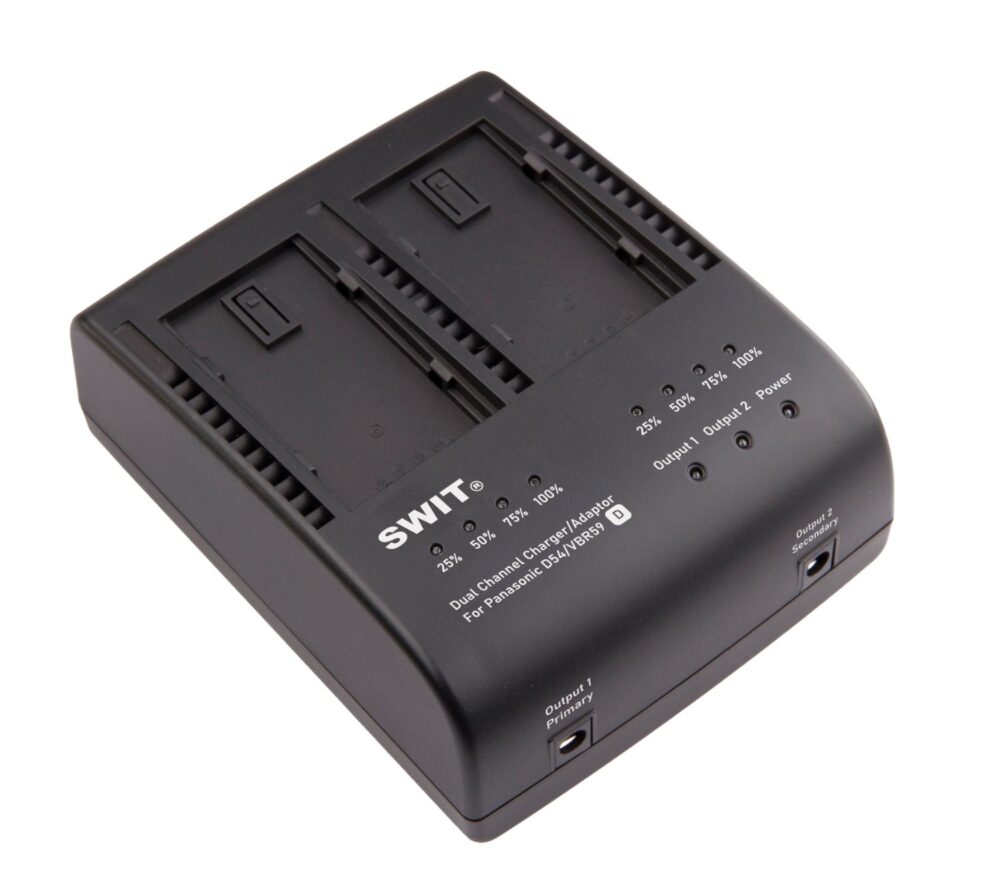

The S-3602D has 2 charging channels with a DC output of 8.4 V / 1.8 A for each channel and allows 2 batteries to be charged simultaneously. Each channel is equipped with a 4-stage LED charge indicator that displays the current capacity in percent during charging.
AC-DC adaptive output

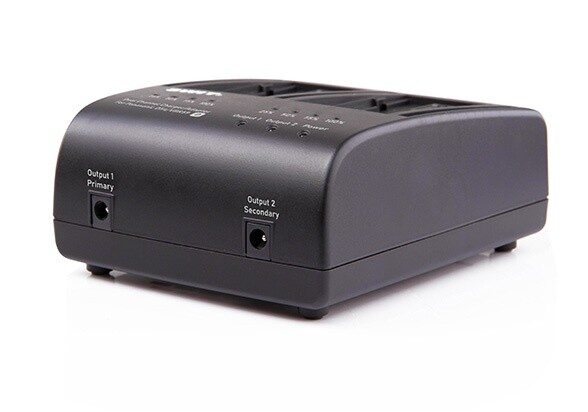

The S-3602D is equipped with 2× 5.5 mm/2.1 mm sockets for DC output. Both DC outputs work simultaneously and provide a total of DC 8.4 V / 3.5 A.

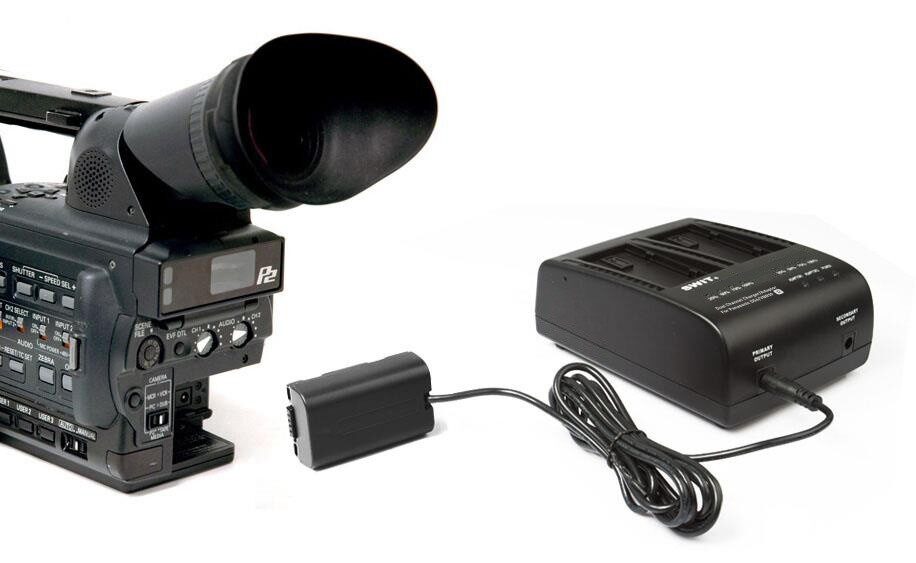

Optional accessories: S-7500P adapter (Panasonic CGA series dummy battery) for powering Panasonic DV cameras using VW-VBD58, AG-VBR59 or CGA-D54/D28 batteries, or devices with the specified battery holders.
Key features:
- SWIT S-8D62 battery charger
- Compatible with Panasonic VW-VBD58
- Compatible with Panasonic AG-VBR59
- Compatible with Panasonic D54/D28
- Two-channel simultaneous charging
- 2 DC output sockets
- 4-stage LED charging indicators
Technical specifications:
- Input power: AC 100V–240V, 50/60Hz
- Charging output: DC 7–8.4 V, 1.8 A ×2
- Adapted output: DC 8.4 V, 3.5 A
- Compatible batteries: SWIT S-8D98, S-8D58, S-8D62; Panasonic VW-VBD58, AG-VBR59, CGA D54S/D28S
- Dimensions: 136 × 110 × 47 mm
- Weight: 0.36 kg
