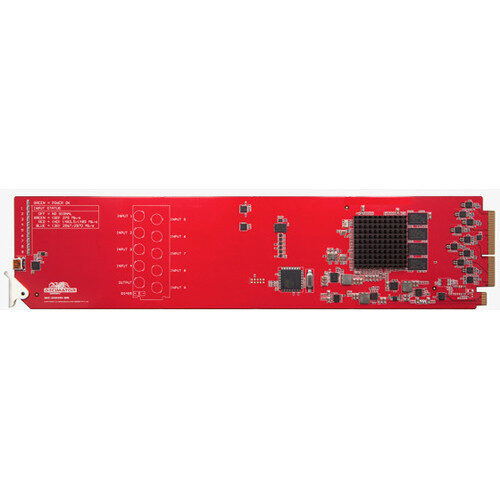

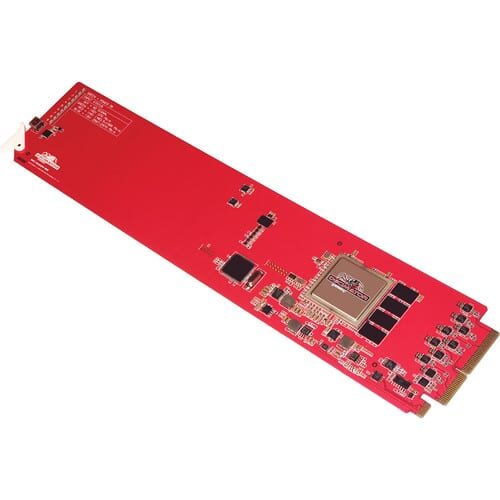

DECIMATOR MC-DMON-9S openGear 9-kanaliline multivaatur

1 to 9 Channel (3G/HD/SD)-SDI MultiViewer with Custom Layouts
Features:

Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
Low cost miniature (3G/HD/SD)-SDI 1 to 9 MultiViewer or 9 to 1 input multiplexer
Custom Layouts with various standard layouts
16 Character UMD overlay per window with individual enables, custom positioning and size
16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
Safe Action and Safe Title overlay per window with individual enables and adjustment
Centre Cross overlay per window with individual enable
Audio ID overlay
3 pin connector on the DR1-10B1G rear module allows for Dynamic UMD and Tallies via RS422/485 using the industry standard
TSL protocol
Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
Tally boxes allows for up to 4 Tallies per window
Fast switching between inputs using Full-Screen scaling
Selectable output format in both Full-Screen MultiViewer mode
Low latency buffering for each input allowing non-synchronous inputs
9 x (3G/HD/SD)-SDI inputs with auto detection (29 Formats supported in total)
Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
Variable aspect ratios per quadrant
In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI outputs
USB Mini B port for control and firmware updates
Supports openGear DashBoard for control
The DR1-10B1G rear is sold separately and has 10 BNC connectors and a 3 pin connector for RS422/485

Full specification sheet
