D21 Broadcast monitor. D21 can be used with corner supports to achieve vertical screen monitoring. The Ul menu can also be switched horizontally and vertically to meet the shooting needs of different scenes. The screen can be set to single screen, dual screeltriple screen or quad screen.Supports picture-in-picture mode to meet differenmonitoring needs.
New Vertical Monitoring Mode
| Professional Auxiliary Functions Built-in histograms, waveforms and vector charts can intuitively display light, shade and color conditions, allowing you to observe every frame to achieve the best results. |
 |
 |
Multi-Screen Mode D21 can be used with corner supports to achieve vertical screen monitoring. The Ul menu can also be switched horizontally and vertically to meet the shooting needs of different scenes.

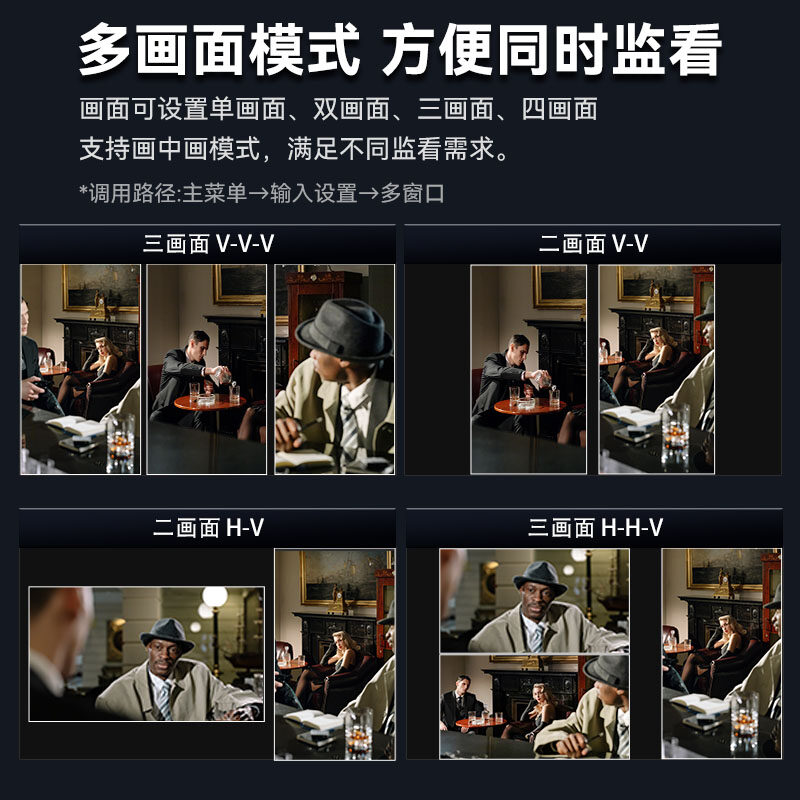

Multi-Screen Mode The screen can be set to single screen, dual screeltriple screen or quad screen.Supports picture-in-picture mode to meet differenmonitoring needs.
Especially triple vertical multi-view monitoring,very suitable for short video, short movie or broadcast reel. |
| Full waveform monitoring HDMI, SDI Dual Mode D21 has built-in full waveform monitoring function and supports both HDMI and SDI modes.Waveform diagrams allow you to better understand and analyze the quality of video signals |
 |
 |
Custom 3D-LUT Cinematic Style Built-in multiple styles of LUTS, supporting the import of custom LUTs Define your own creative cinematic style Whatever you like. |

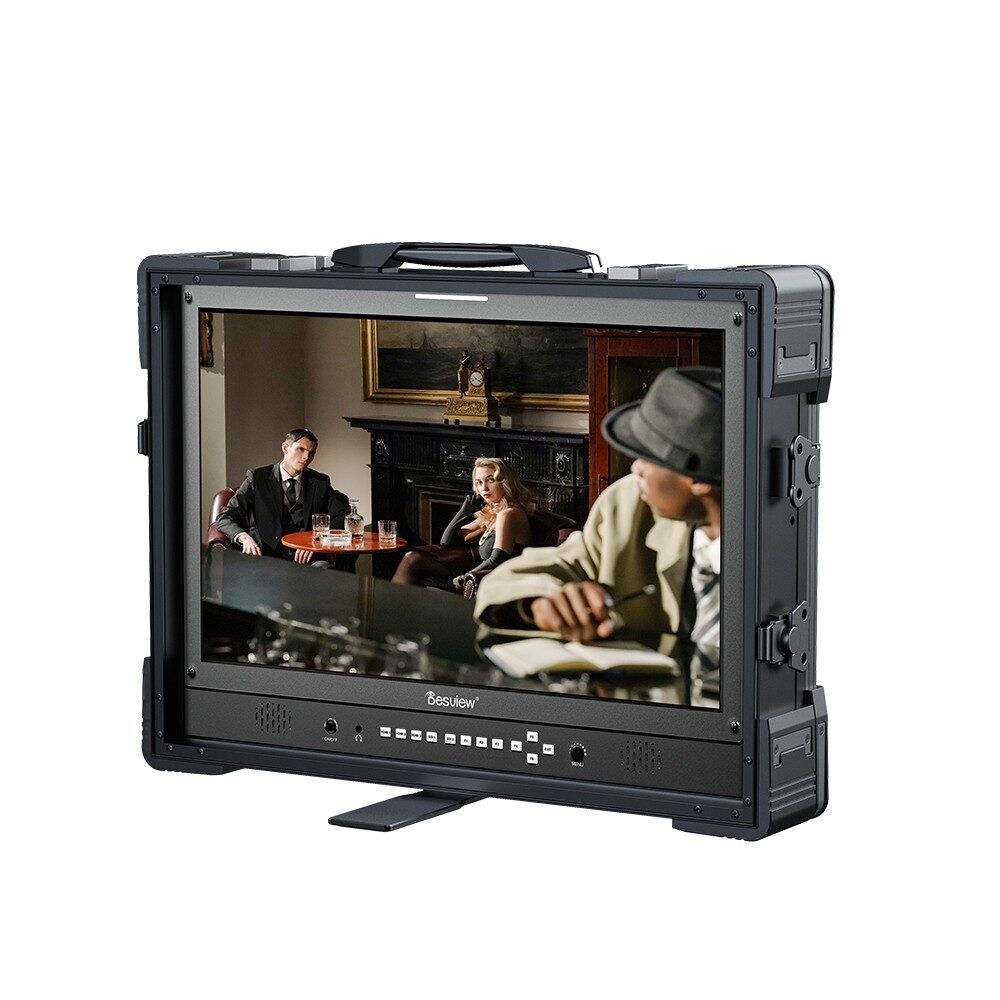

| Equipped With The Master Version Protective Case It adopts an all-aluminum alloy frame combined with a strong shell to effectively resist accidental collisions. |
 |
 |

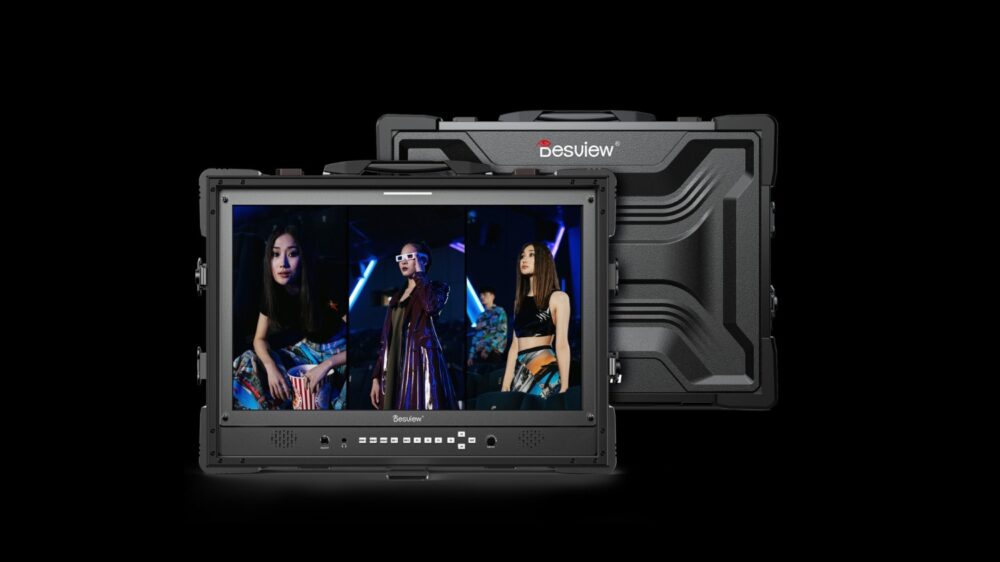

Portable Protective Case Easy to carry, Quickly adaptable to various locations, Enhancing shooting efficiency. |
| Vertical Screen – Innovative Monitoring D21 can be used with corner stand support to achieve vertical screen monitoring. The UI menu can also be switched horizontally and vertically to meet the shooting needs of different scenes. |
 |
 |
1080P Display Vibrant Colors High-definition image quality display,physical resolution of 1920*1080. Vibrant colors and LED backlight. 1000:1 |
| 99.5%DCI-P3 Vivid and Colorful Large screen with professional color gamut and wide viewing angle, no color difference when viewed from any angle. |
 |
 |

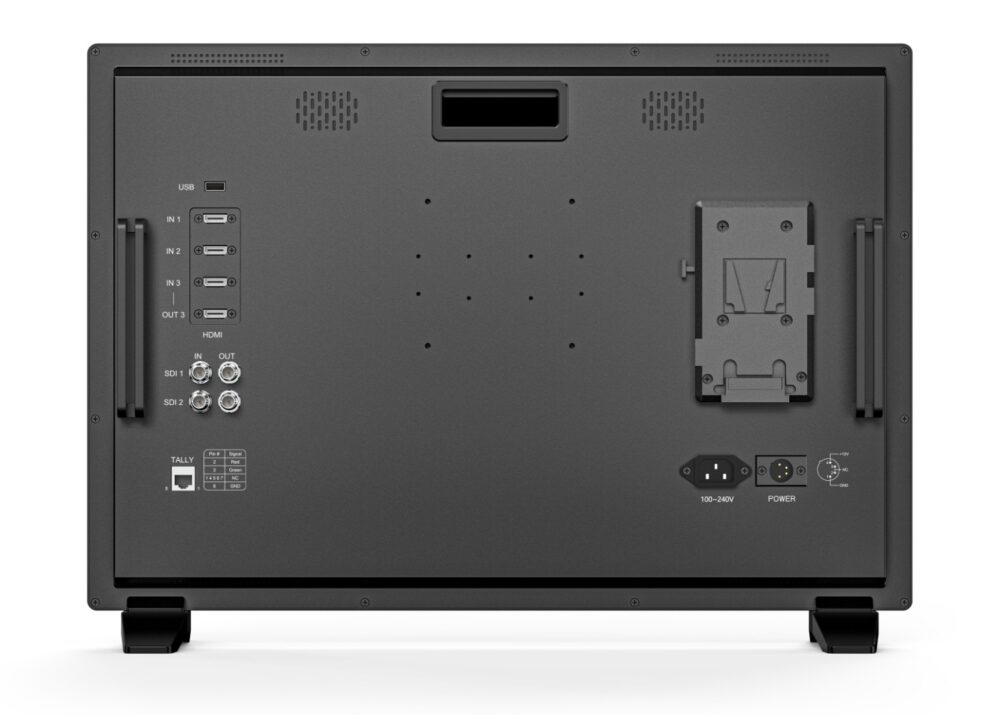

4K 60Hz HDMI Support Three Inputs and One Output Three 4K@60Hz HDMI signal inputs and one output transmit the picture without damage, making the picture smoother and clearer. SDI input and output Professional creation starts here |
| Three power supply modes Provide long-lasting power Supports V-mount batteries, AC power cord, and XLR power in Three different power supply modes adapt to the shooting needs of different scenes. |
 |
 |
Equipped With Tally Indicator Light The front tally light provides three different color signals: red, green and blue. |
Product Specification
| Technical Parameter | Interface | Other | Packing List | |||
| Model | D21/ D21-HB | Signal Input | HDMI2.0 x 3 | Net Weight | 12.76kg | Monitor x 1

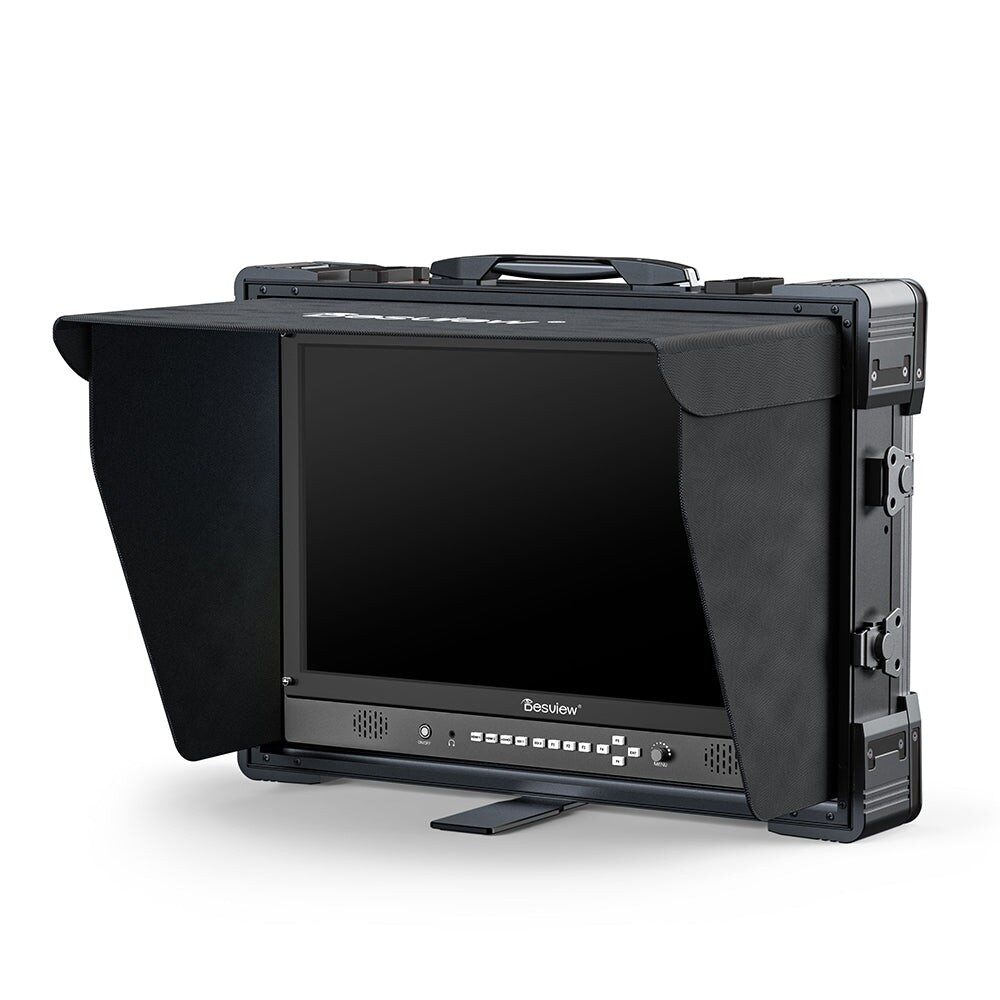

AC power cable x 1 HDMI Cable x 1 Dust Cloth x 1 User Manual + Warranty Card x 1 Master Protective Case x 1 Sunshade x 1 |
| Size | 21.5″ | Signal Output | HDMI2.0 x 1 | Material of Case | aluminum alloy | |
| Brightness | 400/ 1000Nits | Audio Output | 3.5mm Stereo | Speaker | x 2 (2Ω8W) | |
| Resolution | 1080P | Data Interface | USB2.0 | Work Temperature | 0℃～50℃ | |
| Color Gamut | 99.5%DCI-P3 | Tally | RJ45 | Storage Temperature | -20℃～60℃ | |
| Contrast Ratio | 1000:1 | SDI IN | SDI IN supports two input signals | Monitor Size | 584*426*177mm | |
| Display Color Depth | 10Bit (8Bit+2FRC) | SDI OUT | SDI OUT Loop out two input signals | |||
| View Angle | 178°(H/V) | Power Supply | AC power cord
XLR power in Support V-mount battery power supply |
|||
| Display Ratio | 16:9 | |||||
| Color Calibration | Delta E<2 | |||||
| Backlight | LED | |||||
