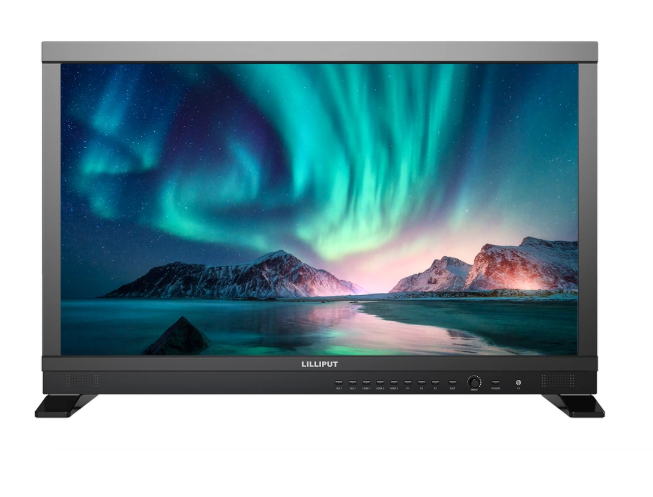

The PVM270S 27-inch High Brightness Live Stream Multiview Monitor is a professional 27″ Full HD production monitor with 1000 nits brightness, multi-view capabilities, and versatile SDI/HDMI connectivity, designed for live streaming, broadcast, and studio environments.
The PVM270S 27-inch High Brightness Live Stream Multiview Monitor is a powerful and versatile display solution tailored for live production and streaming workflows. Featuring a 27-inch Full HD (1920×1080) panel with an impressive 1000 cd/m² brightness, it ensures clear visibility even in bright studio or outdoor conditions. The wide 178° viewing angles and HDR support (ST2084 and HLG) deliver consistent and accurate image reproduction from virtually any position.
Equipped with 2×3G-SDI and 3×HDMI 2.0 inputs, the PVM270S supports flexible multi-camera setups, while its multiview functionality enables efficient monitoring of multiple sources simultaneously. Advanced features such as waveform monitoring, gamma adjustments, and 3D LUT (cube format) support allow precise color grading and exposure control. The monitor also supports a wide range of log formats including SLog3, CLog, and ArriLog, making it suitable for professional cinematography workflows.
With dedicated loop-out and PGM/LUT output options via SDI and HDMI, users can seamlessly integrate the monitor into complex production pipelines. Built-in speakers, headphone output, and robust audio support further enhance usability. The monitor offers flexible power options, including DC input and compatibility with V-Lock or Anton Bauer batteries, making it ideal for both studio and field use.
Key Features
- 27″ Full HD (1920×1080) display with 1000 nits brightness

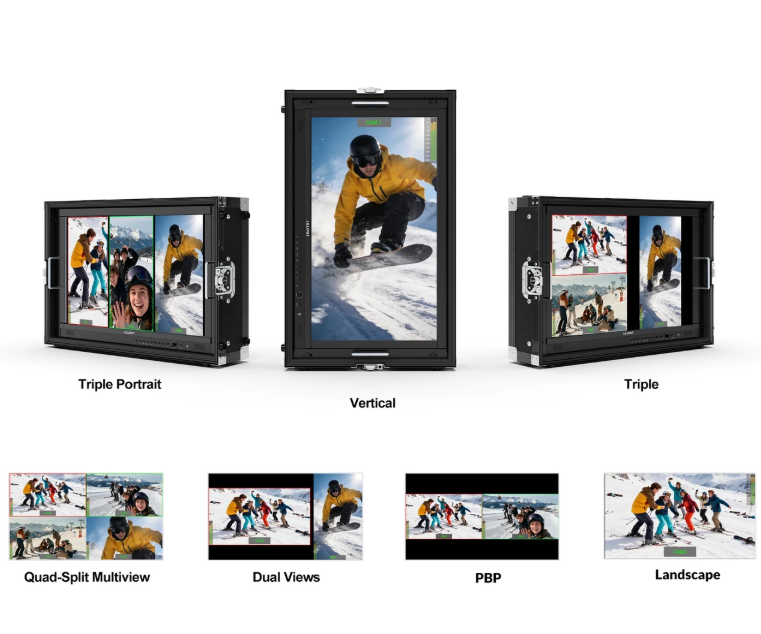

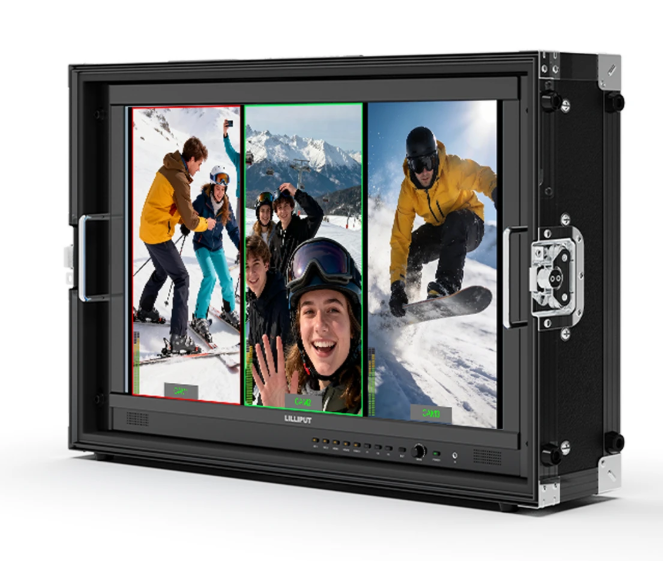

- Multiview support for monitoring multiple video sources
- HDR support (ST2084, HLG) for enhanced dynamic range
- 3D LUT (cube format) for accurate color grading
- Waveform monitoring for exposure and signal analysis
- Supports major log formats (SLog2/3, CLog, NLog, ArriLog, JLog)
- Multiple inputs: 2×3G-SDI and 3×HDMI 2.0
- Flexible outputs: SDI and HDMI loop-out, PGM/LUT output
- Wide 178° viewing angles
- Built-in speakers and 3.5mm headphone jack
- Battery support (V-Lock / Anton Bauer) for portable use
- PVM270S 27-inch Monitor
Display
- Panel: 27″
- Resolution: 1920 × 1080 (Full HD)
- Aspect Ratio: 16:9
- Brightness: 1000 cd/m²
- Contrast Ratio: 1000:1
- Viewing Angle: 178° (H/V)
- HDR: ST2084 (300/1000/10000), HLG
- LUT Support: 3D LUT (cube format)
- Supported Log Formats: SLog2/3, CLog, NLog, ArriLog, JLog

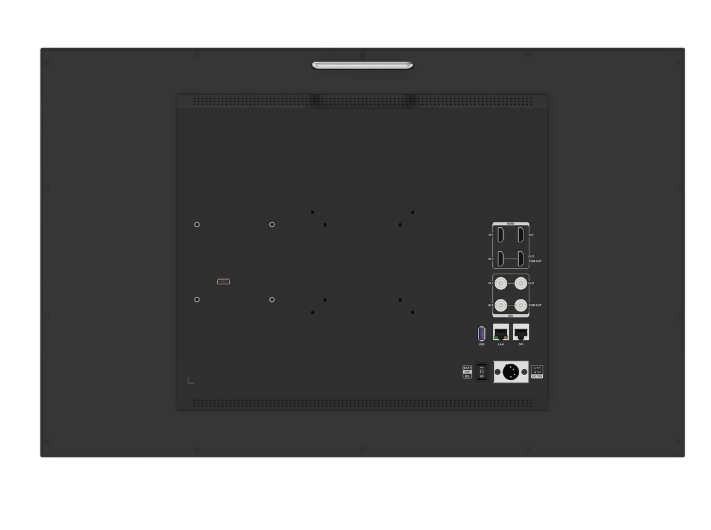

Video Input
- 2 × 3G-SDI
- 3 × HDMI 2.0
Video Output
- 1 × 3G-SDI (loop out)
- 1 × 3G-SDI (PGM/LUT out)
- 1 × HDMI 2.0 (loop/PGM/LUT out)
Supported Formats
- HDMI: 1080p (24/25/30/50/60), 1080i (50/60), 720p (50/60)
- SDI: Up to 2160p (24/25/30/50/60), plus HD formats
- Audio:
- SDI: 2ch, 48kHz, 24-bit
- HDMI: 8ch, 48kHz, 24-bit
Audio
- 3.5mm headphone jack
- Built-in stereo speakers
Power
- Input Voltage: DC 10–24V
- Battery Support: V-Lock / Anton Bauer (14.8V nominal)
- Power Consumption: ≤58W
Environmental
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
Physical
- Dimensions: 644 × 405 × 55.3 mm
- Weight: 8.8 kg
