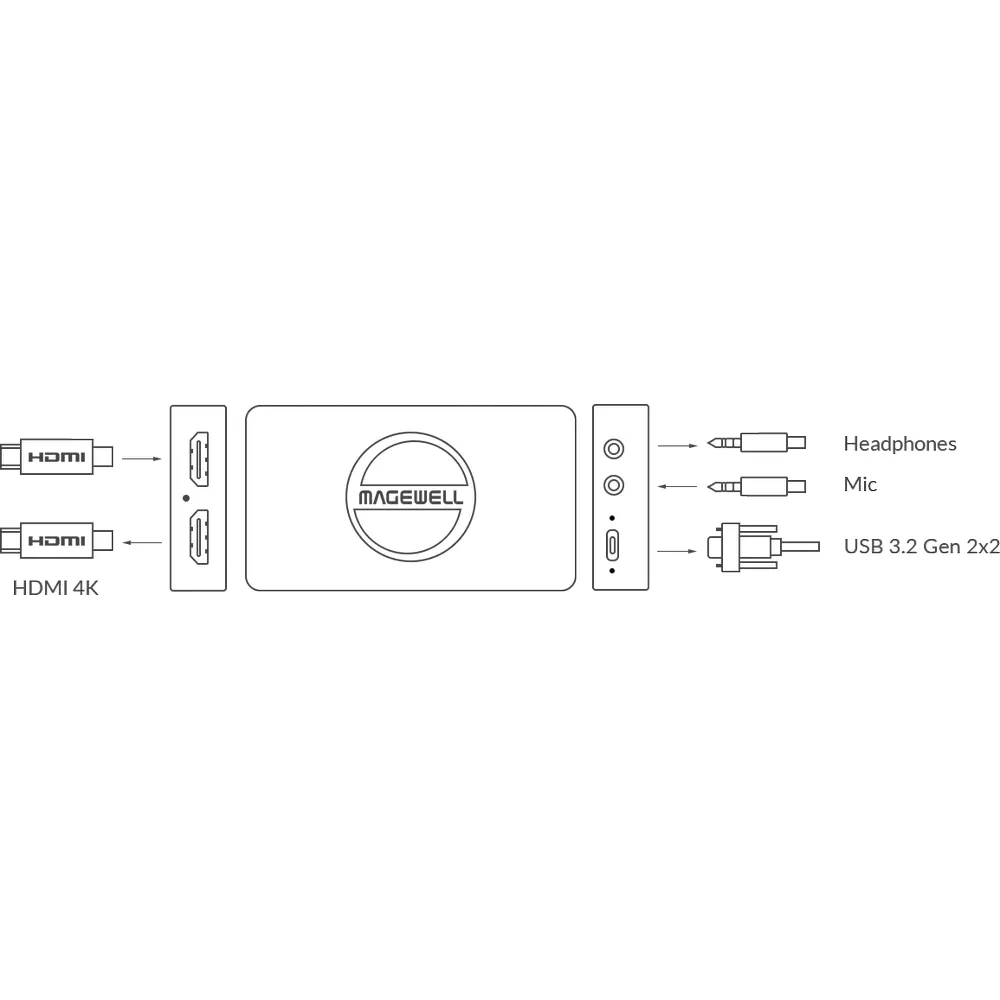

Interface:

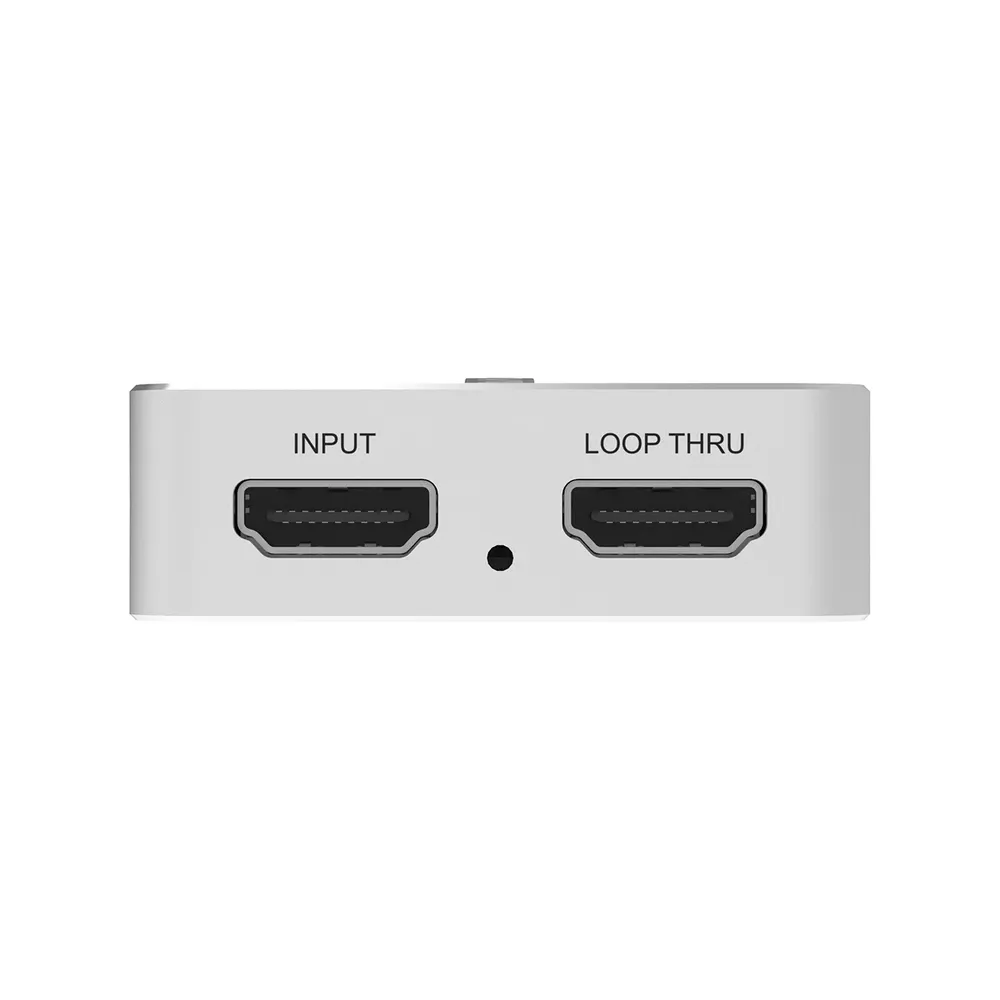

One HDMI input + embedded audio
One HDMI loop-through
Support input & loop-through resolution up to 4096×2160 60fps 4:4:4

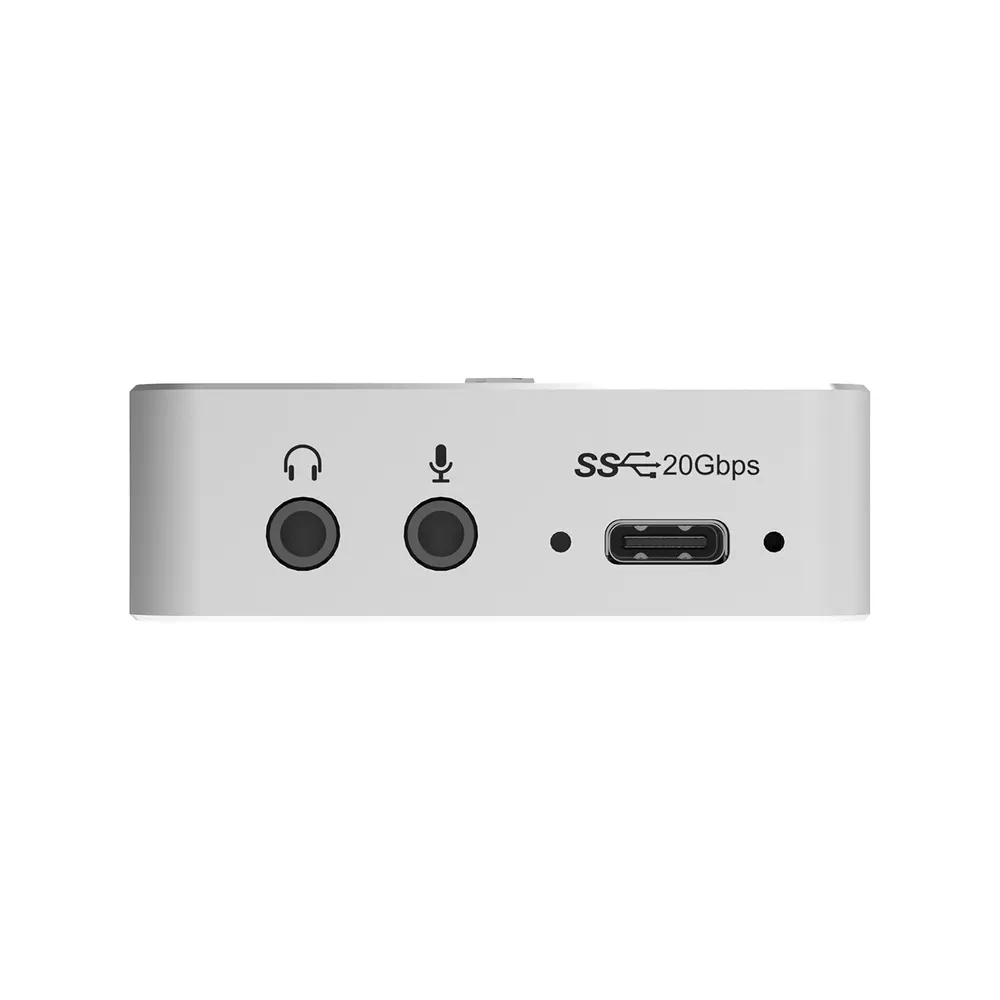

Audio Input/Output Interface: 3.5mm audio jack for microphone/ headphones
Host Interface: USB 3.2 Gen 2×2 up to 20G throughput
OS:
Windows, Linux, Mac, Chrome
Capture format:
Support capture resolutions up to 4096×2160
Support capture frame rates up to 240fps
Capture 2-channel embedded audio or analog audio via 3.5mm microphone interface
Included Software:
USB Capture Utility, Capture Express, etc.
Others:
Auto detection of input signal format
Integrate the functions of a USB audio card. Playback audio via 3.5mm headphones interface
Windows, Linux and Mac SDK
Continuously work for 24hx7
LED status indicator
3-year warranty
Form factor: (98.1 mm x 56.8 mm x 18 mm)
Full specification sheet
