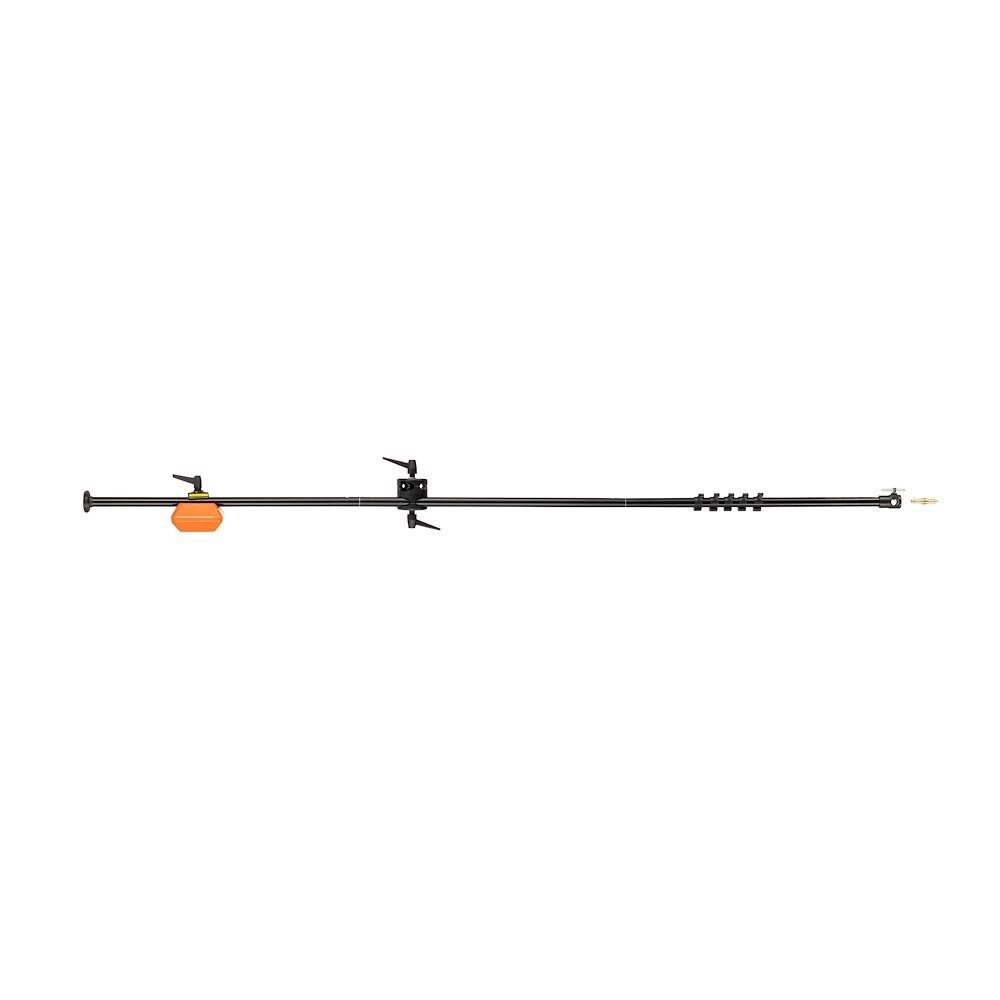

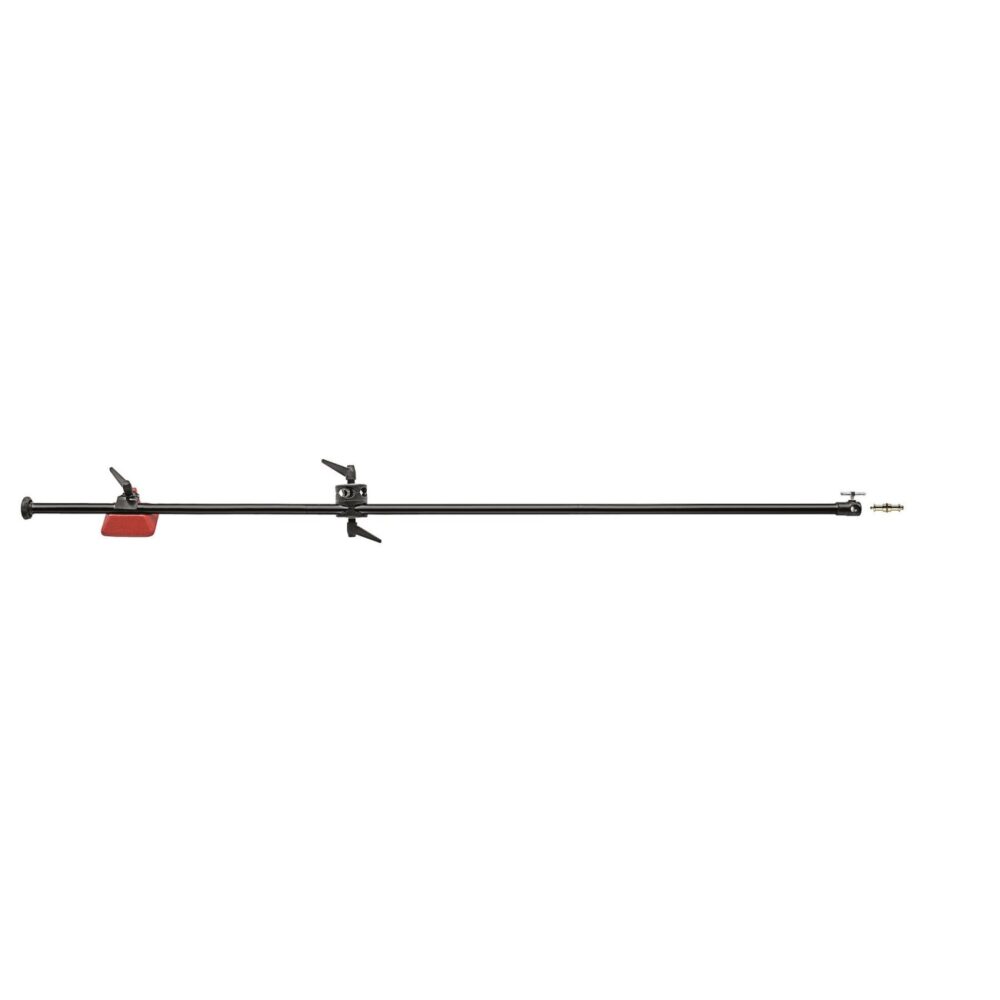

Manfrotto 024B is a three-section aluminium boom arm for positioning a studio light above the set, behind the subject or away from the stand axis. The supplied 124 pivot clamp attaches it to light-stand shafts with 19, 20, 25 or 28 mm diameters; the stand itself is not included. The arm extends from 120 to 210 cm, safely carries 3 kg at full extension, and the included 4.3 kg 023 counterweight helps balance the assembly. Its end fittings provide a 16 mm stud plus 1/4″-20 and 3/8″-16 threads for common studio accessories.
.stx-typography-standard-30431 h2{color:#3154c7!important;text-transform:uppercase!important;font-size:clamp(26px,3vw,36px)!important;line-height:1.16!important}.stx-typography-standard-30431 h3{color:#3154c7!important;text-transform:uppercase!important;font-size:clamp(20px,2vw,24px)!important;line-height:1.22!important}@media(max-width:760px){.stx-typography-standard-30431 h2{font-size:clamp(26px,7vw,28px)!important}.stx-typography-standard-30431 h3{font-size:clamp(19px,5.5vw,22px)!important}}
.mf024b{font-size:16px;line-height:1.55;color:#2b2f35} .mf024b h2{color:#3154c7;font-size:clamp(23px,2.1vw,30px);line-height:1.18;margin:0 0 12px} .mf024b p{margin:0} .mf024b-hero,.mf024b-row{display:flex;gap:4%;align-items:stretch;flex-wrap:wrap;margin:24px 0} .mf024b-hero{background:#f3f5f8;border-radius:12px;padding:22px} .mf024b-media,.mf024b-copy{width:48%;min-width:280px;flex:1 1 280px} .mf024b-media{display:flex;align-items:center;justify-content:center;min-height:300px} .mf024b-media img{width:100%;height:100%;max-height:420px;object-fit:contain;display:block} .mf024b-row .mf024b-media img{object-fit:cover} .mf024b-kicker{font-size:13px;font-weight:700;letter-spacing:.06em;text-transform:uppercase;color:#697386;margin-bottom:8px} .mf024b-points{display:grid;grid-template-columns:repeat(3,minmax(0,1fr));gap:12px;margin:22px 0} .mf024b-point{background:#f7f8fa;border-left:4px solid #3154c7;padding:14px 16px} .mf024b-point strong{display:block;color:#3154c7;margin-bottom:4px} .product-package-30431,.product-specs-30431{display:grid;grid-template-columns:repeat(2,minmax(0,1fr));gap:0 32px;list-style:none;margin:0;padding:0} .inside.greybox:has(> .product-package-30431),.inside.greybox:has(> .product-specs-30431){background:transparent!important;border:0!important;border-radius:0!important;box-shadow:none!important;padding:0!important} .product-package-30431 li,.product-specs-30431 li{border-bottom:1px solid #d9dde2;margin:0;padding:10px 0;line-height:1.35} @media(max-width:720px){.mf024b h2{font-size:24px}.mf024b-hero,.mf024b-row{padding:0;gap:16px}.mf024b-hero{padding:18px}.mf024b-row .mf024b-copy{order:2}.mf024b-row .mf024b-media{order:1;min-height:0}.mf024b-media img{height:auto;max-height:none;object-fit:contain}.mf024b-points{grid-template-columns:1fr}.product-package-30431,.product-specs-30431{margin:0;padding:0}} @media(max-width:520px){.product-package-30431,.product-specs-30431{grid-template-columns:1fr}}
MANFROTTO 024B · BOOM ARM WITHOUT STAND
Position light beyond the stand axis
A three-section aluminium arm with its own pivot clamp and counterweight creates controlled overhead, hair-light and back-light positions while keeping the supporting stand outside the frame.
120–210 cm reachThree sections for flexible setup and compact handling.
3 kg at full reachEvidence-backed safety payload at maximum extension.
4.3 kg counterweightIncluded 023 weight helps balance the mounted fixture.

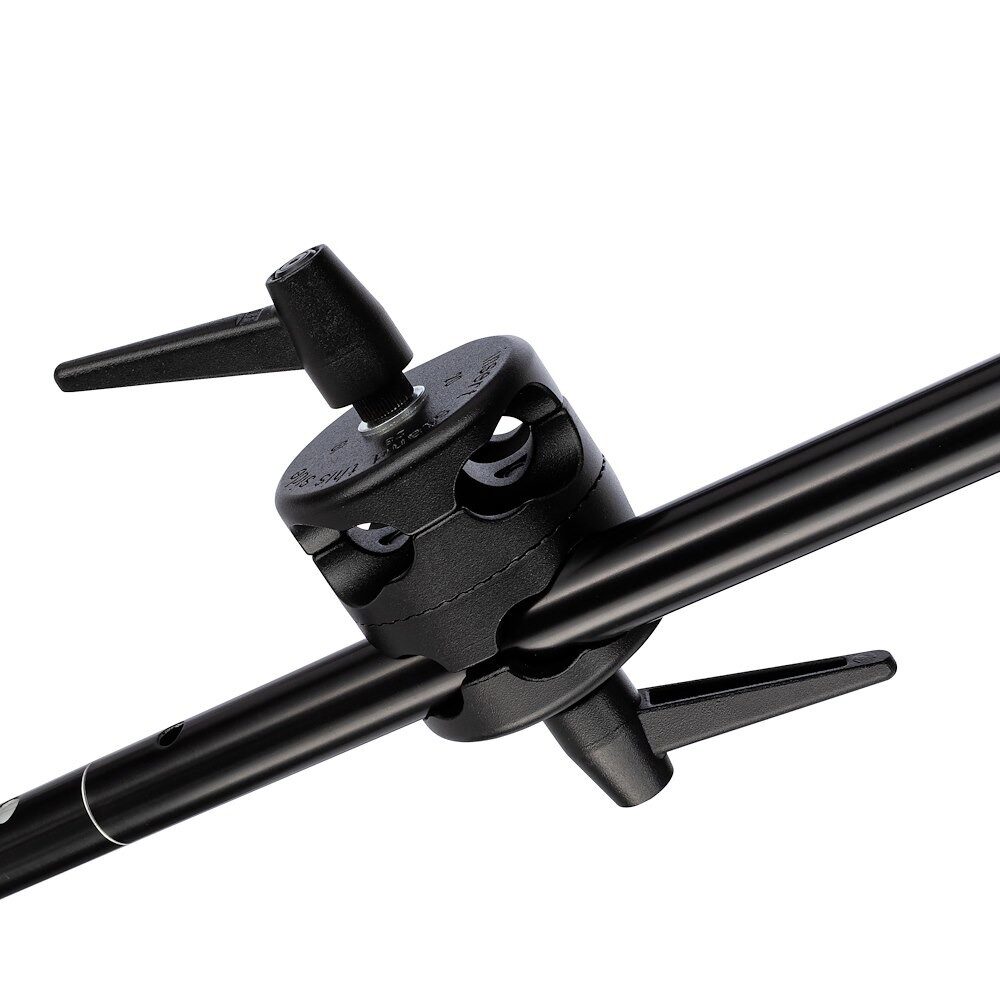

124 pivot clamp: tilt, swing and lock
The supplied clamp attaches the boom to shafts measuring 19, 20, 25 or 28 mm in diameter. Its controls let the arm pivot around the stand and lock the chosen angle; a suitable light stand is required and is not included.
A practical end fitting for studio hardware
The end of the 25 mm boom tube accepts common lighting hardware through a 16 mm (5/8″) stud and reversible 1/4″-20 and 3/8″-16 male threads. Cable clips help route a fixture cable along the arm.
- Three-section black aluminium boom arm ×1
- Manfrotto 124 pivot clamp ×1
- Manfrotto 023 counterweight, 4.3 kg ×1
- Manfrotto 013 reversible spigot ×1
- Cable clips ×3
- Locking key ×1
- Model: 024B
- Product type: Three-section lighting boom arm; stand not included
- Material: Aluminium
- Colour: Black
- Boom extension: 120–210 cm
- Boom tube diameter: 25 mm
- Safety payload at maximum extension: 3 kg
- Counterweight: 4.3 kg, model 023
- Compatible stand shaft diameters: 19 / 20 / 25 / 28 mm
- Top attachment: 16 mm (5/8″) stud, 1/4″-20 and 3/8″-16 male threads
- Product weight: 7.01 kg
- Boom sections: 3
