Position light beyond the stand axis

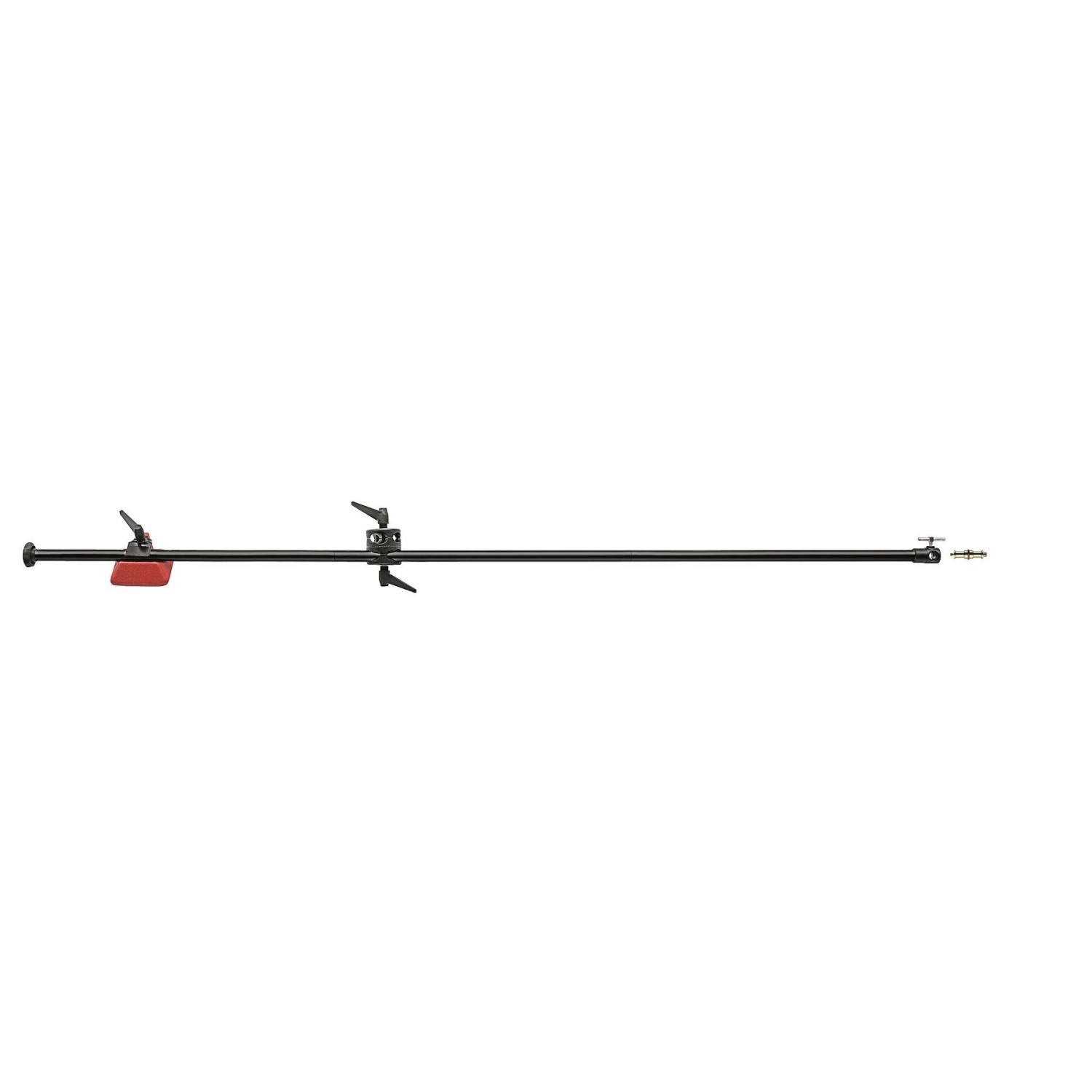

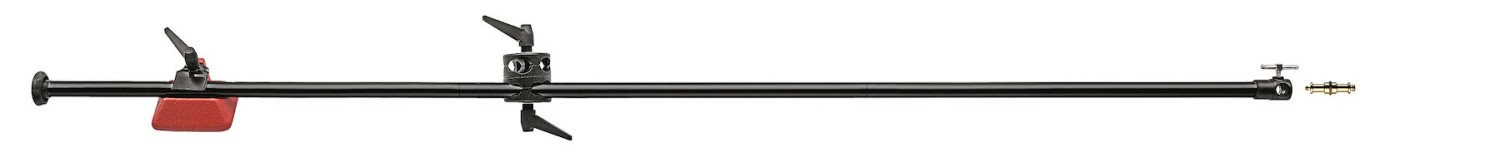

A three-section aluminium arm with its own pivot clamp and counterweight creates controlled overhead, hair-light and back-light positions while keeping the supporting stand outside the frame.
120–210 cm reachThree sections for flexible setup and compact handling.
3 kg at full reachEvidence-backed safety payload at maximum extension.
4.3 kg counterweightIncluded 023 weight helps balance the mounted fixture.

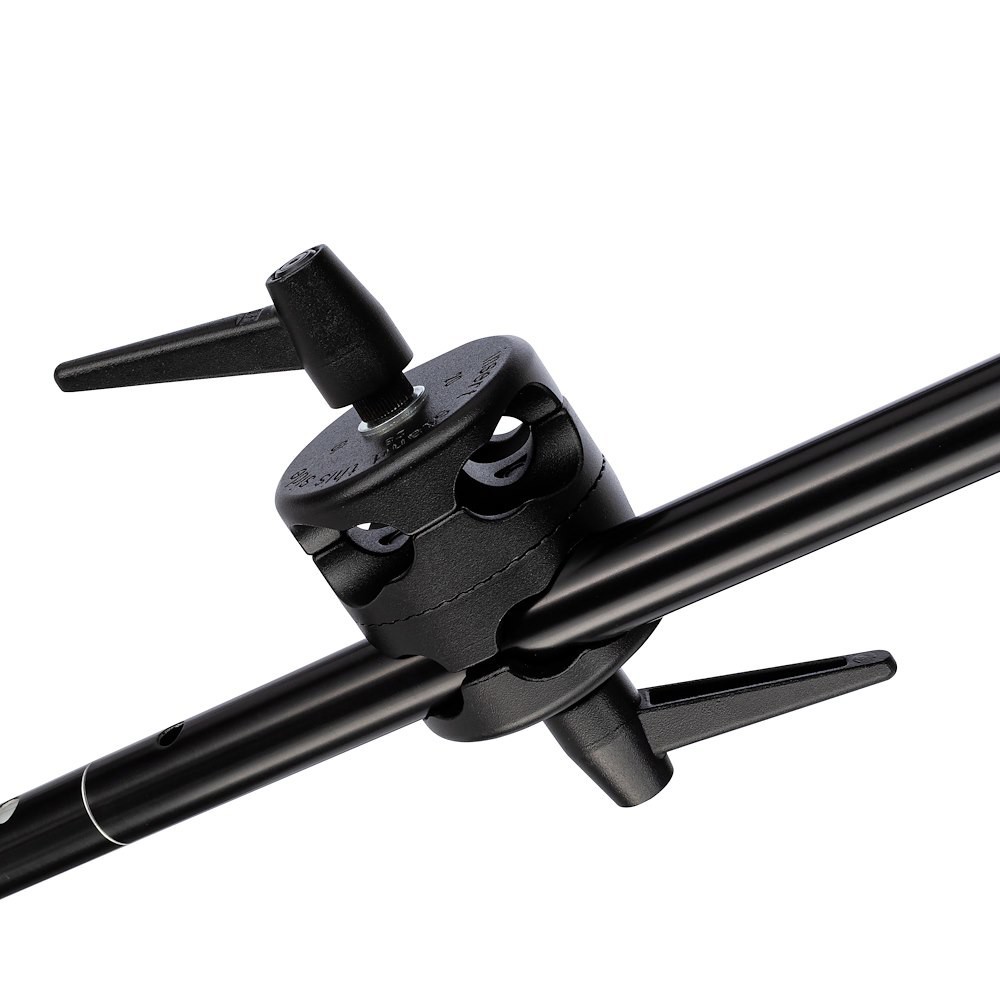

124 pivot clamp: tilt, swing and lock
The supplied clamp attaches the boom to shafts measuring 19, 20, 25 or 28 mm in diameter. Its controls let the arm pivot around the stand and lock the chosen angle; a suitable light stand is required and is not included.
A practical end fitting for studio hardware
The end of the 25 mm boom tube accepts common lighting hardware through a 16 mm (5/8″) stud and reversible 1/4″-20 and 3/8″-16 male threads. Cable clips help route a fixture cable along the arm.
- Three-section black aluminium boom arm ×1
- Manfrotto 124 pivot clamp ×1
- Manfrotto 023 counterweight, 4.3 kg ×1
- Manfrotto 013 reversible spigot ×1
- Cable clips ×3
- Locking key ×1
- Model: 024B
- Product type: Three-section lighting boom arm; stand not included
- Material: Aluminium
- Colour: Black
- Boom extension: 120–210 cm
- Boom tube diameter: 25 mm
- Safety payload at maximum extension: 3 kg
- Counterweight: 4.3 kg, model 023
- Compatible stand shaft diameters: 19 / 20 / 25 / 28 mm
- Top attachment: 16 mm (5/8″) stud, 1/4″-20 and 3/8″-16 male threads
- Product weight: 7.01 kg
- Boom sections: 3
