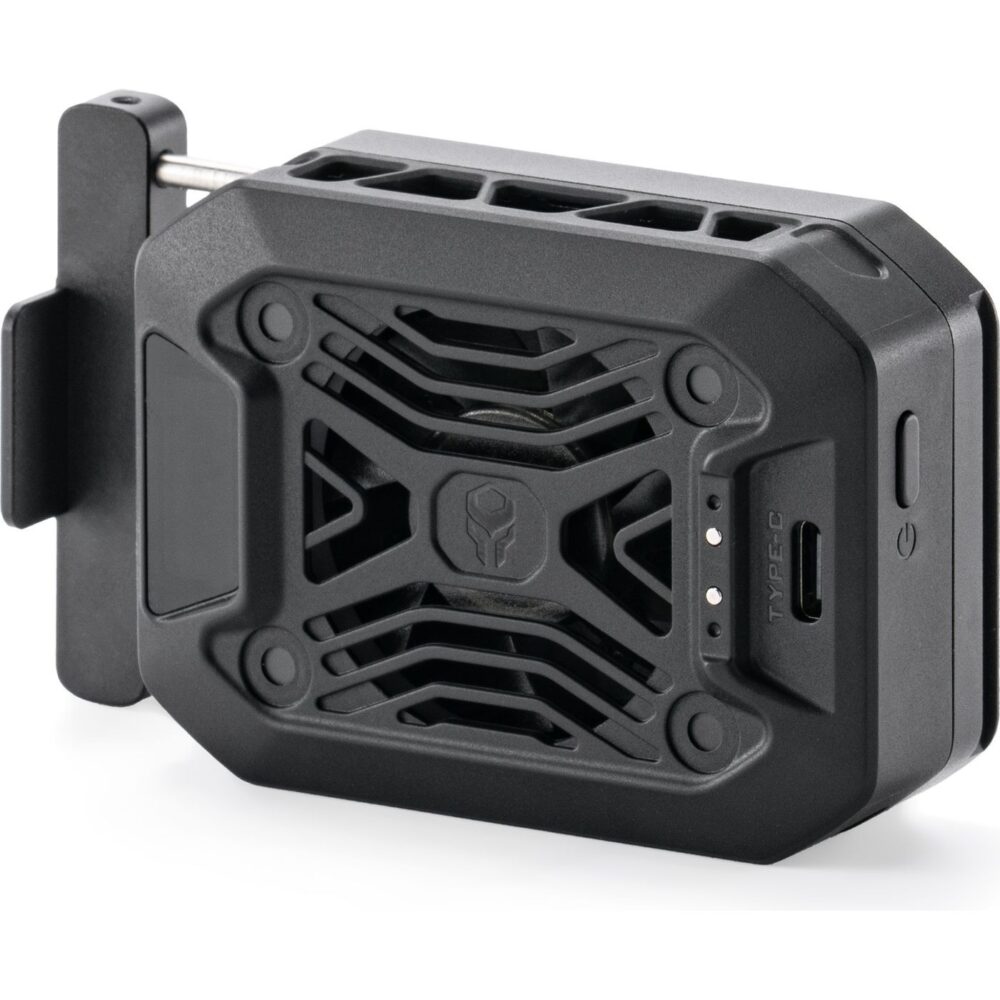

The Tilta Universal Cooling System is a universal cooler for mirrorless cameras from Sony, Canon, Nikon, Fujifilm and Panasonic Lumix. A thermoelectric plate with aluminium heatsink fins and a near-silent fan brings the contact surface down to 0 °C, so the camera does not overheat during long recordings. Three modes (quiet, ice-cool and Auto), a TFT colour display, one-press mounting and power over USB-C or from the magnetic power supply.
The Tilta Universal Cooling System (TA-UCS-B) is a thermoelectric cooler that mounts on a mirrorless camera body with a single press and keeps it running without overheating on long shoots. This variant is powered by cable over USB-C; the magnetic power supply is sold separately or in the Power Kit.
Thermoelectric cooling down to 0 °C

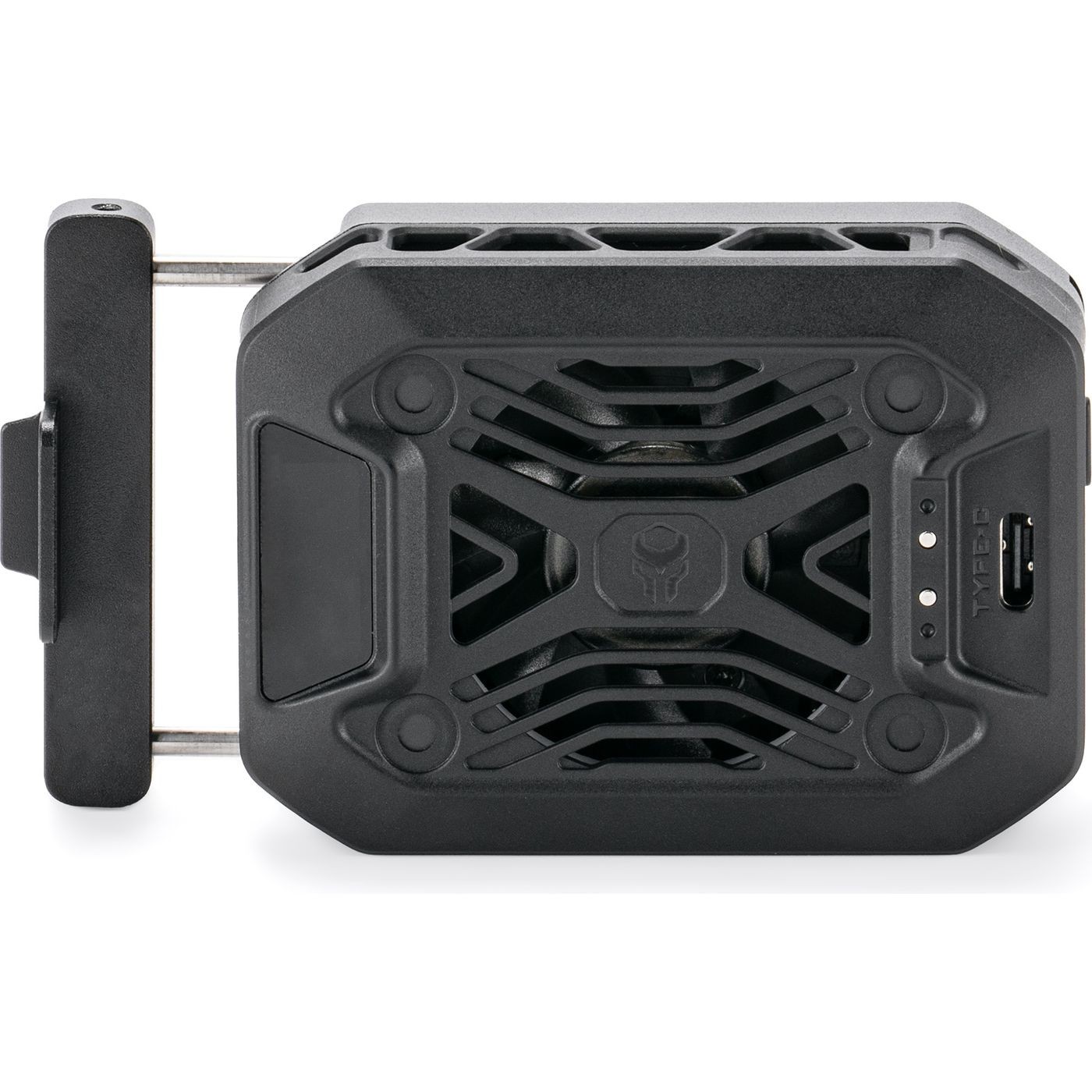

The cooler is built around a thermoelectric plate: the plate pulls heat away from the camera body, aluminium heatsink fins pass it to a near-silent fan, and thermally conductive silicone gives full-surface contact with the camera. In Level 2 the contact surface drops to 0 °C, so the camera neither throttles nor stops recording during long, high-resolution sessions.

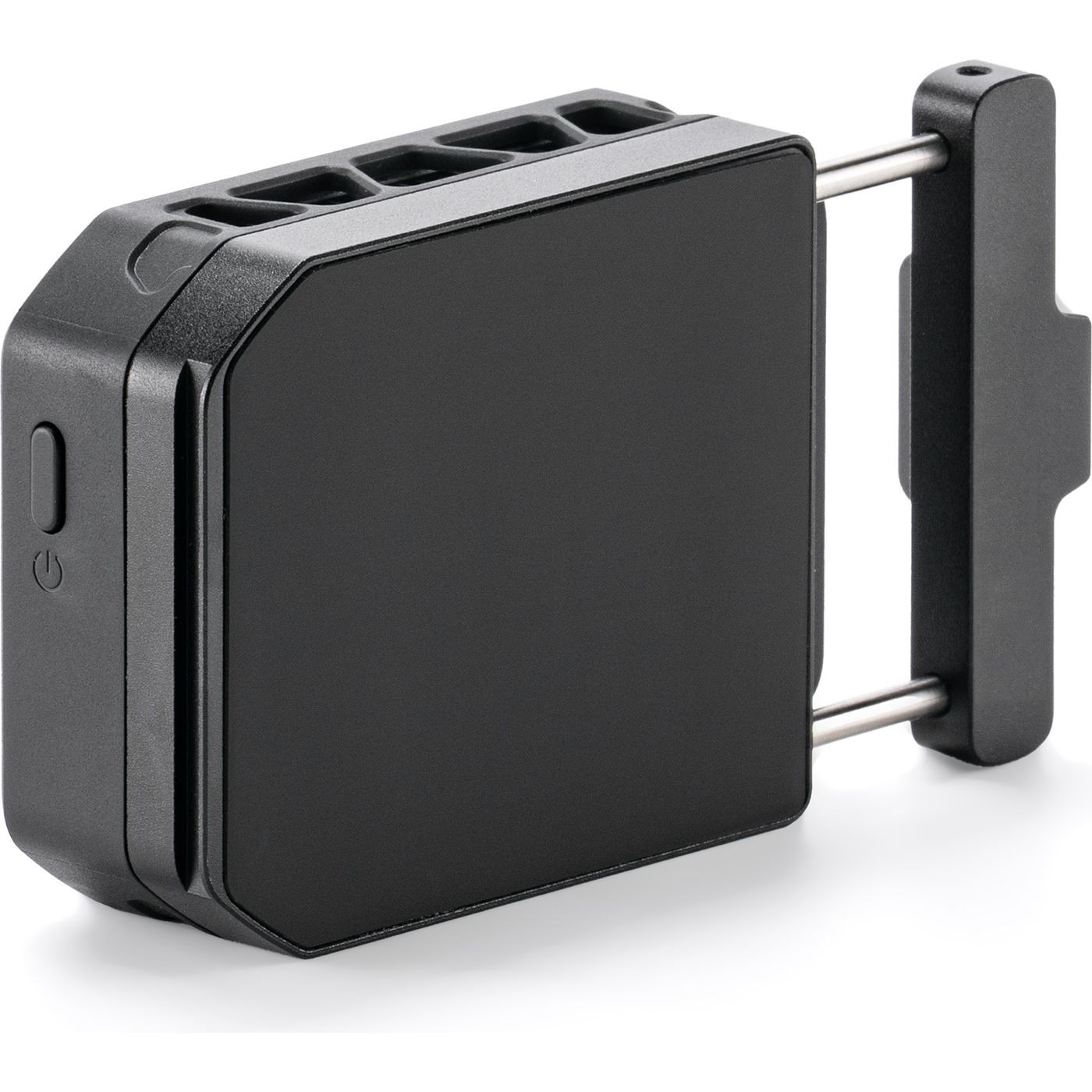

One-press mounting, temperature on the display

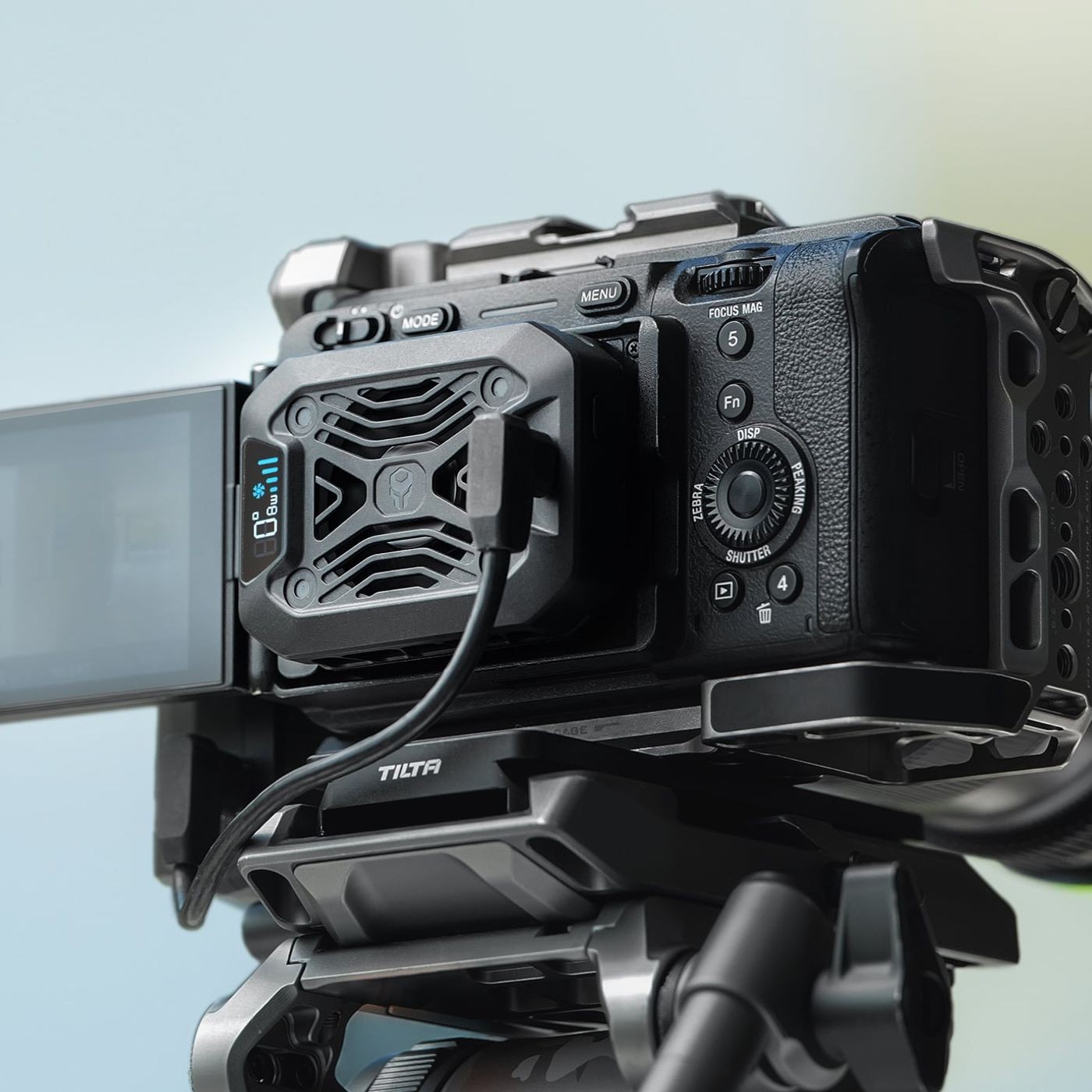

Quick mounting with a latch: the cooler goes on and comes off with a single press, no tools, and nothing gets in the way when switching cameras. The built-in TFT colour display shows the current temperature and the selected mode, so switching between quiet cooling and full power is a glance and one button.
Three cooling modes
Level 1 (Quiet Mode) cools to roughly 5 °C with fan noise of 30 dB and below — suitable for recording audio on set. Level 2 (Ice-Cool Mode) gives full power down to 0 °C. Auto Mode adjusts the cooling intensity by itself and holds a stable 20 °C ± 3 °C, so you do not have to go back to the settings.
Power: magnetic module or USB-C
The power supply for the Universal Cooling System attaches to the cooler magnetically, and the setup stays compact and cable-free. For wired power there is the USB-C port — from a PD source, a power bank or a V-mount battery, which comes in handy for livestreams, interviews or all-day shoots.
Things to keep in mind
In Level 1 the fan may be picked up by the camera’s built-in microphone because of the close proximity; recording with an external microphone is not affected.
The Tilta Universal Cooling System family
The cooler is sold on its own (TA-UCS-B, powered over USB-C), the magnetic power supply with a built-in 3000 mAh battery is also sold separately (TA-UCSP-B), and the Power Kit (TA-UCSK-B) contains both. The cooler is universal — it works with mirrorless cameras from Sony, Canon, Nikon, Fujifilm and Panasonic Lumix.
- Tilta Universal Cooling System — 1×
- USB-C to USB-C cable — 1×
- Cooling: thermoelectric plate (TEC), aluminium heatsink fins, fan
- Modes: Level 1 — approx. 5 °C, noise 30 dB and below · Level 2 — down to 0 °C · Auto — 20 °C ± 3 °C
- Display: TFT colour (temperature and mode)
- Mounting: latch-based quick mount, single press
- Power: USB-C (PD source or V-mount battery), or magnetic power supply TA-UCSP-B
- Dimensions: 94 × 53 × 24.5 mm
- Weight: 117 g
- Material: aluminium alloy, ABS
- Colour: black
- Compatibility: Sony ZV-1, ZV-1 II, ZV-1F, ZV-E1, ZV-E10, ZV-E10 II, A6700, A7 IV, A7C, A7C II, A7CR, A7S III, FX3, FX30 · Canon EOS R1, R3, R5, R5 Mark II, R6, R6 Mark II, R6V, R7, R8, R10, R50, RP, 90D, PowerShot SX70 HS · Nikon Z30, Z fc, Z f · Fujifilm X-H2, X-H2S, X-S10, X-S20, X-T4 · Panasonic Lumix GH5, GH5S, GH5 II, GH7, G7, G85, G9, G95, G9 II, G100, G100D (and other models of these series)
