This V-Mount Battery Plate mounts directly to our Camera Cage for Blackmagic PYXIS 6K/12K and features multiple power output ports such as PD USB-C, P-Tap, and 2 Pin as well as a PD USB-C input.
- CUSTOM DESIGNED for our Blackmagic PYXIS 6K/12K Camera Cage
- V-MOUNT BATTERY PLATE Provides Higher Capacity Power for Longer Shooting Duration
- HOT SWAPPABLE Swivel Design Maintains Access to On-Board Batteries
- USB-C PD INPUT Port Improves Flexibility for Powering the Battery Plate
- POWER OUTPUTS Include PD USB-C, 2 Pin, and P-Tap

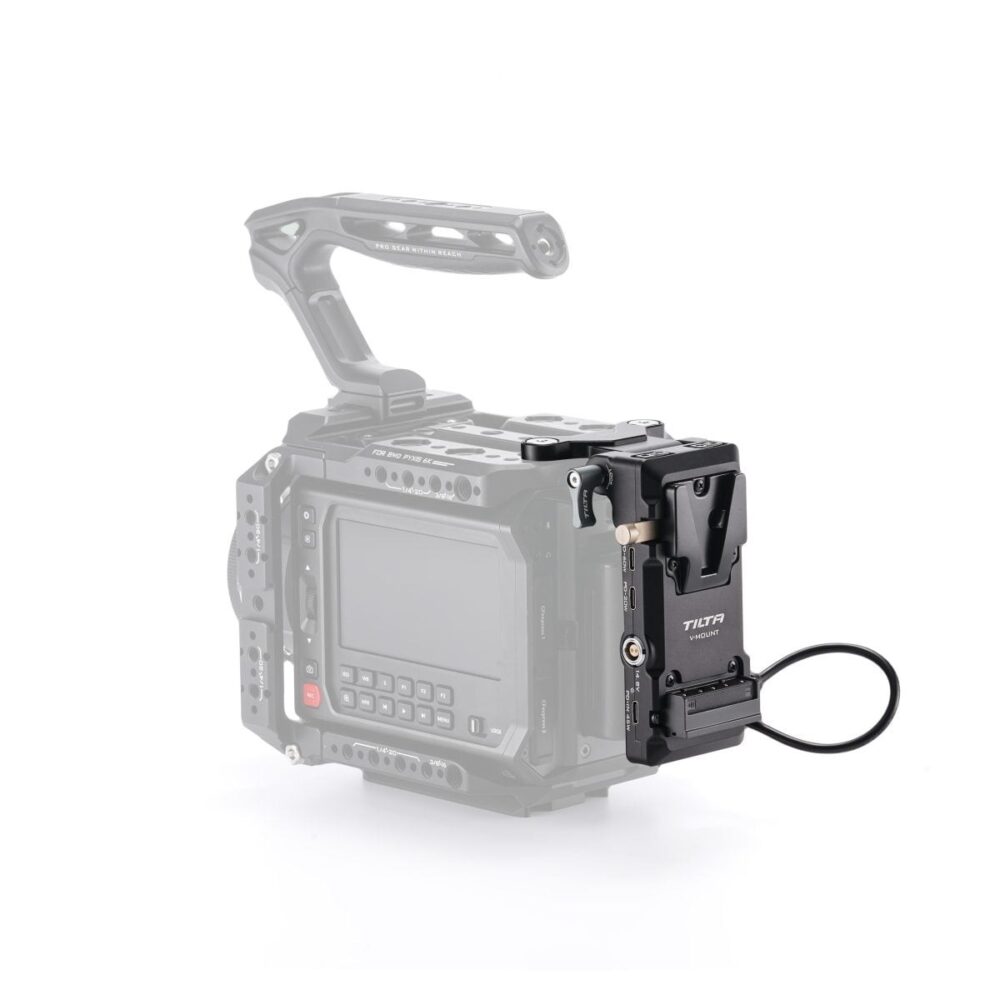

Introducing the Foldable Battery Plate for Blackmagic PYXIS 6K/12K
This V-Mount Battery Plate mounts directly to our Camera Cage for Blackmagic PYXIS 6K/12K and features multiple power output ports such as PD USB-C, P-Tap, and 2 Pin as well as a PD USB-C input.
The USB-C input is especially useful as it allows users to power the battery plate and all connected accessories without having a V-Mount battery attached which is perfect for hot swapping or rigging the camera in lighter weight configurations.
The Plate also features a swivel mount that allows users to easily access the camera’s on-board batteries which makes this a great option for hot swapping as a small on-board battery can power the camera while a V-Mount is being swapped.
Power Outputs
- (2) 14.8V P-Tap
- (1) 14.8V 2-Pin
- (1) USB-C PD 60W
- (1) USB-C PD 20W
- (1) USB-A 5V
Power Input
- (1) USB-C PD 45W
