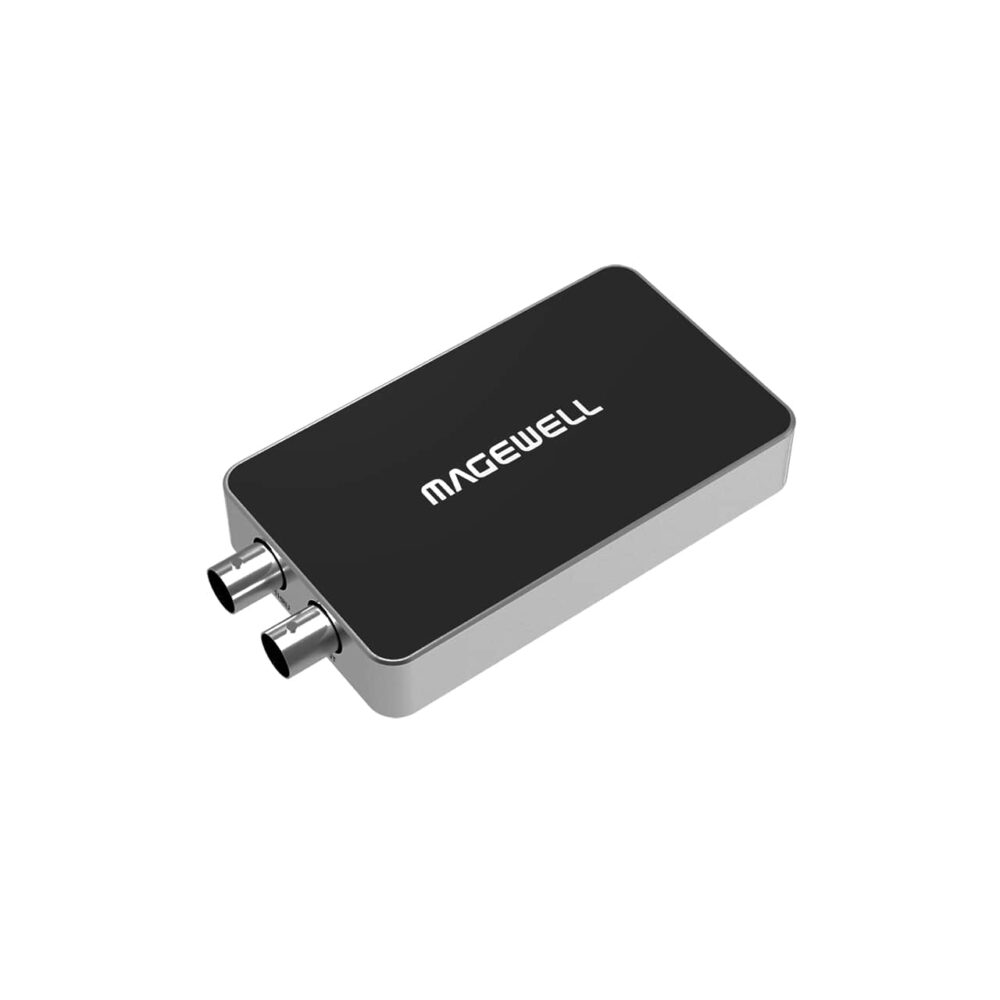

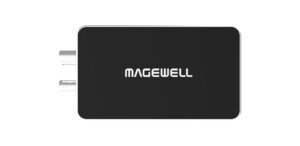

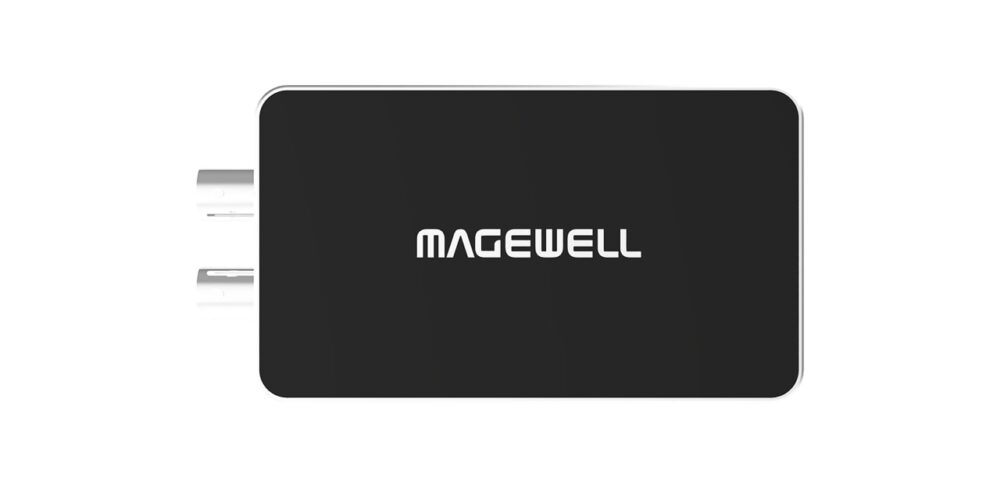

MAGEWELL USB Capture SDI Plus

Tootja:MAGEWELL

349.00 418.80 (KM-ga)

USB 3.0 DONGLE, 1-channel HD/3G/2K SDI with loop-through out, plus extra audio line in / out. Plug and Play. Windows/Linux/Mac. 3-year warranty.

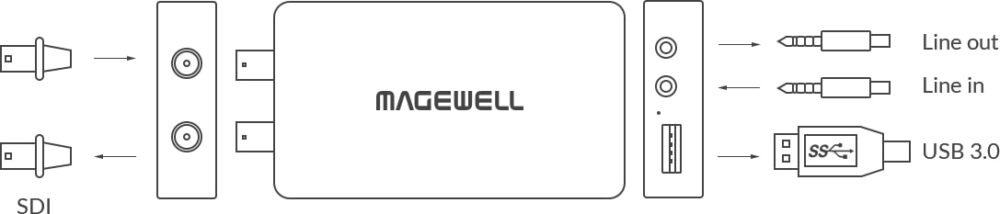

  • Capture SD/HD/3G/ 2K SDI + embedded audio
  • Loop-through SD/HD/3G/2K SDI
  • Audio input via Line in
  • Extract SDI embedded audio and output via Line out

Specifications and Features



Interface

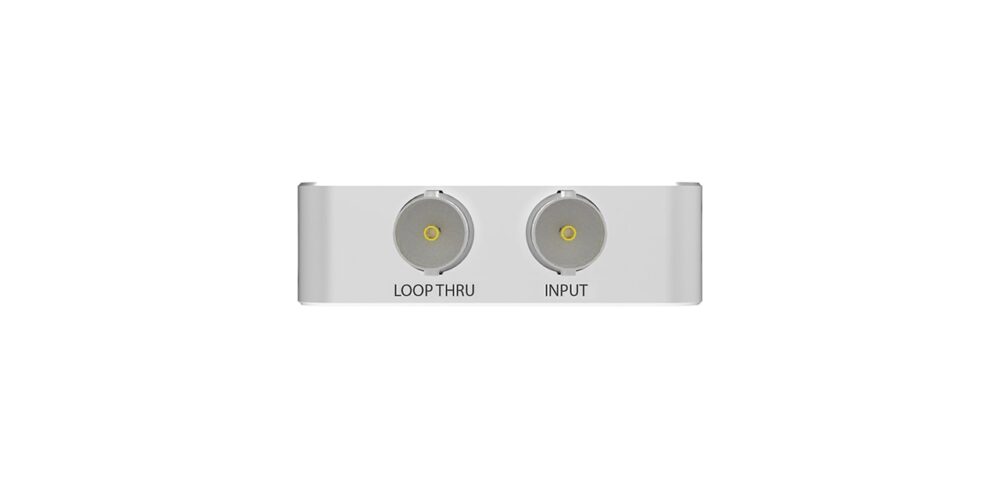

Input Interface

  • SD/HD/3G/2K SDI x1
  • Support input resolution up to 2048×1080 pixels

Loop-through Interface

  • SD/HD/3G/2K SDI x1
  • Support loop-through resolution up to 2048×1080 pixels

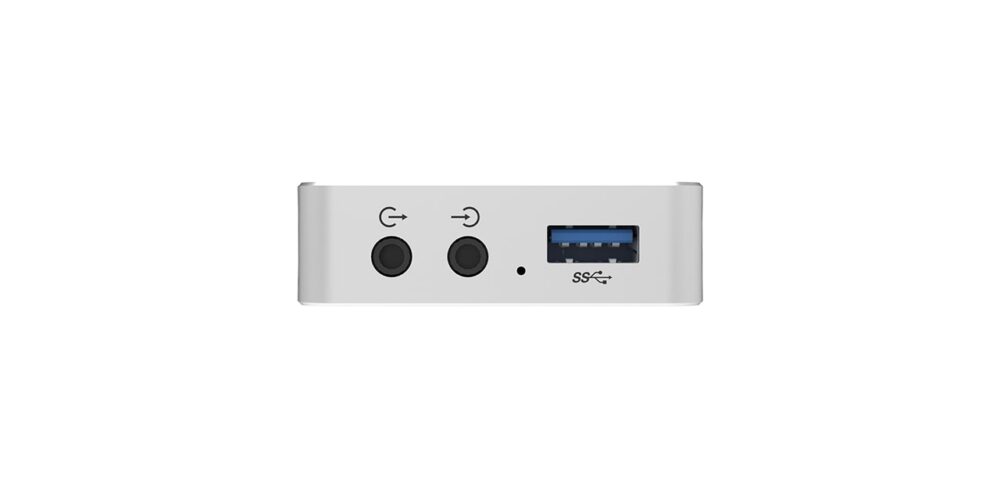

Audio Input Interface

  • 3.5 mm audio jack for Line In

Audio Output Interface

  • 3.5 mm audio jack for Line Out

Host Interface

  • USB 3.0



Video Engine

8-bit video processing

Deinterlace

Cropping

Color Adjustment

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

Mirror and Flip



Signal Detection & Support

Auto Detection of Input Signal Format



Software Environment

OS

  • Windows, Linux, Mac, Chrome OS

Driver and Firmware

  • Driver Free, Updatable Firmware

Included Software

  • USB Capture Utility, Capture Express

Compatible Software



Others

Multiple Devices on One Host

Continuously Work for 24hx7

High-speed Memory

LED Status Indicator

Windows&Linux SDK

3-year Warranty

MORE INFORMATION

Tootekood: MW USB-SDI-PLUS Kategooriad: , Silt:

Brand

MAGEWELL
