Features:
- Wide view angle, Full HD 1920×1080, bright, colorful display
- HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
- Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
- Check Field (Red, Green, Blue, Mono)
- Camera Mode
- Pixel to Pixel
- Center Marker
- Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Image Flip (Horizontal, Vertical, Hor&Ver)
- Image Freeze
- Zoom All
- U/D & L/R Zoom
- Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
- Built-in LED tally indicators (Red, Green, Yellow)
- Power using included 12-volt supply or use standard 4-pin XLR
Specifications:
- Screen Size 23.8″ IPS
- Color Depth 16.7M (8-bit)
- Resolution 1920×1080 pixels
- Pixel Pitch 0.2745 (H) x 0.2745 (V)mm
- Aspect Ratio 16:9
- Brightness 250cd/m²
- Contrast Ratio 1000:1
- Backlight LED
- Viewing Angle 89°/89°(L/R) 89°/89°(U/D)

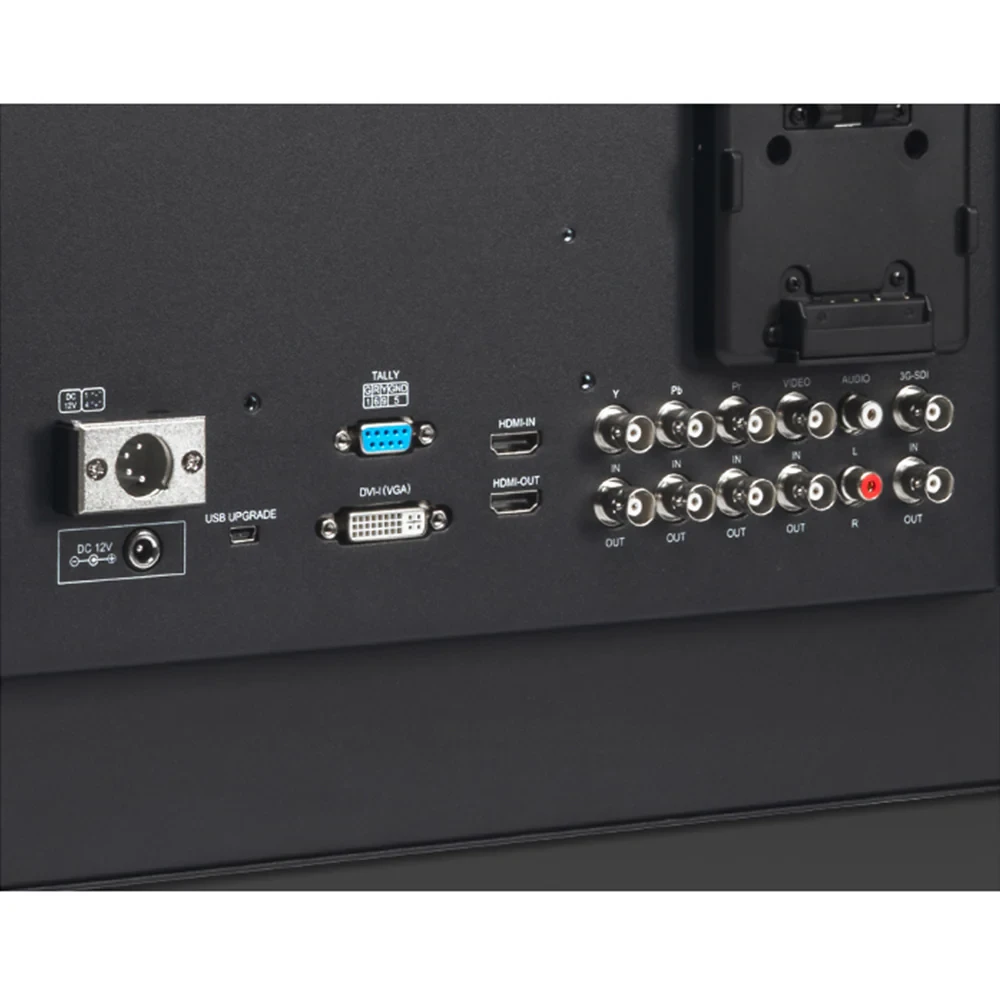

Input:
- 1 X BNC 3G-SDI
- 1 X HDMI HDMI
- 3 X BNC YPbPr
- 1 X DVI-I DVI-I
- 1 X BNC Video
- 2 X RCA Audio(L/R)
Output:
- 1 X BNC 3G-SDI
- 1 X HDMI HDMI
- 3 X BNC YPbPr
- 1 X BNC Video
