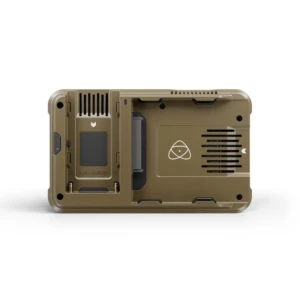

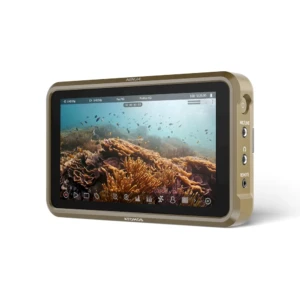

Physical Specifications
Dimensions: (W x H x D mm) 151 x 91.5 x 31mm
Weight: 360g / 12.7oz

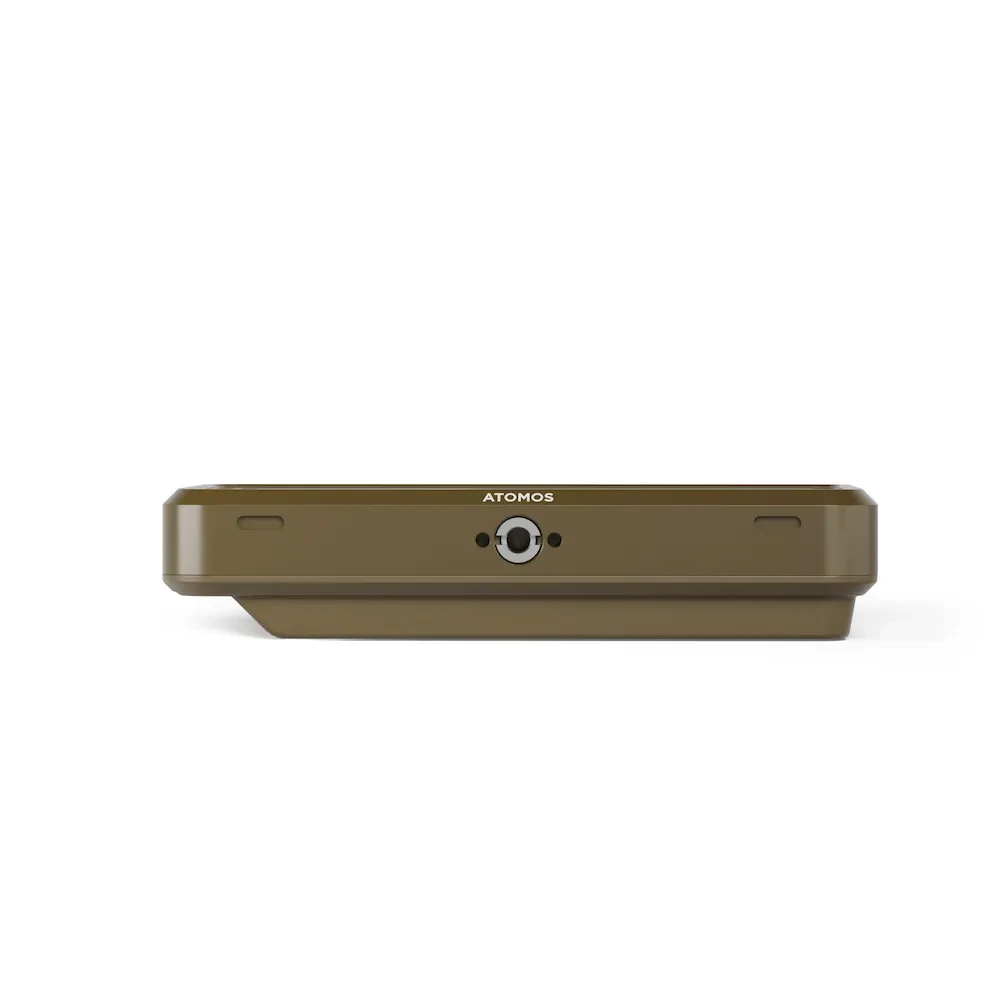

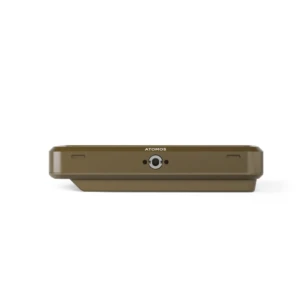

Mount points: 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom
Environmental
Ambient operating temperature Up to 40 degrees Celsius
Construction & Control
Body: Aluminium with ABS plastic
Cooling: Actively controlled fan and heat sink
Tally light: Rear and front
Multi-function button Power / lock screen
AtomXpansion slot
Power
Input voltage: 6.2V to 16.8V
Operating power: 5.8-7.2v (Battery) or min 30W via USB C PD cable

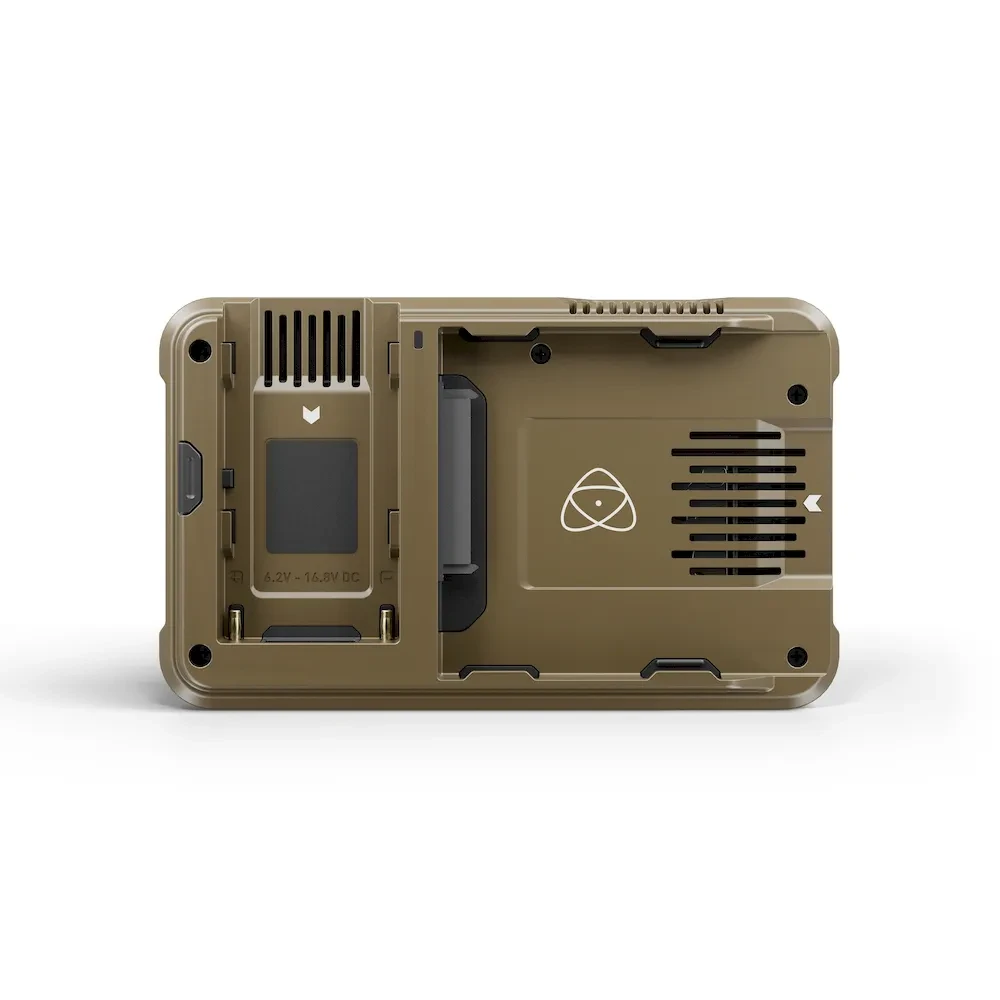

Compatible batteries: NPF L series
Built in battery: No
Battery run time Record 5200mAh – up to 2hrs (monitor & record 4K 60p)
7800mAh – up to 3hrs (monitor & record 4K 60p)
DC in connector Via DC jack on battery eliminator
DTAP Via battery eliminator and optional DTap to DC cable

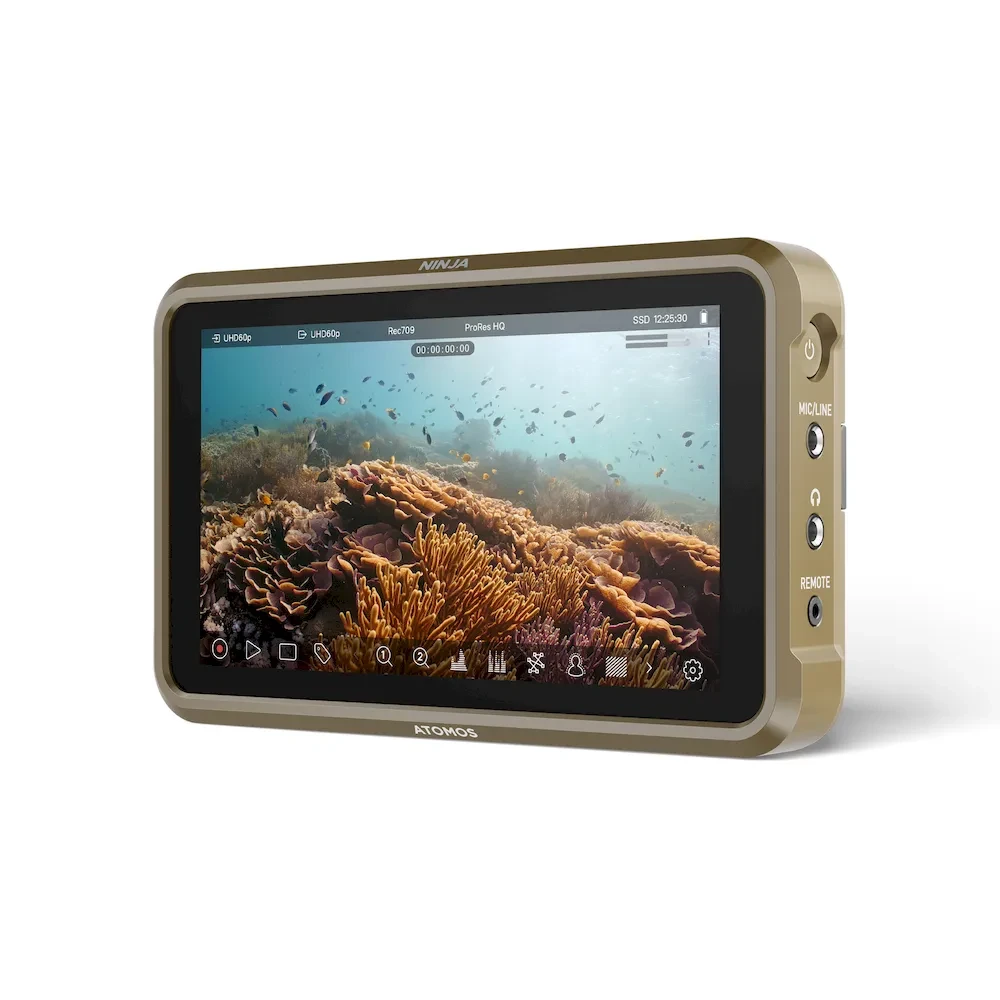

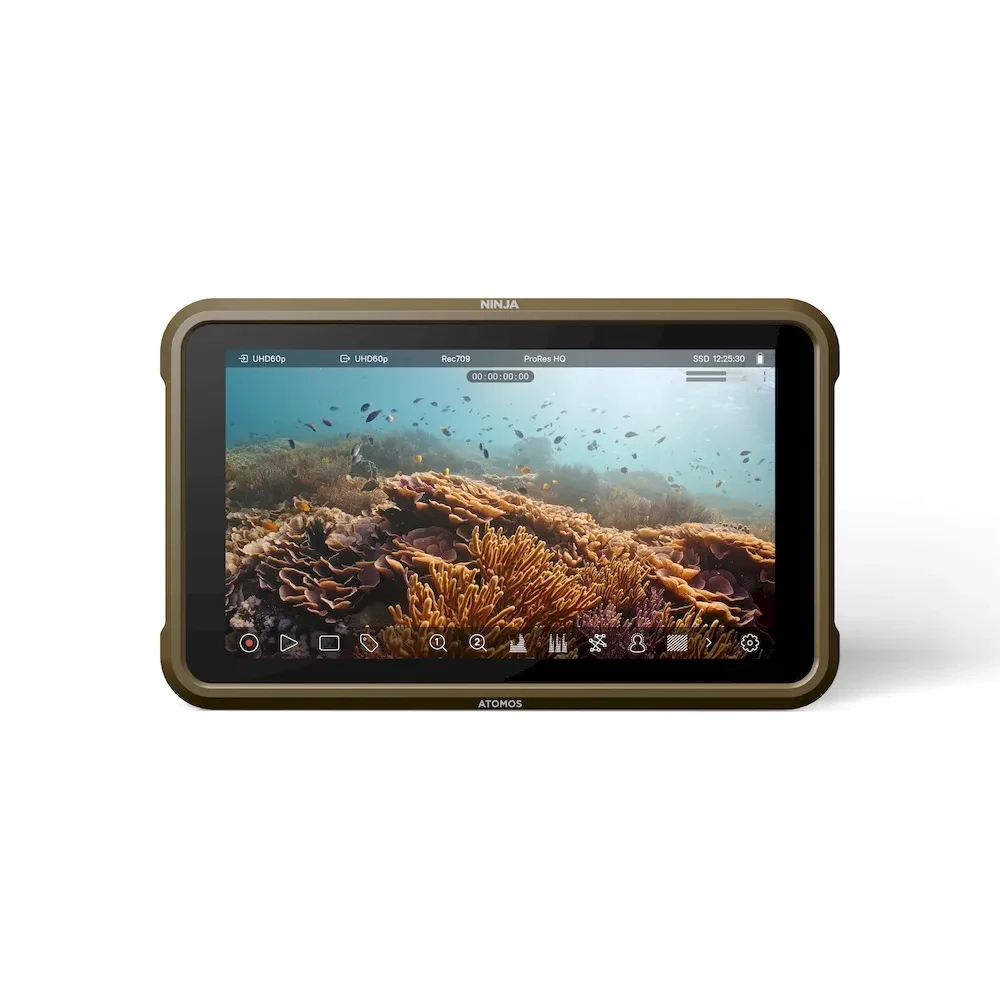

Display
Touchscreen: SuperAtom IPS panel (capacitive touch)
Size: 5.2-inch
Resolution: 1920 x 1080
PPI 427
Bit depth 10-bit (8+2 FRC)
Backlight Type Edge lit
Brightness (cdm2 / Nits) 1000
Black Level (cdm2 / Nits)
Aspect ratio 16:09
Color Gamut Rec.709
Calibration support Atomos Calibrator with Calibrite ColorChecker Display Pro & ColorChecker Display Plus
Color Pipeline
Gamma Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3,
Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320
/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /
LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog,
JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm
Flog, PQ (HDR10), HLG, Nikon N-Log
Gamut Bt2020, DCI P3, PDCI p3 65 Sony SGamut / SGamut3 / SGamut3.cine /
Canon Cinema / DCI P3 / DCI P3+ / BT2020
Panasonic V Gamut
Arri Alexa Wide Gamut
Rec709
JVC LS300
Red DragonColor / DragonColor2 / RedColor2 /
RedColor3 / RedColor4 / RedWideGamut
3D LU+A76T Display .Cube Format
3D LUT Down Stream Loop out
3DLUT 50/50
Monitoring Modes Native / HLG / PQ / 3D LUT
HDR output Conversion Log / HDR to HLG / PQ / Dolby Vision
Video Input

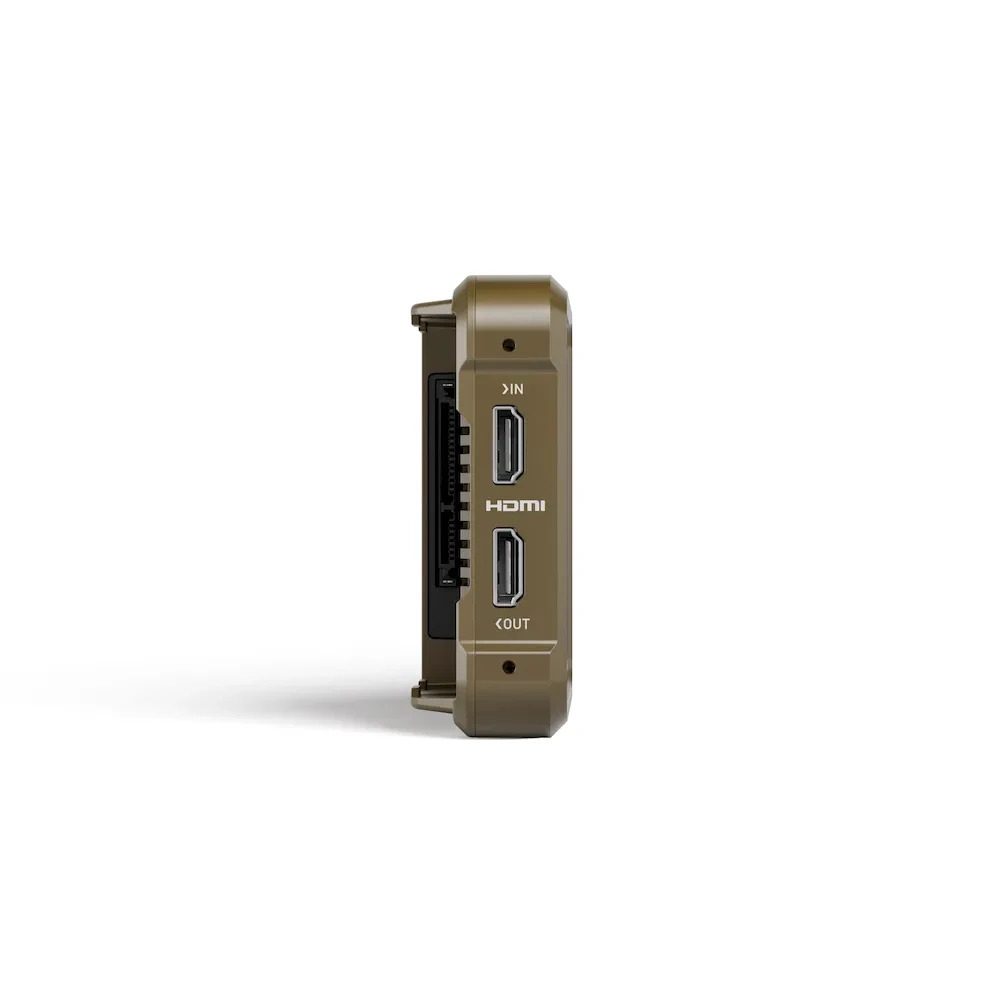

HDMI 1 x HDMI (2.0) 4Kp60
HDMI RAW Apples ProRes RAW up to 6K with compatible cameras
SDI Optional Via Atomos Connect module
SDI RAW Optional Via Atomos Connect module
Bit Depth 8/10-bit video / RAW up to 16-bit
Video Chroma Subsampling 4:2:2
HDCP copy protection Not supported
Metadata
HDMI RAW – white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut
Video Output
HDMI 1 x HDMI (2.0) 4Kp60
RJ45 / GigE Optional Via Atomos Connect module
Wi-Fi 6 Optional Via Atomos Connect module
Video Chroma Subsampling 4:2:2
Bit Depth 10-bit video
Web Streaming
USB UVC Optional Via Atomos Nexus 4K or AtomX Cast
RJ45 / GigE Optional Via Atomos Connect module
RTMP / S Optional Via Atomos Connect module
Video Signal Conversion
HDMI to SDI Optional Via Atomos Connect module
SDI to HDMI Optional Via Atomos Connect module
Audio In/Out
Audio Quality 24/48kHz
Audio Codec PCM
HDMI 8ch 24-bit, input dependent
SDI 12ch 24-bit, input dependent

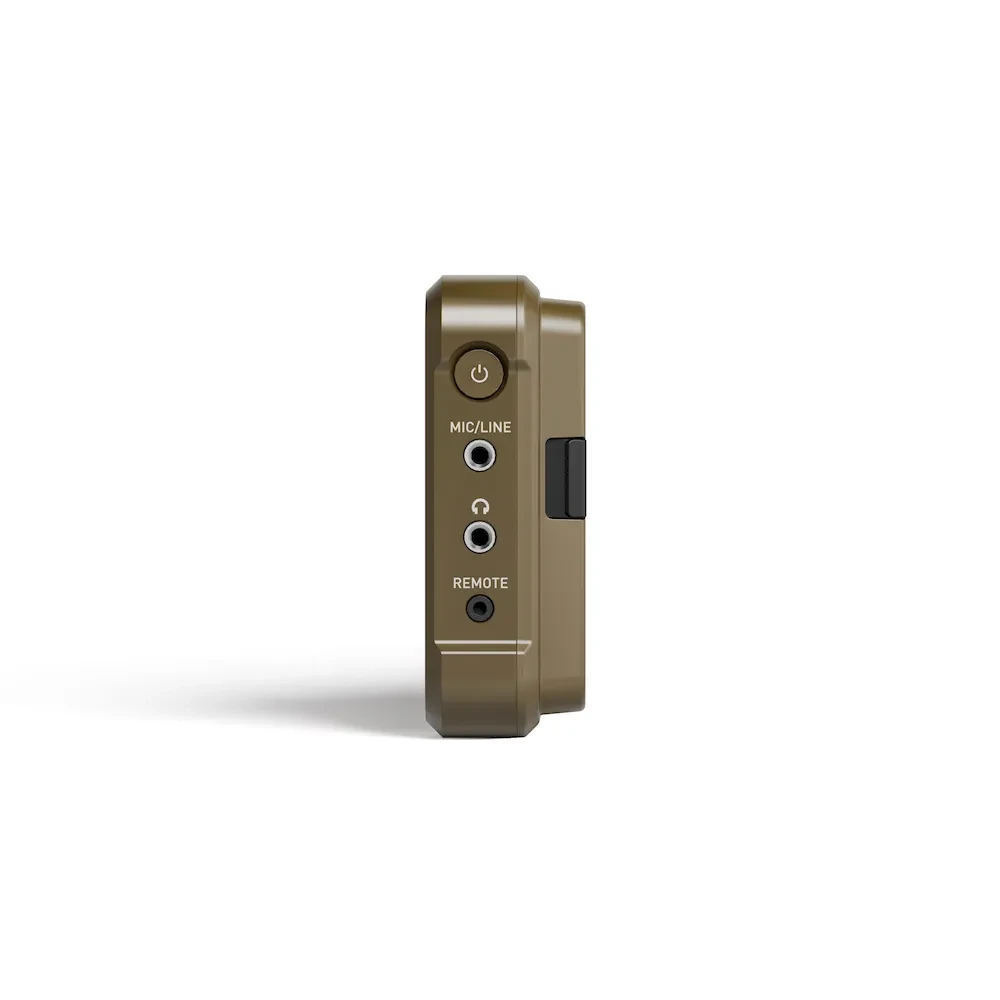

Analogue Audio in 3.5mm 2ch.
Analogue Audio Out
Speakers
Headphone out 3.5mm 2ch.
Audio input delay User definable from menu
Timecode / Sync / Control
Embedded HDMI and SDI
Time of day Yes, Time and Date
Reference input
LTC Optional Via Atomos Connect module
Genlock Optional Via Atomos Connect module
Wireless AirGlu RF Server and Client Optional Via Atomos Connect module
Wireless AirGlu BT Server Optional Via Atomos Connect module
Resolution & Frame Rates (Record, Monitor & Playback)
Supported base resolution & FPS
6K RAW Only up to 30p via HDMI
4K DCI 23.98/24/25/29.9/30/50/59.94/60p
4K UHD 23.98/24/25/29.9/30/50/59.94/60p
2K DCI 2046 x 1080 Optional via AtomX SDI module
Anamorphic 3.5k: RAW up to 60p (from supported cameras only)
FHD 1920 x 1080 Progressive 23.98/24/25/29.9/30/50/59.94/60/100/120p
FHD 1920 x 1080 PsF converted to P and looped out PsF
FHD 1920 x 1080 Interlaced 23.98/24/25/29.9/30/50/59.94/60i
1280 x 720p 50/59.94/60p
SD PAL / NTSC
Recording CODEC
Apple ProRes Raw ProRes RAW, HQ
Apple ProRes LT, 422, 422HQ
Avid DNxHD DNxHD 220x,220,145,36
Avid DNxHR LB, SQ, HQ, HQX.
H.265 LQ,MQ,HQ,XQ in 8/10Bit, 4 2 2 and 4 2 0
Playback
Playlist, Create customer play lists from full or sub clips
Loop, with user customisable in / out markers
Apple ProRes Raw, recorded clips
Apple ProRes, with Linear PCM audio
Avid DNx, with Linear PCM audio
H.265
Recording functions
Pre-roll record (HD 8s, 4K 2s) – Not available in RAW
Timelapse
Simultaneous proxy record
Multi Input / Switching
Multiple HDMI input Optional via AtomX Cast
Multiview Display Optional via AtomX Cast
Multiview Ouput Optional via AtomX Cast
Picture in Picture (PIP) Optional via AtomX Cast
Graphic overlays Optional via AtomX Cast
Input transitions Optional via AtomX Cast
Supported media
Master Caddy I Not compatible
Master Caddy II For 2.5-inch hard drives in MasterCaddy II
Master Caddy III For 2.5-inch hard drives in MasterCaddy III (needed for Atomos Connect)
SSDmini Native size and fit
CFAST II With supported cards via optional SSDmini CFAST II Adaptor
File Naming Unit Name – Scene/Shot/Take
File System ExFAT

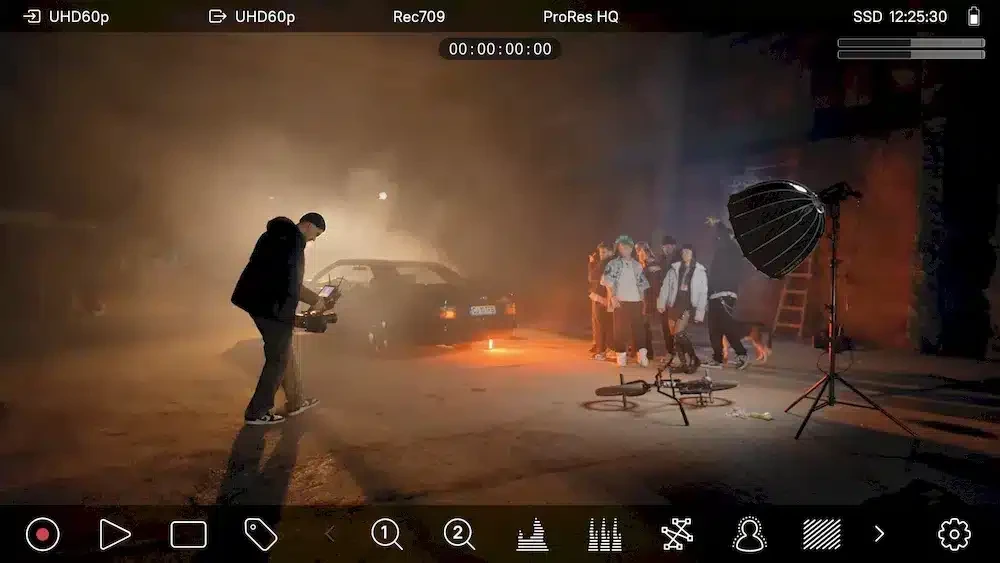

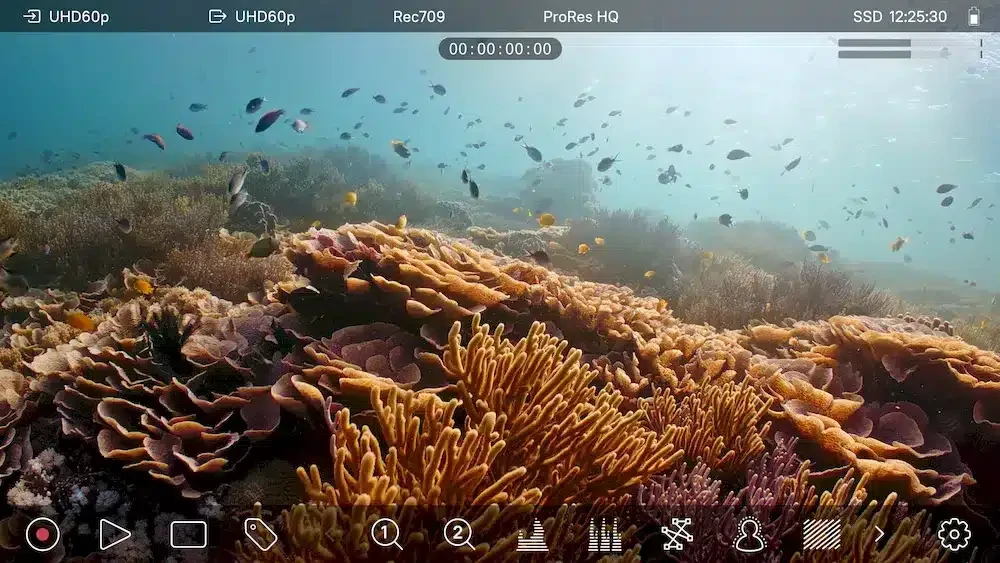

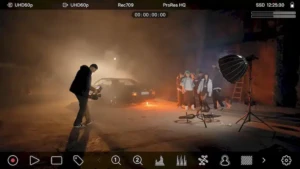

On screen tools
Waveform Yes, 3 size / Position
RGB parade Yes, 3 size / Position
Vector scope Yes, 2 size / Position
1 x Zoom. 1:1 Pixel mapping for 4K
2 x Zoom
Focus peaking Colour selected / threshold setting / colour
/ Mono / edges only
Atomos False color Yes, with Scale
ARRI False color
EL Zone
Zebra, Adjustable
Isolate color channel Blue Only
Cine Frame Guides 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides 9:16, 1:1, 191:1, 4:5
Onion Skin
Safe areas Action and Graphic
Grid markers 9 grid
Anamorphic desqueeze 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x
Display Flip Vertical Only
Onboard Signal Processing
Pulldown removal 24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
4K UHD downscale for HD Loop out – 4K UHD to FHD
DCI Crop Loop out – 17:9 to 16:9 Crop
Remote Control
HDMI Auto HDMI Trigger, Supported Protocols – Canon, Sony,
Atomos Open Standard
SDI SDI trigger camera selectable with Atomos Connect
Serial 2.5mm Jack LANC control and calibration via
optional USB to serial cable
AirGlu BT Optional Via Atomos Connect module
AirGlu RF Optional Via Atomos Connect module
External Device Control
Serial 2.5mm Jack Camera control for supported cameras via Optional USB to Serial Cable
Bluetooth LE Optional Via Atomos Connect module
Wireless RF Optional Via Atomos Connect module
Supported Applications
XML Cut tag EDL in FCPX XML
Apple ProRes Raw Apple FCPX, Adobe Premiere, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light.
Video Codecs All Applications with support for Apple ProRes and Avid DNx in .MOV wrapper
