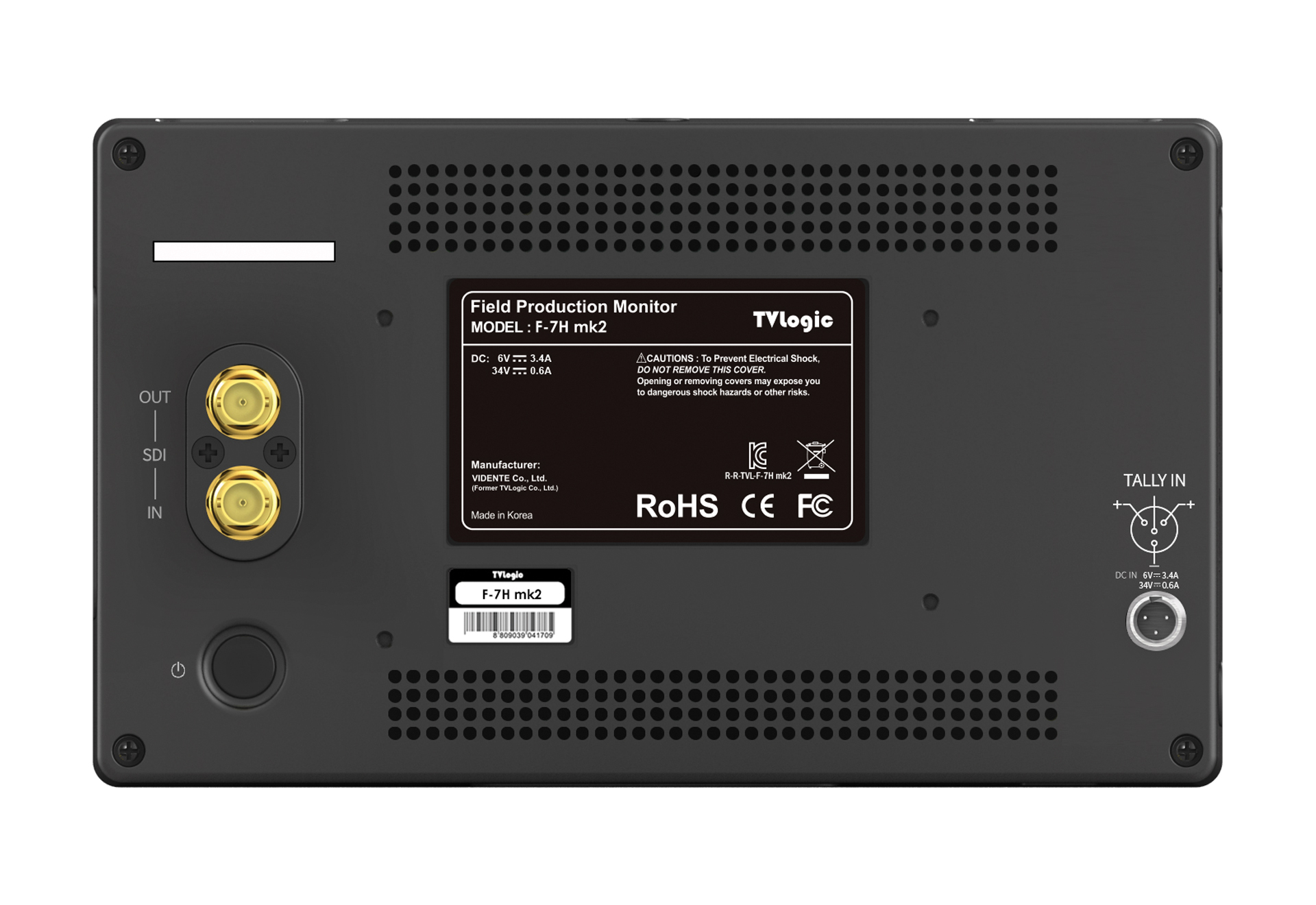

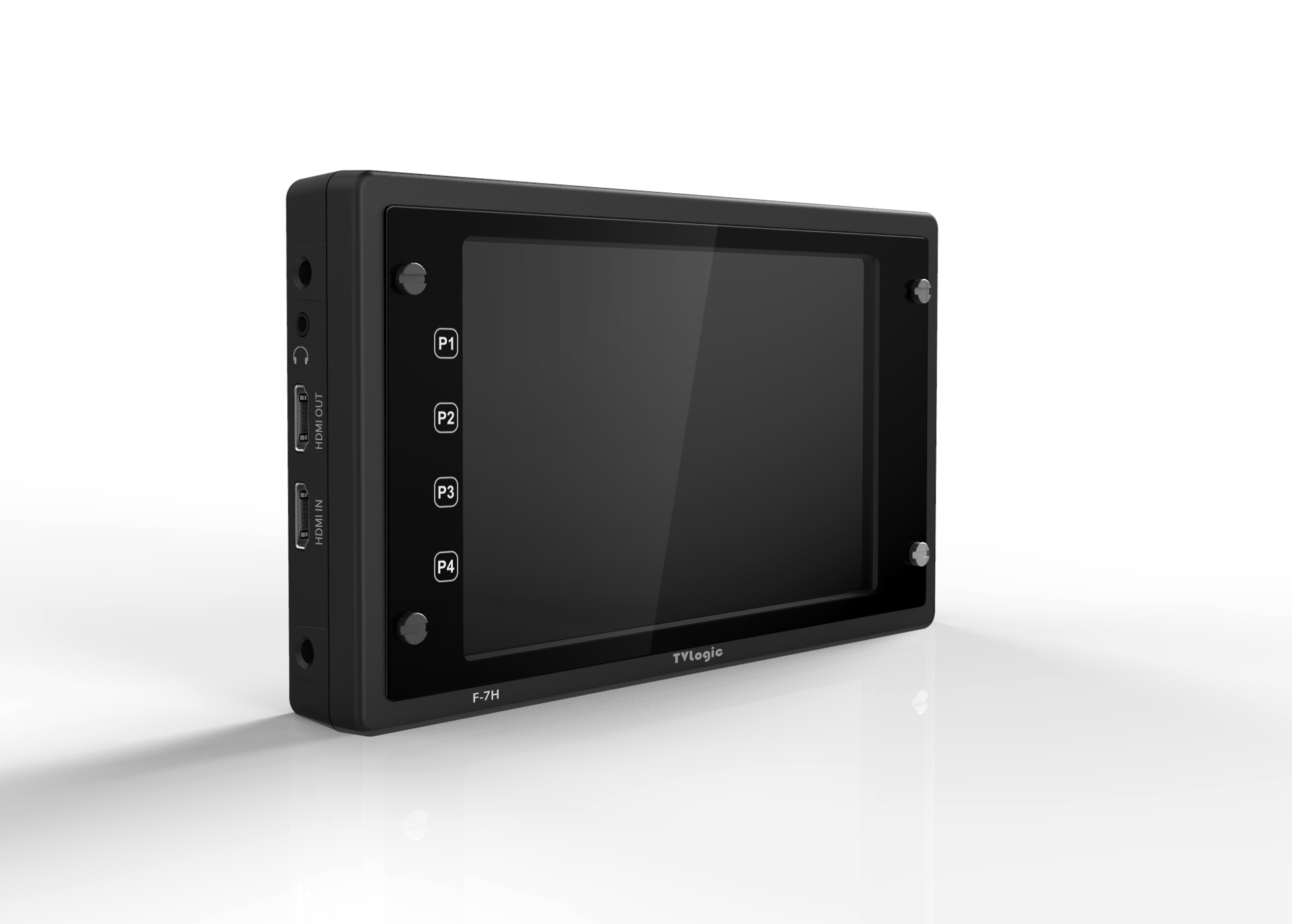

7″ TVLOGIC F-7H mk2 FHD high brightness field monitor, cross conversion

F-7H-MK2

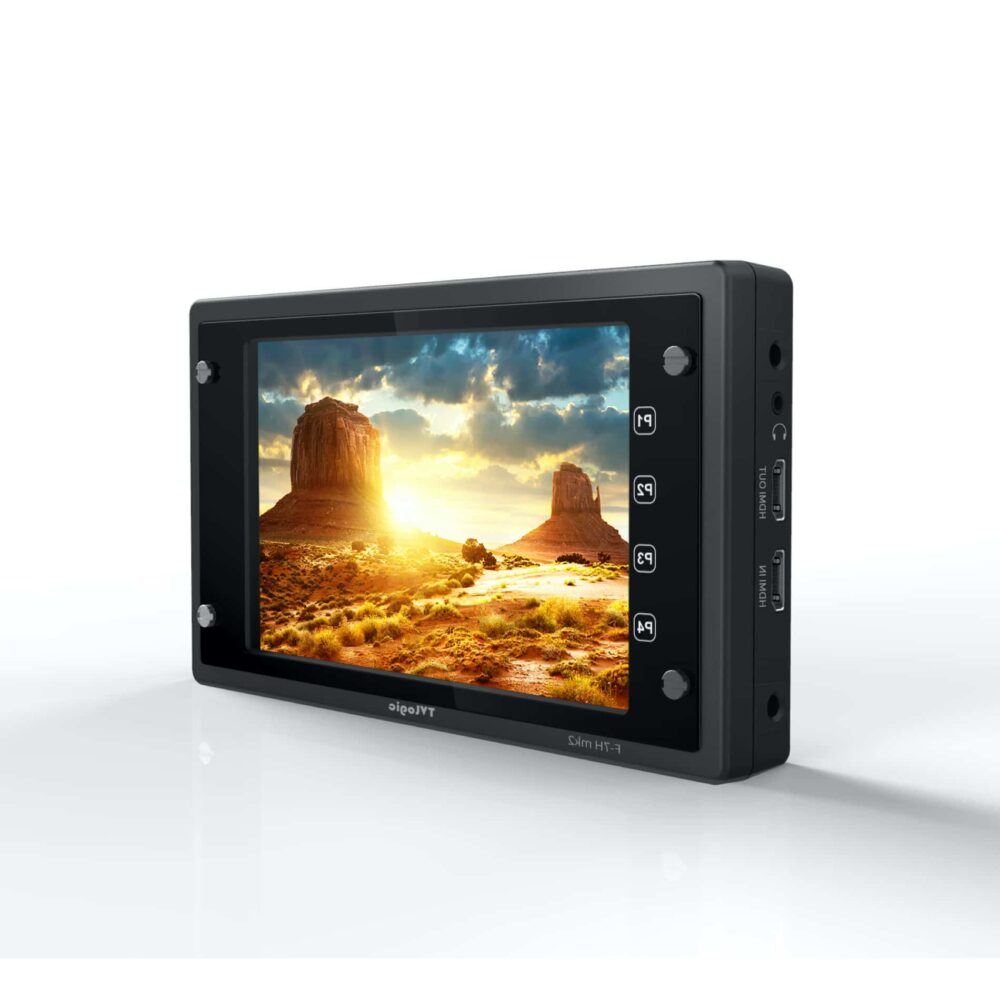

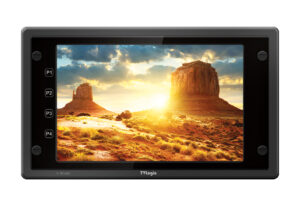

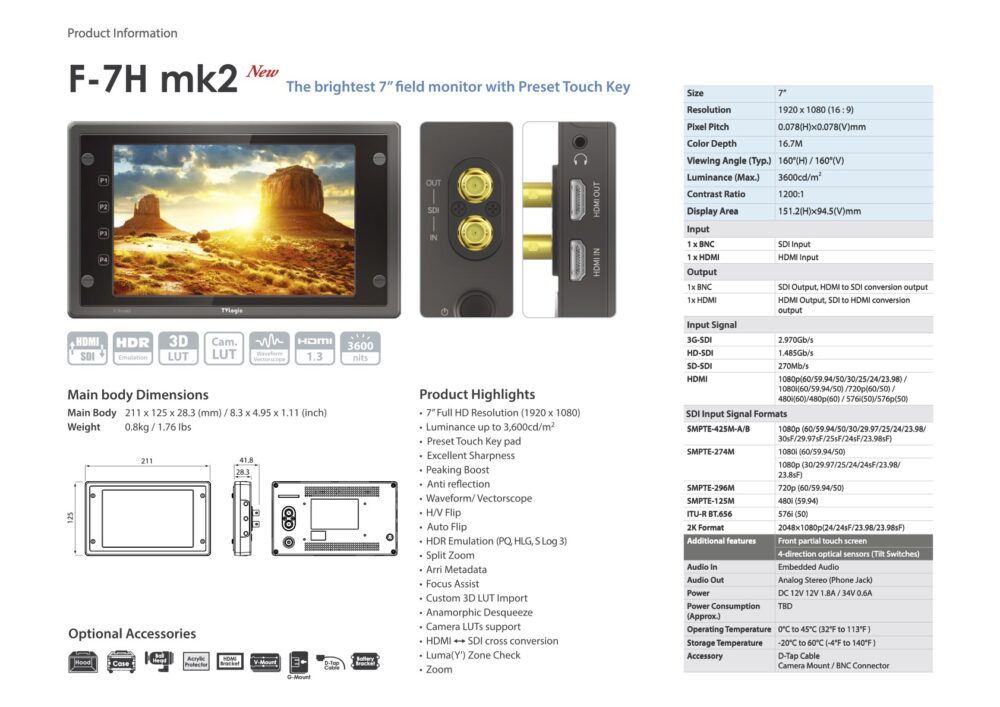

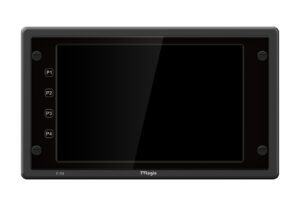

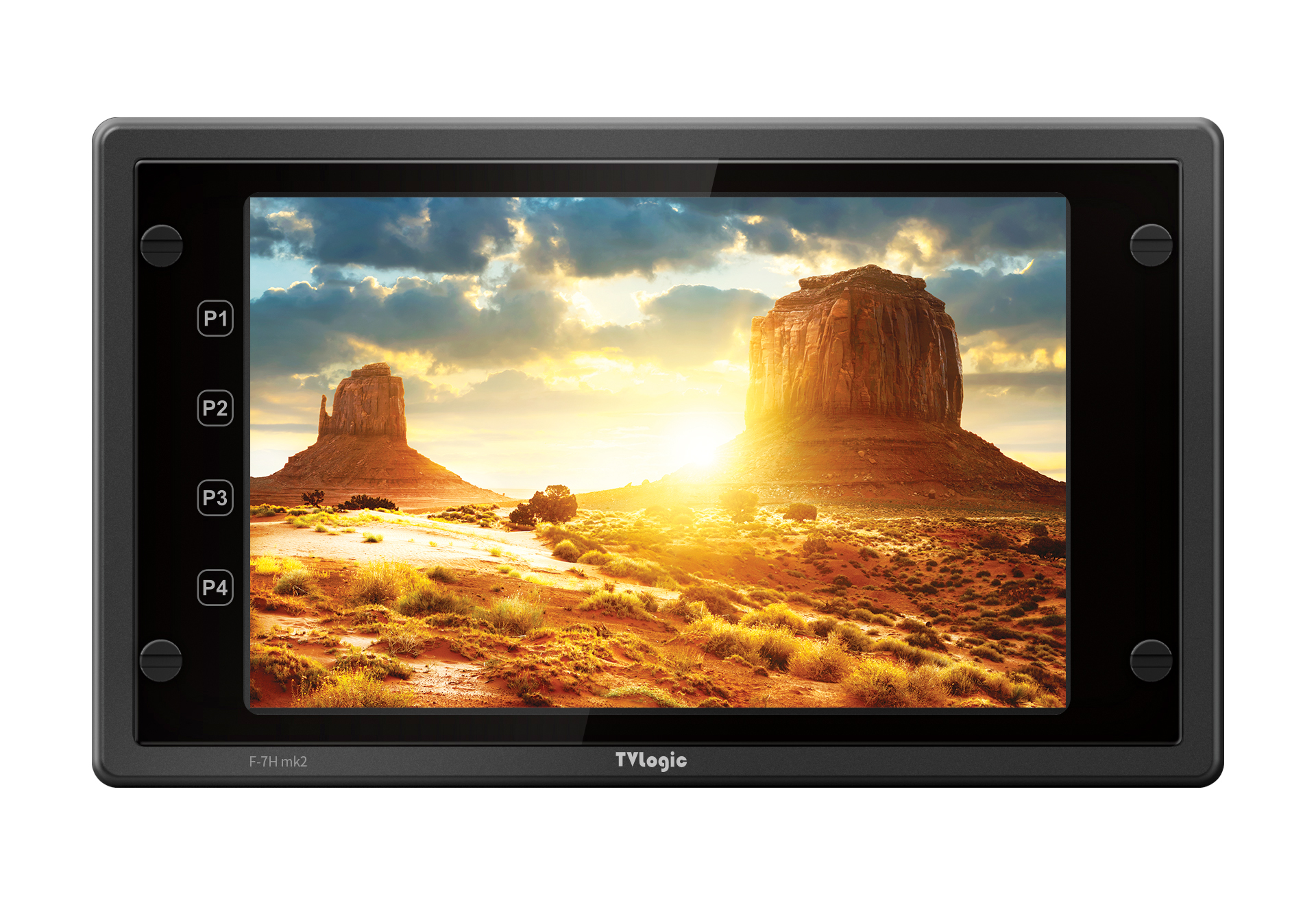

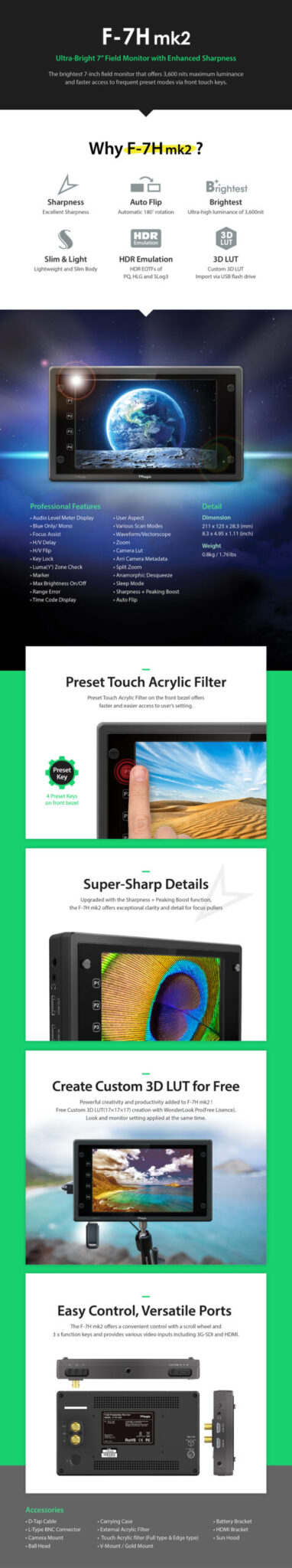

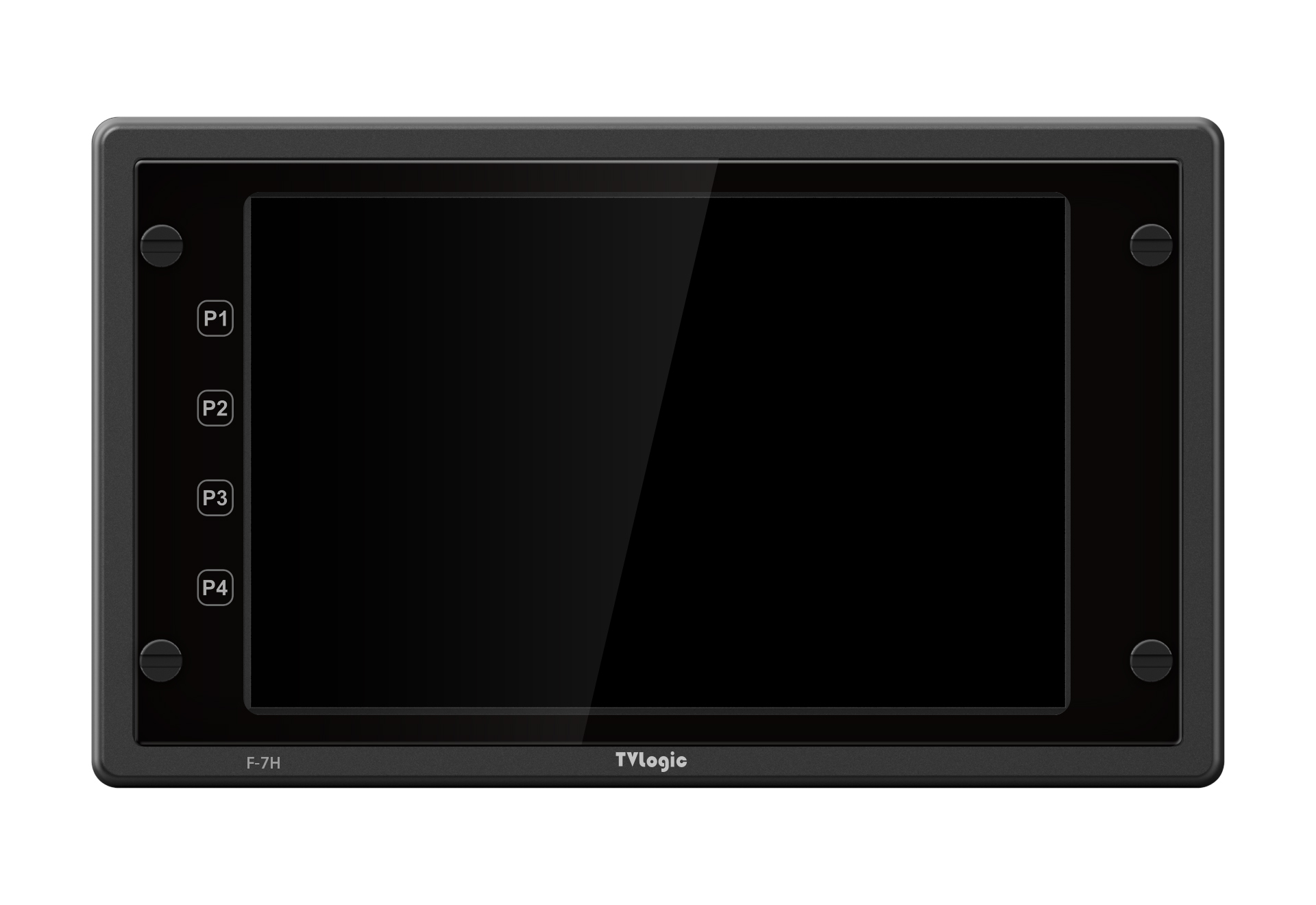

The F-7H mk2 is a 7’’ 1920×1080 resolution field monitor that offers max. luminance of 3,600nits with enhanced sharpness and peaking boost function via new image processing engine. While delivering the same high-quality picture and professional features of the previous model, F-7H mk2 shows far less reflection with Anti-Glare film and faster access to frequent preset modes via front touch keys.

Features:

  • HDR Emulation: A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual-layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000:1; in addition, they cover 99% of the DCI color gamut.
    In TVLogic monitors, HDR Emulation function includes the following control parameters: Standard Color Mode (HLG, PQ, PQ2), Video Range, Display Luminance, HDR EOTF (PQ, HLG) or Camera Logs** (coming soon), PQ EETF (On / Off), HLG System Gamma (Fixed 1.2 / Auto), Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode, White Point (D65, D93, DCI), Gamut Warning, Shadow Mode (LUM-318G only).
  • 1:1 Pixel Mapping Modes for SD/HD: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
  • Anamorphic Desqueeze: Supports several formats and resolutions that are ideally suited for anamorphic lenses and aspect ratios. When shooting anamorphic the image you are monitoring is an “unsqueezed” preview of what’s actually being recorded.
  • ARRI Alexa Camera Metadata over SDI: Takes the Metadata from the ARRI ALEXA is transported through the SDI outputs of the camera, and displays it on the monitor.
  • Audio Level Meter Display: Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
  • Blue Only / Mono: Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
  • Camera Lut.: Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).
  • Custom 3D LUT Import: Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.
  • Focus Assist: Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
  • H/V Delay: Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
  • H/V Flip: Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.
  • Key Lock: Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
  • Luma(Y’) Zone Check: Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
  • Marker: Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
  • Max Brightness On/Off: Displays the brightness increases from the normal up to max brightness to obtain a sharp and bright image when shooting outdoors.
  • Range Error: Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.
  • Sleep Mode: Sets the LUMINANCE to the minimum value when the time set in the still image output is exceeded.
  • Split Zoom: Zooms the specified area sequentially.
  • Time Code Display: Displays the Timecode information on the screen.
  • User Aspect: Adjusts the Width /Height display ratio.
  • Various Scan Modes: Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
  • Waveform/Vector Scope: Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
    Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
  • Zoom: Magnifies the input signal from 0% to 90%.
