Specifications:

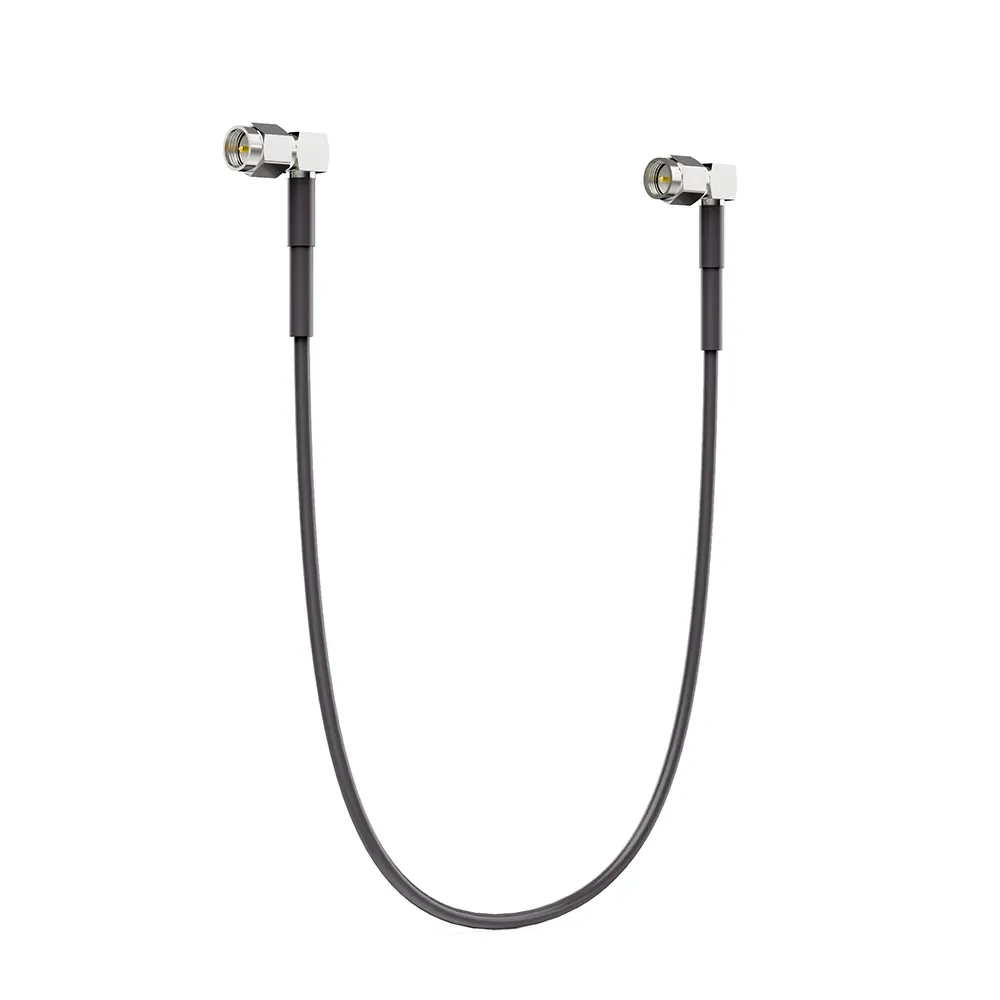

- Connector: SMA male right angle – SMA male right angle
- Length: 45 cm
- Frequency Range: 0 – 3G
- Impedance: 50 Ω
- Voltage Standing Wave Ratio (VSWR): ≤ 1.2 (Max)
- Conduction Impedance: 0.5 Ω
- Insulation Resistance: ≥ 5000 MΩ
- Maximum Power: 10 W
- Operating Voltage: 335 V (Max, RMS)
- Mechanical Durability: 500 cycles
- Withstand Voltage: 1000 Vrms (at sea level)
- Operating Temperature: -35°C to +8°C
- Radio Guide: RG174
