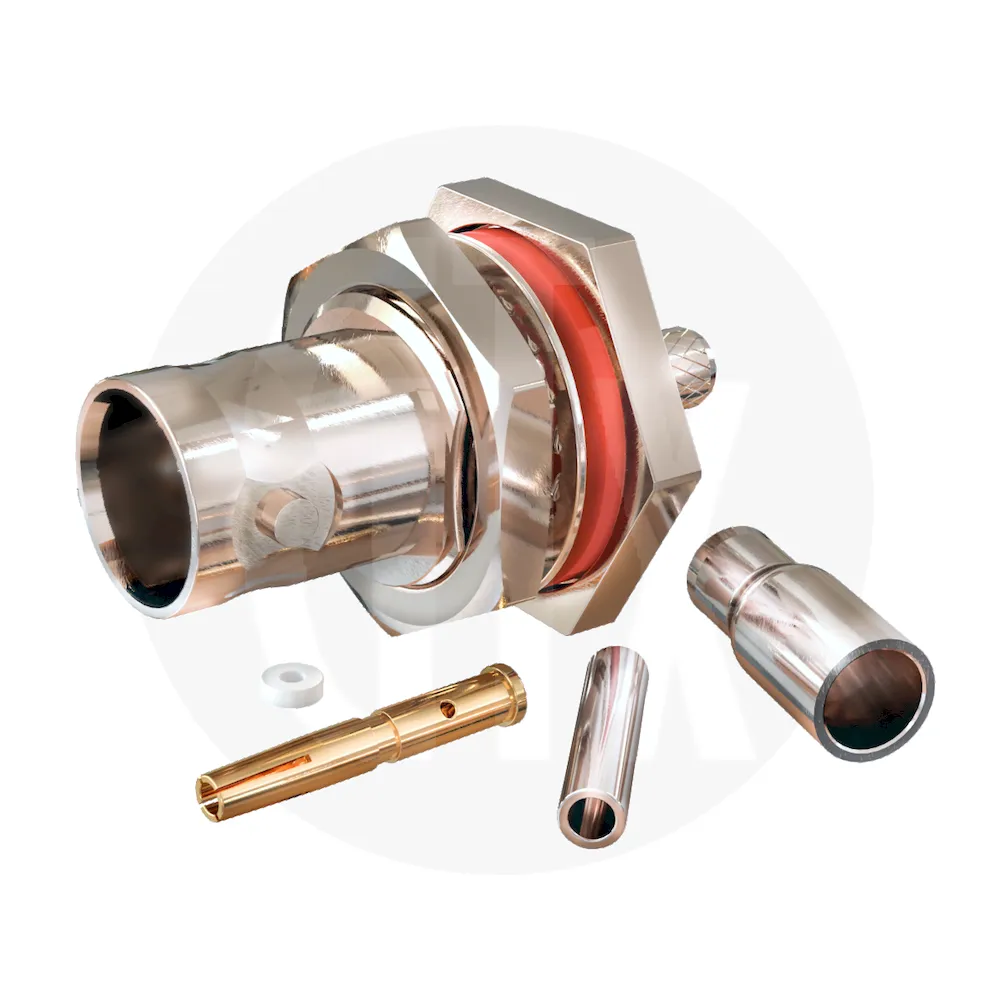

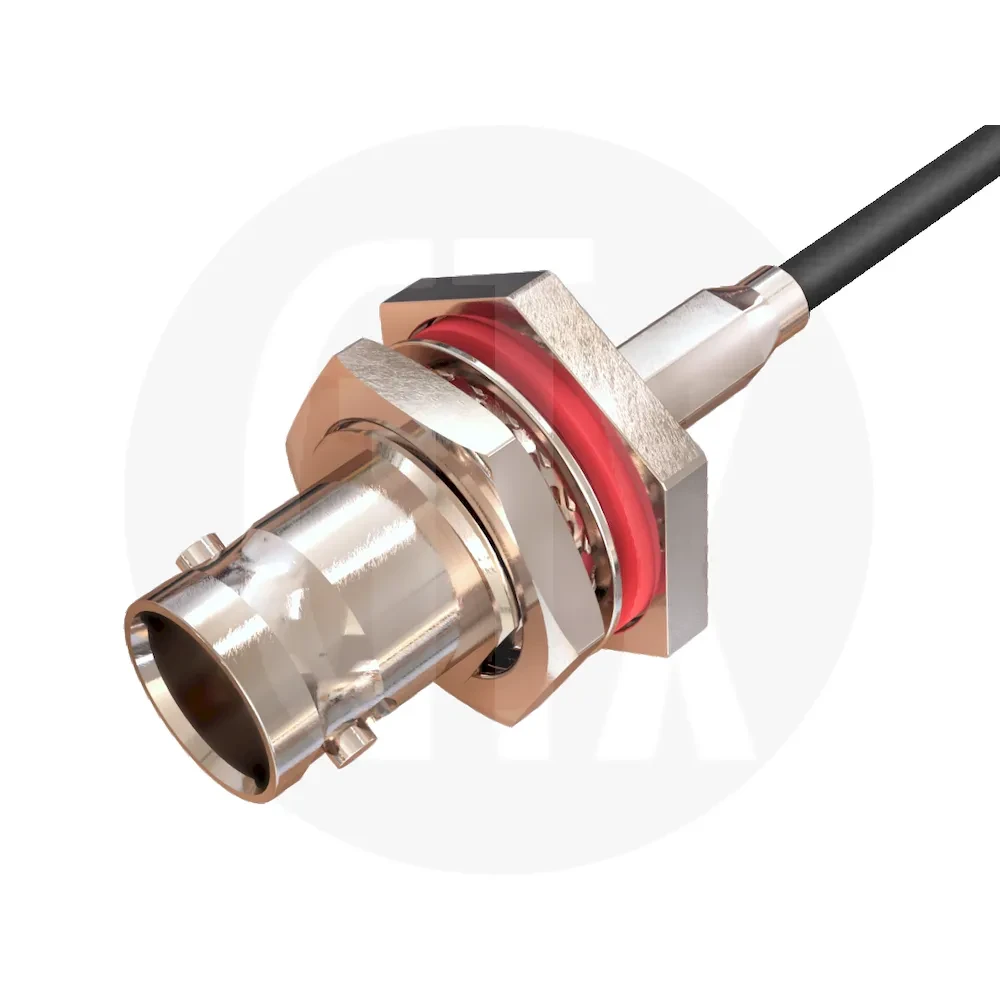

Gigatronix BNC HDTV 12G SDI panel crimp bulkhead jack, RG179, RG179DT
BN02-0179-C06-Z
€ 5.14
€ 6.37 (incl. VAT)Specifications
Electrical
Working Voltage: 500 Volts RMS Maximum
Max. Frequency: 12 GHz
Dielectric Withstanding: 1500 Volts RMS Maximum
Impedance: 75 ohms
Environmental
Temperature Range: -55 to +85 degrees C
RoHS Compliant: Yes

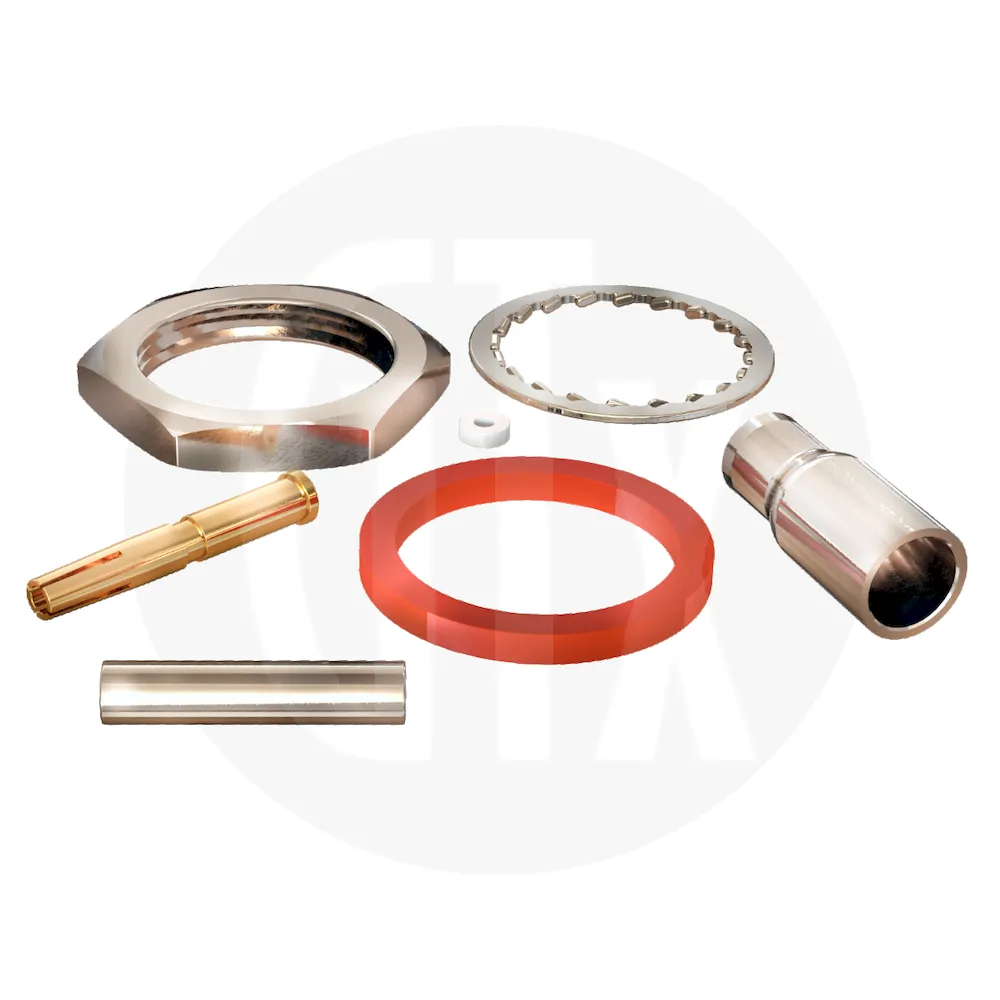

Material
Body: Brass, Nickel Plated
Dielectric: Delrin
Ferrule: Brass, Nickel Plated
Gasket: Rubber
Insulator: PTFE
Locknut: Brass, Nickel Plated
Tube: Brass, Nickel Plated
Washer: SS41, Nickel Plated
Contact: Brass, Gold Plated
Mechanical
Fixing Method: Crimp
Cable Retention: Equal to breaking strain of cable
Durability: 500 mating cycles
Maximum Panel Thickness: 4.00mm
Tooling
Crimp Hex. Sizes: 4.52mm Hex., 1.69mm Hex.
Cable Preparation
A = 6.6mm
B = 4.6mm
C = 4.8mm
Panel Fixing Information
Availability: Availability: IN STOCK This product is on our local stock and available immediately.
IN STOCK
