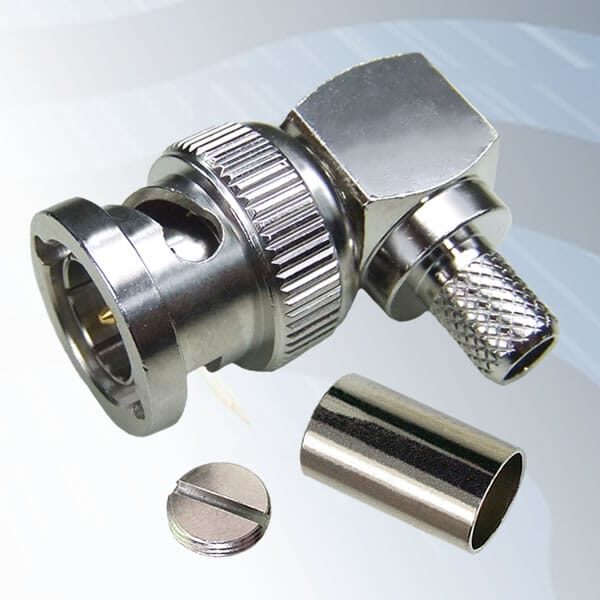

Gigatronix BNC HDTV 12G SDI pistik nurgaga

BN17-1505-C06-Z
 6.90
 8.56 (incl. VAT)

Specifications

Electrical

Dielectric Withstanding: 1500 Volts RMS Maximum

Impedance: 75 ohms

Max. Frequency: 12 GHz

Working Voltage: 500 Volts RMS Maximum

Environmental

RoHS Compliant: Yes

Temperature Range: -65 to +165 degrees C

Material

Body: Brass, Nickel Plated

Coupling Nut: Brass, Nickel Plated

Dielectric: PTFE

End Cap: Brass, Nickel Plated

Ferrule: Brass, Nickel Plated

Pin: Brass, Gold Plated

Mechanical

Cable Retention: Equal to breaking strain of cable

Durability: 500 mating cycles

Fixing Method: Crimp

Tooling

Crimp Hex. Sizes: 6.48mm Hex., Solder centre core

Cable Preparation

A = 8.0mm

B = 8.0mm

C = 3.0mm

Read more

Availability: Availability: IN STOCK This product is on our local stock and available immediately.

IN STOCK
