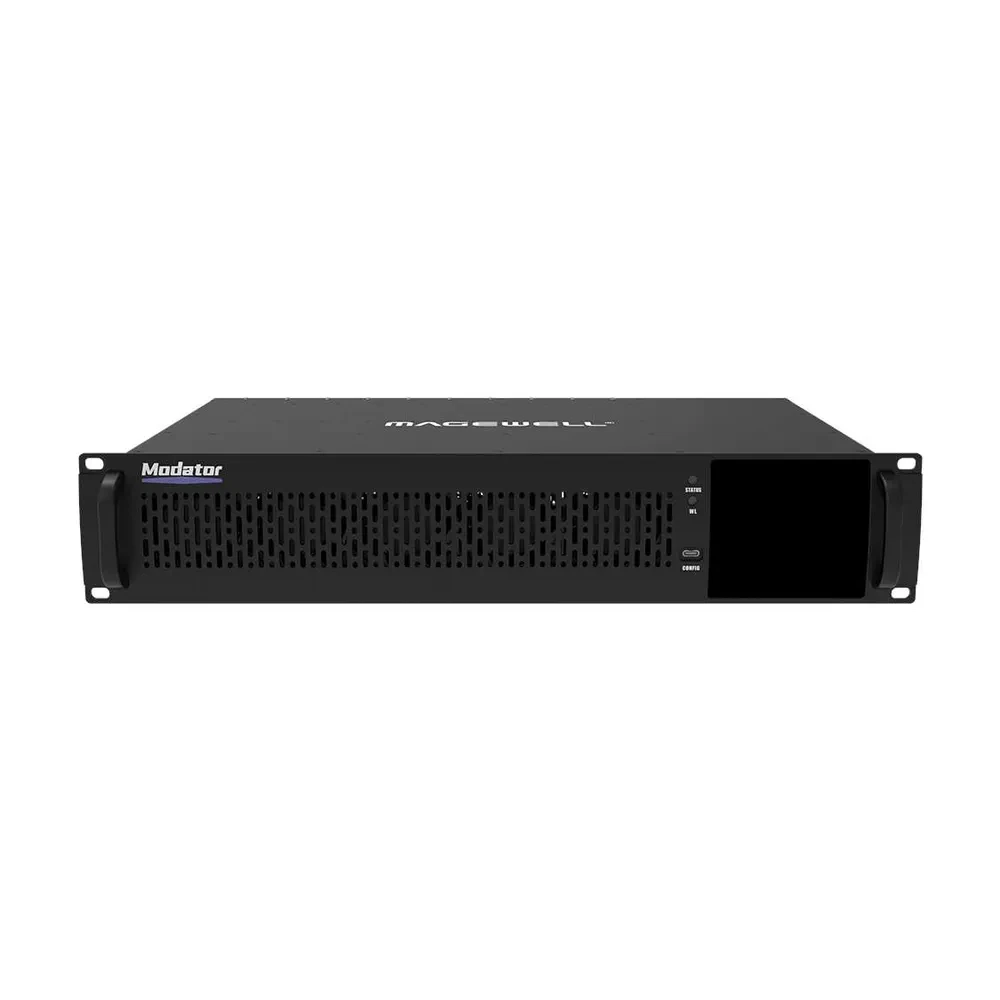

MAGEWELL Modator Chassis 2U

MW-B52200000T
 2 160.00
 2 678.40 (incl. VAT)

Delivers the robust capabilities of Magewell’s IP encoders and decoders in a scalable, high-density form factor.

  • Modular Architecture
    Supports up to 10 independent Magewell encoder or decoder modules
    (e.g., NDI® to HDMI, HDMI to IP, SDI to IP, etc.)

  • 24/7 Reliability
    Dual hot-swappable power supplies and optimized cooling for continuous operation

  • Front-Panel Touchscreen
    Configure network settings, power modules, and monitor real-time system status via the built-in LED touchscreen (91mm x 81mm)

  • Network & Integration
    1x Gigabit Ethernet (RJ45)
    USB-C for setup
    Browser-based UI and HTTP API for remote management and automation

Read more

Availability: Availability: CONTACT US While delivery is generally within 1-2 weeks, please contact us for an estimated delivery time.

icon

Approved by our experts

icon

Top quality product

icon

Delivery or pickup

Features:

  • Each installed encoding or decoding module independently provides high-quality conversion
  • Dual power supplies and optimized heat dissipation for 24/7 operation
  • LED touch screen provides status monitoring of the chassis and modules

Interface:

  • 10* Modator slots supporting hot swap of Magewell modules
  • 1* RJ45 1000Mbps Ethernet port
  • 1* USB Type-C port for configuration

Power and Power Consumption:

  • Hot-swappable dual power supply
  • AC: 100-240V, 7-3.5A, 60/50Hz
  • Maximum power consumption of the chassis: 200W
  • Maximum power consumption of each slot: 20W

Other:

  • Touchscreen dimension: 91mm x 81mm
  • Browser-based web user interface for the chassis and modules information
  • HTTP-based APIs for custom integration
  • 1-year warranty
  • Form factor: 482mm (L) x 275mm (W) x 88mm (H)
