MAGEWELL USB Capture SDI Plus – 32050

USB 3.0 DONGLE, 1-channel HD/3G/2K SDI with loop-through out, plus extra audio line in / out. Plug and Play. Windows/Linux/Mac. 3-year warranty.

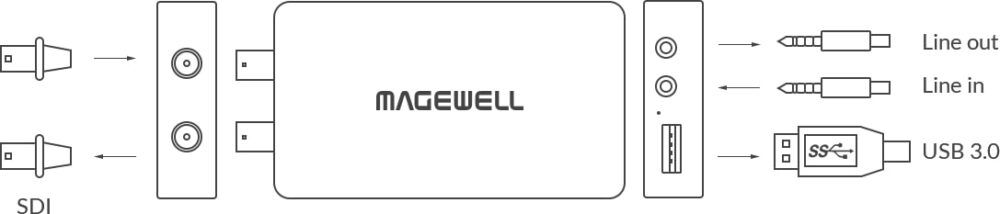

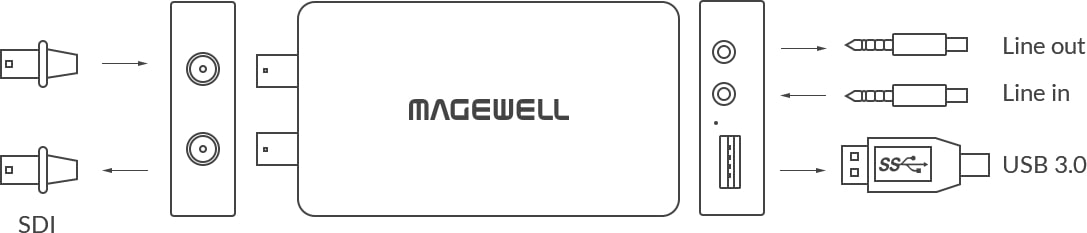

• Capture SD/HD/3G/ 2K SDI + embedded audio
• Loop-through SD/HD/3G/2K SDI
• Audio input via Line in
• Extract SDI embedded audio and output via Line out

Specifications and Features



Interface

Input Interface

• SD/HD/3G/2K SDI x1
• Support input resolution up to 2048×1080 pixels

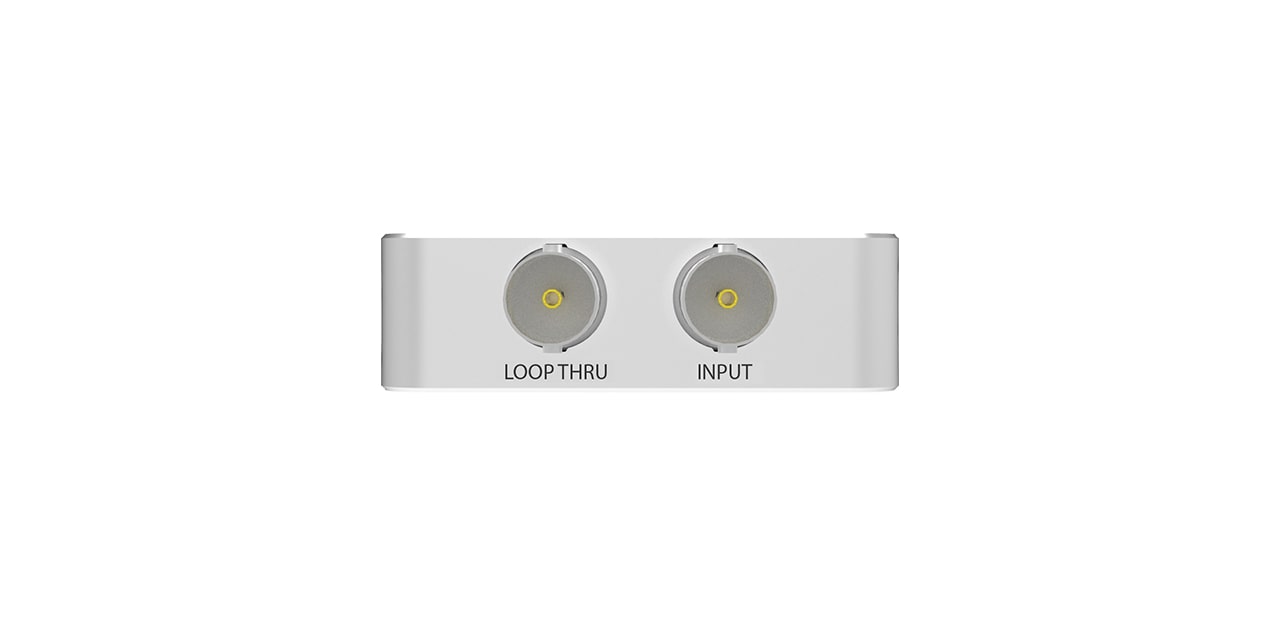

Loop-through Interface

• SD/HD/3G/2K SDI x1
• Support loop-through resolution up to 2048×1080 pixels

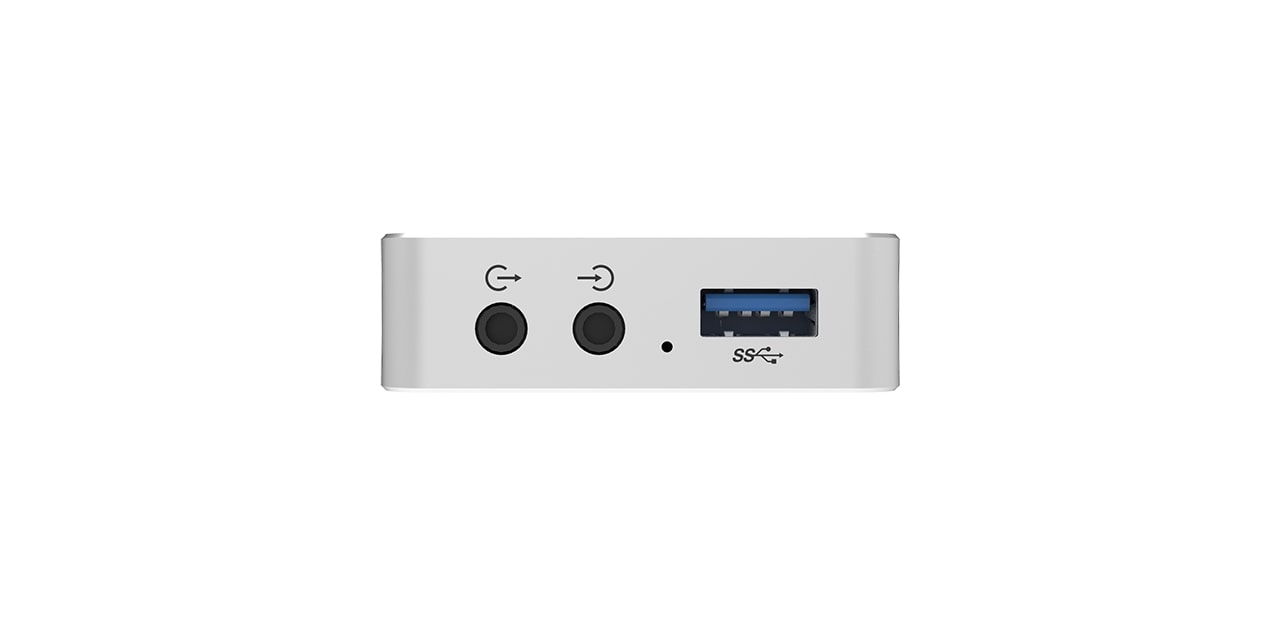

Audio Input Interface

• 3.5 mm audio jack for Line In

Audio Output Interface

• 3.5 mm audio jack for Line Out

Host Interface

• USB 3.0



Video Engine

8-bit video processing

Deinterlace

Cropping

Color Adjustment

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

Mirror and Flip



Signal Detection & Support

Auto Detection of Input Signal Format



Software Environment

OS

• Windows, Linux, Mac, Chrome OS

Driver and Firmware

• Driver Free, Updatable Firmware

Included Software

• USB Capture Utility, Capture Express

Compatible Software

• 50+



Others

Multiple Devices on One Host

Continuously Work for 24hx7

High-speed Memory

LED Status Indicator

Windows&Linux SDK

3-year Warranty
