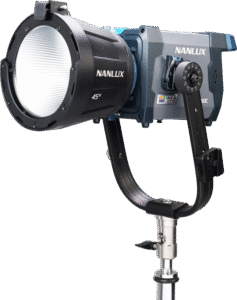

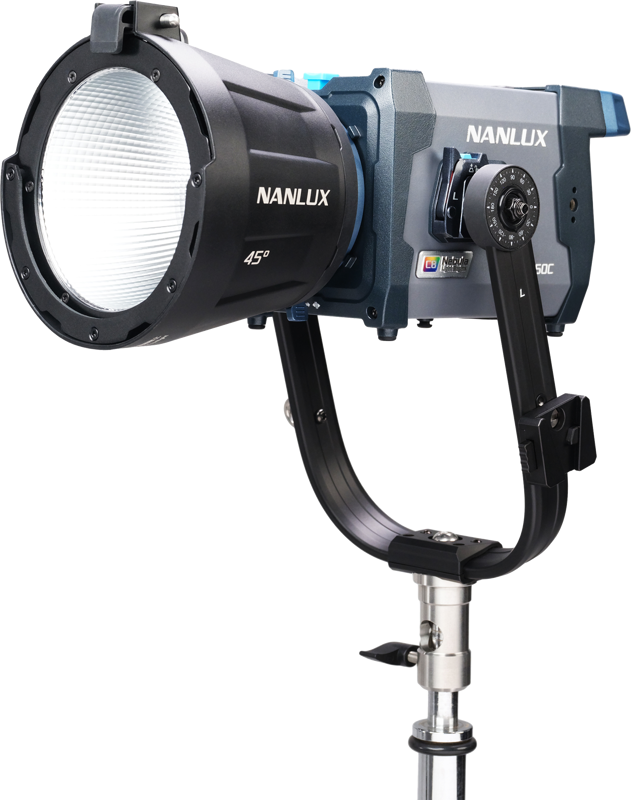

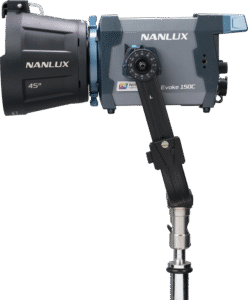

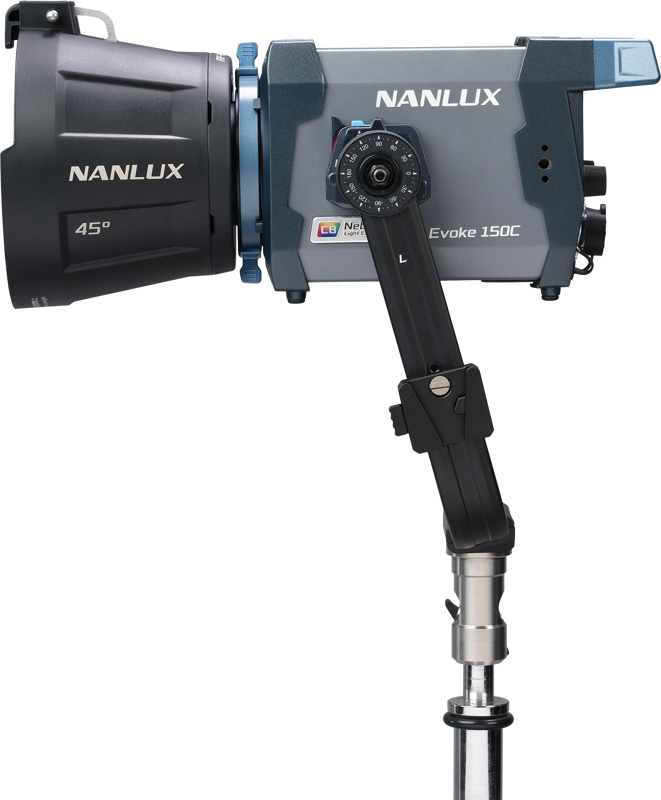

NANLUX Evoke 150C LED Full-color Spot Light with case

Evoke 150C – Compact Eight-Color Powerhouse

The Evoke 150C is designed for on-the-go lighting and flexible setups.

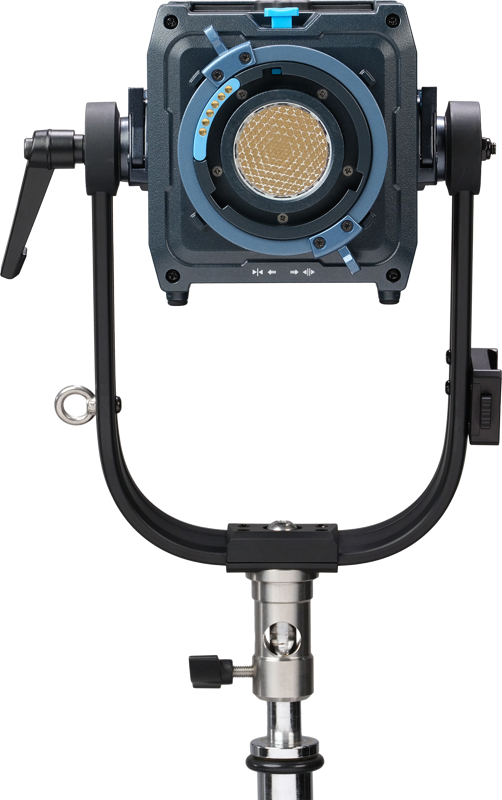

The compact all-in-one fixture is equipped with the proprietary Nebula C8 Light Engine, delivering wide color temperature range, broad color gamut coverage, excellent light quality, and precise dimming performance. With an IP66-rated metal construction, FE mount design, and FM mount accessory ecosystem compatibility, the Evoke 150C allows filmmakers to effortlessly handle tasks such as detail accent lighting, moving fill light and hiding the light in tight spaces, ensuring smooth operation and worry-free creativity.

Compact & Lightweight, Superior Illuminance

On-location lighting setups are often constrained by the size and weight of fixtures – a large, heavy light can be difficult to position in tight spaces and adds extra load to mounting equipment.
To address this, the Evoke 150C features a compact all-in-one design and can be powered by a single V-mount battery. It can be easily concealed behind props, inside vehicle cabins, or in narrow corners, and repositioned effortlessly whenever adjustments are needed.

Compact Size: 209.14×146.95×127.29mm / 8.23×5.79×5.01″
Weight: 2.11kg / 4.65lb (lamp head), 2.65kg / 5.84 lb (with yoke)

Compact size doesn’t mean compromising on output – the Evoke 150C delivers ample brightness at just 150W. It can effortlessly be used as a fill light for large scenes, or be used as a key or rim light in small spaces, bringing expressive and precisely controlled lighting to every shot.

22,230 lux @1m (5600K, with 45° reflector)
10,200 lux @1m (green, with 45° reflector)

Light Quality Redefined

With the Nebula C8 Light Engine, multiple lighting modes and seamless dimming, the Evoke 150C can consistently deliver exceptional light quality, whether producing white or colored light, or for smooth fade-ins and fade-outs.

Nebula C8 Color Light Engine
Thanks to the Nebula C8 Light Engine, with its eight color LEDs (Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo) and advanced color-mixing algorithm, the Evoke 150C achieves a wider color temperature range, a broader color gamut, and higher saturation for colored lights.

Compared to traditional color engines, the Nebula C8 offers higher color fidelity and better skin tone reproduction in white light, giving images a true-to-life texture and skin tones that look natural and vibrant.

CCT Range: 1,000K–20,000K (G/M±200)
Achieves 79% coverage of the CIE 1931 visible color gamut
Achieves 3% more coverage within the visible color gamut than Rec. 2020
Achieves 92% coverage of the Rec. 2020 color space

CRI Average 96
TLCI Average 97
TM-30 Rf Average 96
TM-30 Rg Average 100
SSI (3200K) 86
SSI (5600K) 78

Various Lighting Modes

• CCT Mode: 1,000K–20,000K with ±200 G/M adjustment

• HSI Mode: 360° hues with 100% saturation

• RGBW Mode: Independent R/G/B/W channel control

• XY Coordinates Mode: Precise CIE 1931 color control

• Gel Mode: 230 LEE gels + 230 Rosco gels

• Effect Mode: 15 dynamic effects with adjustable parameters

Better Dimming Performance
The Evoke 150C supports ultra-precise dimming in 0.1% increments and meets filmmakers’ demand for precise control of lighting.
With fully linear dimming, the Evoke 150C stays smooth at low brightness and produces natural, soft transitions when fading lights in or out.

Fast & Easy Setup

The on-set efficiency often comes from the optimization of details – faster setup, more reliable protection, and broader accessory compatibility. With this in mind, NANLUX develops the Evoke 150C from multiple aspects – including structure, materials, protection, and accessory ecosystem, integrating efficiency into every part of its design.

All-in-One Design
The Evoke 150C integrates the lamp head, control unit, and power supply into a single fixture. With just one power cable to a wall outlet or a D-Tap connection to a V-mount battery, it’s ready to go.

Lightweight & Compact
With a magnesium alloy body and optimized internal structure, the Evoke 150C is lighter and more compact than most similar-powered lights with separate components.

IP66: Stormproof Protection
The entire fixture is rated IP66, built to withstand dust, sand, heavy rain, and other harsh conditions, ensuring reliable operation even in the toughest environments.

Versatile Accessory Compatibility
The fixture is designed with the new FE mount (with electronic contacts), and compatible with FM mount accessory ecosystem, allowing users to continue using their existing FM mount accessories.
NANLUX has also developed motorized accessories such as the motorized yoke* and motorized Fresnel lens* (FL-12E), enabling precise light control even when mounted in hard-to-reach positions.
To meet fixed mounting needs, a 5/8″ Baby Pin with Quick Release Plate (AS-BP-QRS) is included, allowing the fixture to be easily mounted anywhere on set.

*Under development

Comprehensive Connection and Control

A great fixture requires not only outstanding light quality, but also ease of use. With versatile on-board ports, structural details, and control options tailored to on-set needs and user habits, the Evoke 150C makes lighting more intuitive and worry-free.

Extension Port
The extension port allows connection to control devices, signal routing, or communication with motorized accessories, giving the Evoke 150C the same control and connectivity as higher-powered models.
It will serve as a standard interface for future NANLUX lights, ensuring accessory compatibility and expandability.

Power Input

• Integrated AC/DC input (AC 100–240V / DC 14.4–28V)

• USB-C port with PD3.0 (12–28V, 60W min) for adapters or power banks

Detail by Design

• Dual Security FE Mount (PosiTight system)

• Single-Side Locking with Angle Display

• Offset Yoke for better tilt range with large accessories

• V-mount Battery Holder for portable power

• 1/4″-20 threads with anti-twist design for accessories and secure mounting

Comprehensive Control Options

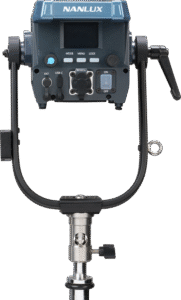

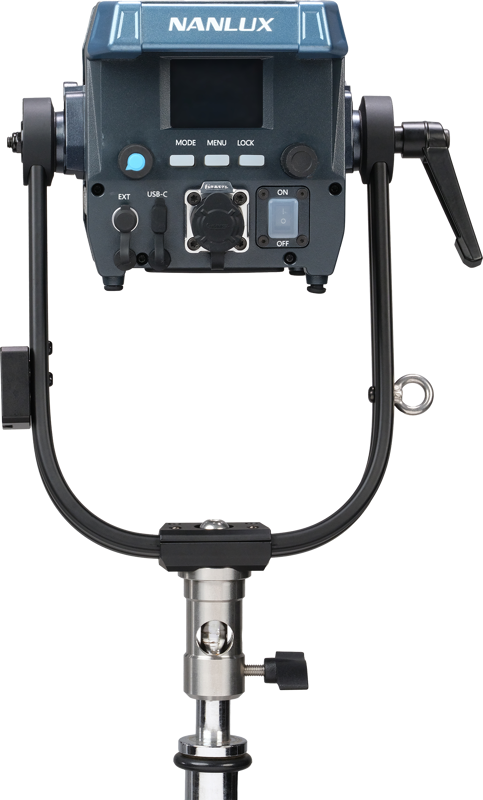

• On-board control: 2.0″ display, dual knobs, three buttons

• Wired Controller (WC-EXT, optional, 8m cable, IP66)

• Nanlink App 2.0 via Bluetooth

• DMX/RDM with optional DMX Extension Adapter (AS-EXT-DMX)

• LumenRadio CRMX built-in (TimoTwo module)

• Art-Net/sACN with optional LAN Extension Adapter (AS-EXT-LAN)

• Remote Controller (WS-RC-C2, optional)

• NFC for quick pairing and batch DMX parameter setup

Evoke Lineup

With the addition of the Evoke 150C, the Evoke lineup now includes daylight, bi-color, and color fixtures with power ratings up to 5000W – one family of lights providing multiple solutions for professional production.
The same operation logic allows users to operate different fixtures without retraining. FE, BE, and NL mounts together form a complete accessory ecosystem, ensuring versatile light-shaping options. Built with rugged metal housings and IP-rated protection, the Evoke series is designed for professional demands.

Within the Evoke system, the Evoke 150C integrates seamlessly, working in unison with other lights to streamline and unify on-set lighting.

Complete Accessory Ecosystem

For lightweight fixtures, a wide range of accessories can amplify their flexibility.

FE Mount Accessory

• FE Mount Reflector 45° (RF-FE-45)

• FE Mount Reflector 25° (RF-FE-25)

• FE30 Parallel Beam Reflector* (RF-FE-PB)

• Motorized Fresnel Lens 14°–35°* (FL-12E)

• FE Mount Diffusion Ball 15cm* (MD-DB-FE15)
  *Under development

FM Mount Accessory

• Fresnel Lens* (FL-12)

• Projection Attachments 10°/19°/36° (PJ-FMM-10/19/36)

• Projection Attachment 18°–36° (PJ-FMM-18-36)

• Reflector 45° (RF-FMM-45)

• Rapid 60 Softbox (SB-FM-RP60)

• Softbox 60cm (SB-FMM-60)

• Octagonal Softbox 40/60cm (SB-FMM-O-40/60)

• Lantern Softbox 60cm (LT-FMM-60)

• Diffusion Dome (AS-DD-FMM, mount on RF-FMM-45)
  *Under development

Other Accessories

• Wired Controller (WC-EXT)

• DMX Extension Adapter (AS-EXT-DMX)

• LAN Extension Adapter (AS-EXT-LAN)

• 5/8″ Baby Pin with Quick Release Plate (AS-BP-QRS)

• Motorized Yoke*
  *Under development

Reliable Cooling System

The Evoke 150C is equipped with an efficient cooling system featuring five built-in fan modes. In Smart mode, the average noise level is only 24 dB(A). Even at full output, it operates quietly without interfering with on-set audio.

Fan Modes:

• Smart: Auto fan speed, 100% output

• Full Speed: Fan at max, 100% output

• Low Speed: Fan low, 50% output

• Off: Fan off, 15% output

• Pause: Fan paused, 100% output until thermal threshold, then reverts to Smart mode (~2.5 min at 25°C, ~1 min at 35°C)

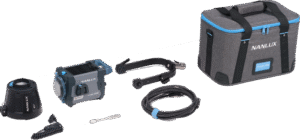

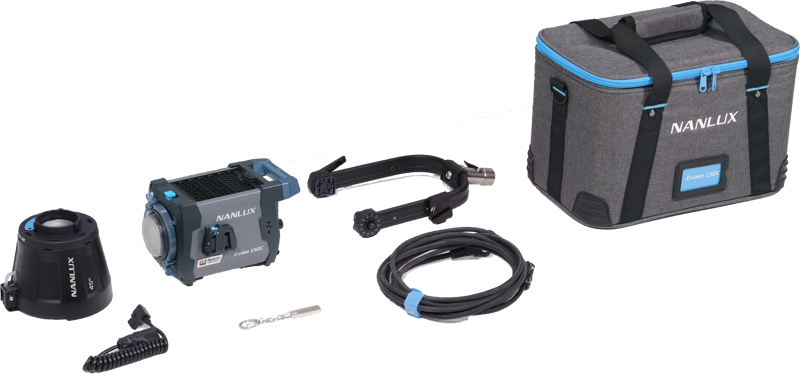

Protective Carrying Bag

The Evoke 150C comes with a carrying bag with a rigid frame and padded interior. The bag is durable and protects the fixture during transportation.

In the box

• Evoke 150C × 1

• Yoke × 1

• RF-FE-45 FE Mount Reflector 45° × 1

• 5/8″ Baby Pin with Quick Release Plate × 1

• AC Power Cable 4.5m × 1

• D-Tap Cable × 1

• USB Flash Drive × 1

• AS-MB-1 Magnetic Base × 1

• User Manual × 1

• Carrying Bag × 1
