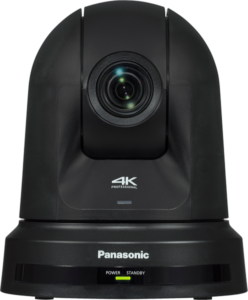

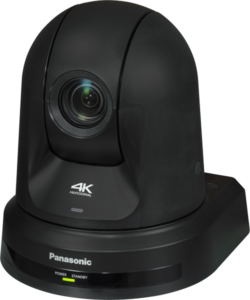

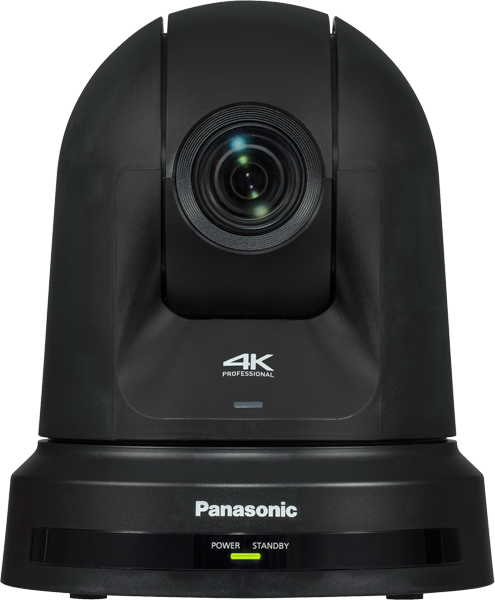

Panasonic AW-UE50KEJ 4K Integrated Camera, 1/2.5-type MOS Imaging and outputs
The integrated lens provides a 35 mm–equivalent focal range of approximately 25–600 mm with i.Zoom up to 28x in UHD and 36x in FHD. The camera delivers UHD up to 2160/29.97p or 25p via HDMI, and HD up to 1080/59.94p or 50p via 3G-SDI. A USB-C device port supports UVC/UAC operation, and audio from the 3.5 mm mic/line input can be embedded on the video outputs.
Network, control, and PTZ performance
The AW-UE50KEJ streams over IP using H.264 or H.265 with support for protocols such as RTSP/RTP, RTMP/RTMPS, and SRT. NDI HX2 is available as an optional upgrade. Control is available over IP (RJ-45), RS-422, or USB, and the unit supports PoE+ for power and data over a single cable. The direct-drive pan/tilt mechanism offers smooth, precise movement with a pan range of ±175° and a tilt range of −30° to +90°.
Key features
-
1/2.5-type 4K MOS sensor with approx. 8.49 MP effective
-
UHD output over HDMI: 2160/29.97p and 25p; HD over HDMI/SDI up to 1080/59.94p and 50p
-
24x optical zoom; i.Zoom 28x (UHD) / 36x (FHD); digital extender 1.4x/2x
-
35 mm–equivalent 25–600 mm; horizontal angle of view up to approx. 74°
-
3G-SDI (HD formats, Level-A/Level-B) and HDMI 4:2:2 10-bit
-
IP streaming: JPEG (MJPEG), H.264, H.265; SRT, RTSP/RTP, RTMP/RTMPS
-
Optional NDI HX2 activation
-
USB-C device mode with UVC/UAC; 3.5 mm stereo mic/line input with plug-in power
-
Direct-drive PTZ: pan ±175°, tilt −30° to +90°
-

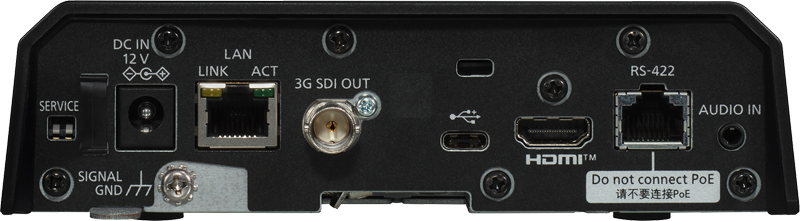

Power via PoE+; LAN 100/1000BASE-T; RS-422 control (RJ-45)
-
Approx. dimensions 160 × 192 × 166 mm; approx. 2.05 kg including ceiling bracket
