Kuumakse al. Built for Success
The SR-20HD is designed to make everyone successful with livestream operation and management, regardless of experience. It combines an easy-to-use video switcher, audio mixer, preview screen, recorder/player, and streaming encoder in one unit, simplifying the process and reducing points of failure.
Plug in and Stream

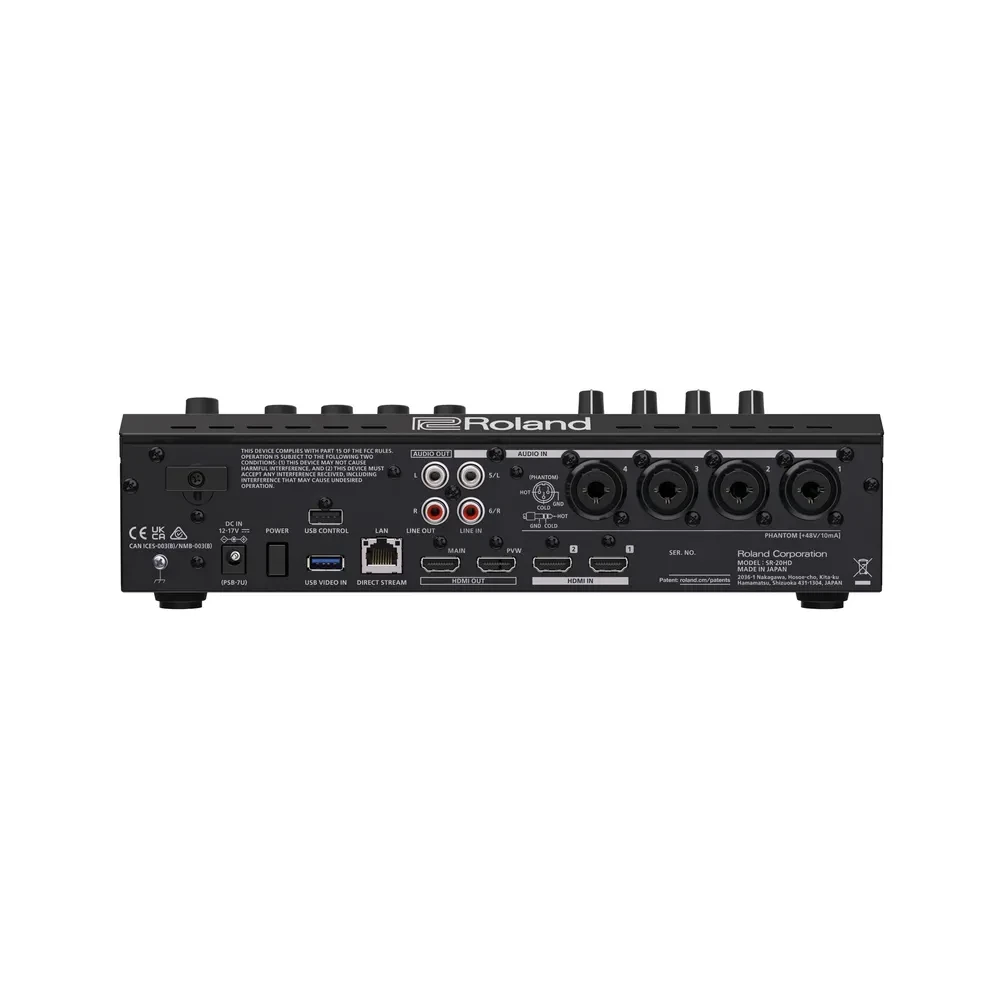

Using the two HDMI inputs, you can connect common video sources such as cameras, smartphones, tablets, and computers running presentation software. There’s also a USB video input for a Roland UVC device or compatible webcam. In addition, a wide range of audio inputs are available for mics, music players, electronic musical instruments, and more.
Once everything is plugged in, simply connect to your network router and begin livestreaming with team members, clients, or students on Facebook, YouTube Live, Twitch, or by RTMP to your CDN.
Secure and Reliable Operation
Packed with advanced Roland A/V technologies, the SR-20HD reduces the need for technical support and experienced staff members. Automatic functions run in the background to eliminate dropped streams and help protect your organization from broadcasting inappropriate content. And since all streaming tasks are handled within the SR-20HD, there’s no risk of malware and other issues that come with computer-based streaming on your enterprise network.
Adaptive Bitrate
The SR-20HD’s unique Adaptive Bitrate function monitors the quality of the network connection and automatically adjusts the streaming rate to reduce interruptions due to bandwidth issues.
Mobile Phone Tethering
A mobile phone with a 4G or 5G data plan can be used as the primary streaming connection or a redundant backup. Should anything happen to your main hardwired network connection, the SR-20HD will automatically switch to the tethered mobile phone over USB.
Safety Delay
With the SR-20HD, you can confidently stream unscripted events and prevent offensive content from being broadcast to your audience. The Safety Delay function buffers up to 60 seconds of video and audio, allowing you switch to a still image or mute the sound if anything goes wrong.
Dual Streaming Destinations
Encode and broadcast livestreams to two independent channels on the same platform to reach a wider audience or create a backup for archiving or later distribution.
Panel Lock
Panel Lock prevents users from accidentally changing settings that could disrupt a broadcast. You can disable access to a wide range of hardware controls and menu parameters on an individual basis, leaving only the essential functions needed for the livestream.
Simplified Recording and Playback
The SR-20HD’s onboard recorder lets you capture H.264 MP4 video* to an SDXC card for later editing or uploading to YouTube or enterprise intranets. In addition, stereo WAV audio can be captured independently for podcasts and other audio-driven media. It’s also possible to access video clips, images, and audio files stored on the SDXC card to bring higher production values to your presentations.**
*The recording bitrate is the same as the livestream encoding bitrate.
**SDXC video playback is only available when streaming in Standard mode.
Advanced Audio Control
The SR-20HD covers the divergent audio needs of single presenters, conference panels, and even music performances. Inputs for up to four professional XLR microphones, line-level signals, and a headset mic provide multiple ways to connect all common analog sources. You can also mix in digital audio from HDMI and USB sources, plus audio from videos and music files stored on an SDXC card.
Make quick volume level adjustments for individual sources using the dedicated faders and knobs, and go deeper with EQ and dynamics processing via the preview display and F1–F4 encoders. You also have five user-assignable function buttons to speed up your workflow, providing quick access to Auto Mixing, audio/video playback, F1–F4 functions, and more.
Automated Switching and Mixing
With a variety of powerful tools, you can automate video switching and audio mixing tasks to ease your workload. This is particularly helpful when you’re also a presenter, allowing you stay focused on delivering your message to the audience.
Video Auto Switching
Change video input sources at predetermined time intervals to make your presentation more dynamic.
Auto Mixing
The Auto Mixing function ensures that the mix between your connected microphones remains balanced. You can set specific inputs to take priority when someone starts to speak, and other audio levels are automatically reduced as needed.
Follow the Source
The SR-20HD makes it simple to broadcast with multiple presenters. With the Audio Follows Video function, the corresponding audio automatically follows when you switch to a different video source. Conversely, the Video Follows Audio function switches video based on who’s currently speaking.
Scenes
With Scenes in the SR-20HD, it’s easy to bring pro production values to your livestreams by executing complex switching functions all at once. Set up and store five preset arrangements of layered sources and display them in customizable inset windows. Then use the dedicated Scene buttons to switch between them and keep the audience engaged during the broadcast.
Hi-Res Streaming for Live Action
The SR-20HD’s Standard mode supports 1080p resolution at 30 FPS, which provides excellent quality for most livestreaming applications. But if you’re broadcasting live sports or other events with quick movement, you can select High Quality mode to increase the frame rate to 60 FPS and reduce motion blur.
Note: The SR-20HD’s USB video input and SDXC card functions are disabled in High-Quality mode.
UVC Input Expansion
If you ever have the need to connect more sources, you can expand your possibilities with a Roland USB video class (UVC) device. A variety of Roland A/V products are supported, allowing you to send high-quality, uncompressed video and audio to the SR-20HD’s USB video input.* Some USB webcams and other third-party devices that support uncompressed UVC output may also be compatible.
*USB video input is only available when streaming in Standard mode.
