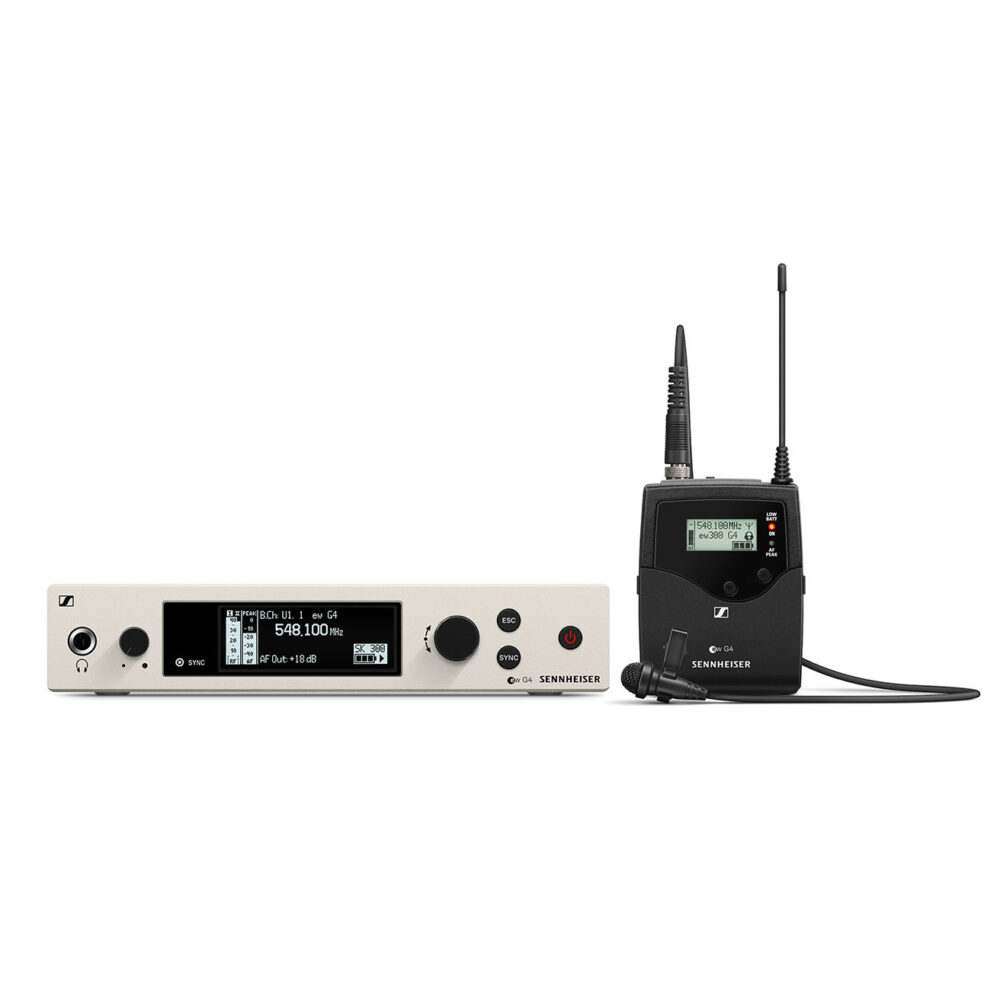

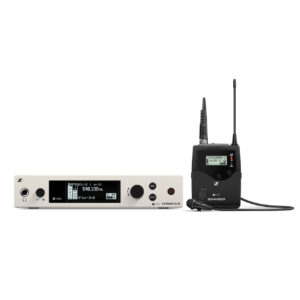

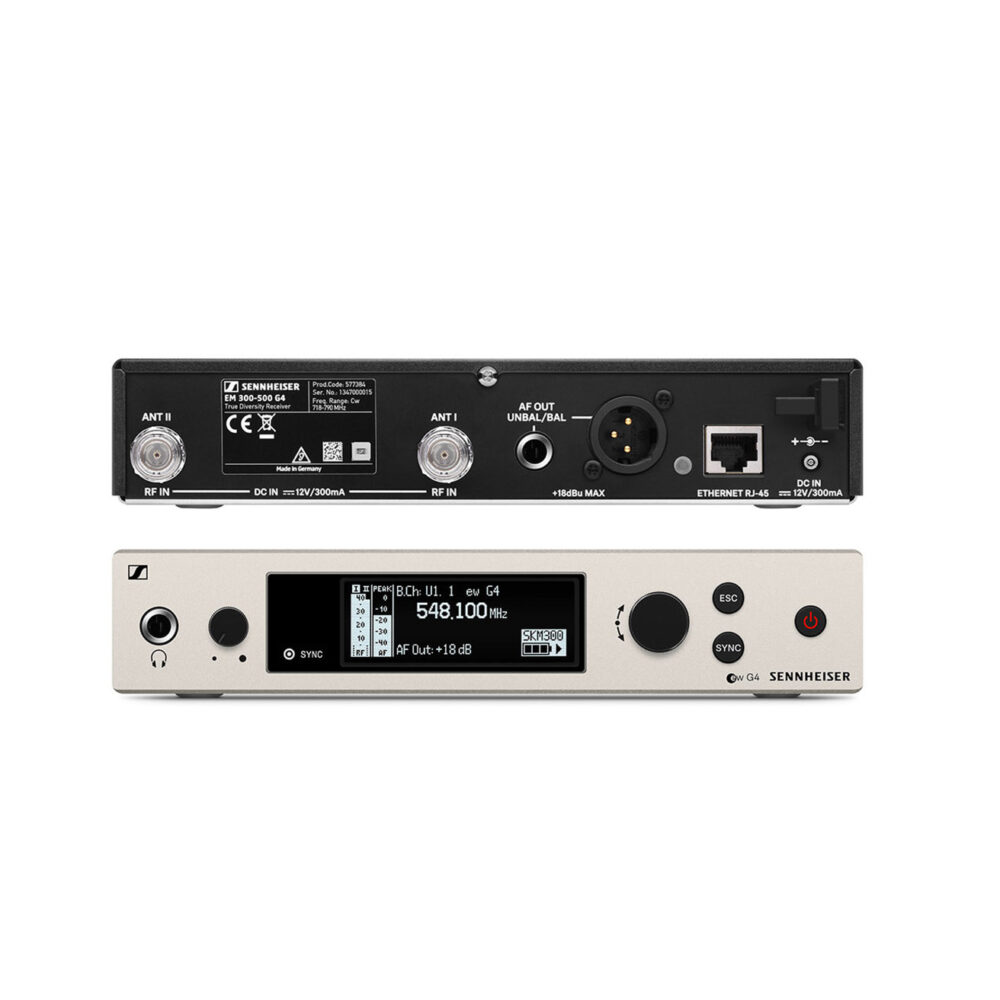

Wireless lavalier microphone set consisting of 1 SK 300 G4 RC wireless bodypack transmitter, 1 ME 2-II Lavalier, 1 em 300-500 G4 rackmount receiver, and 1 GA3 rack kit. Article No. 509655
Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation – despite digital dividend.
The powerful clip-on mic package. Easy to operate, reliable while transmitting – G4 does the job. The 300 series lavalier mic set ensures hands-free operation even during the longest congress or lecture. Remote mute switch available for the bodypack transmitter.
-
Easy to use, fast setup time
-
Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
-
Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
-
Up to 88 MHz bandwidth, up to 32 channels
-
Increased RF output power (10/30/50 mW)
-
Transmission Range: up to 100 meters / 330 feet
-
Compatible with wireless speaker system LSP 500 PRO
-
RC (remote control) switch available for the bodypack transmitter
- EM 300-500 G4 true diversity receiver
- SK 300 G4 bodypack transmitter
- ME 2 clip-on microphone
- GA 3 rackmount set
- power supply
- 2 AA batteries
- 2 rod antennas
- quick guide
- safety guide
- manufacturer declaration sheet
-
- Frequency range Gw: 558 – 626 MHz
-
- Dimensions Approx. 202 x 212 x 43 mm
-
- Compander Sennheiser HDX
-
- THD, total harmonic distortion ≤ 0.9 %
-
- Weight Approx. 980 g
-
- Audio output 6.3 mm jack socket (unbalanced): +12 dBu
-
XLR socket (balanced): +18 dBu
-
- Signal-to-noise ratio ≥ 115 dBA
-
- Switching bandwidth up to 88 MHz
-
- Peak deviation ±48 kHz
-
- Nominal deviation ±24 kHz
-
- Modulation Wideband FM
-
- Power supply 12 V DC
-
- Antenna connector 2 BNC socket
-
- Current consumption 350 mA
-
- Adjacent channel rejection Typically ≥ 75 dB
-
- Intermodulation attenuation Typically ≥ 70 dB
-
- Receiving frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
-
- RF sensitivity < 2.5 μV for 52 dBA eff S/N
-
- Squelch 5 to 25 dBμV in steps of 2 dB
-
- Equalizer
-
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
-
- Temperature Range -10 °C to +55 °C
-
- Receiver Principle True diversity
-
- Blocking ≥ 75 dB
SK 300 G4
-
- Dimensions Approx. 82 x 64 x 24 mm
-
- Compander Sennheiser HDX
-
- THD, total harmonic distortion ≤ 0.9 %
-
- Weight (incl. batteries) approx. 160
-
- Signal-to-noise ratio ≥ 115 dBA
-
- RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
-
- Switching bandwidth up to 88 MHz
-
- Peak deviation ±48 kHz
-
- Nominal deviation ±24 kHz
-
- Operating time Typically 8 h
-
- Modulation Wideband FM
-
- Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
-
- Current consumption at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
-
- Input impedance 40 kΩ, unbalanced / 1 MΩ
-
- Max. Input voltage 3 Veff
-
- Powering 3 V battery / 2.4 V rechargeable battery
-
- Transmission frequency
-
Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
-
- AF frequency response
-
Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
-
- Temperature Range -10 °C to +55 °
-
- Frequency stability ≤ ±15 ppm
ME 2
-
- Connector 3.5 mm jack
-
- Frequency response 50 to 18,000 Hz (ME 2-II)
-
- Max. sound pressure level 130 dB
-
- Cable length approx. 1.60 m
-
- Transducer principle pre-polarized condensor microphone
-
- Pick-up pattern omni-directional
-
- Sensitivity in free field, no load (1kHz) 20 mV/Pa
-
- Equivalent noise level 36 dB
