Hear anywhere on stage and make your gig an extraordinary experience – not just for your audience, but also for you. Engineered for pro live sound. „As a singer, its a MUST. I love that I’m completely wireless without jeopardizing quality.“
Full control over your performance – everywhere, every day. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you!
-
Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
-
Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
-

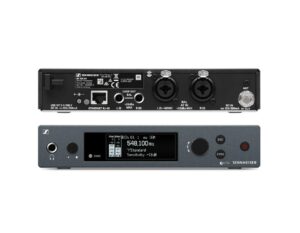

Half-rack stereo transmitter in a full-metal housing with OLED display for full control
-
Easy and flexible wireless synchronization between transmitter and receiver via infrared
-
Compatible with Sennheiser WSM control software for flexible frequency allocation
-
Up to 16 compatible channels
-
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-
Transmission Range: up to 100 meters / 300 feet
-
High RF output power (up to 50 mW) depending on country regulations
- SR IEM G4 stereo transmitter
- EK IEM G4 stereo receiver

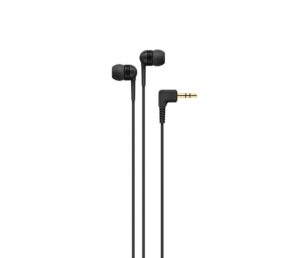

- IE 4 earphones
- 2 AA batteries
- rod antenna
- GA 3 rackmount set
- quick guide
- safety guide
- manufacturer declaration sheet
- power supply
509609
Frequency range
A: 516 – 558 MHz
Dimensions
Approx. 202 x 212 x 43 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
<0.9 %
Weight
Approx. 980 g
Audio input
2x XLR-3/¼” (6.3 mm) jack combo socket, electronically balanced
Audio output
¼” (6.3 mm) stereo jack socket, balanced
Signal-to-noise ratio
>90 dB
RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Modulation
Wideband FM stereo (MPX pilot tone)
Power supply
12 V DC
Current consumption
max. 350 mA
Max. Input voltage
+22 dBu
Transmission frequency
Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
AF frequency response
25 Hz to 15 kHz
Temperature Range
-10 °C to +55 °C
Frequency stability
±10 ppm
Antenna Output
BNC socket, 50 Ω
