About 70% of the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! Built-in highly integrated BMS chip takes up less space while supporting varied fast-charging protocols and bi-directional 45W (Max) USB-C PD fast charging!
Its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc. Made of PC heat-resistant and fireproof material, provides safe protection while charging.

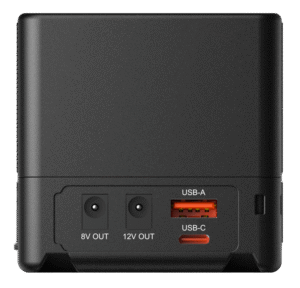

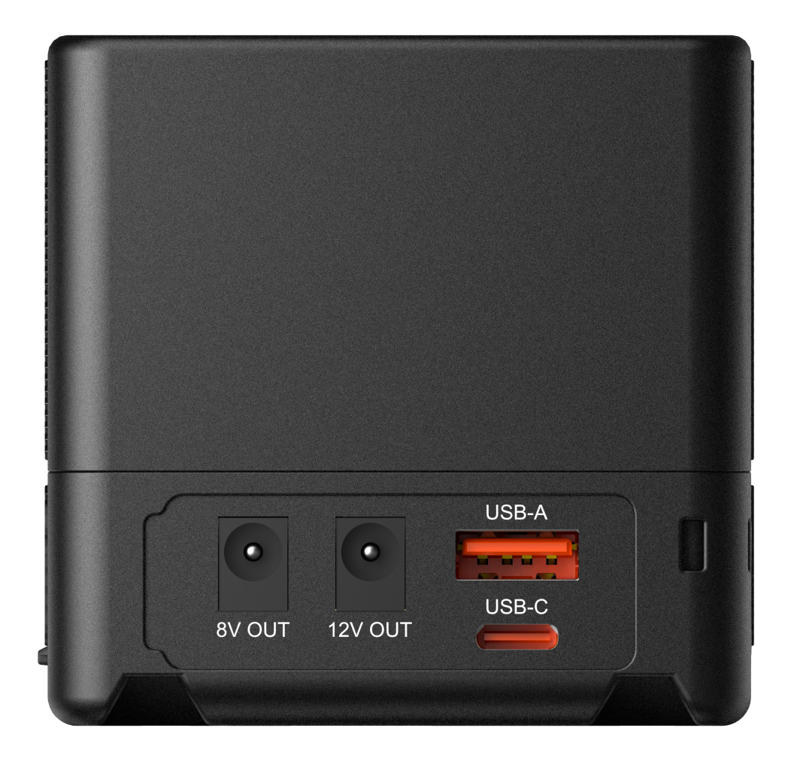

Such interfaces as USB-A / USB-C / D-tap / DC 8V / DC 12V / V Mount are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / video light / mobile phone / laptop etc. without using a V-mount plate to convert!
The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and an OLED digital display for you to keep track of the battery’s status at all times.
Features built-in 3500mAh high-capacity per lithium battery pack, provide high-rate charge & discharge, excellent cycle performance and powerful output while adding less weight to the camera setup.
Built-in premium high-performance battery (no inflated capacity), which are rechargeable and stable, meet MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards, allowing you to capture every moment without burden!
Specifications:
- Capacity – 14.8V 10,5Ah 155Wh
- Rated Power – Discharge: 155W Charge: 65W
- V Mount / D-TAP Input – 8A (Max)
- V Mount / D-TAP Output – 14.8V / 14A (Max)
- USB-A Output
- USB-C Input/Output – Max Input/Output 65W
- DC1 Output – 8V / Max3A
- DC2 Output – 12V / Max3A
- Optional Charging Method – 16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 65W)
Package includes:

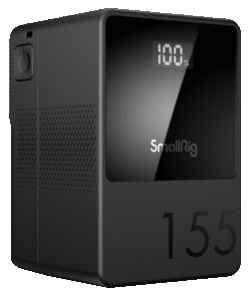

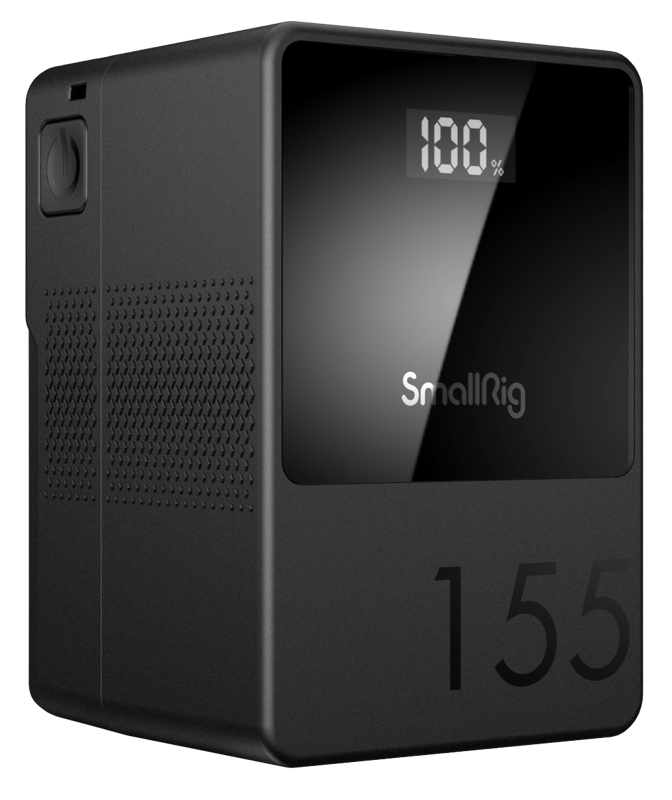

- 1x VB155 Mini V-Mount Battery
- 1x User Manual
