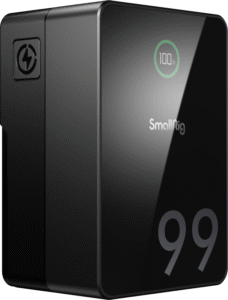

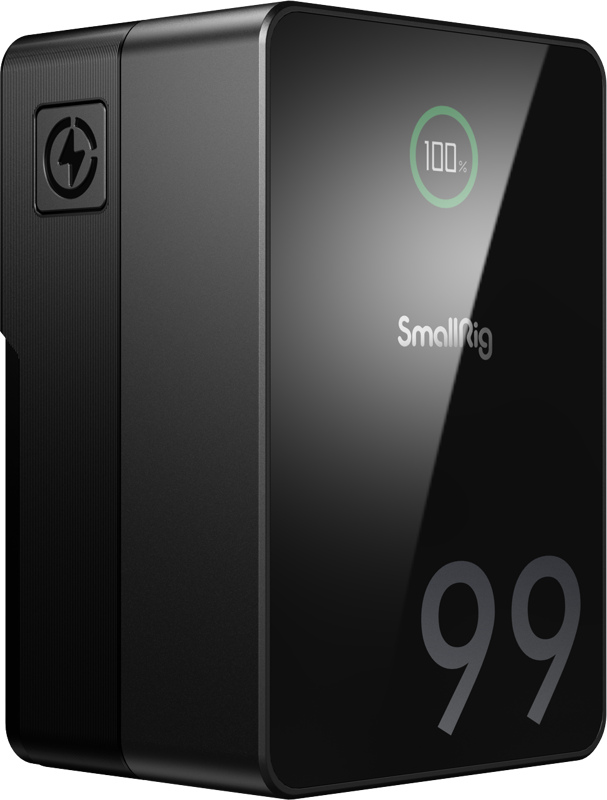

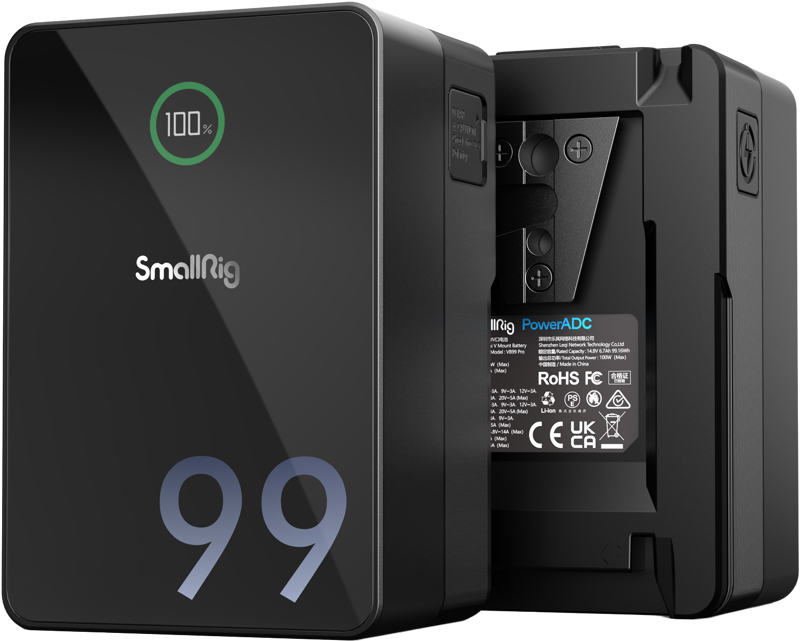

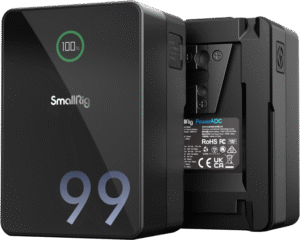

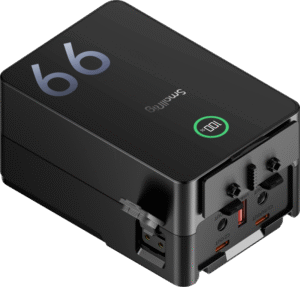

SMALLRIG 4292 V-Mount Battery Mini VB99 Pro

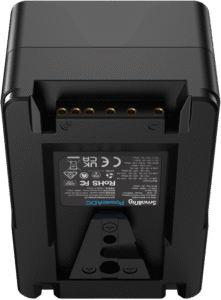

About 70% of the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! Supports 100W (Max.) fast charging, fully charged in 2 hours. Its shell is made of sturdy, drop-proof aluminum alloy and fireproof PC, which makes it durable, scratch-resistant sturdy and drop-proof!

The highly integrated (fast charging protocol + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / PPS etc.), bi-directional 100W (Max.) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc!

In addition, its customized intelligent system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc.

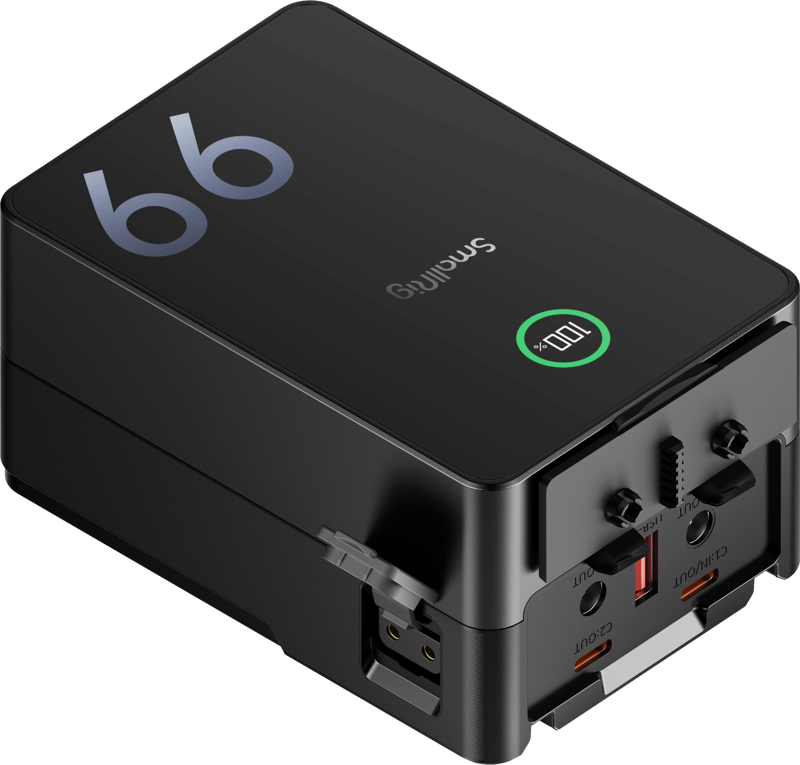

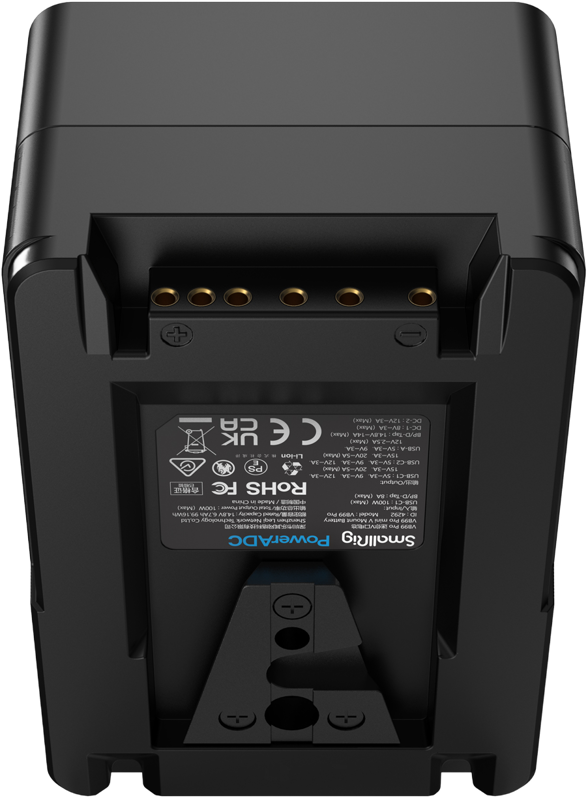

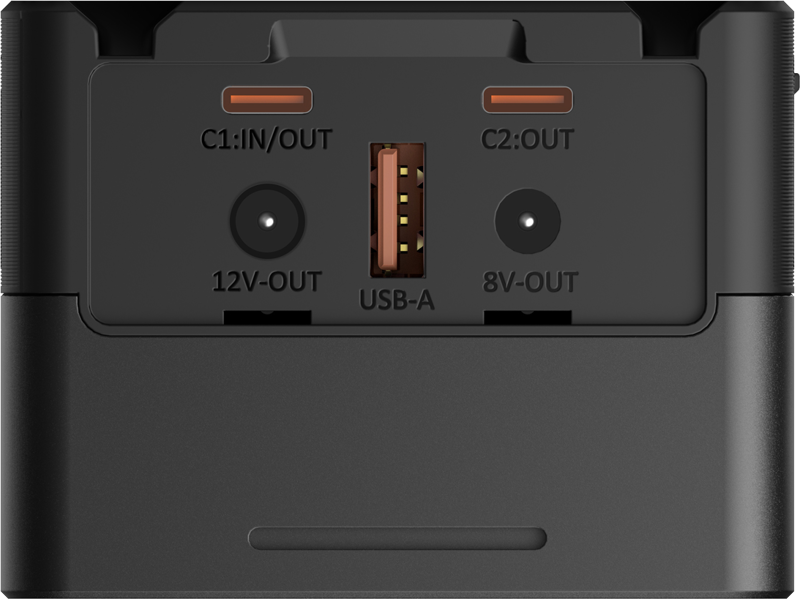

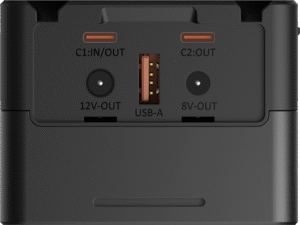

Such interfaces as D-tap / USB-C / USB-A / DC 8V / DC 12V / BP electrode are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / LED video light / mobile phone / laptop etc. without using a V-mount plate to convert!

The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and a TFT digital display for you to keep track of the battery’s status at all times.

Built-in premium high-performance battery (no inflated capacity), which is rechargeable and stable, and meets MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards.

Its shell is made of sturdy, drop-proof aluminum alloy and fireproof PC and features durable, cratch-resistant PC and acrylic cover on the front, with a TFT color screen displaying battery status clearly and accurately.

Overall, this item is safe and powerful enough for you to capture every moment without burden!

Specifications:

• Capacity – 14.8V 6.7Ah 99.16Wh
• Rated Power – 100W
• V Mount / D-TAP Input – 8A (Max)
• V Mount / D-TAP Output – 14.8V / 14A (Max)
• USB-A Output QC2.0/3.0 – 5V / 3A, 9V / 3A, 12V / 2.5A (Max.）
• USB-C1 Input/Output – Max Input/Output 100W. 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (Max.)
• USB-C2 Output – Max Output 100W. 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (Max.)
• DC1 Output – 8V / 3A (Max)
• DC2 Output – 12V / 3A (Max)
• Optional Charging Method – 16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 100W)

Compatibility: Camcorders, cameras, monitors, follow focus, image transmitters, LED video lights, cell phones, tablets, laptops, etc.

Included in the box:

• 1x V Mount Battery VB99 Pro mini
• 1x 100W USB-C Charging Cable
• 1x User Manual
• 1x SmallRig Sticker
