SmallRig 4985 X-Touch Smart Triple-Proof V-Mount Battery X221

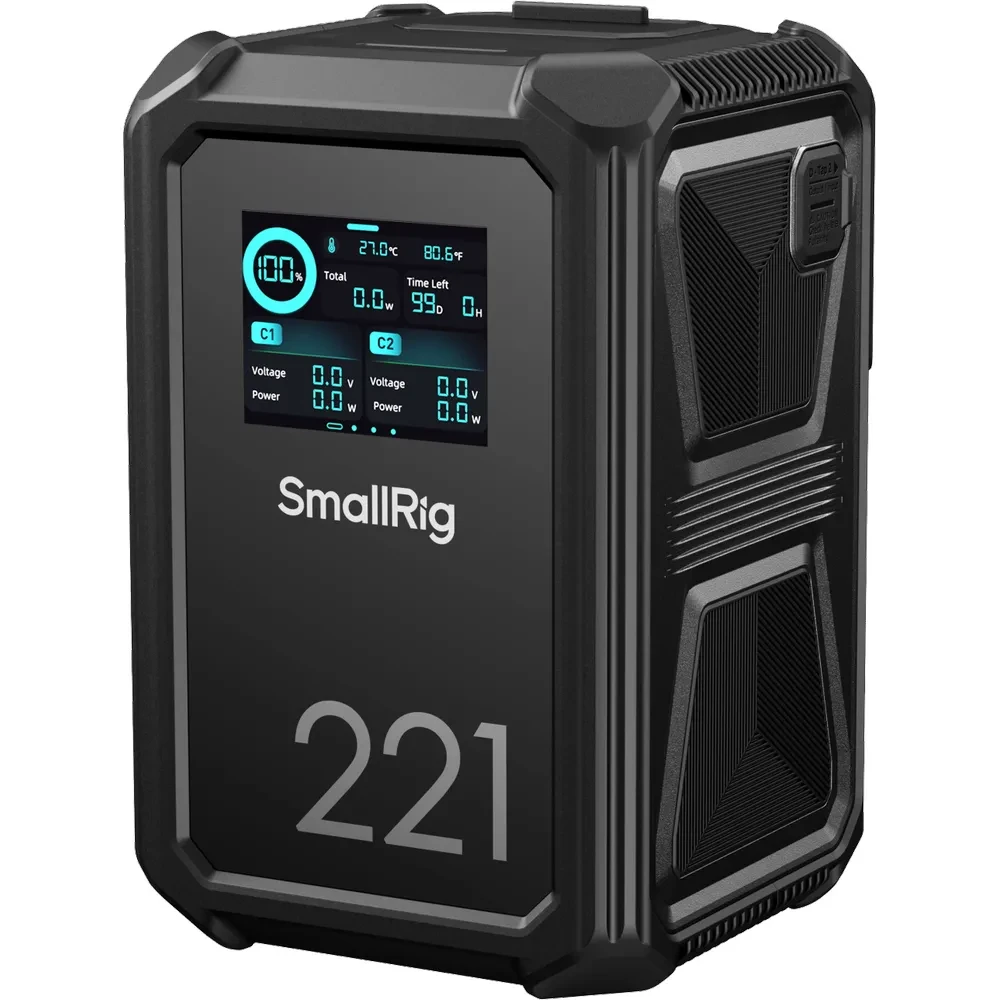

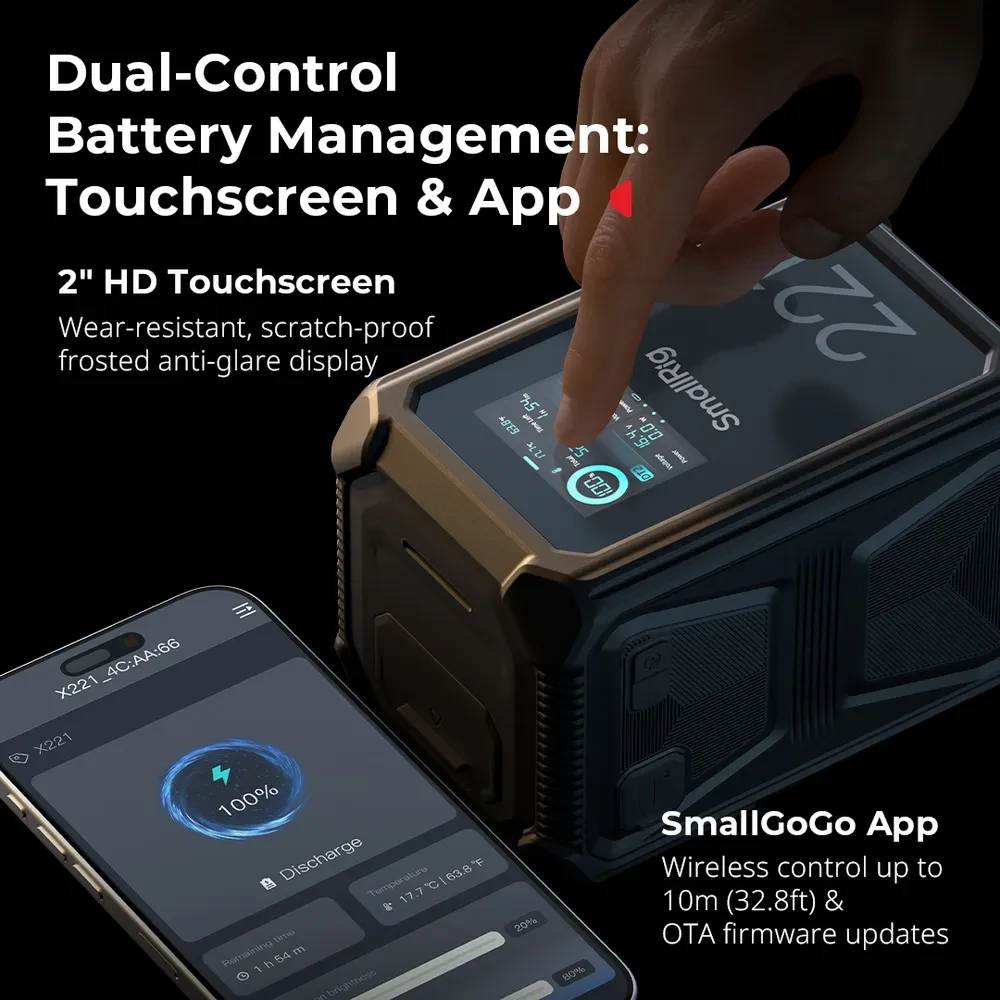

The battery’s smart management system is centered around a 2.0-inch HD color touchscreen with a frosted anti-glare surface, ensuring optimal visibility in all lighting conditions.
A dedicated mobile app offers comprehensive remote control features, including battery level monitoring, port management, battery location tracking, and OTA updates, significantly enhancing on-set workflow efficiency.
Designed to endure the rigors of professional use, the X221 incorporates triple-proof protection: a 1.5m drop-resistant housing with eight silicone-protected corners and four reinforced edges, full metal side panels, and fully reinforced internal circuitry.
With an IP54 rating, it ensures reliable operation when exposed to water splashes, rain, or dust, making it perfect for outdoor productions.

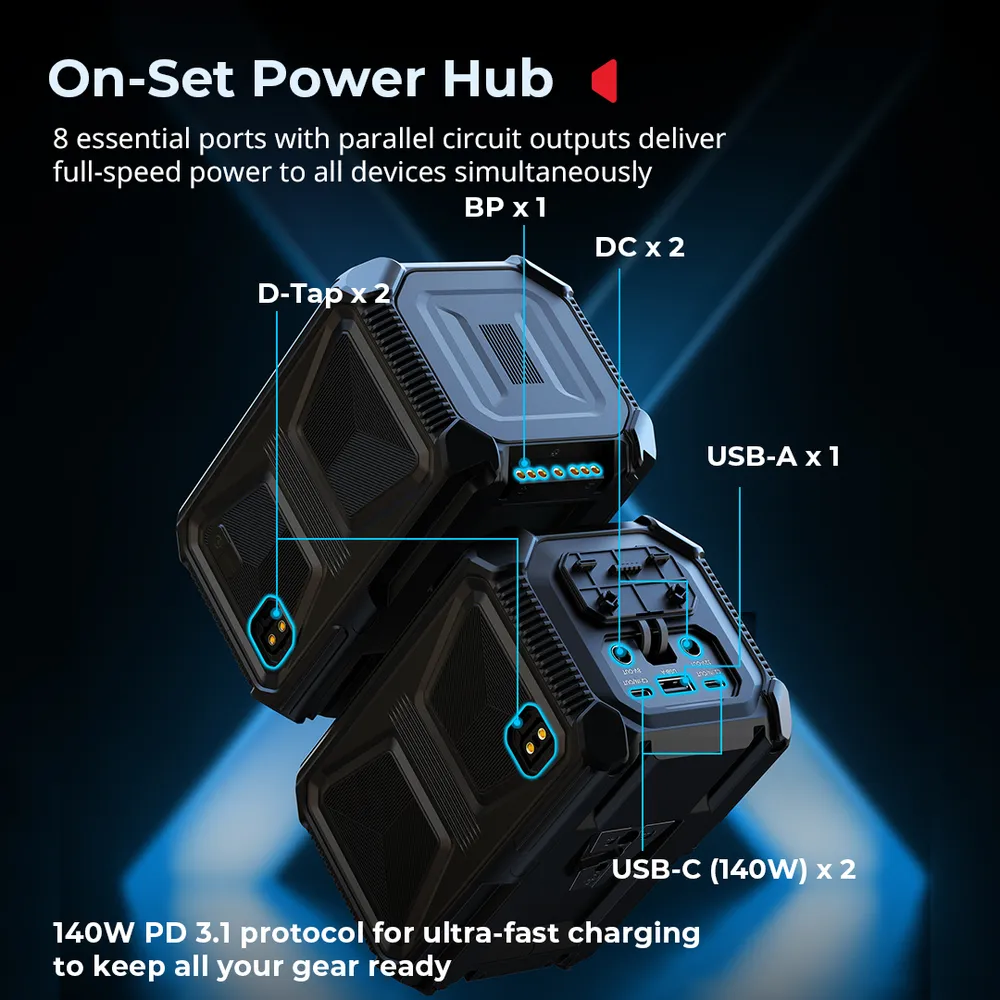

The battery features eight strategically placed ports:
- one BP port
- two D-Tap ports
- two USB-C ports (140W PD fast charging)
- one USB-A port
- two DC ports
Each port operates on an independent circuit, allowing multiple devices to charge simultaneously.
The integrated BMS control chip guarantees rapid charging (fully charged in only 2,5 hours) and stable, safe power output.
At its core, the X221 utilizes premium LG battery cells, renowned for their exceptional cycle life and accurate battery readings.
Innovative designs include dual mounting options (1/4″ & 3/8″ threaded holes) and a backlight indicator for effortless installation even in dim light.
These professional-grade features combine to make the X221 an indispensable power solution for serious content creators.
Certifications: FCC, CE, RoHS, ISED, PSE, RCM
Compatibility:

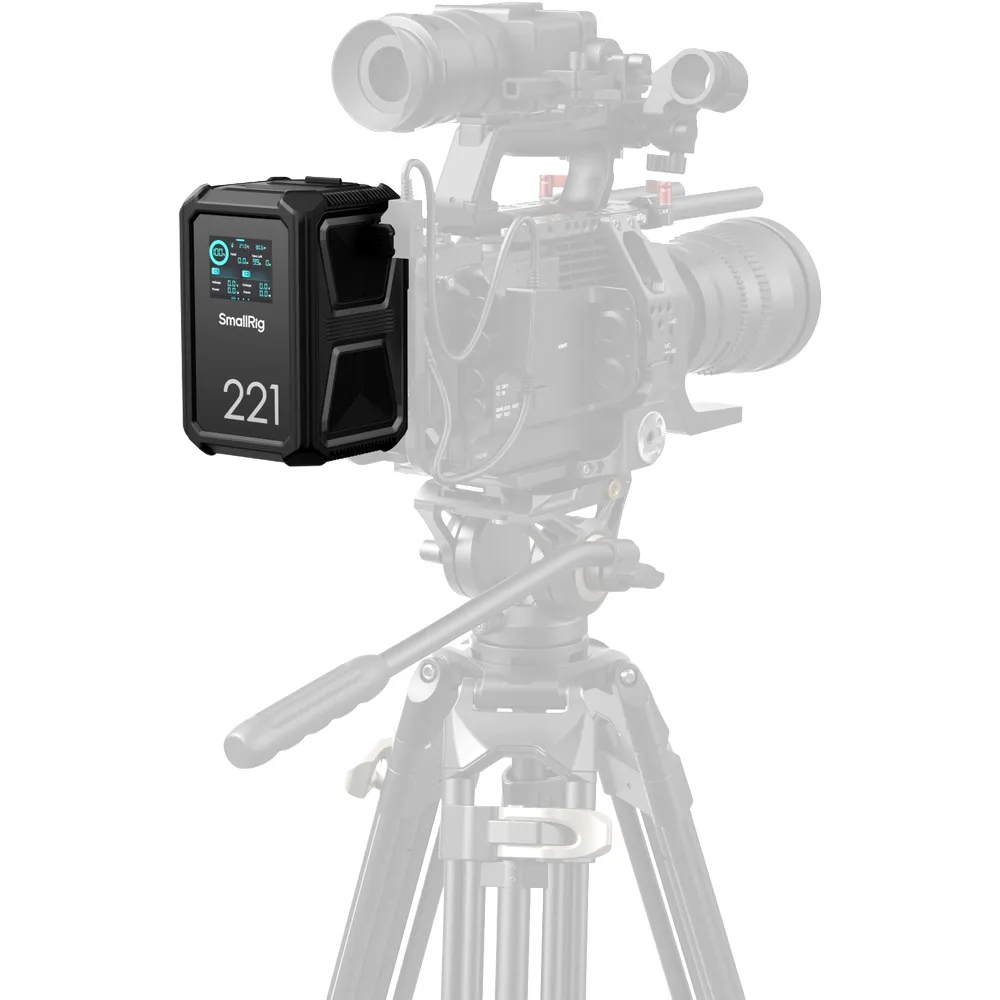

- Mirrorless cameras, camcorders, cameras, monitors, follow focuses, image transmitters, LED video lights, cell phones, tablets, laptops, etc.

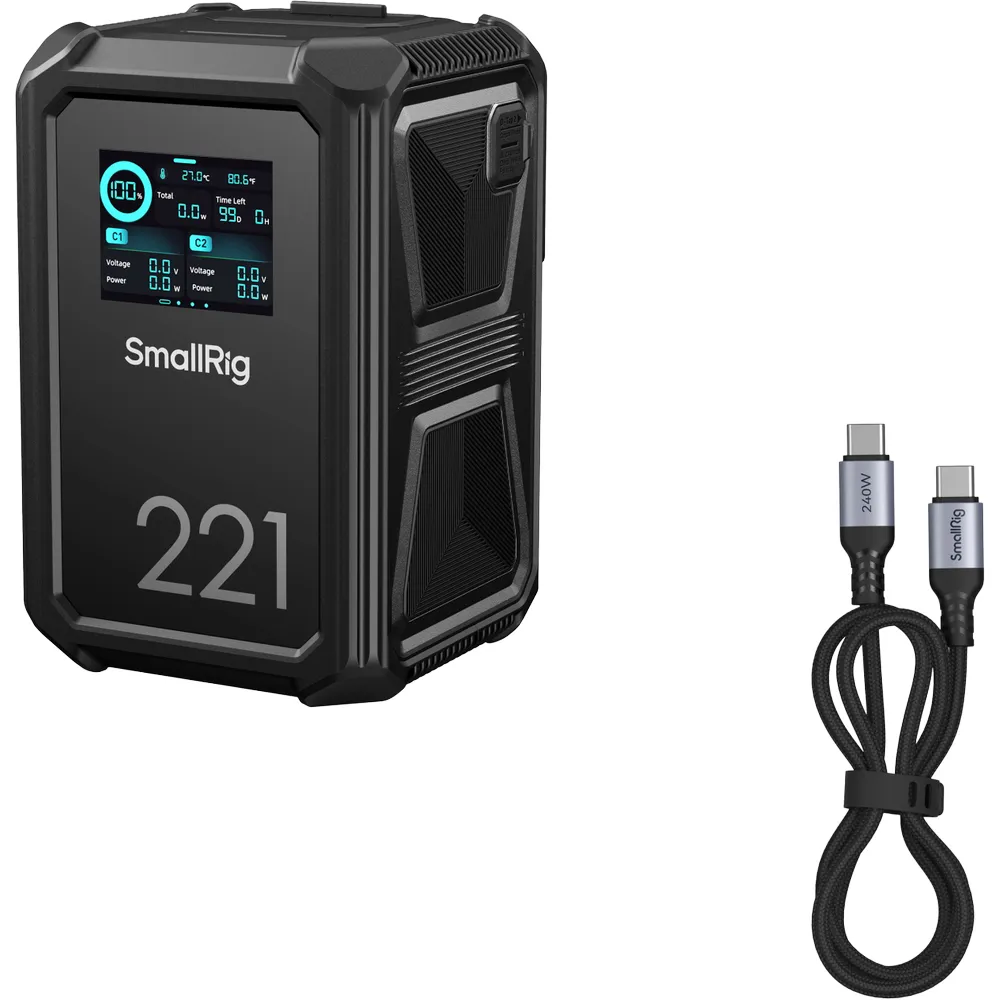

Packaging includes:
- X221 V-Mount Battery
- 240W USB-C Charging Cable
- User Manual
Technical Data:
- Product Dimensions: 145.2 x 92.0 x 91.5mm
- Product Weight: 1564 ± 10g
- Material(s): Flame-retardant PC, Silicone, Aluminum Alloy
- Battery Type: Lithium-ion Battery
- Rated Battery Parameters: 14.76V / 15,000mAh / 221.4Wh
- Total Rated Output: 221W
- Input:
- USB-C1 / USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A; 140W (Max)
- BP / D-Tap1 / D-Tap2: 16.8V⎓12A (Max)
- Output:
- USB-C1 / USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A; 140W (Max)
- USB-A: 5V⎓3A, 9V⎓3A, 12V⎓2.5A; 30W (Max)
- BP: 11.2-16.8V⎓15A
- D-Tap1 / D-Tap2: 11.2-16.8V⎓10A
- 8V-OUT: 8V⎓3A (Max)
- 12V-OUT: 12V⎓3A (Max)
- Supported Protocols:
- USB-C1 / USB-C2: PD3.1, PD3.0, QC2.0, QC3.0, AFC, DCP-1.5A, PPS, APPLE-2.4A
- USB-A: QC3.0, QC2.0, AFC, FCP, SCP, DCP-1.5A, APPLE-2.4A
- Discharge Cut-off Voltage: 11.2V
- Charging Temperature: 0°C to 45°C
- Discharging Temperature: -15°C to 60°C
- Charging Ports: BP, D-Tap, USB-C
- Drop Resistance Rating: 1.5m
- Ingress Protection Rating: IP54
