SmallRig 5248 CB75 Camera Base Battery Kit

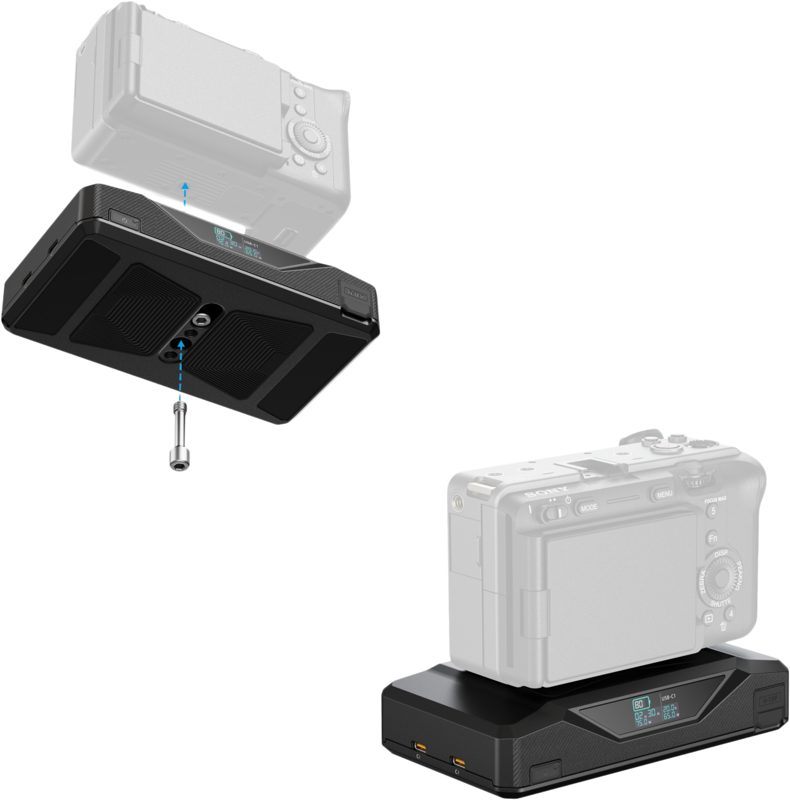

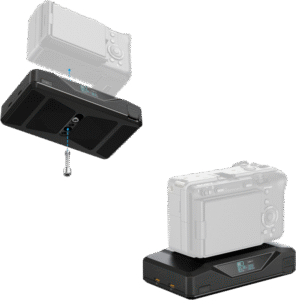

Its dual-sided mounting system includes a top 1/4″-20 screw for direct attachment to cameras or cages, and a bottom 1/4″-20 threaded hole for tripod mounting, eliminating the need for adapters and creating a streamlined power solution.

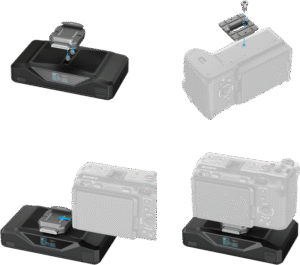

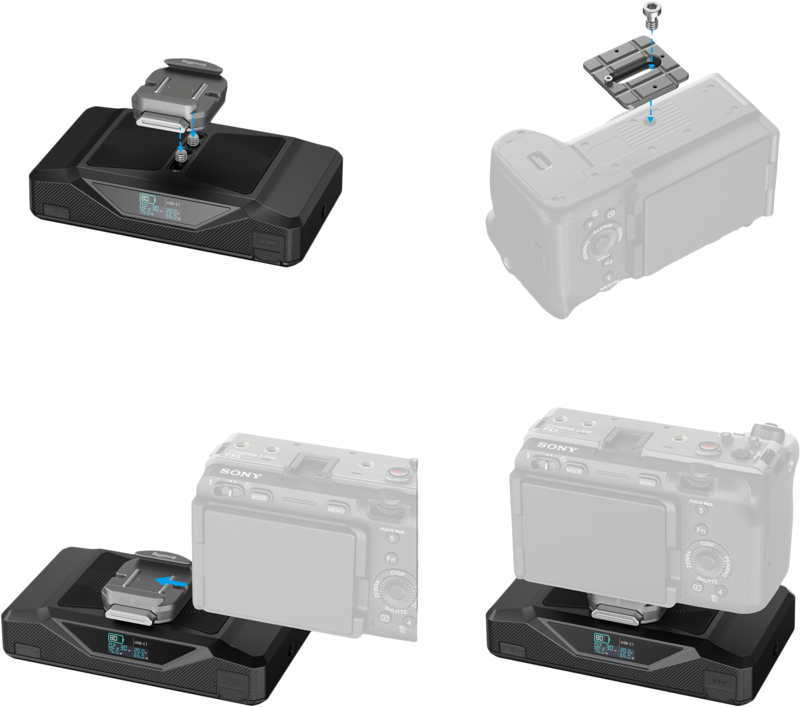

When used with Arca-Swiss quick release mount plates and compatible cages, it facilitates smooth slide-in installation with one-click auto-locking, significantly enhancing setup efficiency.
Equipped with versatile power outputs – including two D-Tap ports, two 65W USB-C ports, and one 8V DC port – the unit can simultaneously power multiple devices, making it ideal for demanding production scenarios.
The 65W fast-charging technology allows for a full recharge in only 2 hours, ensuring uninterrupted shooting schedules.
Despite its slim 3cm profile, the battery boasts a substantial 73.8Wh capacity, capable of supporting professional equipment throughout all-day shooting.
Premium LG battery cells integrate with robust protection circuitry to deliver stable, reliable power with enhanced safety.

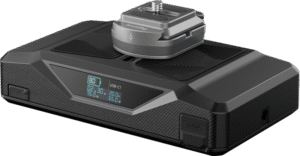

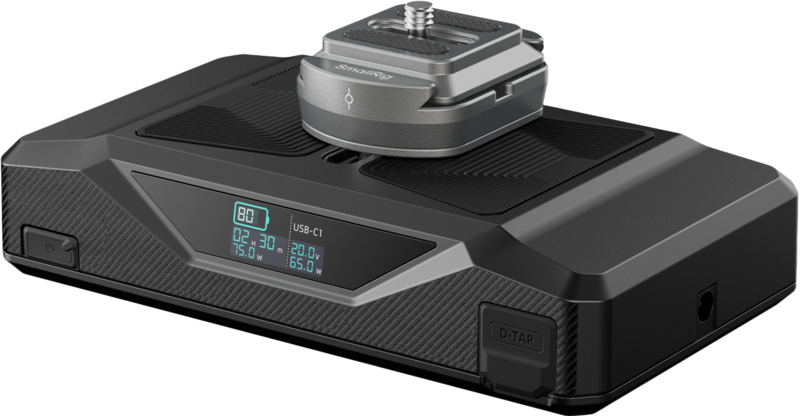

The full-color HD display provides real-time power monitoring for effective energy management.
This professional-grade power solution comprehensively addresses core needs – from instant mounting and multi-device power delivery to rapid recharge capability – making it the ideal power foundation for cinematographers.
- Product Dimensions: 149.0 x 86.0 x 49.0mm
- Product Weight : 613.0 ± 10.0g
- Battery Parameters: 14.76 V/5,000 mAh/73.8 Wh
- Battery Capacity: 20,000 mAh (4×5,000 mAh)
- Rated Total Output: 73.8 W
- D-Tap1 / D-Tap2 Input: 16.8 V/6 A (Max)
- D-Tap1 / D-Tap2 Output: 10.4-16.8 V/8 A (Max)
- USB-C1 Input/Output:
- 65 W (Max)
- 5 V/3 A, 9 V/3 A, 12 V/3 A, 15/3 A, 20 V/3.25 A
- USB-C2 Input/Output:
- 65 W (Max)
- 5 V/3 A, 9 V/3 A, 12 V/3 A, 15/3 A, 20 V/3.25 A
- USB-C1 + USB-C2 Simultaneous Output Power: 100 W (Max)
- USB-C1/USB-C2 Support Protocols: PD3.0/QC2.0/QC3.0/PPS/AFC/DCP-1.5 A/APPLE-2.4 A
- 8V-OUT Output: 7.8-8.4 V/3 A (Max)
- Discharging Cut-off Voltage: 10.4 V
- Charging Temperature: 0℃-45℃
- Discharging Temperature: -15℃-60℃
- Material: Aluminum alloy+PC+ABS
Packaging includes:
- CB75 Base Battery

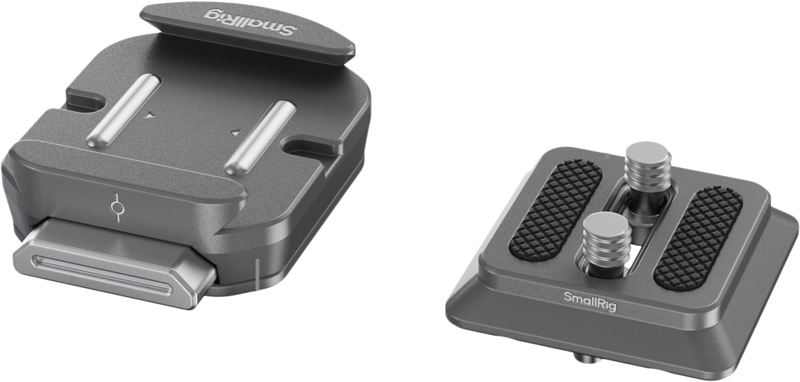

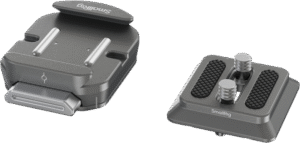

- HawkLock H38 Arca-Swiss Quick Release Mount Plate
- 100W USB-C to USB-C PD Cable (30cm)
- 2x Allen Wrench
- Operating Instruction
