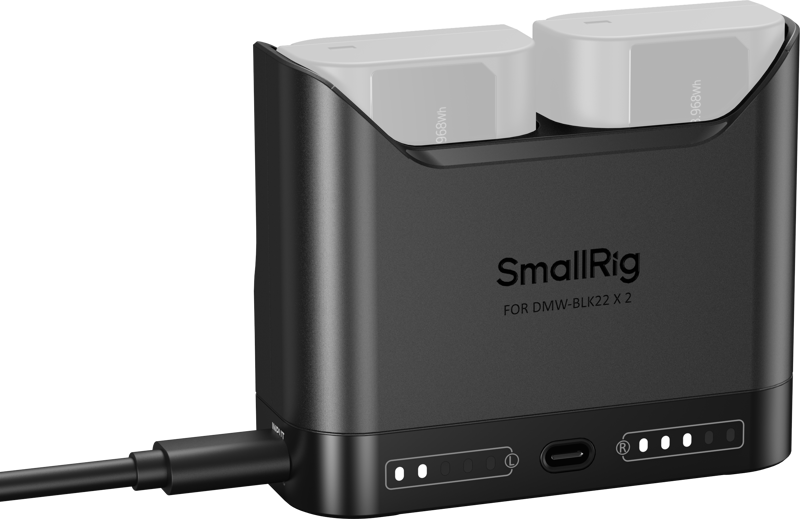

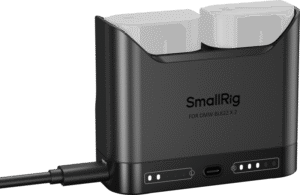

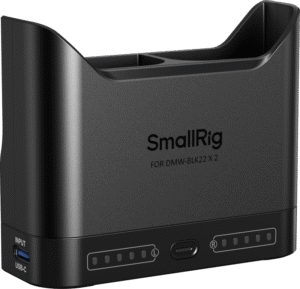

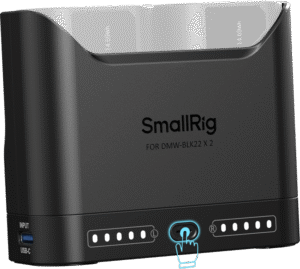

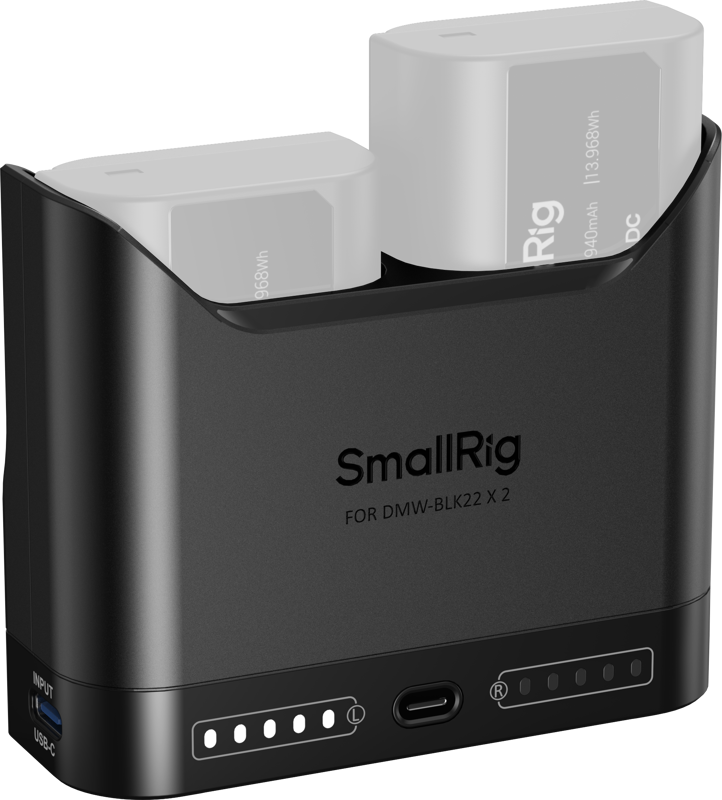

SmallRig 5492 Camera Battery Charger for DMW-BLK22

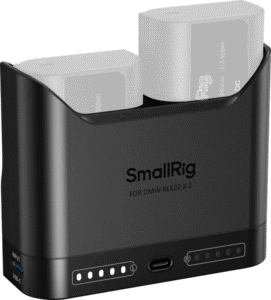

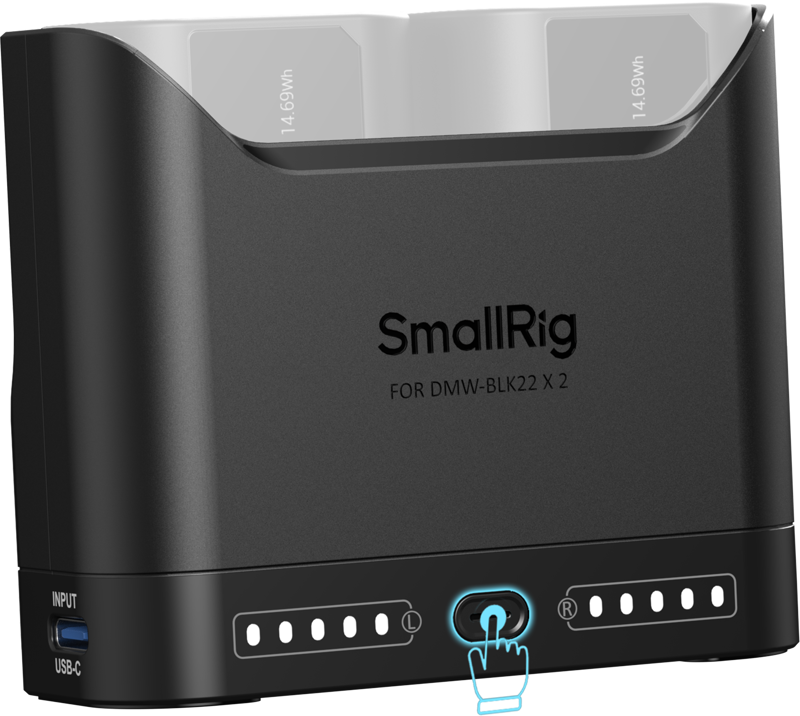

Each charging channel features five LED indicators that display power levels in 20% increments, even without external power.
A red warning light activates when battery levels are critically low.

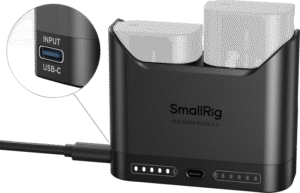

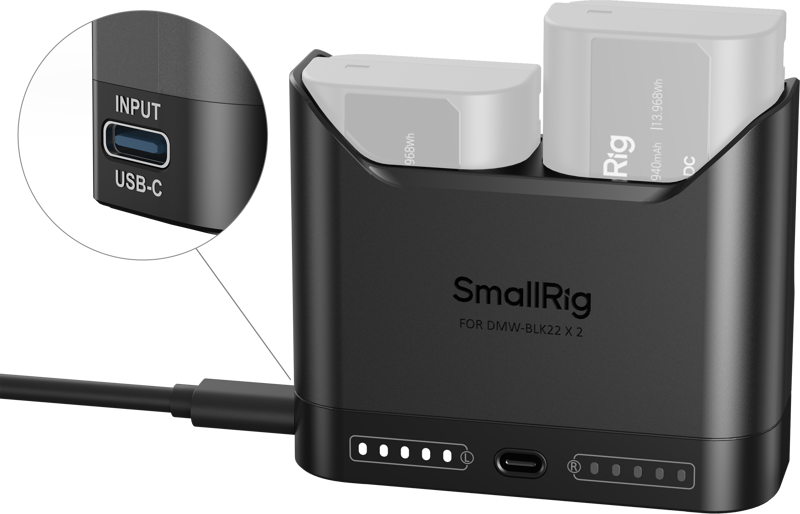

Additionally, the charger incorporates a universal USB-C input port and comes with a fast-charging cable, making it compatible with wall adapters, car chargers, and power banks for versatile charging options.
Intelligent circuitry offers multiple safety protections, including over-temperature and over-voltage safeguards.
It monitors temperature and voltage, automatically slowing down charging during overheating, cutting off power in case of overvoltage, and employing trickle charging near full capacity to preserve battery health.
Certifications: FCC, CE, RoHS, ISED, RCM
Note:
- Recommended to use a power adapter with 22.5W or higher output.
- Not compatible with 5V / 1A power adapters.
- When using a 5V / 2.4A adapter, the charger operates in slow-charge mode, prioritizing the charging of the battery in Channel 1 first. It automatically switches to Channel 2 once Channel 1 is fully charged.
Technical Data:
- USB-C Input: 5V / 2.4A, 9V / 2A, 12V / 1.75A, 15V / 1.5A; 22.5W (Max)
- USB-C Protocol: PD3.0, QC2.0, QC3.0
- Rated Output (Per Channel): 8.4V / 1A
- Operating Temperature: 0°C to 45°C
Compatibility:

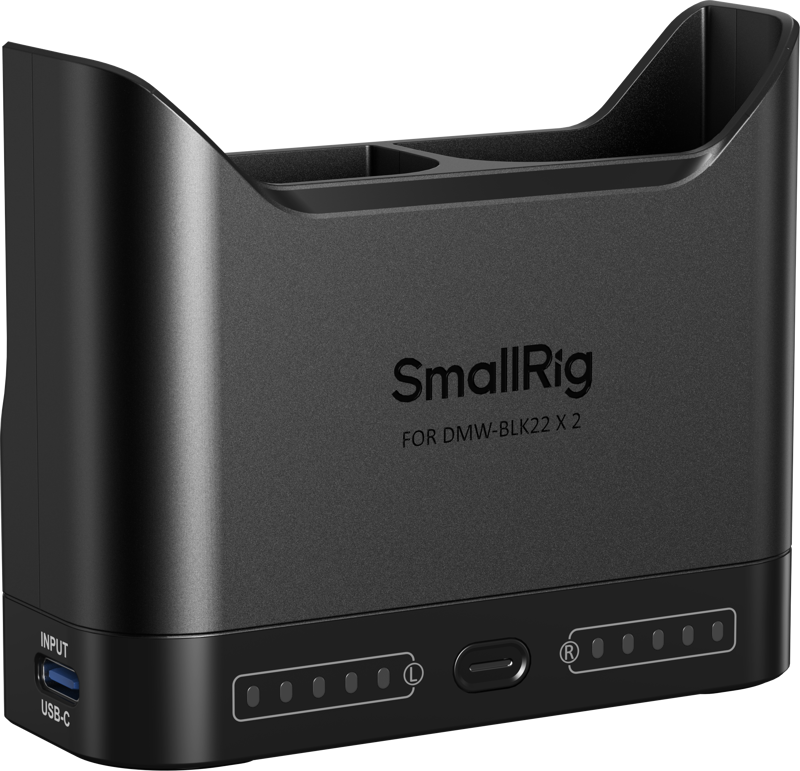

- Compatible with Panasonic DMW-BLK22 batteries, capable of charging both OEM and third-party batteries
Packaging includes:
- Camera Battery Charger for DMW-BLK22 batteries
- 60W USB-C to USB-C Cable (1m)
