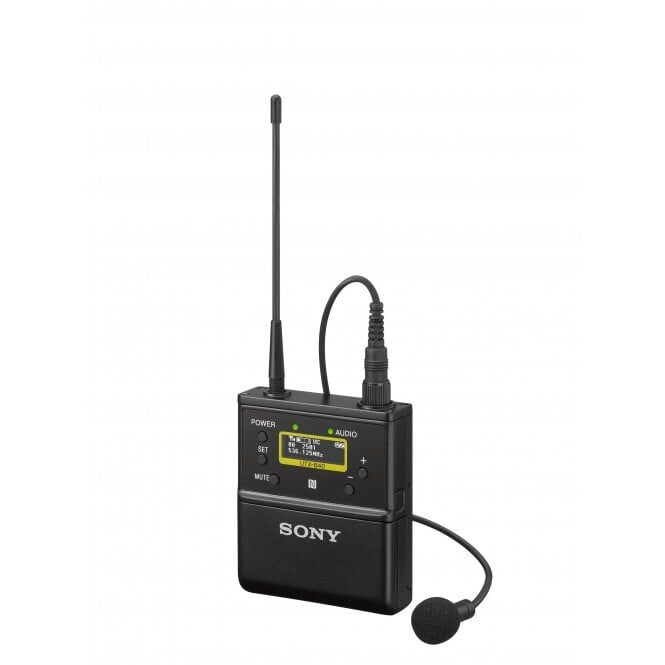

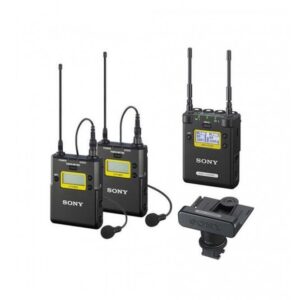

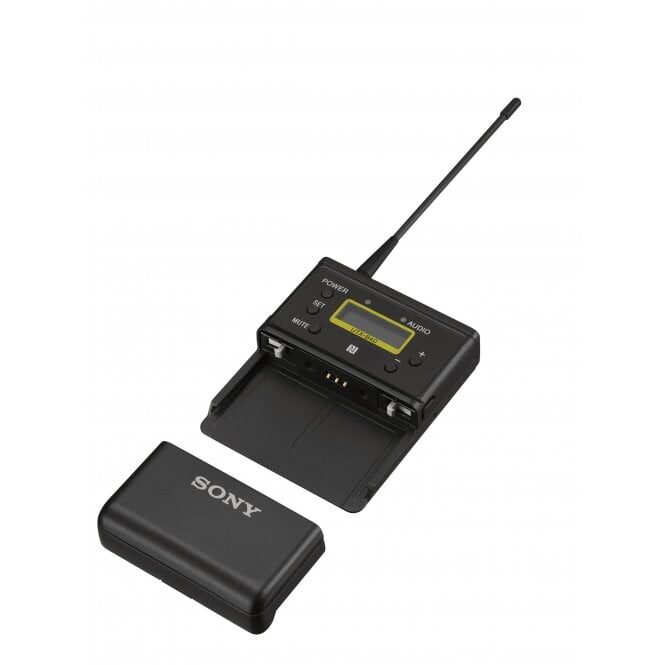

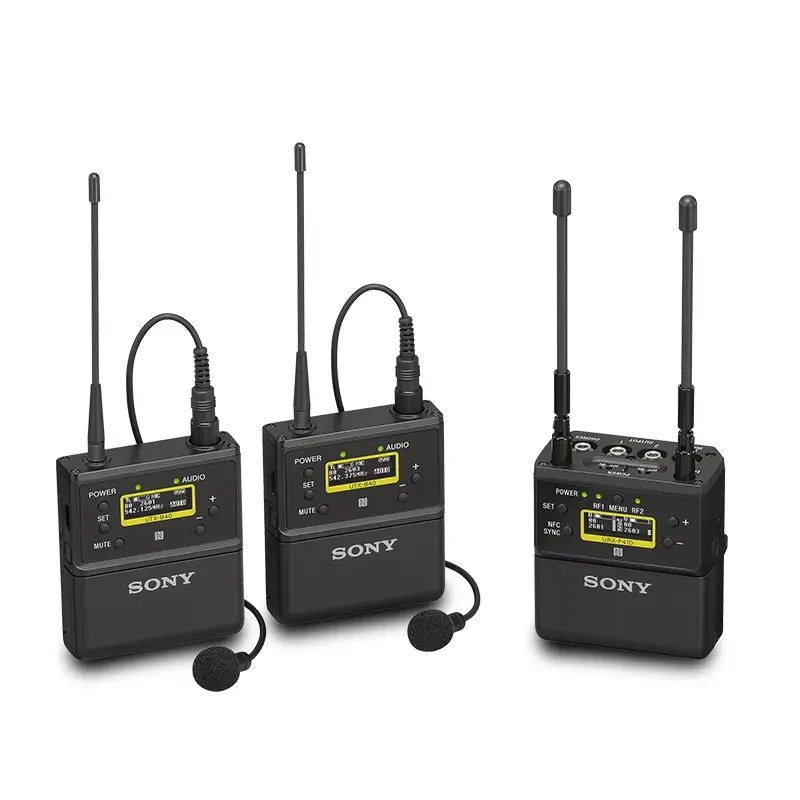

UTX-B40 bodypack transmitter
Oscillator Type: Crystal-controlled PLL synthesizer
Antenna Type: 1/4 λ wave length wire antenna
Carrier Frequencies
14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51)
90UC: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
33CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40)
42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)
38CN: 638.025 MHz to 694.000 MHz (UHF-TV channels 29–35)
E: 806.125 MHz to 809.750 MHz
KR: 925.125 MHz to 937.500 MHz
25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51)
90UC: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
33CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40)
42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)
38CN: 638.025 MHz to 694.000 MHz (UHF-TV channels 29–35)
E: 806.125 MHz to 809.750 MHz
KR: 925.125 MHz to 937.500 MHz
RF Output Power
30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)
10 mW/2 mW selectable (J, E, KR models)

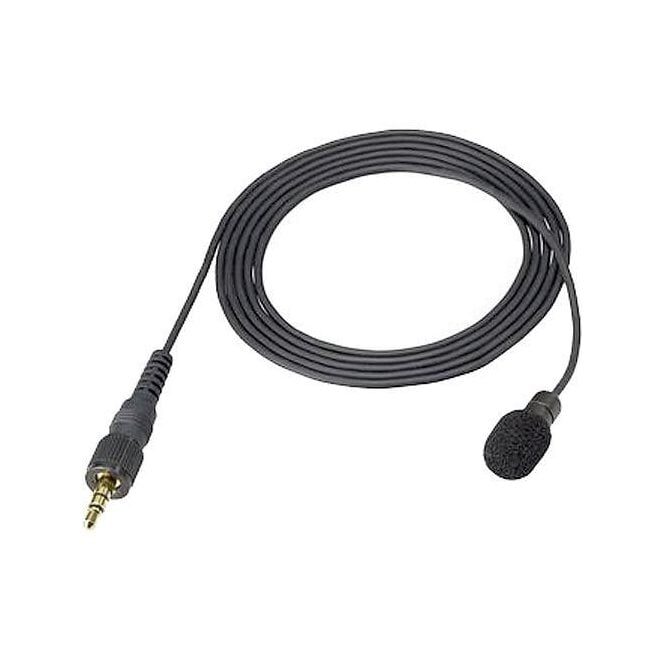

Capsule Type: Elect retcondenser
Directivity: Omni-directional
Input Connector: 3.5 mm diameter 3-pole locking mini jack
Reference Audio Input Level
–60 dBV (MIC input, GAIN MODE set to NORMAL, 0-dB attenuation)
+4 dBu (LINE input)
+4 dBu (LINE input)
Audio Attenuator Adjustment Range: 0 dB to 27 dB (3 dB steps)
Frequency Response
23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (Typical) (J model)
40 Hz to 15 kHz (Typical) (J model)
Signal-to-Noise Ratio
60 dB (–60 dBV, 1-kHz input)
102 dB (GAIN MODE set to AUTO GAIN, max.)
96 dB (GAIN MODE set to NORMAL, max.)
102 dB (GAIN MODE set to AUTO GAIN, max.)
96 dB (GAIN MODE set to NORMAL, max.)
Distortion: 0.9% or less (–60 dBV, 1 kHz input)
Audio Delay: Approx. 0.35 ms
Tone Signal Frequency
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz
Display: OLED
Power Requirements
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)
DC 5.0 V (supplied from USB Type-C connector)
Battery life*
Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
Approx. 10 hours with output power of 10 mW (J, E, KR models)* Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
Approx. 10 hours with output power of 10 mW (J, E, KR models)* Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
Operating Temperature: 0 °C to 50 °C
Storage/Transport Temperature: -20 °C to +55 °C
Dimensions: 63 x 73 x 19 mm (W / H / D) (excluding antenna)
Mass: Approx. 83 g (excluding batteries)

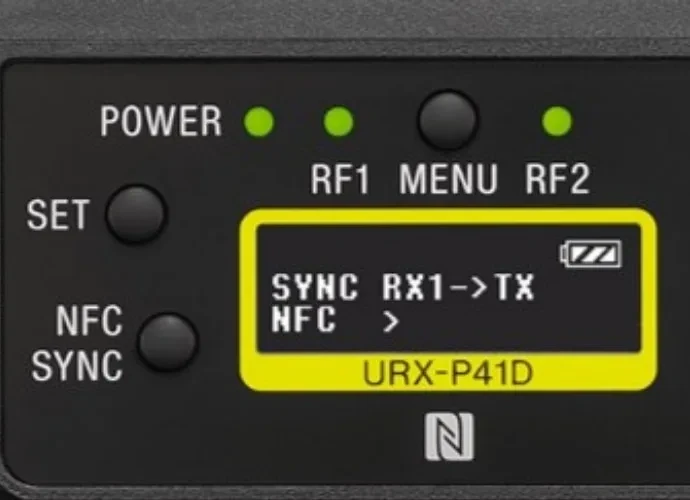

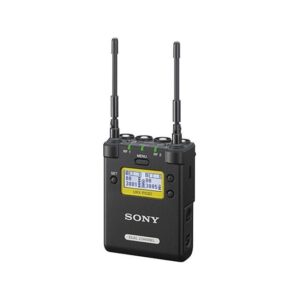

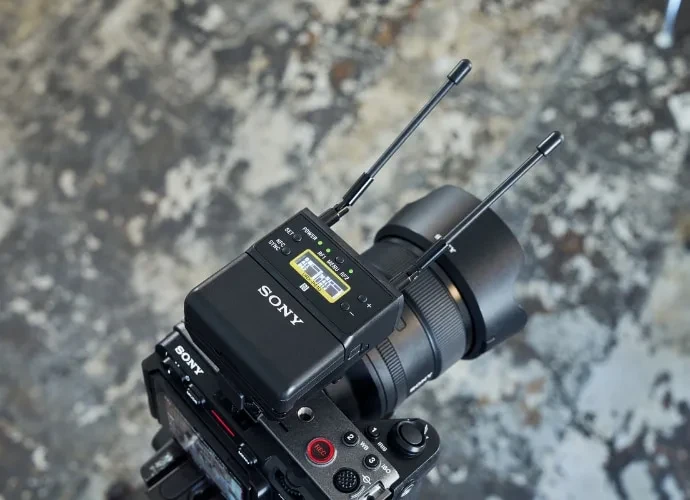

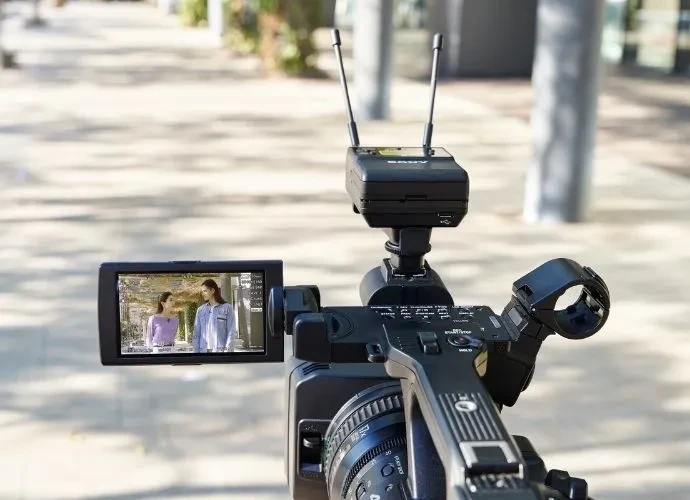

URX-P41D Dual Channel Portable Receiver
Oscillator Type: Crystal-controlled PLL Synthesizer
Reception Type: Space diversity*
Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)
Carrier Frequencies
14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25–36)
42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42–51)
90U: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21–29)
33CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33–40)
42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42–48)
29CN: 638.025 MHz to 694.000 MHz (UHF-TV channels 29–35)
E: 806.125 MHz to 809.750 MHz
KR: 925.125 MHz to 937.375 MHz
25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25–36)
42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42–51)
90U: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21–29)
33CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33–40)
42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42–48)
29CN: 638.025 MHz to 694.000 MHz (UHF-TV channels 29–35)
E: 806.125 MHz to 809.750 MHz
KR: 925.125 MHz to 937.375 MHz
Frequency Response
23 Hz to 18 kHz (typical) (UC, U, LA, CN, CE7, KR, E models)
40 Hz to 15 kHz (typical) (J model)
40 Hz to 15 kHz (typical) (J model)
Distortion (T.H.D): 0.9% or less (1-kHz sine wave, 5-kHz modulation)
Signal-to-Noise Ratio
60 dB (1-kHz sine wave, 5-kHz modulation)
96 dB (max deviation, A-weighted)
96 dB (max deviation, A-weighted)
Audio Delay
Approx. 0.35 ms (analog output)
Approx. 0.24 ms (digital output)
Approx. 0.24 ms (digital output)

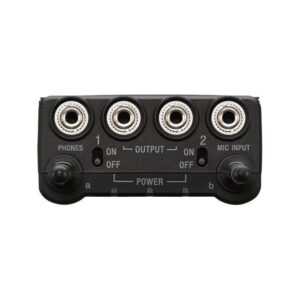

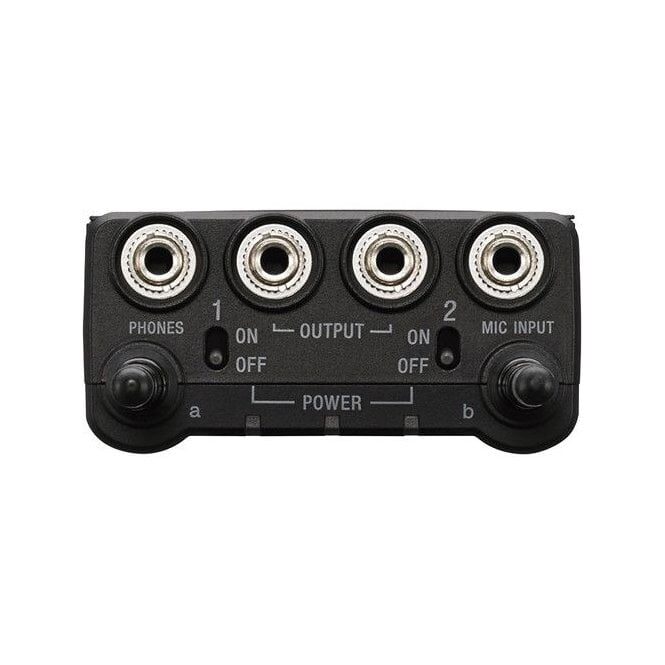

Analog Input: 3.5-mm diameter three-pole locking mini-jack (unbalanced)
Analog Input Level: -50dBV (±12dB Adjustable, 3-dB step)
Audio Output level
–60 dBV (3.5-mm diameter three-pole locking mini-jack, analog output)
–20 dBFS (external connection, digital output)
–50 dBV (external connection, analog output)
–20 dBFS (external connection, digital output)
–50 dBV (external connection, analog output)
Audio Output Adjust Range: –12 dB to +12 dB (3-dB step)
Audio Output connector: 3.5-mm diameter three-pole locking mini-jack (balanced), External connection
Headphone Output Connector: 3.5 mm diameter mini jack
Headphone Output Level: Max. 10 mW (16-ohm)
Tone signal frequency
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz
Display: OLED
Power Requirements
DC 3.0 V (with two AA-size alkaline (LR6) batteries)
DC 5.0 V (supplied from USB Type-C connector)
DC 5.0 V (supplied from USB Type-C connector)
Battery Life: Approx. 4.5 hours with two AA-size alkaline (LR6) batteries at 25 °C (77 °F), DISPLAY MODE set to AUTO OFF
Operating Temperature: 0 °C to 50 °C
Storage/Transport Temperature: –20 °C to +55 °C
Dimensions: 63 × 70 × 35 mm (W / H / D) (excluding antenna)
Mass: Approx. 159 g (excluding batteries)
Note
*
True Diversity for 1ch use / Dynamic Switching Diversity for 2ch use.

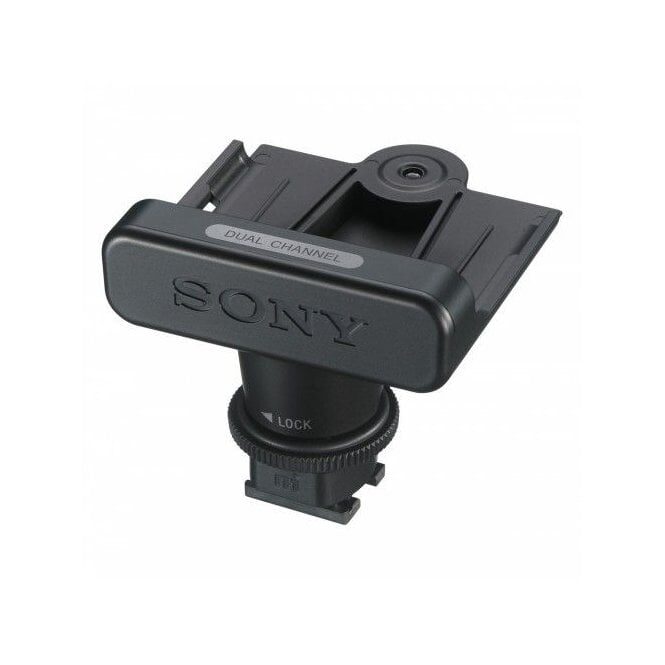

SMAD-P5 MI Shoe is not included in the kit.
