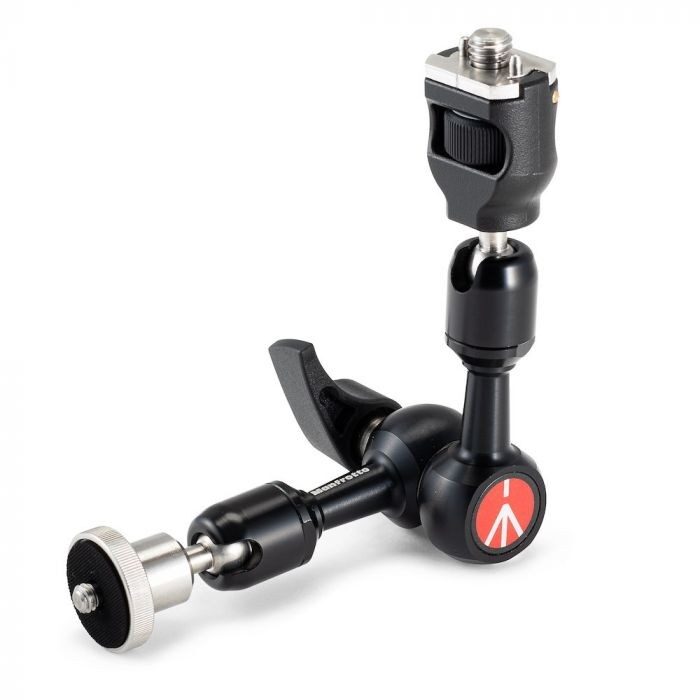

Compact support for a camera rig
The 15 cm arm supports up to 3 kg and uses one central knob to quickly position a monitor, small light or other accessory at the required angle.

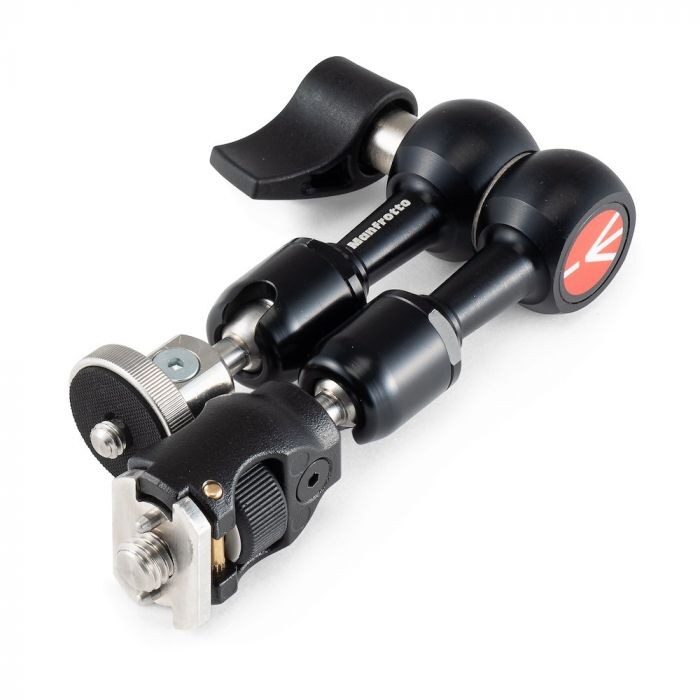

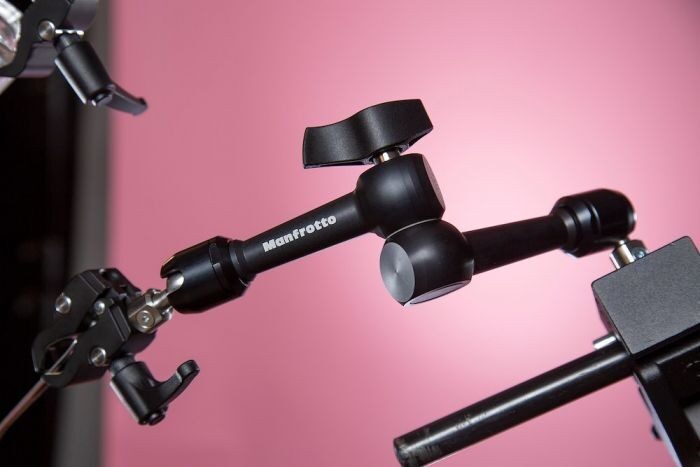

One control locks the articulated arm
The ball joints let you orient the arm around a camera or studio stand. Once the correct position is found, the central lever secures the moving sections together, avoiding several separate locks.
Aluminium and steel construction remains light enough for a portable rig while providing a firm support in the studio or on location.
Two ends for secure connection

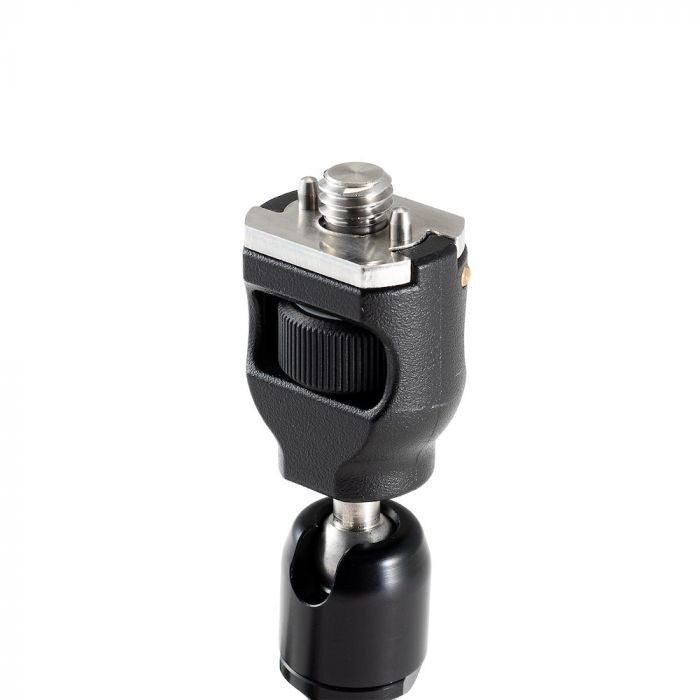

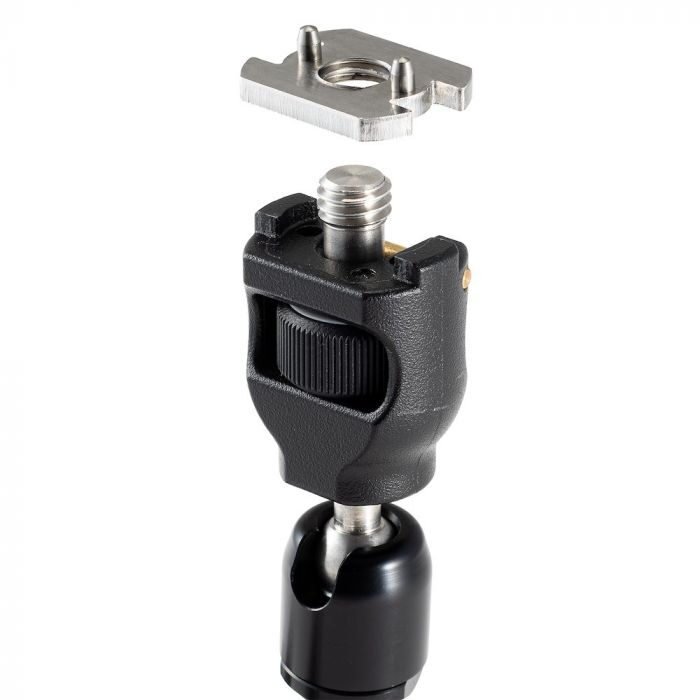

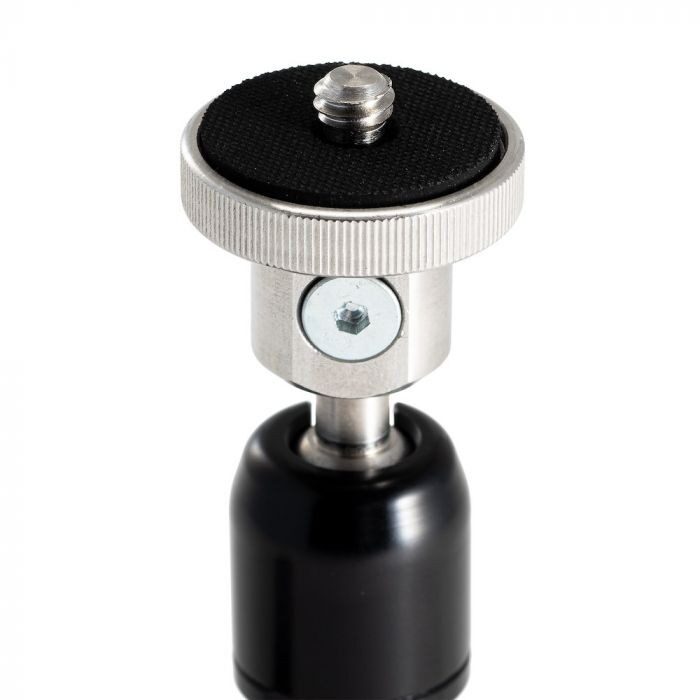

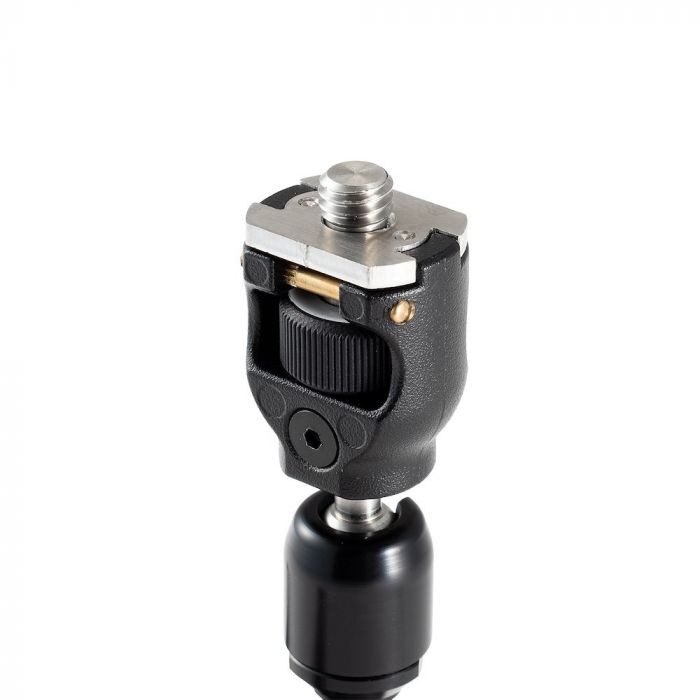

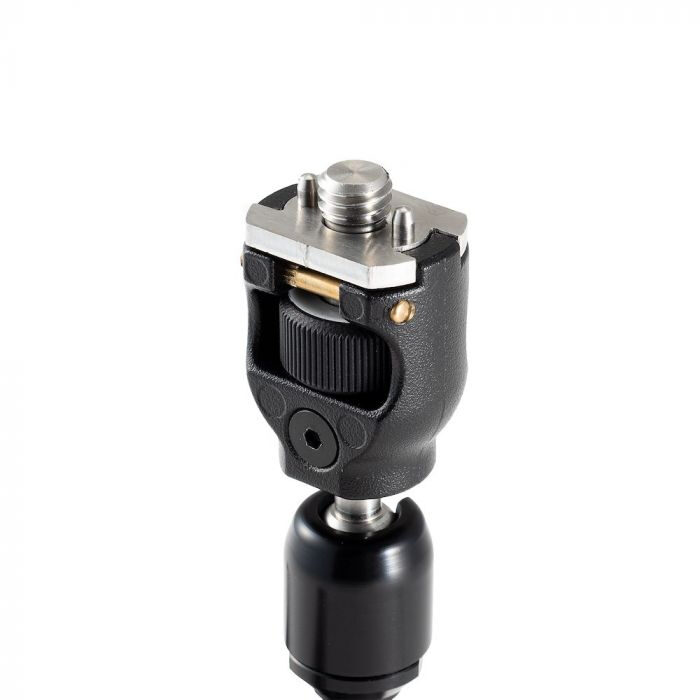

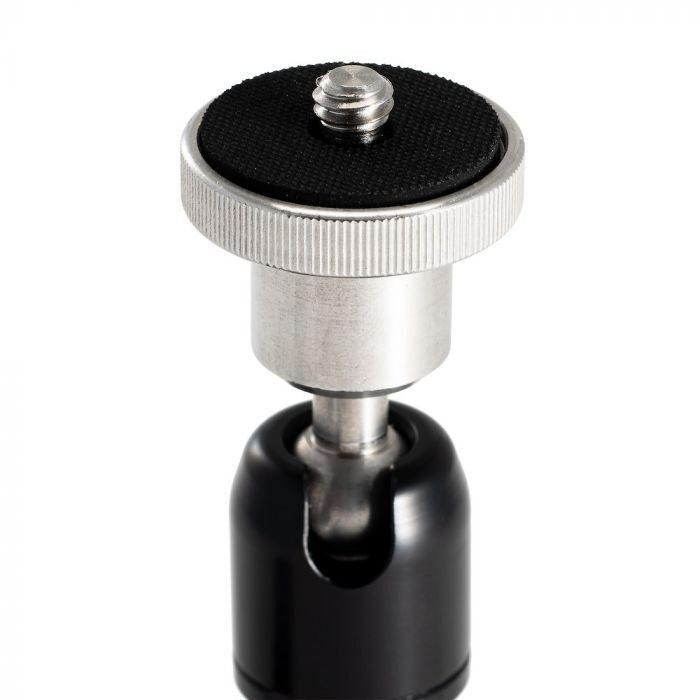

The 3/8″-16 ARRI-style adapter uses two locating pins with compatible cages, monitors and cinema accessories. The opposite 1/4″-20 Anti-Slip adapter has a rubberised contact surface that adds friction and helps keep the attached device secure.

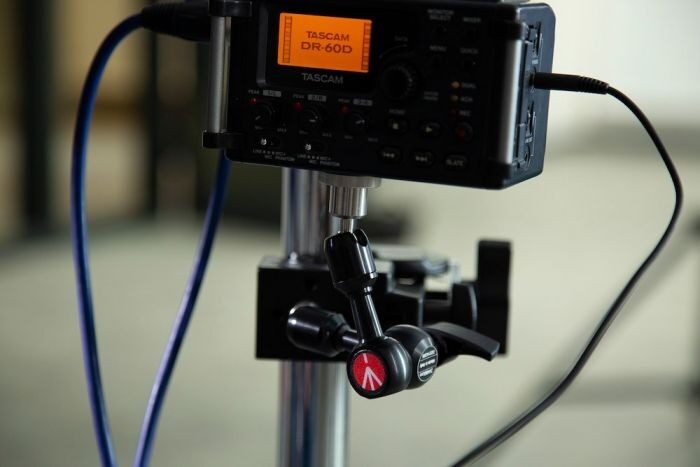

The arm can therefore connect a camera rig to a monitor, small LED light, microphone accessory, wireless receiver, gobo or scrim without adding a bulky support.
- 244 Micro Arm ×1
- 3/8″ two-pin ARRI-style anti-rotation adapter ×1
- 1/4″ Anti-Slip adapter ×1
- Mounting screw ×1
- Allen key ×1
- Model: 244MICRO-AA
- Payload: 3 kg
- Maximum length: 15 cm
- Weight: 0.25 kg
- Top attachment: 1/4″-20 male, Anti-Slip
- Bottom attachment: 3/8″-16 male, two-pin ARRI-style anti-rotation
- Mechanism: articulated arm with central lock
- Material: aluminium and steel
- Colour: black
