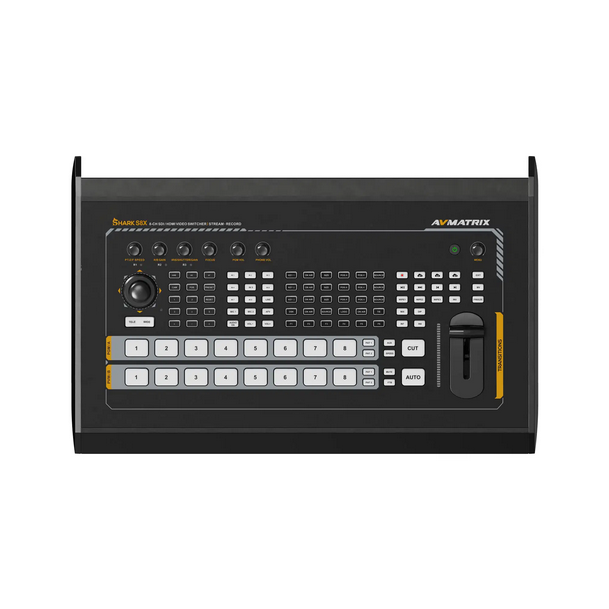

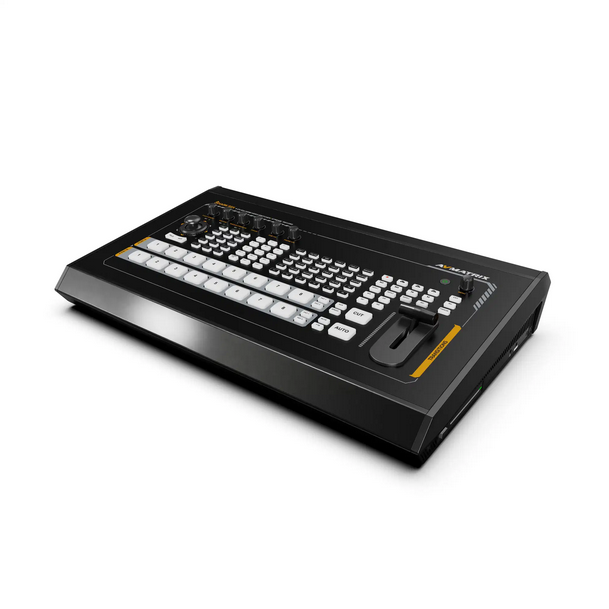

AVMATRIX Shark S8X NDI is a professional 8-channel SDI/HDMI video switcher for live production, streaming and recording. It provides 6× 3G-SDI and 2× SDI/4K HDMI, routable Multiview, professional keying, PTZ control, macros, USB-C capture with NDI support.
AVMATRIX Shark S8X NDI is a professional 8-channel SDI/HDMI video switcher for live production, streaming and recording. It provides 6× 3G-SDI and 2× SDI/4K HDMI, routable Multiview, professional keying, PTZ control, macros, USB-C capture with NDI support.
Key features
- 6× 3G-SDI and 2× SDI/4K HDMI
- 2× HDMI PGM, 4× SDI PGM/AUX, HDMI Multiview and REF
- Routing of any source to Multiview windows
- RTMP/RTMPS, SRT and RTSP streaming including NDI
- Recording and playback from USB, SD card and 2.5-inch SATA drive
- Lossless USB-C UVC capture
- Chroma Key, Luma Key, 3× PIP, POP, DSK and logo
- Professional XLR/TRS audio with 48V phantom power
- 8-channel PTZ control, macros and GPIO tally
Routable production platform
Every input can be assigned to a selected Multiview window, while HDMI and SDI outputs can be configured for PGM, clean feeds or AUX distribution.
Streaming, recording and playback

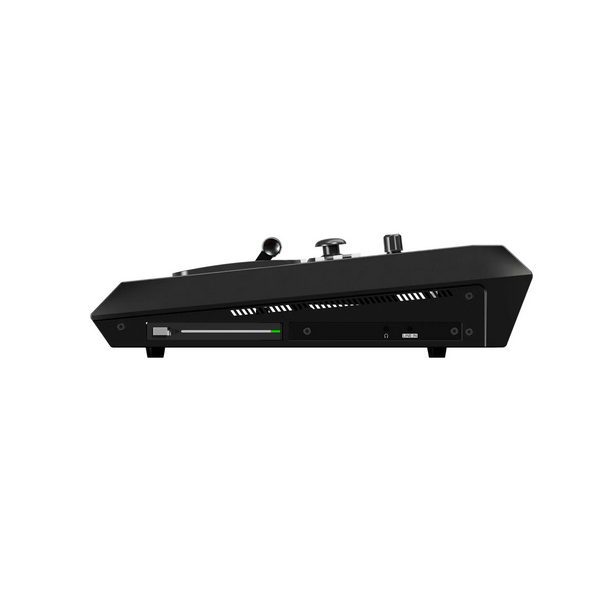

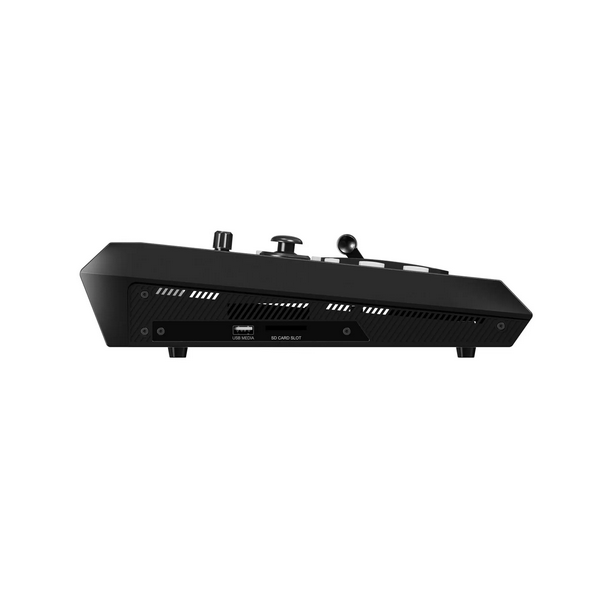

The unit streams over common professional protocols while recording to USB, SD card or an internal 2.5-inch SATA drive. USB-C provides a lossless UVC output for a computer.
Composition and graphics
Luma/Chroma Key, three PIP layers, POP, DSK and logo enable complex compositions. CUT, AUTO and T-bar transitions are complemented by programmable macros.
Audio and PTZ
Embedded audio from every video input is complemented by balanced XLR/TRS and stereo connections. 48V phantom power supports professional microphones. Integrated PTZ control operates up to 8 cameras.
- 1× AVMATRIX Shark S8X NDI
- 1× power cable/adapter
- 1× USB cable
- 1× tally connector
- 1× user manual

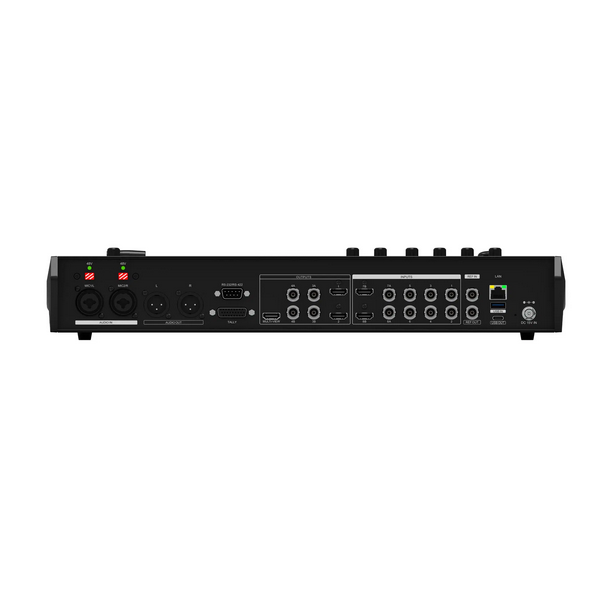

Video
- Inputs: 6× 3G-SDI and 2× SDI/4K HDMI, BNC REF and internal AUX
- Outputs: 2× HDMI PGM, 4× SDI PGM/AUX, 1× HDMI Multiview, REF
- USB: USB-C UVC capture
Streaming and media
- RTMP/RTMPS, SRT, RTSP, NDI
- USB drive, SD card and 2.5-inch SATA
Production
- Luma Key, Chroma Key, 3× PIP, POP, DSK and logo
- T-bar, AUTO, CUT and macro scripts
- 8-channel PTZ control and GPIO tally
Audio
- 8× embedded audio
- 2× balanced XLR/TRS and 3.5mm stereo input
- Balanced XLR and 3.5mm stereo output
- 48V phantom power
