The Desview S24-HDR is a professional 23.8″ UHD 4K broadcast monitor designed for live production, ENG, multicamera, and post-production workflows. Featuring HDR support, HDMI and 3G-SDI connectivity, multiview monitoring, and accurate color reproduction, it delivers reliable large-screen monitoring in studios or on location.
The Desview S24-HDR 23.8″ UHD 4K Broadcast Monitor is built to meet the demands of professional video production environments, including live broadcasting, ENG, multicamera setups, and post-production monitoring. It features a high-resolution 3840 × 2160 LCD panel with a wide 178° viewing angle, 1000:1 contrast ratio, and 400 cd/m² brightness, ensuring clear and consistent images across the screen.
Supporting HDR monitoring and 3D LUT workflows, the S24-HDR enables precise color control and accurate image evaluation. Multiple professional inputs—including four HDMI inputs, two 3G-SDI inputs, and corresponding outputs—allow seamless integration with a wide range of cameras and video sources. The monitor supports quad multiview PiP/PbP modes, making it ideal for multicamera productions.
Advanced monitoring tools such as false color, markers, aspect ratio guides, pixel view, gamma selection, and monochrome modes help operators fine-tune exposure and composition. Audio can be monitored via built-in stereo speakers or a 3.5mm headphone output. Power options include AC power, V-mount battery support, and 4-pin XLR input for flexible studio or field use. The S24-HDR includes a sunshade and a durable carrying case, making it well suited for mobile production environments.
Key Features:

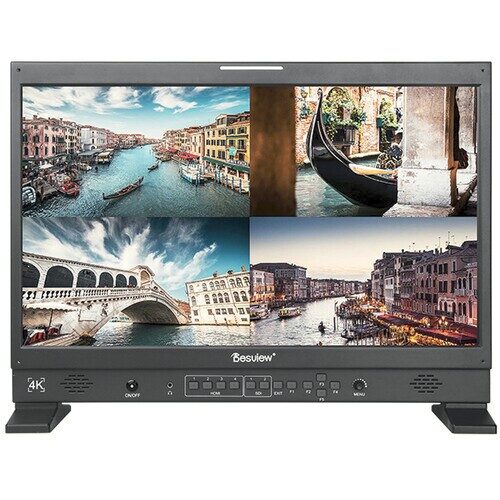

- 23.8″ UHD 4K (3840 × 2160) LCD display
- HDR monitoring with 3D LUT support
- 400 cd/m² brightness, 1000:1 contrast ratio
- Wide 178° horizontal and vertical viewing angle

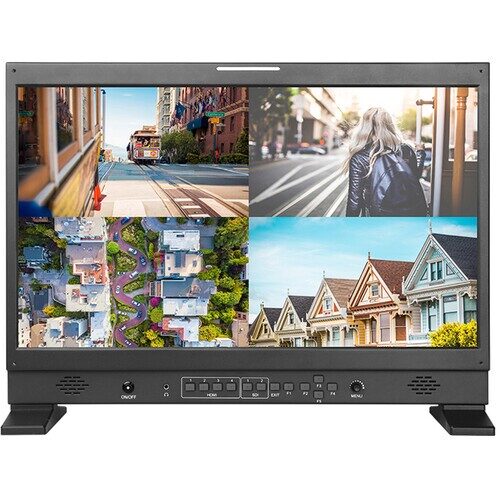

- Quad multiview PiP/PbP monitoring

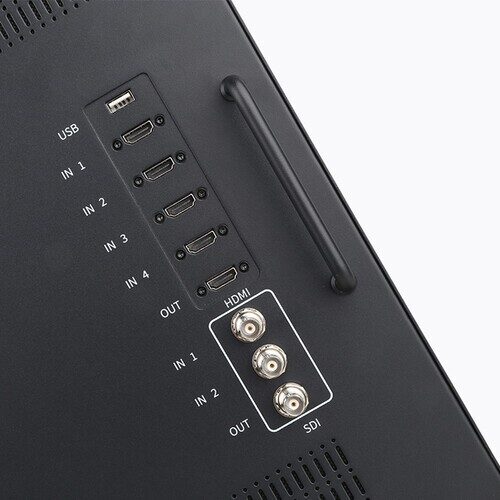

- 4 × HDMI inputs, 2 × 3G-SDI inputs
- HDMI and SDI loop outputs

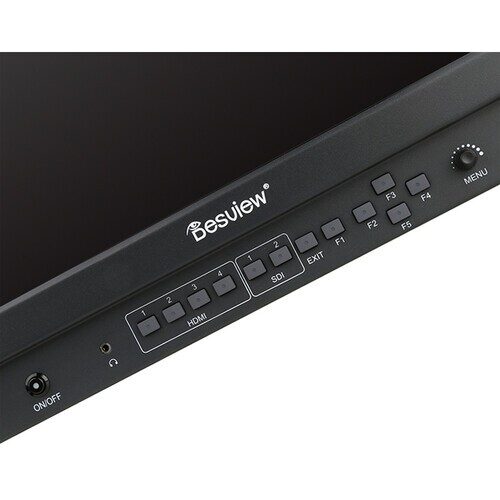

- Professional image tools: false color, markers, pixel view, gamma
- Built-in stereo speakers and headphone output

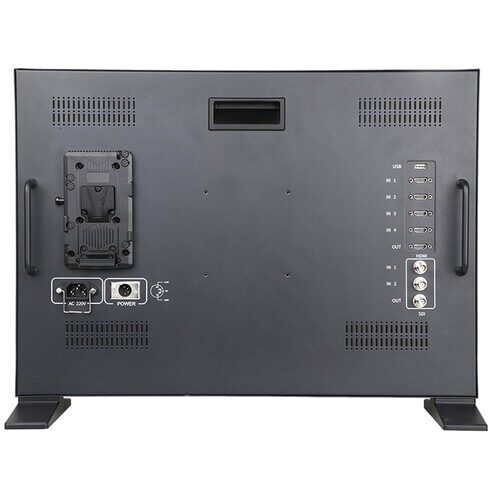

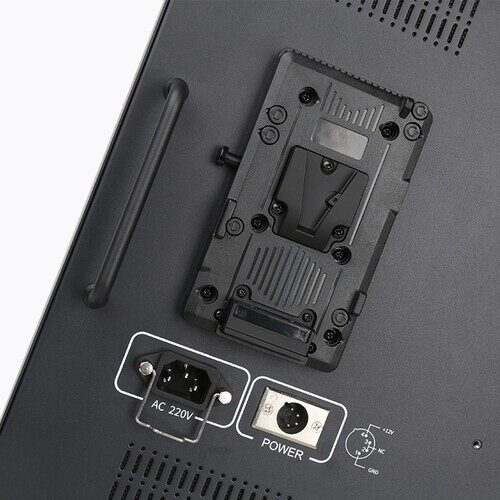

- AC, V-mount battery, and 4-pin XLR power support
- Desview S24-HDR 23.8″ Broadcast Monitor
- Sunshade
- Power Cable

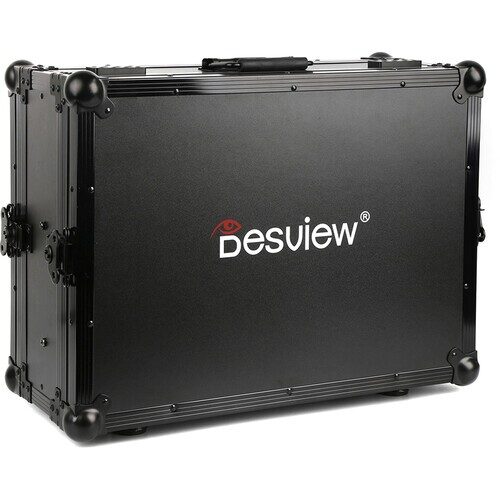

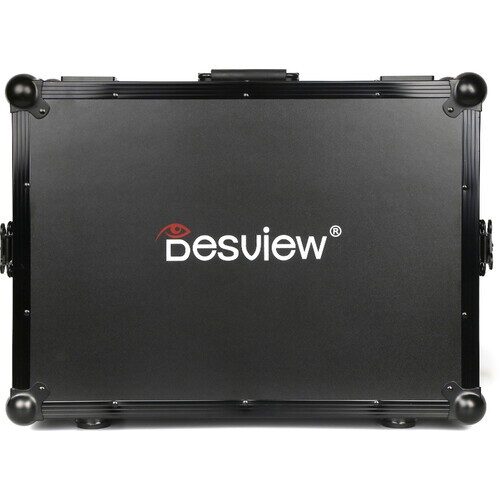

- Durable Carrying Case
- Screen Size: 23.8″ (24″)
- Resolution: 3840 × 2160 (UHD 4K)
- Aspect Ratio: 16:9
- Brightness: 400 cd/m²
- Contrast Ratio: 1000:1
- Viewing Angle: 178° (H/V)
- HDR Support: Yes
- Inputs: 4 × HDMI, 2 × 3G-SDI
- Outputs: 1 × HDMI, 1 × 3G-SDI
- Power Consumption: Up to 36 W
