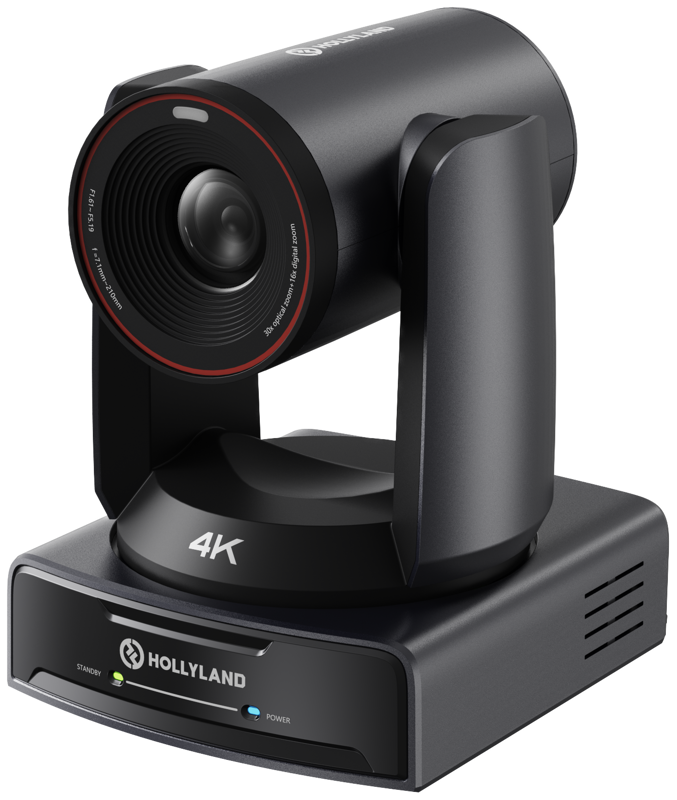

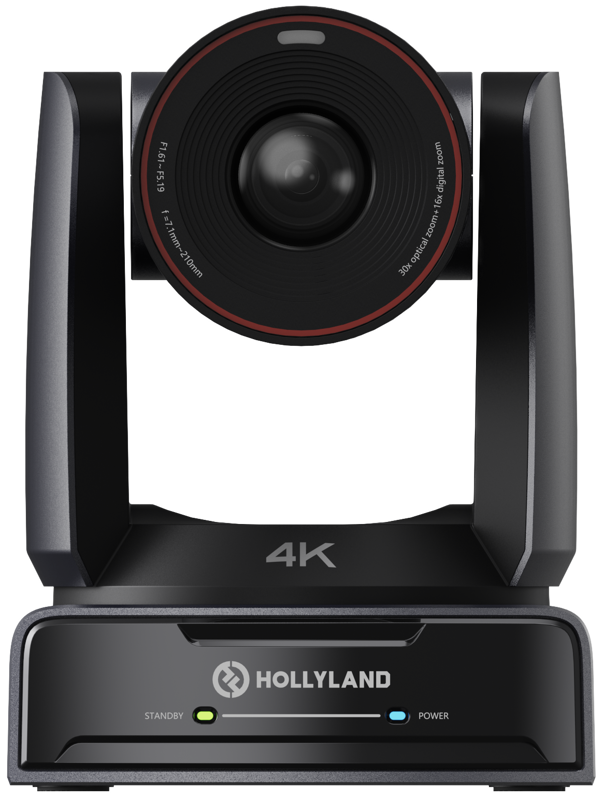

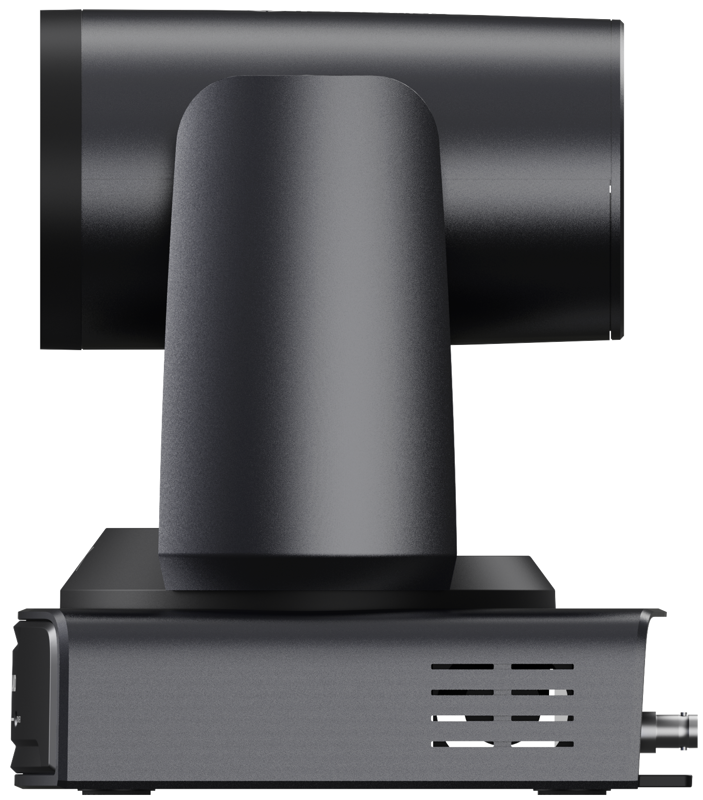

The Hollyland Astra P1 is a professional PTZ camera designed for live production, streaming, education, houses of worship, conference rooms, events, and broadcast workflows.
With UHD 4K60 output, a 1/1.8″ CMOS sensor, 30x optical zoom, AI auto tracking, Face Detection AE, and built-in NDI®|HX3 support, the Astra P1 offers high image quality and flexible remote camera operation in one compact system.
The camera features a 30x optical zoom lens with a focal range of 7.1–210 mm, making it suitable for both wide shots and detailed close-ups in larger venues. Combined with accurate PTZ movement and up to 255 preset positions, it is ideal for repeatable multi-camera setups and professional live productions.
Astra P1 includes AI auto tracking for following presenters or subjects automatically. It also supports zone tracking, allowing the camera to focus on defined areas such as a stage, podium, whiteboard, or presentation space. Face Detection AE helps keep the subject correctly exposed, even when lighting conditions change.
For professional integration, the Astra P1 offers multiple connection options, including HDMI 2.0, 3G-SDI, USB, LAN, RS232, RS485, 3.5 mm line input, and 3.5 mm line output. It supports NDI®|HX3, RTSP, RTMP(S), SRT, HTTP, TCP/IP, DHCP, and Multicast, making it easy to integrate into both traditional video systems and modern IP-based workflows.
The camera can be powered by DC 12V or PoE+, giving installers and production teams flexible setup options.
Key Features
UHD 4K60 output via HDMI 2.0
1/1.8″ CMOS sensor
8.42 megapixels, 16:9 aspect ratio
30x optical zoom, 7.1–210 mm
16x digital zoom
AI auto tracking
Zone tracking
Face Detection AE
Built-in NDI®|HX3 support
HDMI 2.0, 3G-SDI, USB, LAN, RS232 and RS485
3.5 mm line input and line output
PoE+ or DC 12V power
255 preset positions
Web browser control
5-year warranty
Specifications
Sensor: 1/1.8″ CMOS
Effective pixels: 8.42 MP
Optical zoom: 30x
Digital zoom: 16x
Focal length: 7.1–210 mm
Aperture: F1.61–F5.19
Horizontal field of view: 59.2°–2.5°
Vertical field of view: 34.6°–1.4°
Minimum illumination: 0.5 lux, F1.8, AGC ON
HDMI output: Up to 2160p60
3G-SDI output: Up to 1080p60
Pan range: ±170°
Tilt range: -30° to +90°
Preset positions: 255
Power: DC 12V or PoE+
Power consumption: 18W max
Dimensions: 169 × 188 × 226 mm
Weight: Approx. 2.3 kg

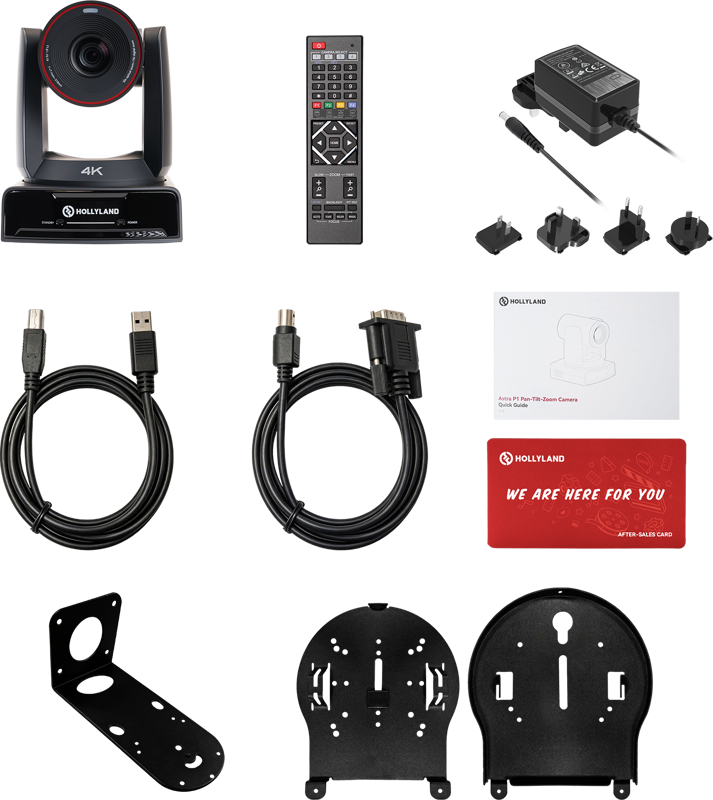

In the Box:
Hollyland Astra P1 PTZ Camera
Remote Controller
Power Adapter
USB-B to USB-A Cable
RS232 Cable
Wall Mount Bracket
Ceiling Mount Bracket
