Small in size, great in sound:
1500 mW is best-in-class AF performance

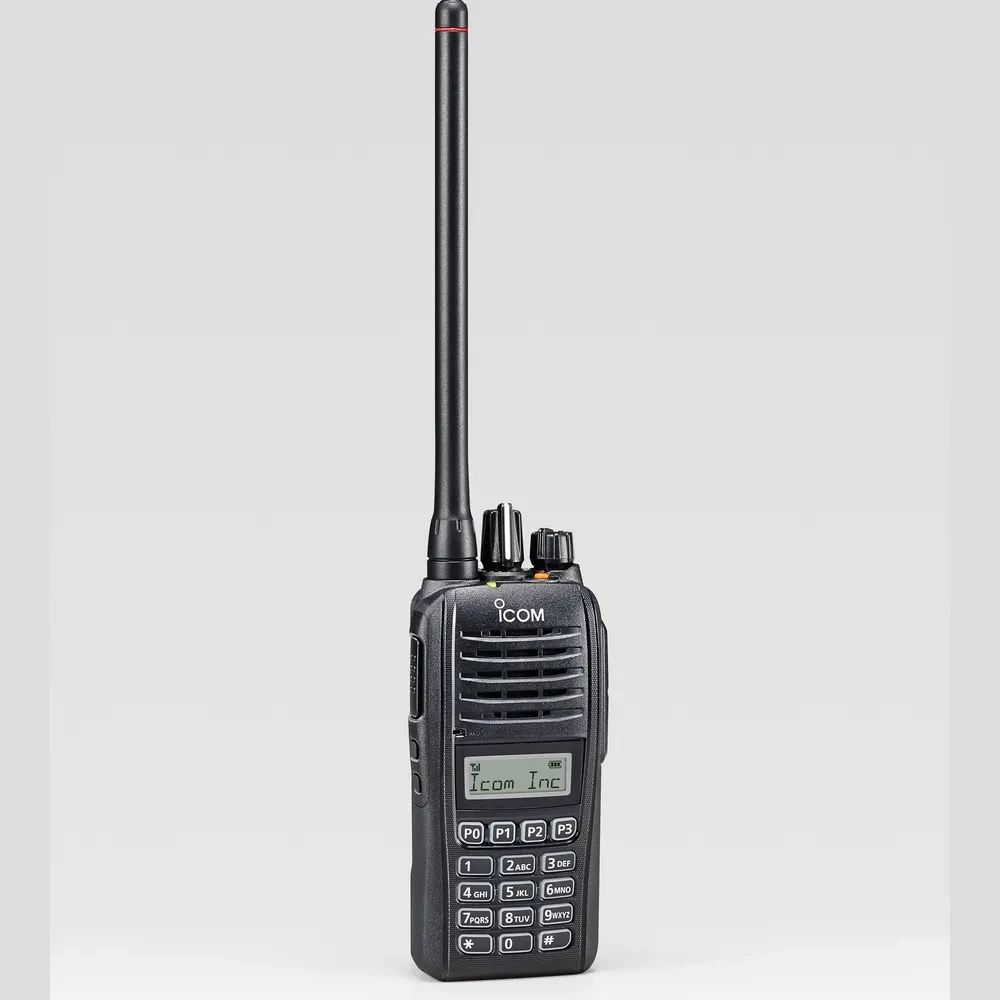

The digital handheld radios IC-F1100D and IC-F2100D IDAS™ exceed the performance parameters of the models IC-F1000D and IC-F2000D and are the new standard in digital communication. With a best-in-class audio output of 1500 mW and a speaker to match, they offer excellent intelligibility.
These handheld radios are waterproof, dustproof and equipped with a battery pack with a long service life per charge. They are available as a simple version without keyboard and display (IC-F1100D and ICF2100D), as a version with a simple keyboard and display (IC-F1100DS and ICF2100DS) and as a version with a large keypad and display (IC-F1100DT and IC-F2100DT). available.
Special features
• Icom’s special loudspeaker with 1500 mW audio output for the best possible communication
• Compact, waterproof and durable housing according to IP67/55/54 and MIL-STD-810-G
• OAA function (over-the-air alias) shows the Caller name without programming
(IC-F1100DT/DS and IC-F2100DT/DS only)
• AquaQuake™ feature removes water entering the speaker • Motion sensor
, man-down and lone worker features
• Up to 18 hours of use with the included Battery Pack BP-280
• IDAS™ digital conventional and Type-D single-site trunking
Operating modes
• NXDN conventional operation
• NXDN multi-site conventional operation over IP network
• NXDN Type-D single-site trunking operation
• Analog mode
• Analog/digital mixed mode operation
Digital (data and voice)
functions • AMBE+2™ vocoder
• OAA (over-the-air alias) function shows caller’s name without programming (display versions)
• Individual, group and all calls
• Late-entry -Function for group calls
• Status reporting and polling
• Short data reports (only for versions with display)
• Call alert
• Radio check (RX only)
• GPS position data (GPS speaker microphone HM-171GPW required)
Analog functions
• CTCSS and DTCS
• 2-tone and 5-tone signaling
• MDC PTT-ID transmission
• BIIS PTT-ID transmission
Security
• Digital voice encryption (low-level encryption)
• Analog voice encryption (voice inverter with 16 codes)
• Radio Stun/Revive/Kill (RX only)
• Remote monitor
• Emergency button
• Man-down function • Lone worker
functions
• Motion sensor • Monitoring function temporarily mutes
the beeper and LED • Power
-on password (versions with display ) Scanning Features
• Priority Scan monitors one or two priority channels while watching other channels
• Voting scan automatically selects the optimal repeater location
• Mode-dependent scan automatically changes the scan list depending on the operating
channel • Switch-on scan function
• Talk-back timer
Voice/Audio Features
• Channel announcement
• VOX capability for hands-free operation
• Security alarm siren sound
